FableKids NOA Product information sheet
2in1 High Chair & Swing
Please read the instructions carefully before use and keep for future reference.
Thank you for choosing Fable Kids.
NOA
Original User Manual –FableKids 2in1 High Chair & Swing
1. Product Overview
2. Important Safety Information
3. Product Assembly
4. How to Use the Product
5. Control Panel
6. Use of APP function
7. Maintenance and Care
8. Environmentally friendly disposal
Table of Contents
1
3
5
10
17
19
Original User Manual –FableKids 2in1 High Chair & Swing
20
21
Thank you for purchasing our product. Please read the
operating instructions carefully before using the product for the
first time. If you give the product to a third party, this manual
must be handed over with it. Keep the instruction manual for
future reference. The drawings in this manual may not match
the physical objects. Please refer to the physical objects.

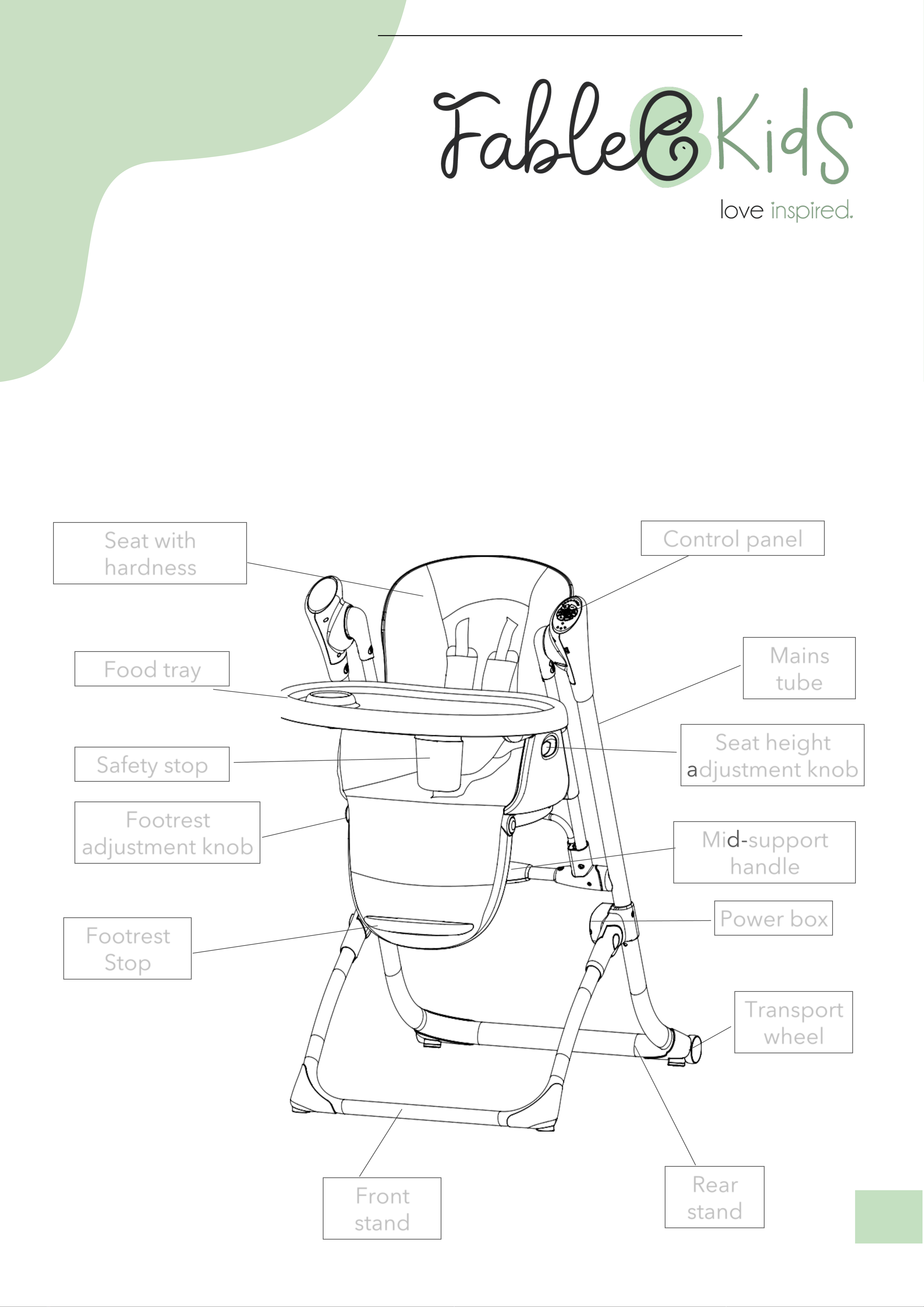

1. Product Overview
1
Food tray
Safety stop
Footrest
adjustment knob
Footrest
Stop
Control panel
Seat height
adjustment knob
Transport
wheel
Power box
Front
stand
Rear
stand
Seat with
hardness
Mains
tube
Mid-support
handle
Original User Manual –FableKids 2in1 High Chair & Swing
1. Product Overview
2
Mains Tube
1X
Assist Tube
1X
Front foot stand
1X
rear foot stand
1X
Left arm tube
1X
Right arm tube
1X
Seat with
Hardness
1X
Middle
support
Handle
1x
2in1 tray
1x
Safety stop
1x
Toy bar
1x
Footrest
1x
Adaptor
1x
Seating pad
2x
a
b
c
d
e
f
g
0
h
i
j
k
l
m
Original User Manual –FableKids 2in1 High Chair & Swing
Headrest
(swing)
1x
n
Users and guardians are advised to read the instruction manual
carefully before use and to keep it for future reference, as it may
affect the safety of the child if fail to use in accordance with the
instructions.
•Warnings for infant swing:
•Never leave the child unattended.
•Always use this product with the seat belt!
•Do not use this product once your child can sit up unaided or
weighs more than 9 kg.
•This product is not intended for prolonged periods of sleeping.
•Never use this product on an elevated surface (e.g. a table).
•Always use the restraint system.
•To avoid injury ensure that children are kept away when unfolding
and folding this product.
•Do not let children play with this product.
•Do not move or lift this product with the baby inside it.
•When the product is connected to a music player, ensure that the
volume of the music player is set to a low value.
•This product does not replace a cot or a bed. Should your child
need to sleep, then it should be placed in a suitable cot or bed.
•Do not use the product if any components are broken or missing.
•Do not use accessories or replacement parts other than those
approved by the manufacturer.
•Power adapter cable: strangulation hazard! Keep cable out of
reach of children.
WARNING
2. Important Safety Information
3
Original User Manual –FableKids 2in1 High Chair & Swing
Users and guardians are advised to read the instruction manual
carefully before use and to keep it for future reference, as it may
affect the safety of the child if fail to use in accordance with the
instructions.
•Warnings for highchair:
•Never leave the child unattended.
•Always use the restraint system.
•Falling hazard: Prevent your child from climbing on the
product.
•Do not use the product unless all components are correctly
fitted and adjusted.
•Be aware of the risk of open fires and other sources of strong
heat in the vicinity of the product.
•Be aware of the risk of tilting when your child can push its feet
against a table or any other structure.
•Do not use the product until the child can sit up unaided.
•Do not use the product if any part is broken, torn or missing.
•Keep children away when unfolding and folding the product
to avoid injury.
•The product is intended for children able to sit up unaided
and up to 3 years or a maximum weight of 15 kg.
WARNING
2. Important Safety Information
4
Original User Manual –FableKids 2in1 High Chair & Swing
IMPORTANT!
Always secure infant in the restraint
system provided!
5
3. Product Assembly
Fig.1 Connect front tubes of the base (A) to lower joint of main tubes
(A); a successful connection will be signaled with a click .
1
2
Fig.2 Connect rear stand of the base (B) to frame tubes (B); a
successful connection will be signaled with a click
Original User Manual –FableKids 2in1 High Chair & Swing
6
3. Product Assembly
3
Fig.3.
Insert the rocking chair arms (C) in the chair guides (C)
Original User Manual –FableKids 2in1 High Chair & Swing
7
3. Product Assembly
Fig.4. Connect the rocking chair interlock (D) to arm tips (D),
make sure they are fixed in position .
4
5
Fig.5. Connect left and right arm to the frame.
Pay attention to match numbers of the parts. : 1 to 1; 2 to 2.
Original User Manual –FableKids 2in1 High Chair & Swing
8
3. Product Assembly
Fig.6 To disconnect
arms from the frame,
use a thin 4-mm tool
(e.g. screwdriver),
press the interlock and
pull the arms out.
6
7
7a
use a tool of diameter about 4mm
push the quick detachable button
to disassemble
Fig.7a Assembly the safety stop and the tray, notice that the
safety stop’s shrapnel must pop.
7
7b
Fig.7b To fix the
tray, insert it in
the guide until
locked in the
handle.
Notice: Use the
high chair with
dinner plate.
Original User Manual –FableKids 2in1 High Chair & Swing
