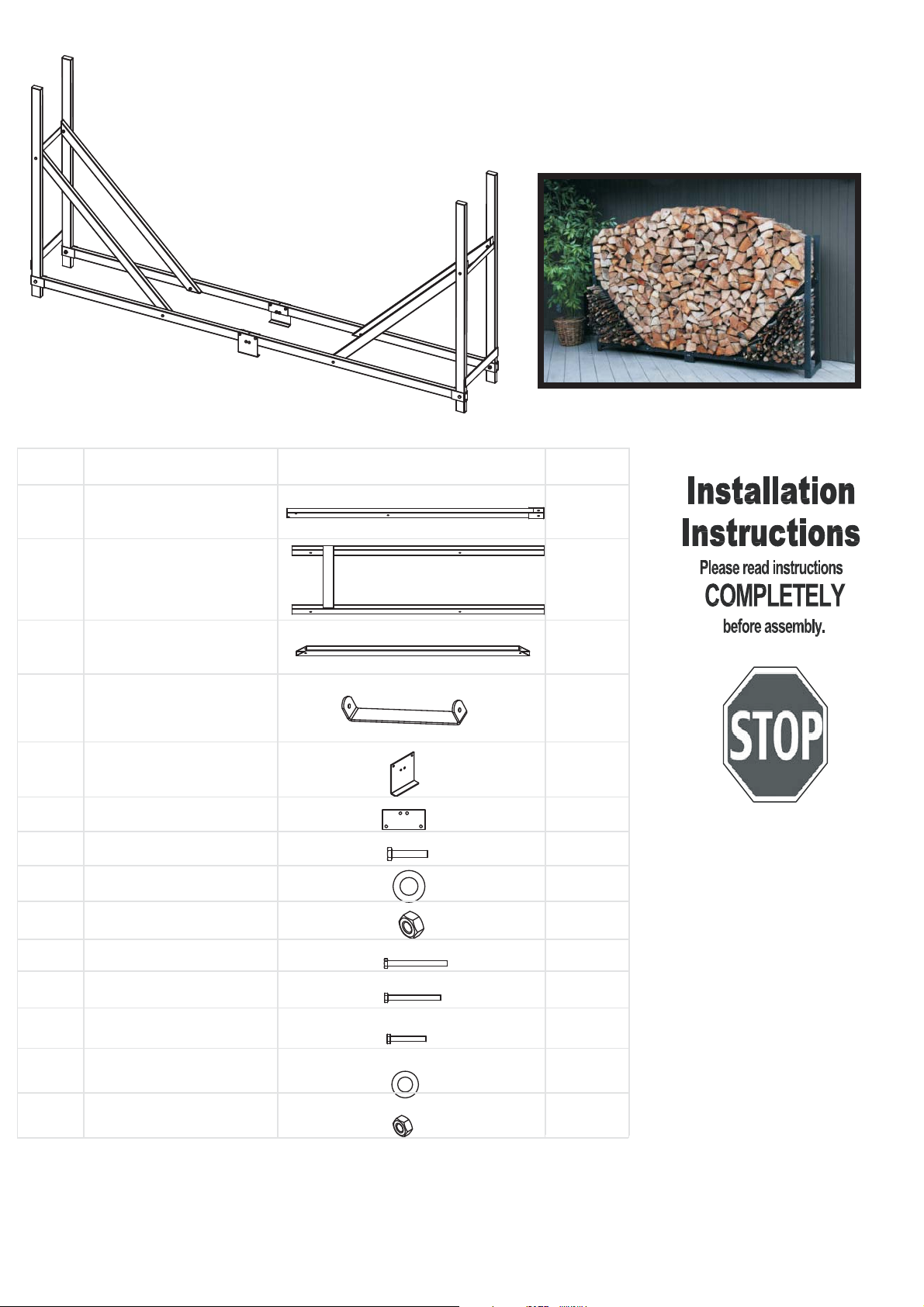

EZ Goal 23318 User manual
#23318
8’ wood Rack
Item # Description Drawings Qty
1 Bottom frame 4
2 End Frame 2
3 Slant tube 4
4Brace 2
5Bottom support
bracket 2
6 Mounting plate 2
7 Hex bolt M8x45 4
8 Washer M8 4
9 Lock nut M8 4+1
10 Hex bolt M6x65 4
11 Hex bolt M6x60 4
12 Hex bolt M6x40 8
13 Washer M6 16
14 Lock nut M6 16+1
page 1
#23318 instructions
10 10 Rev 300 1-.-
DO NOT RETURN
PRODUCT TO THE
STORE
Missing Parts,
Need Replacements or,
Help with Assembly
PLEASE EMAIL
Customer Service:
Service ezgoal net@.
203 933 4442
West Haven CT 06516,
Assembly Instructions
Figure 1
STEP 2
Connect End frame (#2) to Bottom Frame
(#1).
Lay assembly on the floor as shown in
Figure 1, Slide End Frame (#2) thru the
bracket welded at the end of Bottom frame
(#1), secure them with 2 Hex bolts (#7), 2
Washers (#8) and 2 Lock nuts (#9) for End
frame (#2).
See Figure 2 and Detail B.
Repeat this step for the other side.
STEP 1
Connect Bottom Frame (#1) together
using 2 Bottom support bracket (#5), 2
Mounting plate (#6), 8 Hex bolts (#12), 8
Washers (#13), and 8 Lock nuts (#14). See
Figure 1 and Detail A.
Detail A
Detail B
7
1
1
2
1
1
STEP 3
Connect Slant tube (#3) to End Frame (#2).
connect the bottom of Slant tube (#3) to Base
frame (#1) using 4 Hex bolts (#11), 4 Washers
(#13), and 4 Lock nuts (#14). See Detail D.
Tighten all the bolts and nuts.
Place Brace (#4) inside End Frame (#2), and
place Slant tube (#3) inside Brace (#4), Connect
them together using 4 Hex bolts (#10), 4 washers
(#13) and 4 Lock nuts (#14).See Detail C.
14
13 3
11
1
A
14
13
1
13
14
1
5
6
11
1
1
12
89987
2
1
2
B
14
4
13 10
2
3
10
2
2
3
3
C
Detail C
D
Detail D
Figure 3
Figure 4
2
2
page 2
#23318 instructions
10 10 Rev 300 1-.-
