HAE 100 4K Plus •Setup Guide

The Extron HAE 100 4K Plus is an audio de-embedder that extracts the audio from an HDMI signal, including audio from 4K sources.

The HAE 100 4K Plus provides an analog output for stereo or dual mono signals, as well as a S/PDIF digital audio output that

supports two-channel or digital multi-channel signals.

Mounting

The HAE 100 4K Plus can be placed on a desktop or tabletop using the included rubber feet, or mounted to a rack or furniture (see

the HAE 100 4K Plus User Guide, available at www.extron.com, for mounting options and instructions).

Cabling

Rear Panel Features and Cabling

SIGNAL

IN OUT

CONFIG

HDCP

AUDIO IN

2-CH LPCM

BITSTREAM

HAE 100 4K PLUS

12V

0.6A MAX

POWER

INPUT OUTPUT AUDIO OUTPUTS

S/PDIF ANALOG

BB EE

AA DD

AA BB DD

Figure 1. HAE 100 4K Plus Rear Panel

APower input — Connect the provided power supply to the 3.5 mm, 2-pole captive

screw power receptacle (see the image at right).

ATTENTION:

• Do not connect the power supply before reading the Attention in the Power

Supply section of the HAE 100 4K Plus User Guide.

• Ne branchez pas la source d’alimentation externes avant d’avoir lu les mises

en garde dans la section «PowerSupply» du HAE 100 4K Plus User Guide.

BHDMI input — Connect an HDMI input source into this female HDMI type A connector.

NOTE: By default, the EDID stored at the HDMI input is set to 1080p at 60 Hz with 2-channel audio. EDID can be

congured using Extron PCS software (see Configuration on the next page).

CHDMI output — Connect an HDMI output device into this female HDMI type A connector.

NOTE: It is not required to connect an HDMI output device to extract audio from the HDMI input signal.

DS/PDIF audio output — Connect a S/PDIF audio output device into this female RCA connector. This connector outputs digital

S/PDIF audio formats (2-channel LPCM, Dolby Digital, or DTS) that are extracted from the HDMI input signal.

EAnalog audio output — Connect an audio output device to this 5-pole, 3.5 mm captive screw connector (see figure 2 below for

connector wiring). This connector outputs 2-channel LPCM (converted to analog) that is extracted from the HDMI input signal.

Do not tin the wires!

Balanced Audio Output

Tip

Ring

Tip

Ring

Sleeves

Unbalanced Audio Output

Tip

No Ground Here

Tip

Sleeves

Figure 2. Analog Output Connector Wiring

ATTENTION:

• Connect the sleeve to the ground (Gnd) terminal. Connecting the sleeve to a negative (-) terminal will damage the

audio output circuits.

• Connectez le manchon à la terminaison terre (Gnd). Connecter le manchon à une terminaison négative (-)

endommagera les circuits de la sortie audio.

SECTION A–A

Power Supply

Output Cord

Captive Screw

Connector

Ridges

Smooth

3/16"

(5 mm) Max.

Front Panel Features and Cabling

SIGNAL

IN OUT

CONFIG

HDCP

AUDIO IN

2-CH LPCM

BITSTREAM

HAE 100 4K PLUS

12V

0.6A MAX

POWER

INPUT OUTPUT AUDIO OUTPUTS

S/PDIF ANALOG

BB EE

AA DD

AA BB DD

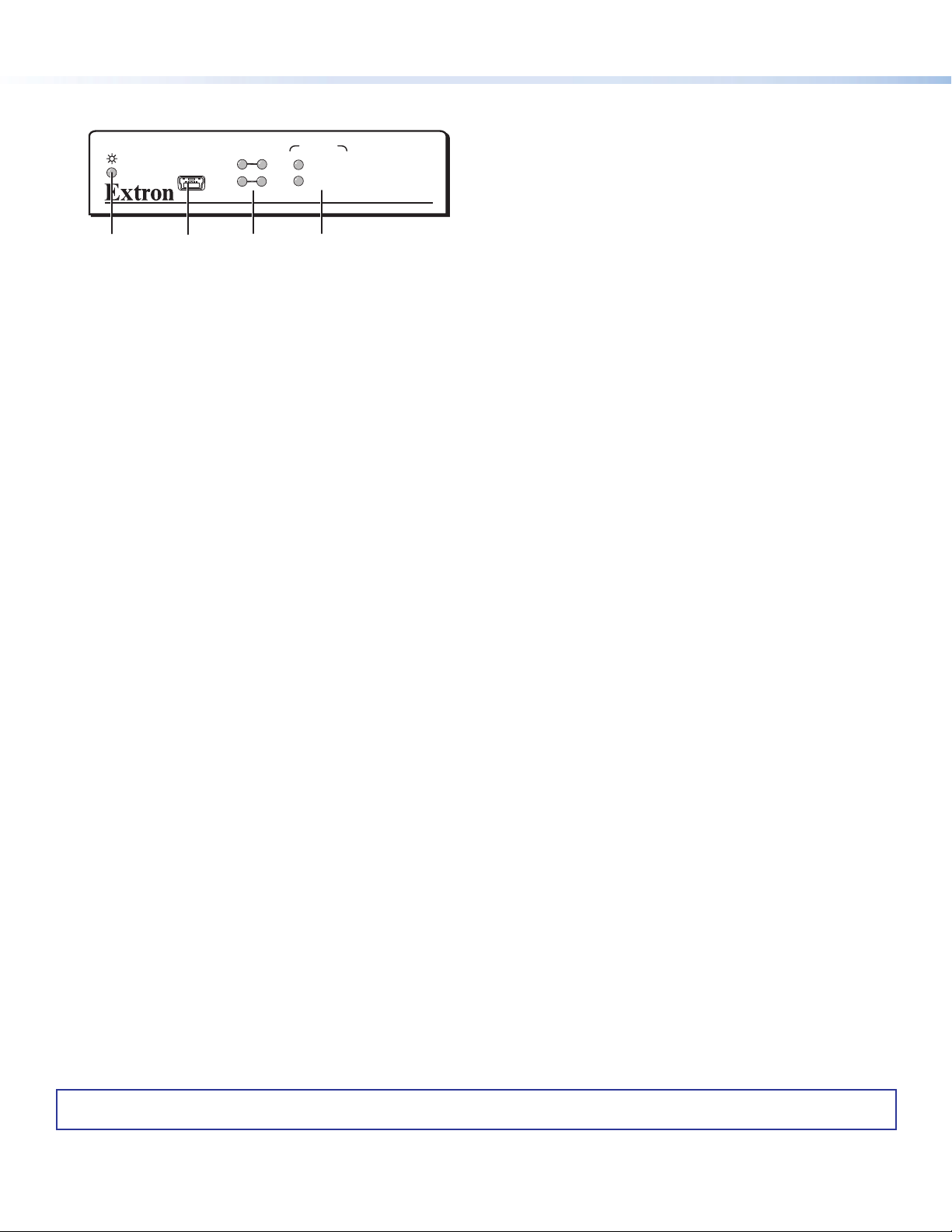

Figure 3. HAE 100 4K Plus Front Panel

APower LED — The LED indicator lights when the unit is receiving power.

BConfig port — Connect a control PC to this female Mini-B USB Cong port to update the rmware, congure various

functions of the unit, and view the current status of the unit.

CInput and Output LEDs — These four LEDs provide the status of the HDMI input and output:

• Signal — Input LED lights when the unit is receiving a signal on the HDMI input.

Output LED lights when a sink device is connected to the HDMI output.

• HDCP — Input LED lights when the input signal is HDCP encrypted.

Output LED lights when an HDCP compliant sink device is detected and the output is encrypted.

DAudio input LEDs — These two LEDs provide the status of the various audio input functions:

• 2-CH LPCM — This LED lights when the incoming embedded audio signal is a 2-channel Digital LPCM audio format.

• Bitstream — This LED lights when the incoming embedded audio signal is a Dolby Digital or DTS audio format.

Conﬁguration

Several HAE 100 4K Plus features can be congured using Extron PCS software or SIS commands:

• Extron Product Conﬁguration Software (PCS): To congure the unit using PCS, download the software from

www.extron.com (see the HAE 100 4K Plus Series User Guide for details).

• Simple Instruction Set™ (SIS) commands: SIS commands can be sent from a PC to the HAE 100 4K Plus using Extron

DataViewer or other command interface (see the “SIS Commands” section of the HAE 100 4K Plus Series User Guide).

68-3113-50

Rev. A

03 20

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.
