Extron electronics Control Panel CTL208CM User manual

Specifications — CTL208CM Control Panel

Serial control

Serial control port ........................ 1 RS-232, RS-422, or RS-485; 3.5 mm, 5 pole captive screw connector

Baud rate and protocol ............... 1200, 2400, 4800, 9600 (default), 19200, or 38400 baud; 8 data bits; 1 stop bit; no

parity (default), even parity, or odd parity; half (default)/full duplex

Pin configurations

RS-232 ................................ 3 = TX, 5 = RX, 1= GND

RS-422/RS-485 ................. 3 = TX+, 2 = TX-, 5 = RX+, 4 = RX-, 1 = GND

Program control ........................... Inline Control Software – ICS100

ASCII character command set

General

External power supply ............... 100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable; to 12 VDC, 1.0 A

regulated

Power input requirements ......... 12 VDC, 0.5 A

Temperature/humidity .............. Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount................................... No, but wall- or furniture-mountable with optional CPM connector plates

Enclosure type.............................. Metal

Enclosure dimensions

Faceplate ........................... 2.8" H x 2.2" W x 0.1" D

(7.1 cm H x 5.6 cm W x 0.3 cm D)

Device ................................ 2.8" H x 1.9" W x 1.4" D

(7.1 cm H x 4.8 cm W x 3.6 cm D)

(Depth excludes buttons.)

Product weight............................. 0.25 lbs (0.1 kg)

Shipping weight ........................... 2 lbs (1 kg)

Listings .......................................... ETL (UL1950), UL, CUL

Compliances ................................. CE, FCC Class A

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

Specifications are subject to change without notice.

(7.52-100406-D3)

1-2 CTL208CM • Specifications

Other manuals for Control Panel CTL208CM

1

Other Extron electronics Control Panel manuals

Extron electronics

Extron electronics TouchLink Pro Series User manual

Extron electronics

Extron electronics MKP 3000 User manual

Extron electronics

Extron electronics ACP VC1 D User manual

Extron electronics

Extron electronics Decorator-Style Series User manual

Extron electronics

Extron electronics RCP 101 D User manual

Extron electronics

Extron electronics MCP 1000 User manual

Extron electronics

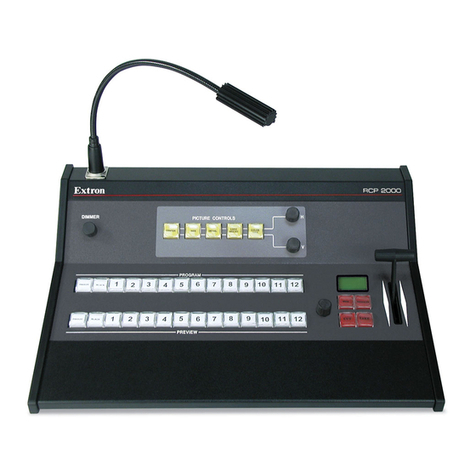

Extron electronics RCP 2000 User manual
