Extron electronics AVDA 6 MX DUAL User manual

Audio/Video

Distribution

Amplifiers

AVDA 6 MX

AVDA 6 MX DUAL

CVDA 6 MX

CVDA 6 MX DUAL

CVDA 6 MX QUAD

SADA 6 MX

SADA 6 MX DUAL

SADA 6 MX QUAD

SVDA 6 MX

SVDA 6A MX

User's Guide

07-00

68-287-01

Rev. B

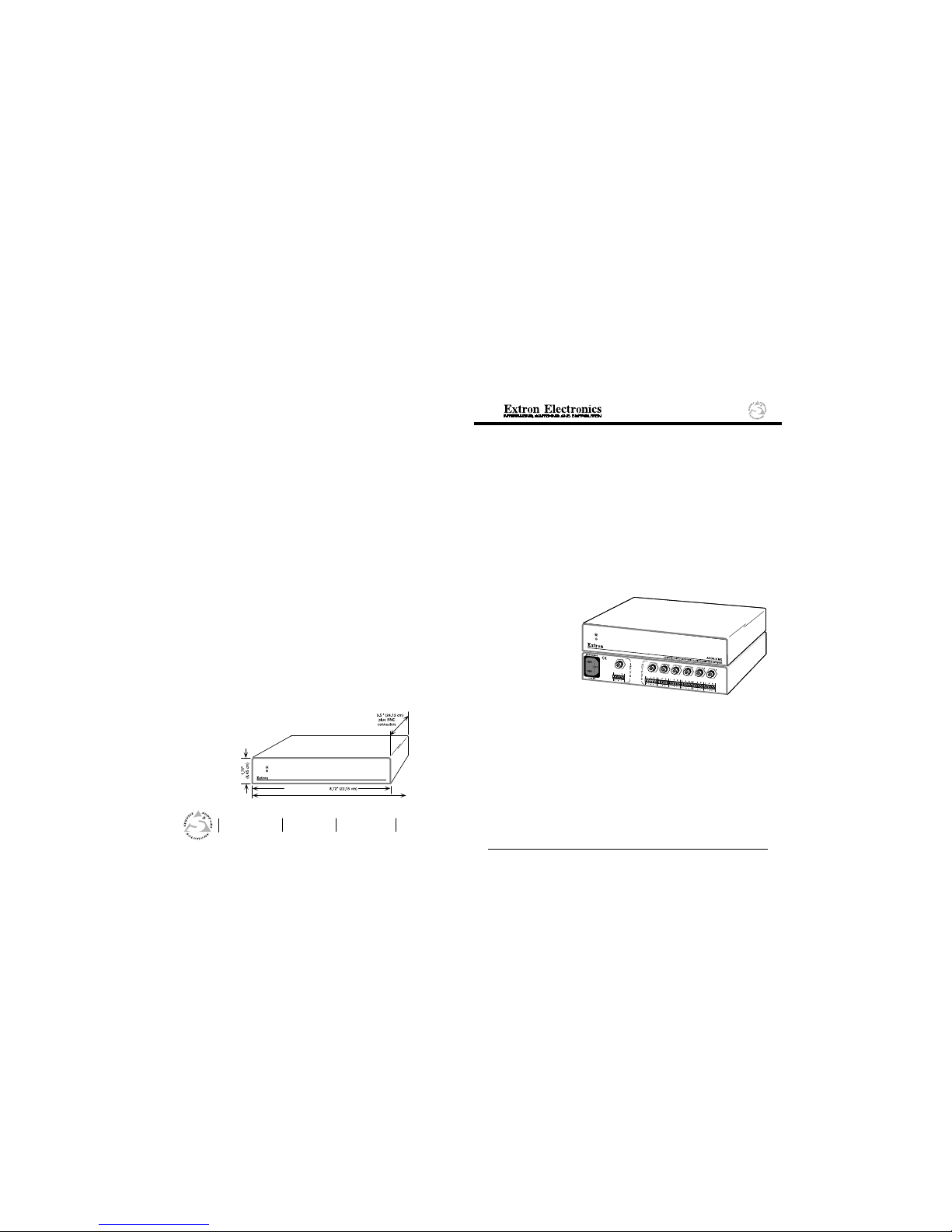

AVDA 6 M X

Full Rack Width

Case = 17.46"

(44.35cm)

COMPOSITE VIDEO AND STEREO AUDIO DISTRIBUTION AMPLIFIER

Half Rack Width Case =

Extron Electronics, USA

1230 South Lewis Street, Anaheim, CA 92805

800.633.9876 714.491.1500 FAX 714.491.1517

USA

Extron Electronics, Europe

Beeldschermweg 6C, 3821 AH Amersfoort

+31.33.453.4040 FAX +31.33.453.4050

The Netherlands

Extron Electronics, Asia

135 Joo Seng Rd. #04-01, PM Industrial Bldg.

+65.383.4400 FAX +65.383.4664

Singapore 368363

Extron Electronics Information

ExtronWEB

™

: www.extron.com

ExtronFAX

™

: 714.491.0192

24-hour access—worldwide!

Specifications

Video Distribution Amplifiers:

Nominal Video Level......1 Volt p-p

Level Range......0.5 – 2 Volts p-p

Impedance......75 Ohms

Bandwidth......30 MHz (less than ±0.5dB)

Differential Gain......<0.1%

Differential Phase......<0.1o

Audio Distribution Amplifiers:

Voltage Gain......Unity

Frequency Response......20 Hz to 20 KHz

Input Impedance......High Z

Output Impedance......50 Ohms (capable of driving 600 ohms)

All A/V DA Models:

Power Supply......100-240 Volts internal switchable 50/60 Hz

Dimensions......1.75"H x 9.5"D (4.45cm x 24.13cm D)

......Half rack width = 8.72" W (22.15cm)

......Full rack width = 17.46" W (44.35cm)

MTBF......30,000 Hours

Warranty......Two Years, parts & labor

Connectors: CVDA Models...... BNC

SVDA Model...... S-video

SADA Models......Five conductor captive screw terminals

AVDA Model......BNC & 5-conductor captive screw terminals

SVDA 6AModel...... S-video & 5-conductor captive screw terminals

Part Numbers AVDA 6 MX ......60-201-01

AVDA 6 MX DUAL......60-201-02

CVDA 6 MX......60-202-01

CVDA 6 MX DUAL......60-202-02

CVDA 6 MX QUAD......60-202-03

SADA 6 MX......60-203-01

SADA 6 MX DUAL......60-203-02

SADA 6 MX QUAD......60-203-03

SVDA 6 MX......60-204-01

SVDA 6A MX...... 60-353-01

S-VHS – BNCAdapter......26-353-01

Captive Screw Audio Connector .....10-319-10

Page 2Extron • Audio/Video Distribution Amplifiers • User's GuideExtron • Audio/Video Distribution Amplifiers • User's GuidePage 1

Operation and Installation

Left

Right

Gnd

Left

Right

Gnd

Tip

Sleeve(s)

Tip

Unbalanced Output (high impedance)

NO Sleeve here!

Left

Righ

Gnd

Tip

Balanced Input (high impedance)

Ring

Tip

Sleeve(s)

Ring

Tip

Left

Right

Gnd

Ring

Tip

Sleeve(s)

Ring

Tip

Sleeve

Sleeve Unbalanced Input (high impedance)

Left

Right

Gnd

Ring

Tip

Ring

Tip

Balanced Output (high impedance)

600 ohms

Balanced Input (600 ohms))

Left

Right

Gnd

Ring

Tip

Ring

Tip

Balanced Output (600 ohms)

Sleeve(s)

NPUTS

UTPUTS

NO Sleeve here!

Tip

Sleeve

Ring (-)

Tip (+)

Sleeve

LR23

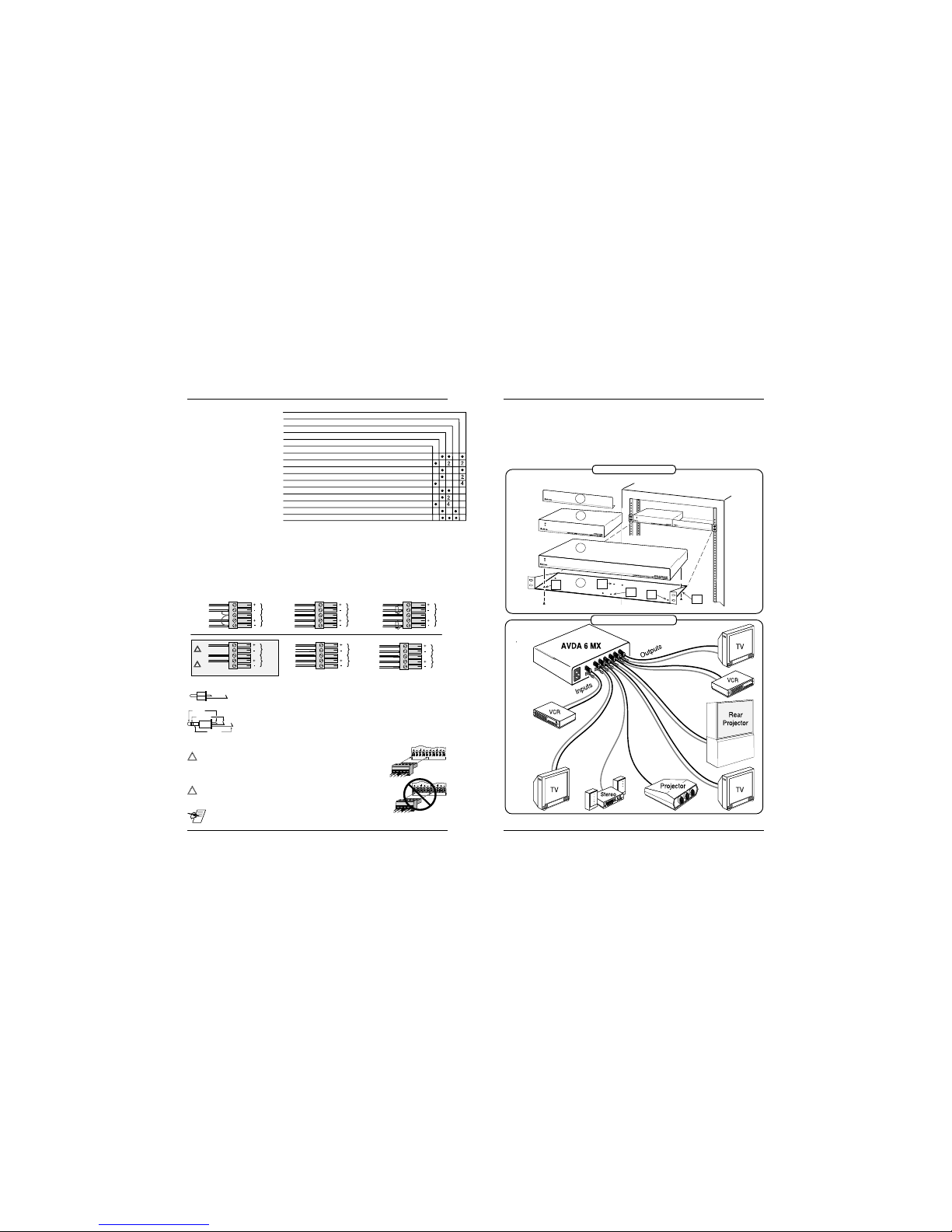

Rack-Mounting the Audio/Video Distribution Amplifier (A/V DA)

To rack-mount the A/V DA use the Rack-Mount Diagram below and do the following:

1. Remove feet from the case if previously installed.

2. Mount the A/V DA on the rack shelf (A) using two 4-40 x 1/8" screws in opposite

corners (under the shelf) to secure the case to the shelf. Use holes E1 and E2 or F1

and E3 for a half width case (C), E1 and E3 for a full width case (B). If necessary, use

filler panel D with front two screw holes (F1 and F2).

Use the Connection Diagram above as a guide for all A/V DA connections.

RACK MOUNT DIAGRAM

Operation and Installation

ONNECTION

IAGRAM

One input, six output Composite Video Distribution Amplifier

One input, six output S-Video Distribution Amplifier

One input, six output Stereo Audio Distribution Amplifier

Rack mountable in a 1U half-width enclosure

Rack mountable in a 1U full-width enclosure

AVDA 6 MX P/N 60-201-01

AVDA 6 MX DUAL P/N 60-201-02

CVDA 6 MX P/N 60-202-01

CVDA 6 MX DUAL P/N 60-202-02

CVDA 6 MX QUAD P/N 60-202-03

SADA 6 MX P/N 60-203-01

SADA 6 MX DUAL P/N 60-203-02

SADA 6 MX QUAD P/N 60-203-03

SVDA 6 MX P/N 60-204-01

SVDA 6A MX P/N 60-353-01

Models and Features

Extron's Audio/Video

Distribution Amplifier models

include two or more of the

features listed at the top of the

table to the right. A "•",

2 or 4 is used in the table to

indicate which features apply

to a particular model and how

many, if more than one. For

example, the model SVDA 6

MX DUAL has 2 - one input,

six output stereo audio

distribution amplifiers. All

models are housed in metal

enclosures and include 100-240 volt universal switchable power supplies.

Installing Captive Screw type Audio Connectors

Three methods of wiring the audio connectors for input and output are listed and shown

below. Input examples are across the top, output examples are below them.

•Unbalanced High Impedance (High Z) Stereo Tip, Ring, Ground (Left & Right)

•Balanced High Impedance (High Z) Stereo Tip, Ring (Left & Right)

•Balanced 600 ý input Impedance Stereo Tip, Ring (Left & Right)

Use the picture to the left when making connections for theAudio Distribu-

tion Amplifier from existing audio cables.The round audio connectors are

shown with the top one (tip and sleeve only) for unbalanced audio and the

bottom one (tip, ring and sleeve) for balanced audio. The "ring", "tip" and

"sleeve" markings are also used on the captive screw audio connector

diagrams above. Together, these examples may be used as a guide for

making audio cables.

___ If using the Unbalanced Output example shown above (shaded

background), connect the sleeve(s) to Ground (Gnd).

Connecting it to a negative (-) terminal will damage audio

output circuits.

___ There is no physical way to prevent you from plugging an

audio connector part in one channel and part in the adjacent

channel. This could cause damage.

_ Use captive-screw audio connectors shown here. Additional

connectors may be ordered from Extron.
