Exclusiva BlueStar 55BT M User manual
BlueStar 55BT M
BlueStar 66BT M
BlueStar
Scrubber Dryer
Technical data plate.
PLEASE NOTE:
Before use, carefully read
the instructions.
3
A
3
1
4
8
7
6
2
5
4
B
2
3
56
8
4
9
7
1
10
5
D
C
1
4 5
6
33A 3B 3C 3D
2
A
B
34
5
1
67
89
2
6
F
E
1 2
3
123
7
H
G
I
123
2
1
8
4
3
6
5
4
3
6
2
7
75
1
1
2
1
L
M
N
25
CONTENTS
1. GENERAL INFORMATION
1.1. SCOPE OF THE MANUAL
1.2. TERMINOLOGY AND SYMBOL LEGEND
1.3. PRODUCT IDENTIFICATION
1.4. SPECIFIC USE
1.5. TECHNICAL MODIFICATIONS
2. SAFETY INFORMATION
2.1. BASIC RECOMMENDATIONS
2.2. NOISE AND VIBRATIONS
3. HANDLING INFORMATION
3.1. PACKING LIFTING AND TRANSPORT
3.2. CHECKS UPON DELIVERY
3.3. UNPACKING
3.4. LIFTING AND TRANSPORT: MACHINE,
BATTERY AND BATTERY CHARGER
4. TECHNICAL INFORMATION
4.1. GENERAL DESCRIPTION
4.1.1. MACHINE
4.1.2. BATTERY
4.1.3. BATTERY CHARGER

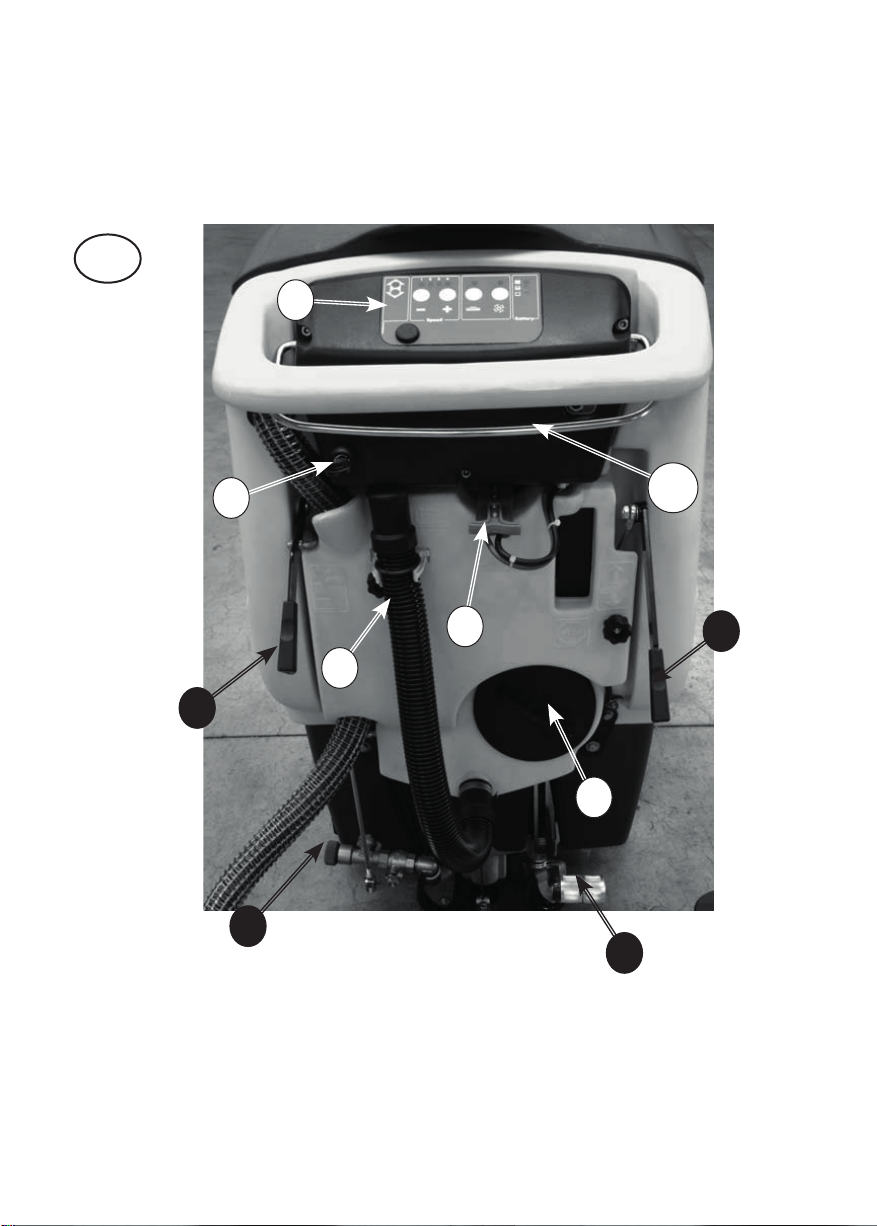

4.2. STRUCTURE AND FUNCTIONS
4.2.1. MACHINE
4.2.2. BATTERY
4.3. ACCESSORIES
5. INSTALLATION INFORMATION

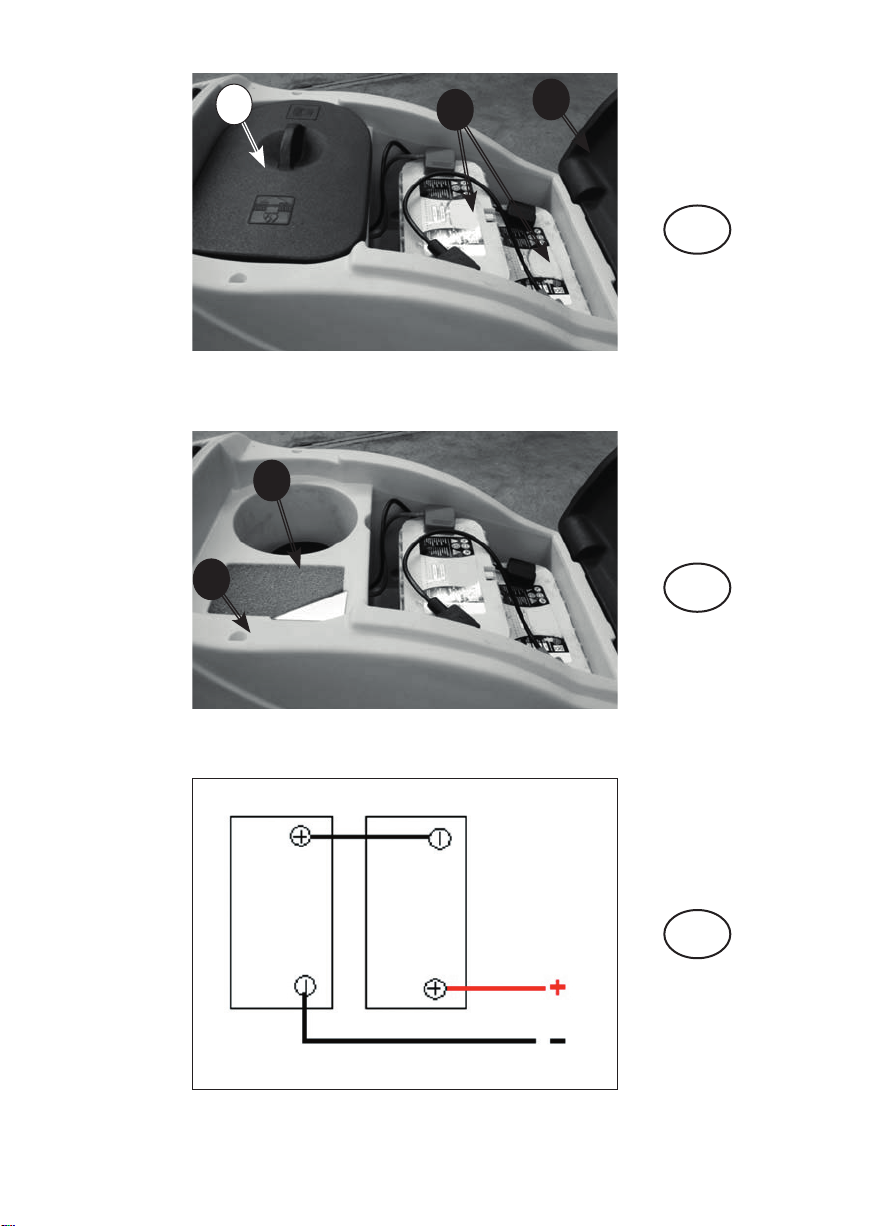

5.1. BATTERY PREPARATION
5.2. BATTERY INSTALLATION AND PREPARATION
5.2.1. CIRCUIT BOARD SETTINGS CONFIGURATION
5.3. BATTERY CHARGER CONFIGURATION
5.4. MACHINE PREPARATION
6. OPERATING INFORMATION
6.1. BATTERY CHARGING
6.2. SQUEEGEE AND SPLASH GUARD ASSEMBLY,
DISASSEMBLY AND ADJUSTMENT
6.2.1. SQUEEGEE ASSEMBLY
6.2.2. SQUEEGEE DISASSEMBLY
6.2.3. SQUEEGEE BLADES DISASSEMBLY /
ASSEMBLY
6.2.4. SQUEEGEE ADJUSTMENT
6.2.5. SPLASH GUARD ASSEMBLY/ DISASSEMBLY
6.3. BRUSH ASSEMBLY / DISASSEMBLY
6.4. FILLING AND DRAINING THE DETERGENT
SOLUTION TANK
6.5. DRAINING THE RECOVERY TANK
6.6. DRIVING THE MACHINE
6.7. WORK METHOD
6.7.1. PREPARATION AND WARNINGS

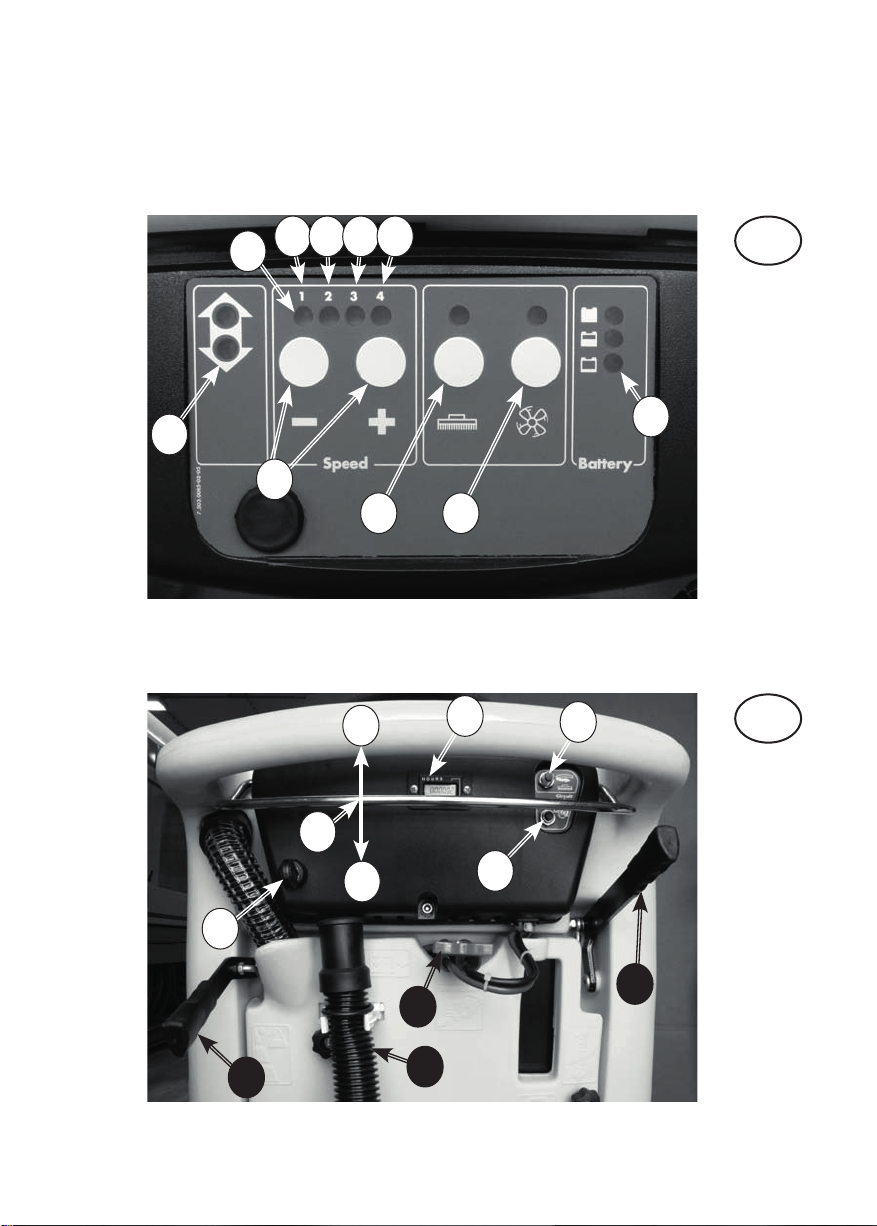

6.7.2. OPERATING CONTROLS
6.7.3. DIRECT SCRUBBING OR FOR SLIGHTLY
DIRTY SURFACES
6.7.4. INDIRECT SCRUBBING OR FOR VERY
DIRTY SURFACES
6.7.5. POSTSCRUBBING OPERATIONS
6.8. SPECIFIC INSTRUCTIONS FOR THE USE OF
POWER MAINS AC 230V MODEL
7. MAINTENANCE INFORMATIONS
7.1. TANK S
7.2. SUCTION HOSE
7.3. SQUEEGEE
7.4. ACCESSORIES
7.5. MACHINE BODY
7.6. BAT TER IES
7.7. FUSES AND THERMAL BREAKERS
7.8. PERIODIC MAINTENANCE
7.9. RECOMMENDED SPARE PARTS
8. OPERATING CHECKS
8.1. THE MACHINE DOESN’T WORK
8.2. THE MACHINE DOESN’T MOVE FORWARD
8.3. THE BRUSHES DON’T ROTATE
8.4. NOT ENOUGH OR TOO MUCH DETERGENT
8.5. NO SUCTION
8.6. THE BRUSH MOTOR OR THE SUCTION
MOTOR DOESN’T STOP
8.7. THE SQUEEGEE DOESN’T CLEAN OR DRY
EFFICIENTLY
8.8. THE BATTERY CHARGER DOESN’T WORK
8.9. THE BATTERIES DO NOT CHARGE OR DO
NOT HOLD A CHARGE
9. CONDITIONS OF WARRANTY
9.1. SCRAPPING OF THE MACHINE
9.2. DISPOSAL WEEE
26
1. GENERAL INFORMATION
1.1. SCOPE OF THE MANUAL
To make it easier to read about and look up various
subjects, refer to the table of contents at the begin-
ning of the section in your language.
This manual has been prepared by the manufacturer
and is an integral part of the product. As such, it must
be kept in a safe place for the machine’s entire service
life until demolition.
The customer must ensure that machine operators
have read or are familiar with the contents of this
manual so that they strictly follow the instructions
described herein.
Constant compliance with the instructions provided
in this manual is the only way to guarantee the best
results in terms of safety, performance, efficiency and
service life of the product you now own. Non-com-
pliance with these rules may cause injuries to people
and damage to the machine, the scrubbed surface
and the environment: in no case can such injuries or
damage be attributed to the manufacturer.
This manual refers in detail to the machine and pro-
vides instructions and descriptions only about our
batteries and battery chargers (optional).
The batteries and the battery charger are basic com-
plementary machine parts and will affect its opera-
tion in terms of running time and performances.
Only the correct combination of the two accessories
(batteries and battery charger) will ensure the hi-
ghest possible performances and avoid wasting lots
of money. For more detailed information refer to the
special battery and battery charger manuals.
Our recommended battery chargers and batteries
(optionals) ensure the best combination with the
machine and offer outstanding versatility (battery
charger) as well as the category’s highest quality and
performance standards.
1.2. TERMINOLOGY AND SYMBOL LEGEND
For the sake of clarity and to efficiently highlight the
various aspects of the instructions provided, terms
and symbols were used that are defined and illustra-
ted here below:
- Machine. This definition replaces the commercial
name to which this manual refers.
- Operator. ‘operator’ means the person or persons
given the task of installing, operating, adjusting, main-
taining, cleaning, repairing or transporting machinery.
- Technician. A technician is considered a person
who has the experience, technical education, legi-
slative and regulatory knowledge that allows him to
carry out any type of required work, and the ability to
recognise and to avoid possible risks during machine
installation, and maintenance.
☞- INDICATION SYMBOL . Particularly important in-
formation to avoid machine malfunctions.
- ATTENTION SYMBOL . Very important informa-
tion to avoid serious damage to the machine and to
the environment in which it operates.
- DANGER SYMBOL Vital information to avoid se-
rious (or extreme) consequences affecting the health
of persons and causing damage to the product and
the environment in which it operates.
Total weight (ready to operate)
Max. working range incline 2%
(Max. transporting range incline 10%)
Rated power brush drive
Rated power suction turbine
1.3. PRODUCT IDENTIFICATION
The nameplate located under the dashboard, above
the battery connector, contains the information.
1.4. SPECIFIC USE
This appliance is suited for the commercial use,
e.g. in hotels, schools, hospitals, factories, shops,
oces, and rental companies.
This machine is a floor scrubber-drier: it must be used
to scrub and to vacuum liquids of flat, rigid, horizon-
tal, smooth or moderately rough and uniform floors
that are free from obstacles in both civic and indu-
strial environments. Any other use is prohibited.
Please refer very carefully to the safety information
reported in this manual.
The scrubber-drier distributes a quantity of a water
and detergent solution (adjustable) on the surface to
be cleaned, while the brushes remove any dirt on the
ground. The machine’s suction system, using a ground
squeegee, perfectly dries the liquids and the dirt just
removed from the front brushes in a single pass.
By efficiently combining a cleaning detergent with
various types of brushes (or abrasive disks), the ma-
chine can adapt to all the various combinations of
floors and dirt.
1.5. TECHNICAL MODIFICATIONS
The manufacturer reserves the right to make techni-
cal modifications to the product, without prior notice,
in order to make the necessary technical upgrades or
improvements. For this reason, some details of your
machine may be different from the information in the
sales catalogues or from the illustrations presented in
this booklet. However, this will not reduce safety or in-
validate the information supplied to this regard.
2. SAFETY INFORMATION
2.1. BASIC RECOMMENDATIONS
☞Carefully read the “instruction manual” before
starting, using, performing unscheduled or routi-
ne maintenance or any other work on the machine.
Rigorously comply with all the instructions pro-
vided in this manual and in those for the batteries
and battery chargers (with particular attention to
warnings and danger notices).
The manufacturer will not be held responsible for in-
juries to persons or damage to property due to non-
compliance with the aforementioned instructions.
This machine must be powered only with the safety
extra-low voltage indicated on the technical data plate.
☞Before using the machine, make sure that each
part is in the correct position.
The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or in-
struction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Do not operate this machine for any other purpo-
se except for the use for which it was specifically de-
signed. Evaluate the type of building where it will be
utilised and rigorously comply with the current safety
regulations and conditions.
Do not use the machine in places without adequa-
te lighting, in explosive environments, when harmful
dirt is present (dust, gas, etc.), on roads or public pas-
sage ways and in outdoor environments in general.
The machine operating temperature range is +4°C
to + 35°C; when not being used, store the machine in
a dry and non-corrosive environment within a tem-
perature range of between + 10°C and + 50°C.
When using the machine under any condition the hu-
midity must range between 30% and 95%.
Never use or vacuum liquids, gases, dry dust,
acids and solvents (e.g. paint thinners, acetone,
etc.), even if diluted, inflammables or explosives
(e.g. petrol, fuel oil, etc.); never vacuum flaming
or incandescent objects.
Do not use the machine on slopes or ramps ste-
eper than 2%;
for small slopes, do not use the machine sideways,
always handle it with caution and never move
backwards. When transporting (10% max) the ma-
chine on steeper ramps or slopes, be very careful to
avoid tipping and/or uncontrolled accelerations.
The machine can be handled on ramps and/or steps
only with the brush head and squeegee lifted off the
ground.
Never park the machine on a slope.
☞Never leave the machine unattended with the key
in and connected; it may be left only after having
disconnected it and taken the key out and guaran-
teeing against accidental movements and, if necessa-
ry, disconnecting it from the electrical power supply.
Make sure there are no other persons, and children in
particular, in the area where the machine is being used.
Do not use the machine to transport persons/
things or to tow objects. Do not tow the machine.
☞Do not use the machine as a support surface for
any weight for any reason.
Do not block the ventilation and heat dispersion ope-
nings.
Do not remove, modify or by-pass the safety devices.
Always use individual safety devices to ensure
operator safety: aprons or safety overalls, non-slip
and waterproof shoes, rubber gloves, goggles and
earphones, and masks to protect the respiratory tract.
Before starting to work, remove necklaces, watches,
ties and other objects that may cause serious injuries.
Do not insert hands between moving parts.
☞Do not use detergents that differ from those re-
quired and follow the instructions indicated on the
relative safety sheets. Detergents should be stored in
a place that is inaccessible to children. In case of con-
tact with the eyes, rinse immediately with copious
amounts of water and, if swallowed, immediately
consult a physician.
Make sure that the battery charger power sockets are
connected to an efficient earthing system and that
they are protected by magnetothermal and differen-
tial circuit-breakers.
Follow the battery manufacturer’s instructions and
comply with legal provisions. The batteries should
always be clean and dry to avoid surface leakage cur-
rents. Protect the batteries against impurities, such as
metallic dust.
If the machine is equipped with gel batteries it is
essential to make sure the run-down indicator (loca-
ted on the panel) is adjusted correctly. Contact your
dealer or refer to the specific paragraph.
Do not place tools on top of the batteries: they
may cause a short-circuit or an explosion.
When using battery acid, rigorously respect the
relative safety instructions. In the presence of parti-
cularly strong magnetic fields, evaluate the possible
effect on electronic control devices.
Never spray water on the machine to clean it.
☞Recovered fluids contain detergents, disinfectants,
water, as well as organic and inorganic material col-
lected during work operations: dispose of them in
accordance with current legal provisions.
If the machine malfunctions and/or operates inef-
ficiently, turn it off immediately (disconnecting it
from the electric power supply or from the batteries)
and do not tamper with it.
Contact one of the manufacturer’s technical service
centres.
All maintenance or accessory replacement opera-
tions must be carried out in environments with ade-
quate lighting and only after having disconnected
27
This manual suits for next models
2
Table of contents
Popular Scrubber manuals by other brands
Numatic
Numatic TTB 4045/100 Original instructions
U.S. Products
U.S. Products PEX 500-C-TICK Information & operating instructions
Mclennan
Mclennan C510 Operator's manual
Tennant
Tennant T20 LPG Operator's manual
Columbus
Columbus ARA 66 BM 100 operating manual
Numatic
Numatic TTV 678G / 300T Owner's instructions
