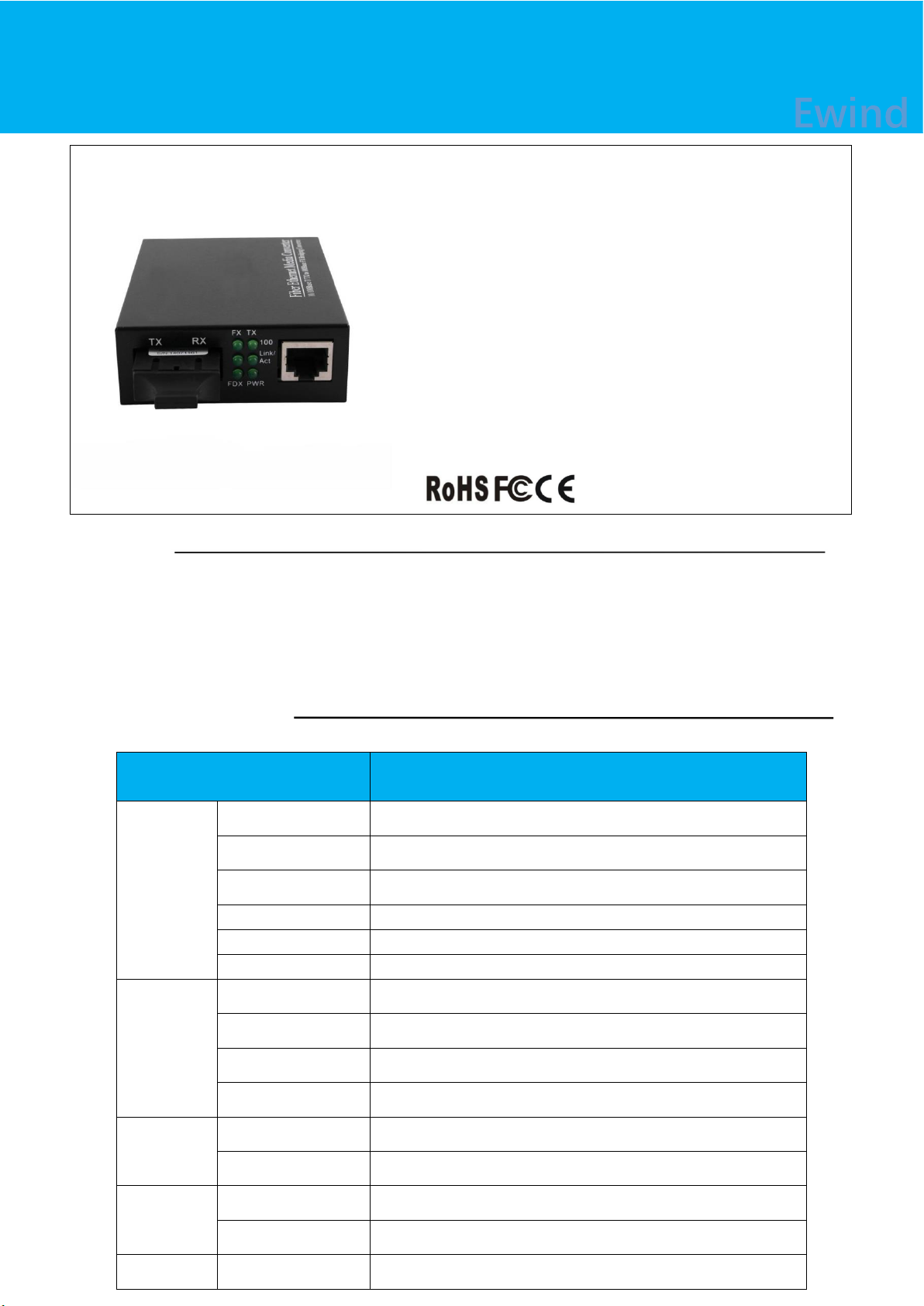

Ewind EW-610SM-20 User manual
➢Works at 10/100Mbps in Full-Duplex mode for both TX
port and FX port;
➢Supports Auto MDI/MDIX for TX port;
➢Provides switch con-gyration of Force /Auto transfer
mode for FX port;
➢FX port support hot-swappable;
➢Extends -fiber distance up to 0.55/2km for multi-
mode -fiber and 10/20/40/80/100/120km for single-
mode -fiber;
➢Easy-to-view LED indicators provide status to monitor
network activity easily;
➢1x RJ45 port and 1x fiber SC port;
➢The distance support to 20KM.
Introduction
The Transceiver converts 10/100BASE-SX/LX/LH/EX/ZX -fiber to 10/100Base-T copper media or vice versa.
It is designed for use with 850nm multi-mode/1310nm single-mode/WDM -fiber cable utilizing the SC-
Type connector, transmitting data up to 0.55 kilometers or 100 kilometers. What's more, the SFP to
Ethernet Converter can work as a standalone device (no chassis required) or with EWIND’s 19”system
chassis.
TECHNICAL SPECIFICATION
Model
EW-610SM-20
Optical
Interface
Connector
Dual Fiber SC port
Data Rate
10/100Mbps
Duplex Mode
Full duplex
Fiber
SM 9/125um
Distance
20km
Wavelength
1310nm
UTP
Interface
Connector
RJ45
Data Rate
10/100Mbps
Duplex Mode
Half/full duplex
Cable
Cat5, Cat6
Power Input
Adapter Type
DC5V
Power Built-in Type
AC100~240V
Weight
Adapter Type
0.39kg
Power Built-in Type
0.67kg
Dimensions
Adapter Type
94*70.5*26.5cm
100M Dual Fiber Media Converter
(Model: EW-610SM-20)
Ewind
www.ewindnet.com
2
EW-610SM-20
EWIND
Power Built-in Type
140.5*111*30cm
Power Consumption
＜3W
Temperature
0~50℃Operating; -40~70℃Storage
Humidity
5~95% (no condensing)
MTBF
≥10.0000h
Certification
CE,FCC,RoHS
Warranty
1 year warranty
APPLICATION
➢Extend your Ethernet connection up to 0~20km away using fiber optics;
➢Creates an economical Ethernet-fiber/copper-fiber link for connecting remote
sub-networks to larger fiber optic networks/backbones;
➢Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network
scalability for connecting two or more Ethernet network nodes;
2: CCTV Surveillance Security.
www.ewindnet.com
3
EW-610SM-20
EWIND
PACKING LIST
CONTENT
QTY
UNIT
10/100M Fiber media Converter
(EW-610SM-20)
1
SET
User Guide
1
PC
Warranty Card
1
PC
