Ewheels EW-88 User manual

EW-88

Owner’s Manual

www.ewheelsdealers.com

(888) 305-0881 Sales

(888) 571-2845 Service

Table of Contents

Page 2 - Feature Guide

Page 3 - Technical Specifications

Page 4-8 - Operation of Scooter

Page 9-10 - Charging and Battery Information

Page 10 - Ramps and Curbs

Page 11 - General

Page 11 - Use While Under Influence

Page 12-13 - Safety Requirements

Page 14-15 –Warranty

Page 16-20 –Safety Manual

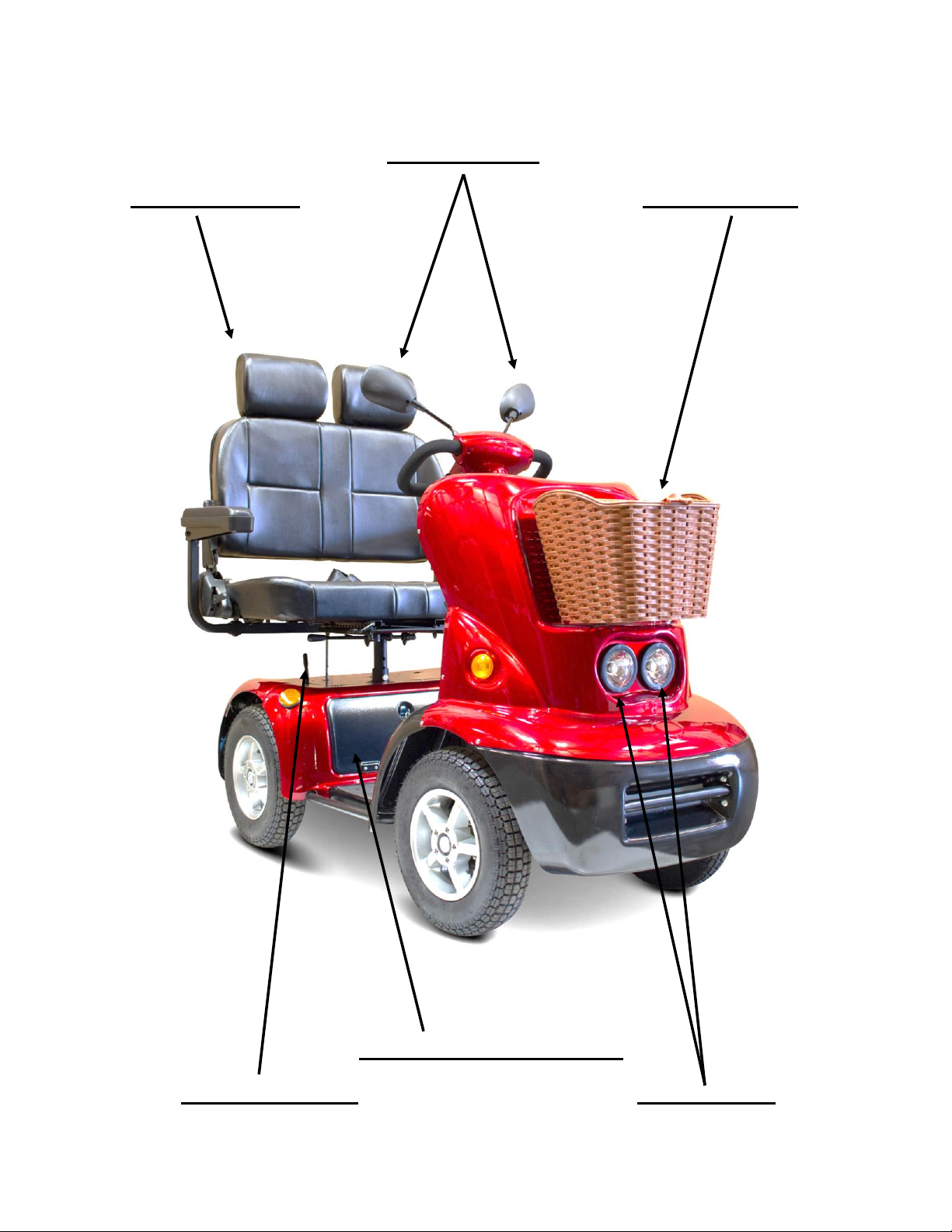

Lockable Storage Compartment

Freeroll / Drive Lever Front Headlights

Rear View Mirrors

Dual Passenger Seat Large Front Basket

Technical Specifications

Model:

EW-88

Weight Capacity:

575 LBS

Speed:

Up to 10 MPH

Distance:

Up to 37 miles per charge (distance varies on terrain, riders

weight, road surface, etc.)

Front Seat: Type:

Adjustable Comfort Seat With Headrest

Front seat: Size:

18” x 31” x 26”(LxWxH)

Turn Radius:

62”

Controller Type:

Curtis Controller

Swivel Seat:

Yes

Seat Cushion Height:

28” From Floor

Recommended Tire PSI:

32 –40 PSI

Power:

Electric 36 volts

Motor Wattage:

1200 Watts

Motor Type:

Brushless Motor

Amps:

75 AH Battery

Volts:

36 Volts

Dimensions:

61” x 37” x 53” (LxWxH)

Floor Clearance:

4.5”

Front Basket:

Large Front Basket

Batteries:

(1) 36 Volt, 75 AH, Deep Cycle, Maintenance Free, SLA

Forward/Reverse switch:

Delta Tiller Lever

LED Lighting Package:

Yes

Front tire size:

15” x 3.5”

Rear tire size:

15” x 3.5”

Charger:

36 Volt Smart Charger

Throttle Type:

Delta Tiller Lever

Climbing Angle:

12 to 15 Degrees

Braking System:

Electromagnetic

Folded Height:

37”

Headlight:

LED Headlight With High and Low Beam

Rear lights:

Yes, Running Lights

Electric Horn:

Yes

Scooter Weight:

429 LBS

Battery Indicator:

Yes

Front Suspension:

Two Front Suspension Springs

Rear Suspension:

Two Rear Suspension Springs

Reflectors:

Yes (Side)

Warranty:

3 Year Limited Warranty

Operation of Scooter

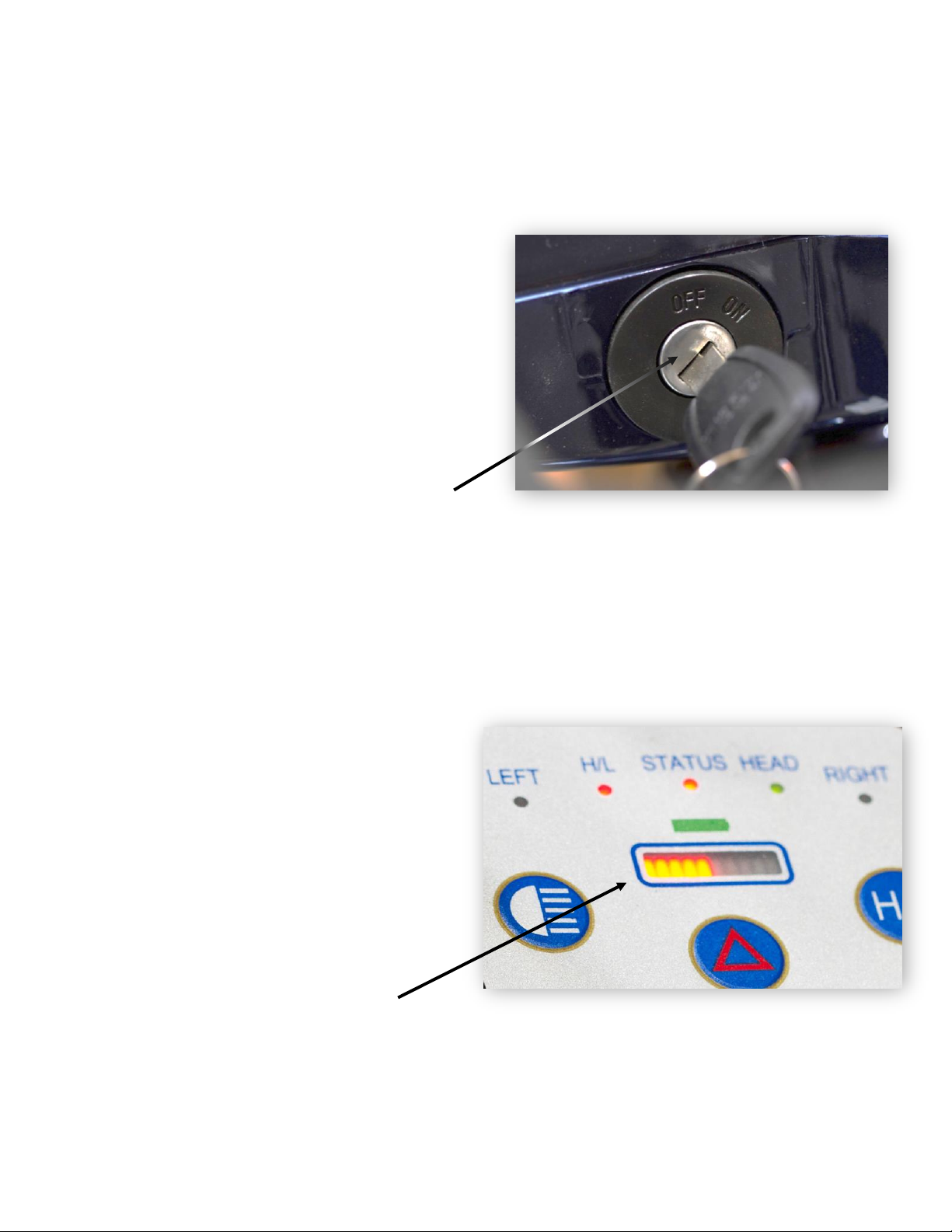

1. Turning on The Scooter

Insert key into ignition and turn

clockwise to turn the scooter on.

The battery indicator bars will

display the current charge level

when on. Turn the key counter-

clockwise to power off when

stopped.

2. Battery Power Indicator Lights

The battery power indicator

bars will light up when turned

on. The battery indicator bars

will only be displayed when

the scooter is turned on. The

bars represent the scooter’s

current charge level.

3. Tiller Controls

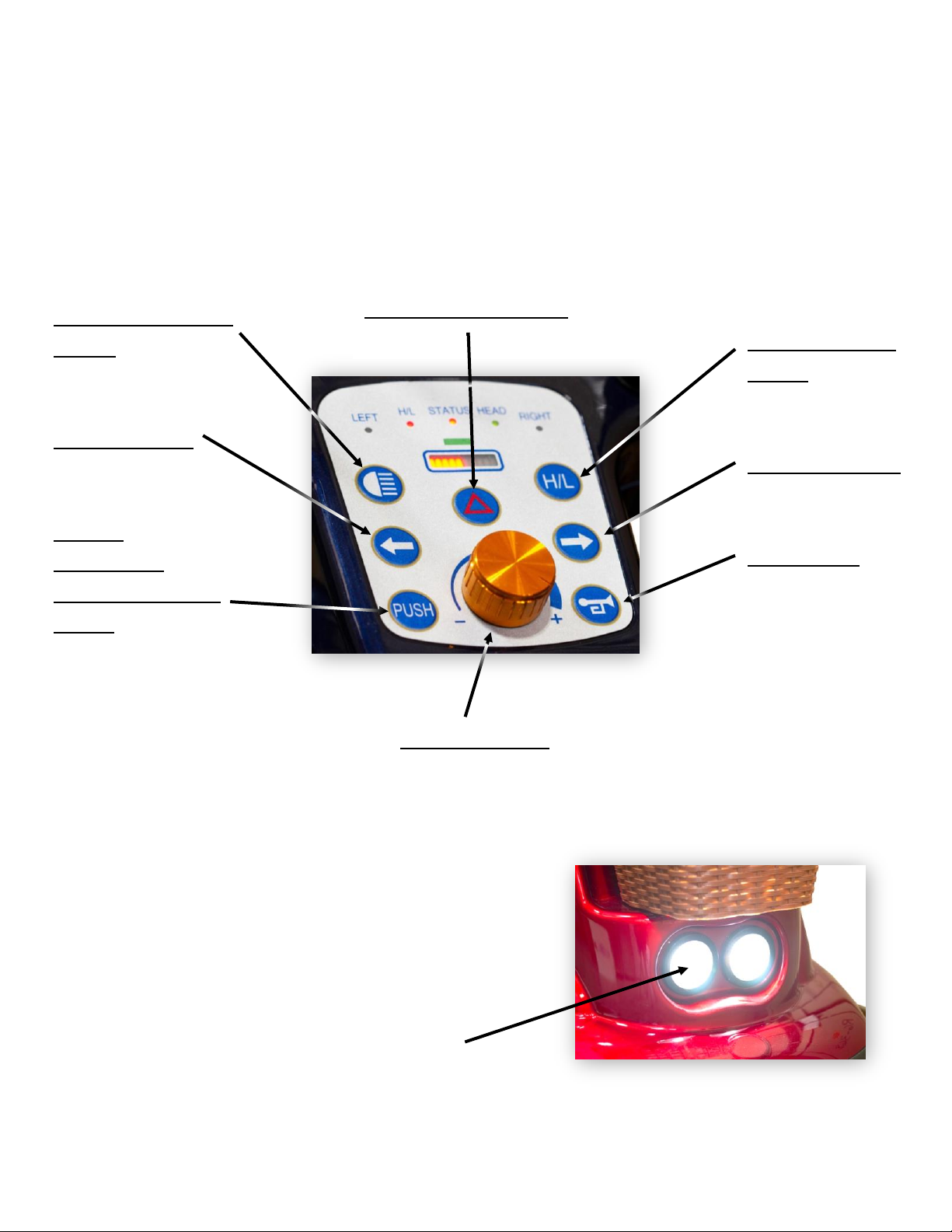

See below for all tiller functions labeled below. Status lights on the top of

the tiller will illuminate or flash when the feature is activated.

4. Headlights

The headlights are located in the front

of the scooter. Using the headlights will

slightly limit the capable mileage.

Emergency Flashers

High/Low Speed

Switch

Right Turn Signal

Horn Button

High/Low Headlight

Button

Left Turn Signal

Hold To

Temporarily

Deactivate Electric

Brakes

Twist Speed Dial

5. Electromagnetic and Free Rolling Lever

There is a lever to engage either the

electromagnetic braking system, or allows

the machine to be free rolling. Push the

lever towards the back of the scooter until

you hear a click to activate the

electromagnetic brakes. Push the handle

towards the front of the scooter until you

hear a click to allow for the machine to be

free rolling. Do not activate the free rolling

mode when on any incline or ramp or

personal injury and damage may occur.

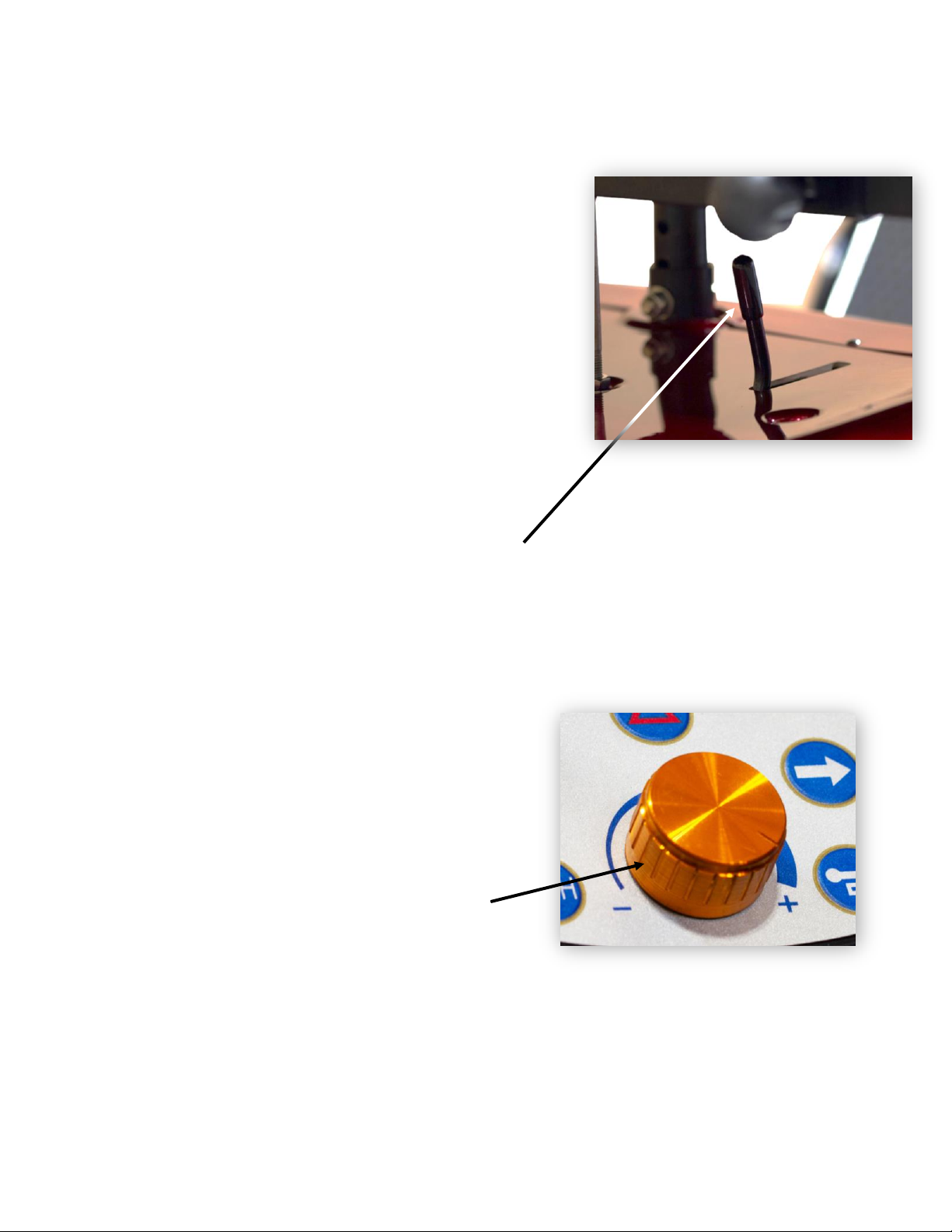

6. Twist Speed Dial

The twist speed dial controls how fast

at a maximum the machine can travel

(does not control acceleration). Adjust

the dial as needed to control how fast

at maximum the machine will travel.

Pull Towards Rider to Drive Forward Pull Towards Rider to Reverse

7. Delta Multi-Directional Variable Throttle

The forward and reverse movements are controlled by the Delta variable

throttle. To drive forward, pull the lever on the right hand-side towards

you. To drive reverse, pull the lever on the left hand-side towards you.

How fast the machine accelerates determines on how far back pull the

throttle lever is pulled.

* *

OR OR

8. Tiller Adjustment Handle

The handle to adjust the tiller is located right

below the handlebars. Push the handlebar

downwards while adjusting to the desired

position. *

Push Forwards to Reverse Push Forwards to Drive

Forward

9. Seat Adjustment Handles

There are three different seat adjustments handles. There is a handle to

swivel the seat, a handle to slide the seat forwards and backwards, and a

handle to fold or adjust the backrest.

10.Trailer Hitch Mount

There is a 1” trailer hitch on the

back of the scooter, directly

underneath the back of the seat.

Remove the cap before using.

Rider weight combined with

trailer weight should not exceed

the scooters weight capacity.

Swivel Lever

Forward/Reverse

Lever

Backrest Lever

Charging Instructions:

The smart charger included with your scooter will shut off its high current

mode when the scooter is fully charged. When the light on the charger is

orange, the scooter is still charging. When the light turns green, this means the

scooter is fully charged. Once fully charged, unplug within two hours to avoid

overcharging.

The charging time varies depending on how charged the batteries are. If almost

empty, the charge time may take up to 8 hours. If the red light stays on for

more than 8 hours, unplug the charger. Do not exceed 8 hours charge time.

Batteries and Battery Maintenance:

Only use the recommend batteries for your scooter. Do not use lithium ion

batteries. The batteries can be charged as needed without causing damage.

You can wait until low, or charge right after a short ride. Avoid leaving on the

charger for an extended period to avoid potential damage.

Specification of the battery that we recommend:

Type: (1) 36 volt, 75 AH, Deep Cycle, Maintenance Free, Sealed Lead Acid
