Evo VentCore 10-0800-VCMV User manual
R
Evo® VentCoreTM with
NIECO MV74E Chain Broiler
Operator Manual
Indoor Use Only
Recirculating Ventilation Cooking Equipment
E470119
YOUR EVO VENTCORE RECIRCULATING VENTILATION SYSTEM
IS EQUIPPED WITH AN AUTOMATIC & MANUAL ACTUATED
FIRE SUPPRESSION SYSTEM.
FAILURE TO COMMISSION AND ACTIVATE THE FIRE
SUPPRESSION SYSTEM BY AN “AUTHORIZED ANSUL FIRE
EQUIPMENT DEALER” MAY RESULT IN SYSTEM FAILURE,
INJURY, OR DEATH.
WARNING
R
Evo®VentCoreTM
3
CONTENTS
SAFETY WARNINGS 4
LIMITED WARRANTY 5-6
INTRODUCTION
The VentCoreTM Recirculating Ventilation System with Nieco Broiler 6
EQUIPMENT FEATURES
Know Your VentCoreTM and Nieco Broiler Cooking Station 7
CONTROL PANEL
Home Screen 8
Ventilation Startup Screen 9
Ventilation Startup Interlocks Are Proven 10
Ventilation Startup Interlocks Are Faulted - Duct Cold 11
Ventilation Startup Interlocks Are Faulted - Duct Hot 12
Ventilation Startup Interlock Faulted - Warning 13
Ventilation Startup Interlock Faulted - Warning Instruction 14
Ansul Fire System Trigger 15
Power OffTemperature Warning 16
Over Temperature Power OffWarning 17
System Status - Filters and Fire System 18
System Status - Filters Screen 19
System Status - Filters Screen Reset 20
System Status - Filters UV-C Notification 21
System Status - Filters Final Filter-1 Notification 22
VENTILATION COMPONENTS
Chassis - Chef Side 23
Chassis - Back Side 24
Chassis - Right Side 25
Chassis - Left Side 26
Chassis - Top Side 27
MAINTENANCE
Special Cleaning - Continuous Use - Part 1 & 2 28-29
Daily Cleaning - Intermittent Use - Part 1 & 2 30-31
Weekly Cleaning - Part 1 & 2 32-33
Cleaning - Grease Baffle Filters 34
Cleaning - Grease Baffle Filters Removal 35-38
Cleaning - Cyclonic Filter Components 39-42
Cleaning - Cyclonic Filter Vortex Tube 43
Cleaning - Cyclonic Filter Canister 44-45
Cleaning - Prefilters 1,2 & 3 46
Cleaning - ESP Filter Cells 1 & 2 47
TROUBLESHOOTING ISSUES
On/OffButton Will Not Respond 48
The Fan Starts Then Stops After 5-10 Seconds 48
The Fan Starts Then Stops When The Broiler Is Cooking 48
APPENDIX 1-7
#1 REQUIRED VENTCORE SYSTEM MAINTENANCE SCHEDULE 49
#2 FILTER AND SURFACE CLEANING MAINTENANCE SCHEDULE 50
Repair Service Provided By Evo America, LLC
Please call 866-626-1802
Monday - Friday 8am-6pm pst
THE INFORMATION IN THIS OPERATOR MANUAL
IS SUBJECT TO CHANGE WITHOUT NOTICE.
R
Evo®VentCoreTM
4
FOR YOUR SAFETY - Storing Flammable Materials
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
WARNING - Do Not Misuse Equipment
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY, OR
DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE POSITIONING, INSTALLING,
MAINTAINING OR SERVICING THIS EQUIPMENT.
PLEASE READ ALL SECTIONS OF THIS MANUAL AND RETAIN FOR FUTURE REFERENCE.
THE UNIT WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED AND COMPLY WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL
CODES, WITH THE NATIONAL ELECTRICAL CODE.
Users are cautioned that maintenance and repairs must be performed by an Evo America, LLC Authorized Service Agent using genuine
Evo America, LLC Replacement parts. Evo America, LLC will have no obligation with respect to any product that has been improperly
installed, adjusted, operated or maintained in accordance with national and local codes or installation instructions provided with the
product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using
unauthorized parts or by unauthorized service agents. The information contained herein, (including design and parts specifications), may
be superseded and is subject to change without notice.
• This unit must be operated by a qualified person.
• DO NOT operate without reading this manual.
• DO NOT attempt to repair or replace any part of this appliance unless all main power supplies have been disconnected.
• DO NOT clean this appliance unless the power supply is disconnected.
• USE EXTREME CAUTION in setting up, operating and cleaning this appliance to avoid coming in contact with hot surfaces (including
parts). Wear suitable protective clothing or use proper utensils to prevent the risk of burns.
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
All containers must be examined for damage before and during unloading. The freight carrier has assumed responsibility for its safe transit
and delivery. If equipment is received damaged, either apparent or concealed, a claim must be made with the delivering freight carrier.
SAFETY WARNINGS
R
Evo®VentCoreTM
5
LIMITED WARRANTY
Evo America, LLC. warrants to the original commercial foodservice purchaser that the Evo VentCoreTM recirculating ventilation system will be free from defects in
material and workmanship for a period of one (1) year from the original installation date, or 90 days after shipment, whichever is earlier. Evo’s obligation under this
warranty shall be limited to replacing or repairing, at its option, any part found to be defective within the specified warranty period. Any labor expense or part failure
incurred after the warranty period will be the responsibility of the end user. This warranty is non-transferable and applies only to the original purchaser/owner to whom
the Evo VentCoreTM was delivered. Any such transfer shall void the warranty.
The end-user purchasing an Evo product to which this warranty applies is urged to register their product online at https://www.evoamerica.com/ventcore-care/.
Upon registration, the warranty period will commence as provided above.
The VentCore includes five (5) filters that must be monitored and cleaned regularly to prevent grease infiltration that will impede the efficient operation of the unit
and may cause damage to components. Cleaning and maintenance instructions are included in the VentCoreTM Operators Manual and Evo Startup and training.
Service calls and/or part replacement resulting from lack of maintenance will not be covered under this warranty.
THIS WARRANTY DOES NOT COVER
THIS WARRANTY DOES NOT COVER
1. Damage, part failure or performance issues resulting from lack of regular filter cleaning and maintenance as detailed in the VentCoreTM Operator Manual, and Evo
provided training. Cost of repair calls scheduled by Evo during the warranty period and found to be resulting from lack of filter maintenance will be charged to the end
user.
2. Any defect or cosmetic damage to the chassis cabinetry or any removable internal ventilation access doors due to or resulting from ordinary wear and tear, handling,
abuse, misuse or during installation.
3. Any damage resulting from voltage conditions, blown fuses, open circuit breakers or any other damage due to the inadequacy or interruption of electrical service.
4. Any unit from which the serial number has been removed or altered, or modifications made by unauthorized service personnel.
5. Damages as a result of floods, winds, fires, lightning, accidents, corrosive environment, improper installation or installation not in accordance with local electrical
codes.
IMPORTANT: THE DISCHARGE OF THE FIRE SUPPRESSION SYSTEM IS LIKELY TO DAMAGE THE VENTCORETM UNIT. THIS WARRANTY IS NO LONGER
VALID AFTER THE FIRE SUPPRESSION SYSTEM IS DISCHARGED. NOTIFY EVO IF THE FIRE SYSTEM IS DISCHARGED FOR PROPER CLEANUP
PROCEDURE AND/OR REPAIR SCHEDULING.
Evo America, LLC, or its suppliers, shall not be liable, directly or indirectly, under any circumstances for consequential or incidental damages, including, but not limited
to: (i) any loss of business or profits; and (ii) labor, material or other charges, claims losses or damages incurred or suffered from, in connection with or in consequence
of the working upon, alteration, or repair of any such defective products or parts by persons or firms other than contracted directly by Evo.
Evo will contact the site to obtain details and ask diagnostic questions, and Evo will schedule an authorized warranty service provider.
If necessary, Evo will send the required parts directly to the customer location to hold for a technician.
Commercial Limited Warranty For The VentCoreTM System
R
Evo®VentCoreTM
6
The team at Evo America and Nieco have collaborated to
develop the world’s first recirculating ventilation system for an
electric chain broiler.
Conceived and designed from the ground up, the Evo
VentCoreTM is a new generation of recirculating ventilation
equipment that incorporates an advanced filtration system that
obliterates grease and odors for a cleaner and fresher kitchen
environment.
The VentCoreTM is integrally attached to a Nieco MV74E electric
chain broiler with a dedicated ventilation hood that includes
a pre-engineered Ansul fire suppression system. This allows the
broiler to operate in an occupied space without a traditional
Type-1 ventilation hood or secondary fire suppression unit.
The system operates on 208V 3-Phase electrical power that runs
both the ventilation system and the Nieco broiler. Once the
VentCoreTM is powered-on and all ventilation components are
verified, the Nieco broiler is then automatically energized and
available for use.
The VentCoreTM ventilation system is made from fully welded
stainless steel and utilizes all washable filters that include the
primary grease baffle filters, secondary washable particulate
filters, and washable electrostatic precipitator filter cells. For
convenience, all duct and filter cleaning is conveniently located
behind easy to access maintenance doors.
The VentCoreTM is designed to be easily wheeled and setup at
foodservice locations like stadiums and arenas, pop-up kitchens
or corporate cafes. If the location or layout changes, the
equipment can easily be moved to a new location, giving you
the power to choose and maximizing your investment.
Introducing The VentCoreTM Recirculating Ventilation System with Integral Nieco Broiler
INTRODUCTION
Evo America, LLC, and Nieco, LLC are divisions of the Middleby Corporation.
R
Evo®VentCoreTM
7

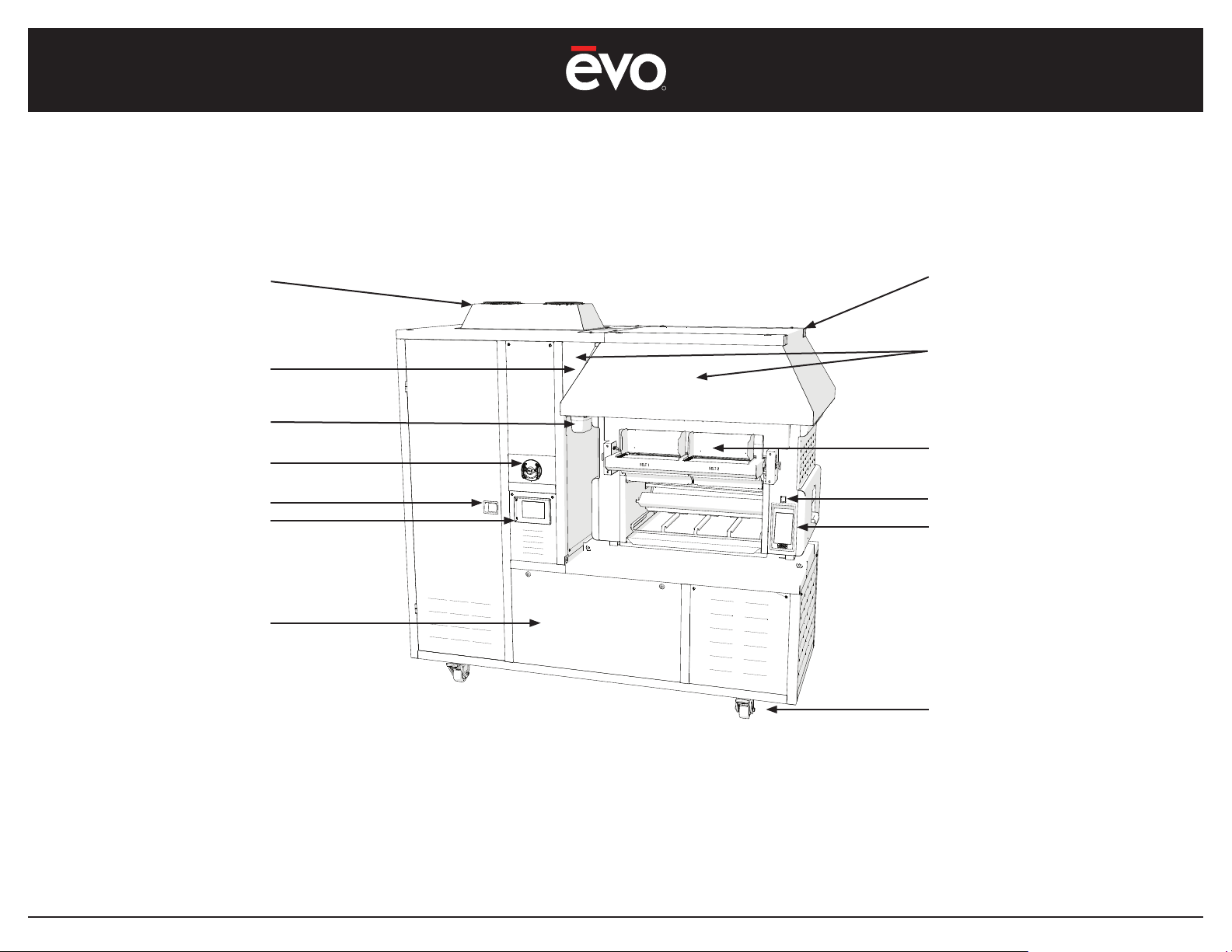

EQUIPMENT FEATURES
Know Your VentCoreTM and Nieco Broiler Cooking Station
Chassis cooling fans
Fire suppression nozzles inside the
hood and behind the grease baffle
filters
Grease baffle filters
Nieco right and left
chain belt feeders
Nieco Display Panel
Locking wheel casters
Inlet Capture Hood over the Nieco
broiler
Baffle filter grease cup
Ansul Fire Suppression pull station
Cyclonic filter maintenance door
VentCore control panel
Service panel door
Nieco Display Panel On/Off switch
R
Evo®VentCoreTM
8
Home Screen
Software Revision.
CONTROL PANEL
Power On /Off
Press and hold
for 3 seconds.
POWERING THE VENTCORE
The VentCore Home Screen is displayed when the system is turned
off.
The Home Screen presents a power ON / Off button which when
pressed for three (3) seconds will cause the system to start and the
screen transitions to the Ventilation Startup screen.
The Home Screen also displays the type of VentCore configuration
and the software revision for the Temperature Control Unit (TCU),
the DownDraft board (DD) and the Evo Bus board (eBus).
R
Evo®VentCoreTM
9
On / Off Power.
Ventilation Startup Screen
CONTROL PANEL
Interlock switches are automatically
checked at power up.
Screen Wipe.
Back Screen.
Mute Alarm.
Help.
Settings.
VENTILATION STARTUP
The Ventilation Startup screen is displayed immediately after the
VentCore is first powered On. As each safety interlock is checked
and proven, its corresponding button will display green for GO. If
the switch is faulted, its corresponding button will display red for
STOP.
The interlock switches show if the VentCore filters are in place and
functioning properly, and if the air pressure inside the air duct is
within operating limits.
There are twelve (12) safety interlock switch groups:
1) Inlet Hood - indicates if the capture hood over the Nieco broiler
is positioned closed and ready for operation.
2) Baffle Filters 1&2 - indicates if the grease baffle filters inside the
capture hood are positioned and in place.
3) Mist Filters 1,2&3 - there are three mist filters and a separate
interlock switch for each filter. The interlocks indicate if the mist
filters are positioned and in place.
4) ESP Filters 1&2 - indicates if the ElectroStatic Precipitator
collection cells are positioned and in place.
5) Final Filters 1,2&3 - indicates if the final air processing filters are
positioned and in place.
6) Air Check pressure switches - indicates if air pressure inside the
VentCore ventilation duct is within operating limits.
R
Evo®VentCoreTM
10
Ventilation Startup Screen
CONTROL PANEL
VENTILATION STARTUP - INTERLOCKS ARE PROVEN
The Ventilation Startup screen will check each safety interlock
switch until all switches are proven and functioning correct.
When all switch buttons are green, the Nieco broiler will receive a
command to allow its heaters to function.
Note:
The Nieco broiler has a red Master Switch that toggles On and Off
illumination for its display panel.
If the VentCore is operational and all safety interlocks have proven
and the Nieco Master Switch is On, the display panel will allow user
input to turn on and energize the broiler heaters.
If the VentCore is not operational or if there is an interlock fault
and the Nieco Master Switch is on, the display panel will become
illuminated and will allow user input, however, the heaters will not
energize and will not turn on.
The Nieco display panel may be illuminated and allow user inputs,
however, if the VentCore safety interlocks are not proven and all
corresponding interlock buttons displayed green, the Nieco broiler
heaters will be off and will not be operational.
Interlock switches are automatically
checked at power up.
Table of contents
Popular Fan manuals by other brands
ELTA FANS
ELTA FANS H03VV-F installation guide
Hunter
Hunter 20714 Owner's guide and installation manual
Emerson
Emerson CARRERA VERANDA CF542ORB00 owner's manual
Hunter
Hunter Caraway Owner's guide and installation manual
Panasonic
Panasonic FV-15NLFS1 Service manual
Kompernass
Kompernass KH 1150 operating instructions
