Evistr V508 User manual

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 1 - of -28 -

Mailto: support-us@evistr.com

Write us the issues, and model number or amazon order ID, so we can reply to you effectively

Thanks for purchasing EVISTR Digital Voice Recorder

EVISTR - to be the leading voice recorder brand

We hear from our user, do all our efforts to make better service

V508 Digital Voice Recorder

EVISTR

http://www.evistr.com

Support-us@evistr.com

REQUEST CUSTOMIZED VIDEO

V508 Package List

1) V508

2) Earphone

3) USB Cable

4) User Manual

5) VIP Card

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 2 - of -28 -

CHAPTER ONE....................................................................................................................................... - 4 -

V508 Open the Box...............................................................................................................................- 4 -

1) The Package Information..........................................................................................................- 4 -

V508 Quick Operation Guide................................................................................................................- 4 -

1) Navigation Guide...................................................................................................................... - 4 -

2) Quick Start to Using..................................................................................................................- 5 -

3) Quick Menu Options Guide......................................................................................................- 5 -

V508 Device Important Notices........................................................................................................... - 6 -

1) The Operation Guide Explain................................................................................................... - 6 -

2) Important Notice Before Using The Device............................................................................. - 7 -

CHAPTER TWO...................................................................................................................................... - 8 -

V508 Basic Operation Guide.................................................................................................................- 8 -

1) Charging Voice Recorder.......................................................................................................... - 8 -

2) Turn On Voice Recorder........................................................................................................... - 9 -

3) How to Recording.....................................................................................................................- 9 -

3) How to Pause and Resume Recording................................................................................... - 11 -

4) How to Playback Recording....................................................................................................- 11 -

5) How to Fast Forward / Rewind...............................................................................................- 12 -

6) How to Move to Next / Previous............................................................................................- 12 -

7) How to Adjust Speaker Volume............................................................................................. - 12 -

8) How to Delete Recordings......................................................................................................- 12 -

9) Download File to Computer...................................................................................................- 13 -

10) How to Play Music................................................................................................................- 13 -

11) Restore to Factory Settings.................................................................................................. - 14 -

12) REST (When Device was frozen)...........................................................................................- 14 -

13) How to Connect to Computer..............................................................................................- 14 -

14) Format EVISTR V508 Drive on WIN Computer Directly....................................................... - 15 -

15) System Time & Date Setting.................................................................................................- 16 -

16) Go to Setting (Menu Options)..............................................................................................- 17 -

CHAPTER THREE..................................................................................................................................- 18 -

V508 Advanced Operation Guide.......................................................................................................- 18 -

1) Record Settings.......................................................................................................................- 18 -

1.1 Record Format.............................................................................................................. - 18 -

1.2 Set Bit Rate................................................................................................................... - 18 -

1.3 Voice Activated Recording (Track AVR Mode)..............................................................- 18 -

1.4 Record Monitor............................................................................................................ - 19 -

1.5 Led_ON/OFF................................................................................................................. - 19 -

1.6 Record Subsection........................................................................................................- 19 -

1.7 Auto Record..................................................................................................................- 19 -

1.8 Recordings Library........................................................................................................ - 19 -

2) System Setting........................................................................................................................ - 20 -

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 3 - of -28 -

2.1 Language.......................................................................................................................- 20 -

2.2 Date and time...............................................................................................................- 20 -

2.3 Display Settings............................................................................................................ - 20 -

2.6 Information...................................................................................................................- 20 -

2.7 Factory settings............................................................................................................ - 21 -

2.8 Format Device.............................................................................................................. - 21 -

3) Voice....................................................................................................................................... - 21 -

4) Music...................................................................................................................................... - 21 -

At this option, it will enter music play interface........................................................................ - 21 -

5) Play Setting............................................................................................................................. - 21 -

At voice option, music option or when playing music/recordings, press M button to enter

play settings........................................................................................................................- 21 -

5.1 Play Mode.....................................................................................................................- 21 -

5.2 A-B Repeat Setting........................................................................................................- 22 -

5.3 Equalizer....................................................................................................................... - 22 -

5.4 Variable Speed Playback...............................................................................................- 22 -

5.5 Delete........................................................................................................................... - 22 -

CHAPTER FOUR...................................................................................................................................- 22 -

1) Failed Connect to computer...................................................................................................- 22 -

CHAPTER FIVE..................................................................................................................................... - 24 -

TROUBLE SHOOTING.......................................................................................................................... - 24 -

1) No Voice Recordings...............................................................................................................- 24 -

2) How to Close Record Light..................................................................................................... - 24 -

3) Disk Error................................................................................................................................ - 24 -

4) How to connect to computer.................................................................................................- 24 -

5) Failed Connect to Computer.................................................................................................. - 24 -

6) Can I delete recordings from computer.................................................................................- 25 -

7) When Connect to computer, the buttons not work.............................................................. - 25 -

8) Cannot find my recordings in the recorder............................................................................- 25 -

9) How to Open voice activated function.................................................................................. - 25 -

10) How to Use the AVR Mode (Voice Activated Function).......................................................- 25 -

11) Press REC, it not recording................................................................................................... - 26 -

12) Press REC, Not Recording.....................................................................................................- 26 -

13) Why it playback in random.................................................................................................. - 26 -

14) How to use the A-B repeat function.................................................................................... - 26 -

15) The recording is noise.......................................................................................................... - 26 -

16) It suddenly shows delete file............................................................................................... - 27 -

17) The recorder auto shut down when I am recording............................................................- 27 -

19) How to format the recorder.................................................................................................- 27 -

20) Memory is full...................................................................................................................... - 27 -

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 4 - of -28 -

CHAPTER ONE

V508 Open the Box

1) The Package Information

The original package comes with film wrapped, and have bar code information

Package List

1 x V508 Machine

1 x Earphone

1 x USB Cable (for data transfer and charging)

1 x VIP Card

We highly suggest you register from our BRAND site, http://www.evistr.com to get extended

warranty, verify the product authentication and better customer service.

V508 Quick Operation Guide

1) Navigation Guide

The Buttons Explain (all side buttons labeled its function at device back side)

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 5 - of -28 -

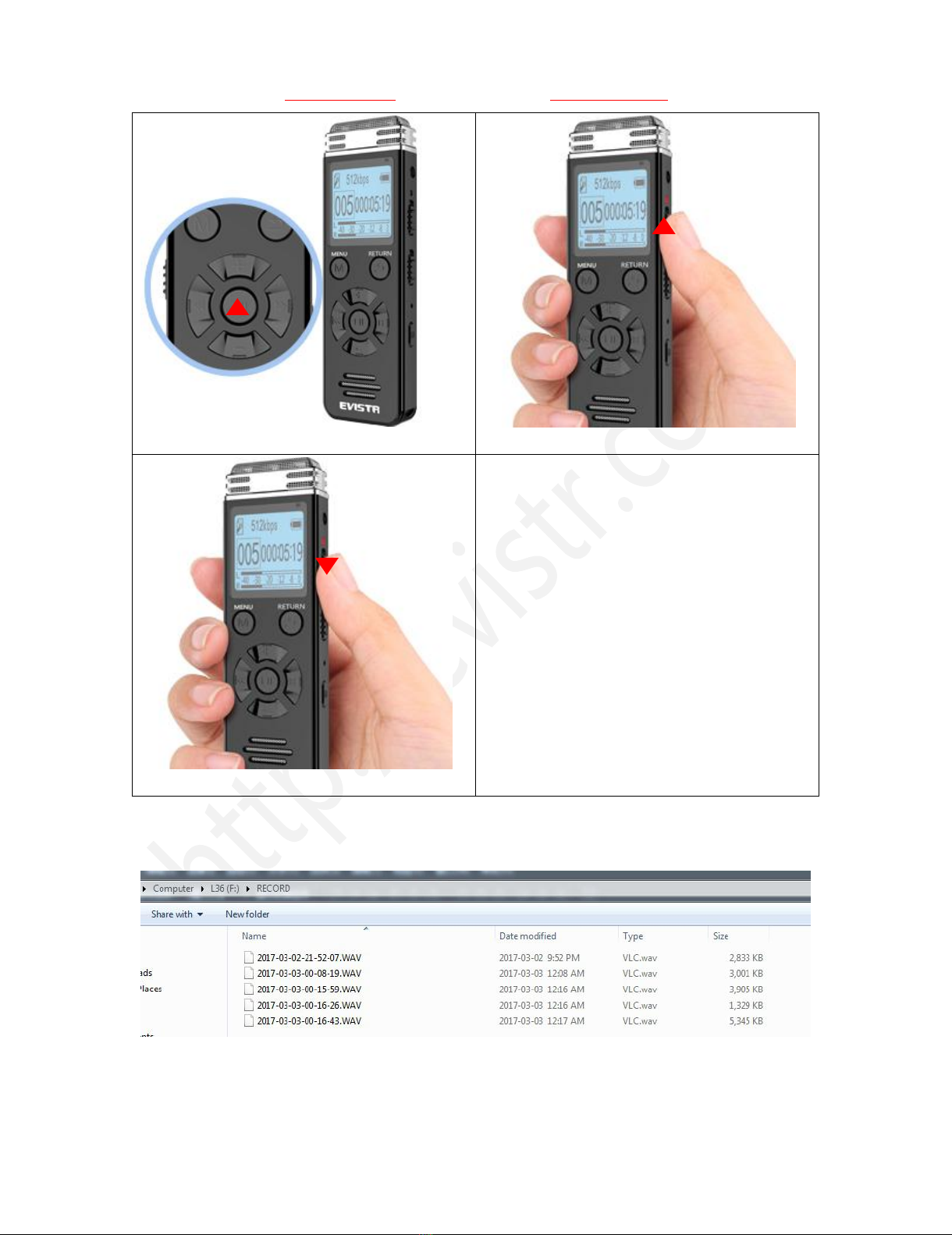

2) Quick Start to Using

How to Record?

Turn on the device, Push Up REC directly start to record, push down to

save recording

How to Play?

Press PLAY to play recording

How Adjust Speaker Volume?

Press +/- to adjust speaker volume

How to Fast Forward / Rewind?

When it is playing, Press down and hold or to Fast forward or rewind

How to Select Previous / Next Audio Track?

Press or to select

How to Delete Recordings?

Press Delete button (at right side trash icon), Go to delete options -> Delete -> Delete One

And press PLAY button to select Yes, confirm, it will delete one recording

If we select delete all, all recordings will be deleted.

3) Quick Menu Options Guide

Save file on TF card:

Push Up the TF Card button (left side) to TF position, so we can save file on TF card (when inserted

TF card). If not, recordings will still save on built-in memory.

Notices: device built-in 16GB, don’t include TF card

Change Recording Format:

Menu options -> Record Settings -> Record Format -> WAV REC or MP3 REC, press PLAY to confirm

Set Recording Format (MP3/WAV):

Press to to Main Menu options -> Record Settings -> Record Format, press PLAY to confirm

selection

Set Recording Quality ( Bit Rate):

Press to to Main Menu options -> Record Settings -> Set Rec Bitrate, press PLAY to confirm

selection

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 6 - of -28 -

Record LINE IN / External MIC:

Insert LINE IN (or external mic) -> push up REC -> select -> LINE IN, press PLAY to confirm selection, it

will start to record at line in.

NOTICE: if record external mic, we need select at External MIC

Set Date and Time:

Menu options -> set -> date and time -> time settings -> set time, so we could adjust time by press

+/- and or , press PLAY to confirm selection. SAME way to set date.

Noise Cancellation:

Push at the Denoise button at right side, turn on this function, it will display DENOISE

RESET:

When device frozen or went wrong, push the RESET HOLE at the at the right side to reboot the

device.

V508 Device Important Notices

1) The Operation Guide Explain

Built-in Speaker

USB Socket

Built-in Microphone

Earphone Jack

External Mic Jack

REC/SAVE

Power Button

RESET hold

DEL /AB Repeat (when Playing)

Power Button: for storing the device, cut off its power

In daily using, we can turn on / off the device by pressing PLAY button, no need to cut off its power

Denoise

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 7 - of -28 -

Power Button: control the battery of the device

Press: it means hit and release the button

Press and Hold: it means press and hold it down 2-3 seconds till you see changes on the screen

display

ON/OFF: the middle PLAY button

PLAY: Play / pause / confirm / OK

REC/SAVE: Recording / Save

STOP: Stop play / Cancel /Return/ Save Recording

M: Play setting

REW/FF (Previous / Next): Fast Forward/Rewind, Previous/Next

VOL+/VOL-: Vol Adjust, up/down selection

2) Important Notice Before Using The Device

DOs

Turn ON / OFF the recorder by press and hold PLAY button (when power button at ON position)

Backup data frequently as you could

Charging the device via the enclosed USB cable to computer or wall charger (charger input less

than 5V 1A)

When battery low, save your recordings, and charge it immediately

Device support charging and recording at the same

Fast Forward / Next

Vol + / Up

Return / Main Menu

Play / Pause / Confirm /

OK / Turn ON/OFF

Rewind / Previous

PLAY SET

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 8 - of -28 -

Recorder will not make any noise during recording, except Record LED light flash (this function

could turn off)

Keep this EBOOK and its Booklet in the package safely for future reference

Customer satisfaction and warranty is our mostly important thing. Any issues, just directly

Contact customer service with ORDER ID or System Firmware Version Information, Bar Code on

the package, so you will get more effectively reply

Register VIP service, get gifts free, extend warranty, effectively customer service

DON’Ts

Do not scratch the device body, and writing near the device microphone, it is very sensitive, all

this small noise will be capture very clear and loud

Do not format the device unless the file had backup

Do not delete file unless the file had backup

Do not press any buttons when connect to computer, in case exiting connection mode

Do not use non-original micro USB cable to transfer data from device to computer, not all kind

micro USB support data transfer function

Do not use the Voice Activated Function, unless you need, otherwise it may neglect recording

some low decibel voice you need

Do not pause the device from long time, the device will automatically shut down when there is

no operation, and not playing or recording

CHAPTER TWO

V508 Basic Operation Guide

1) Charging Voice Recorder

Connect it to your computer with enclosed cable, it will charge, once it has finished charging

( typically around 1.5-2 hours), you can eject the device from the USB port

You could also connect the enclosed cable with your voice recorder and other USB socket for

charging (like USB wall charger, USB charge dock, power bank etc)

Charging Input: 5V 500mAh ~ 1000mAh

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 9 - of -28 -

2) Turn On Voice Recorder

Simply press and hold down the PLAY button, the device will turn on, screen light up

Turn off the device by press and hold down PLAY button again

See below picture

ON: Turn on the device by press and hold down

PLAY button

OFF: Turn on the device by press and hold down

PLAY button

3) How to Recording

Press & hold PLAY button power on your voice recorder

Push up REC button, it starts to record (display shows “please wait...”)

Push down REC button, it saves your recordings (display shows “Saved!”)

EVISTR VOICE RECORDER

http://blog.evistr.com support-us@evistr.com

Page - 10 - of -28 -

1) Press & hold PLAY to turn ON

2) Push Up REC, to record

3) Push down, save recordings

If, for example, we push up/down REC/SAVE button 3 times, the recorder will create 3 recorded files

corresponding to each time, and they will typically be named

Table of contents

Other Evistr Voice Recorder manuals

Evistr

Evistr L157 User manual

Evistr

Evistr L57 User manual

Evistr

Evistr L157 User manual

Evistr

Evistr L157 User manual

Evistr

Evistr L36 User manual

Evistr

Evistr L53 User manual

Popular Voice Recorder manuals by other brands

Sony

Sony ICD-UX533F quick start guide

RCA

RCA VR5230 quick start guide

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Assembly and instruction manual

Sony

Sony TCM-400DV Specification sheet

LogTag

LogTag TREL30-16 user guide

SVAT

SVAT CVP800 user manual

Marantz

Marantz PMD620 Service manual

Zoom

Zoom H4next Operation manual

Roland

Roland BR-900CD manual

JVC

JVC ProHD GY-HMZ1U Basic user's guide

Panasonic

Panasonic PQT8531-P operating instructions

Sanyo

Sanyo TRC-6400 Brochure & specs

Tascam

Tascam DR-07 quick start guide

Olympus

Olympus DW-90 instructions

Sanyo

Sanyo ICR-B150 instruction manual

Korg

Korg D4 owner's manual

Sony

Sony ICD-SX46 - Ic Recorder Specifications

Olympus

Olympus DIGITAL VOICE RECORDER WS-200S Mode d'emploi
