EverFocus ECOR4D Instruction Manual

Release Note for Quarter 1 2012 SD DVR Firmware Releases

Release Date: 1/27/2012

January 27, 2012: Paragon264-16X4 and ECOR-4D (MPEG4) Internet Explorer 9 for Windows 7

operating system web interface compatibility

This firmware release adds several new features and functions which fall into three general

categories: (1)Applies to remote access via LAN or WAN only; (2)Applies to local control at the

DVR front panel; and (3)Applies to both LAN/WAN and local/Front Panel operation:

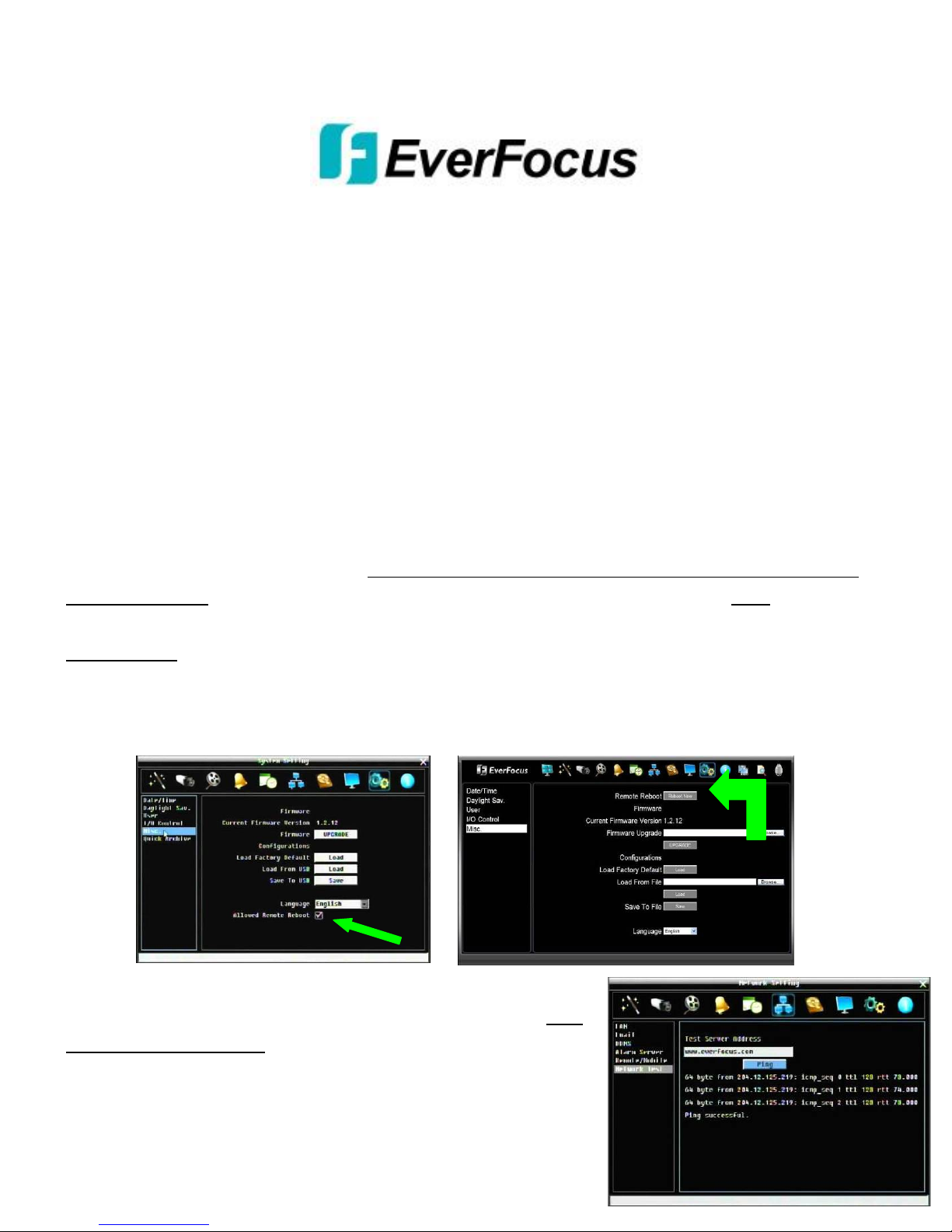

1. Windows7 IE9 (32-bit) Compatibility Network Connectivity (1)Windows7 64-bit operating

system has two versions of Internet Explorer 9 (32-bit and 64-bit). When accessing the DVR please

use Internet Explorer 9 32-bit browser.

2. Remote Reboot (2) (1) – (optional) users can enable a remote command to reboot the DVR via

the web interface. The check box to enable this feature appears only in the DVR local System

Menu at the bottom of the “Misc.” screen. The button which reboots the DVR is located only in the

web interface System Menu at the top of the “Misc.” screen. If the Internet Explorer window is left

open after clicking on “Reboot Now”, the screen will indicate a break in the network connection

during the reboot process, after which the DVR will reconnect. Change screens to refresh the

display and view updated information.

3. Network Test (2) –To verify basic network connectivity

between the DVR and some other LAN or WAN node, the user

can issue an ICMP Ping to a valid IP address. The Ping utility is

useful in diagnosing connectivity problems by obtaining

responses from nodes progressively farther along the network.

DNS functionality can also be confirmed by entering a valid DNS name instead of an IP address.

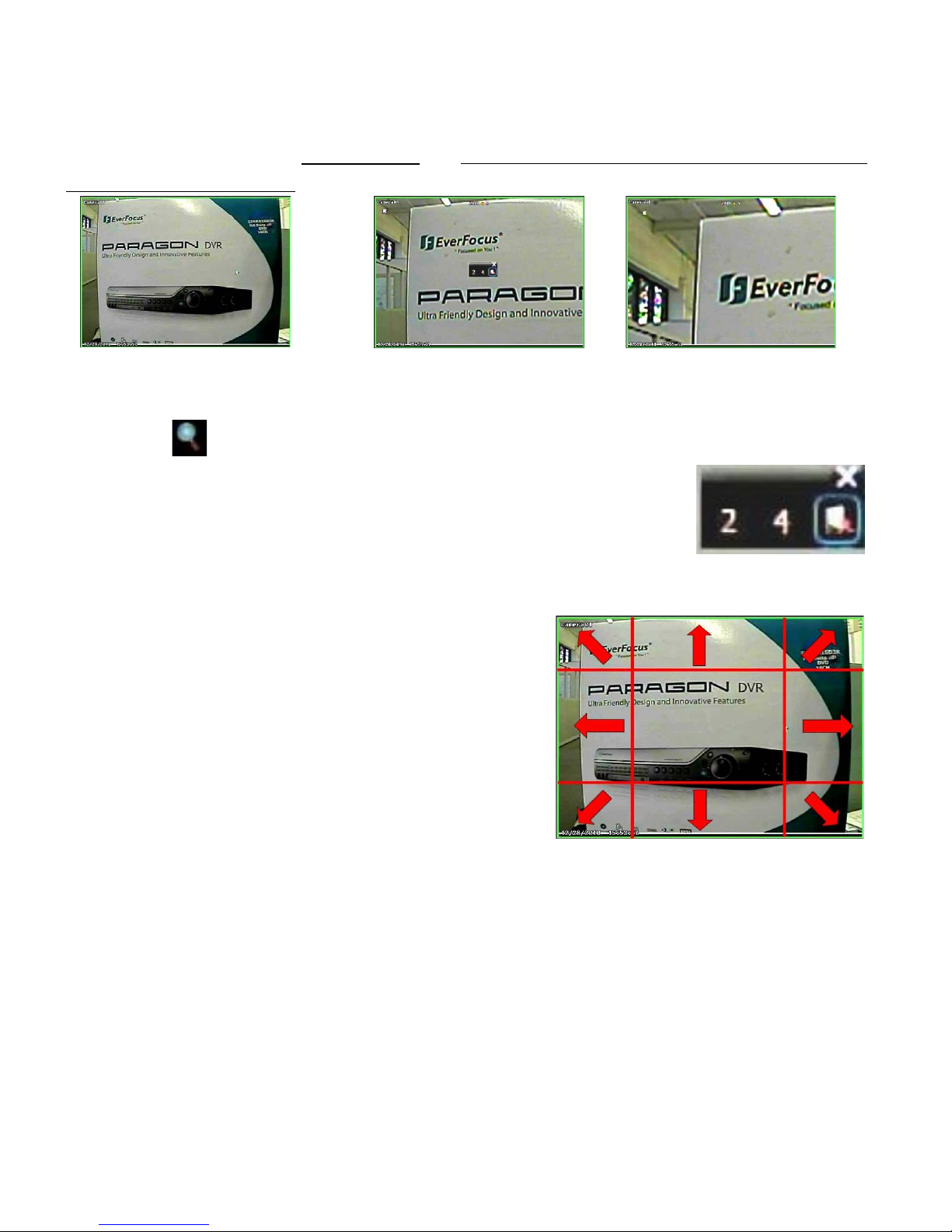

4. 2X and 4X Zoom on live and playback (2)– in a live or playback full screen view, the operator

can choose 2X or 4X zoom. A portion (1/4 or 1/16 of the image) is expanded to fill the screen.

In Live or Playback view select a camera (either call up a full screen view or click on the camera in

a multi-camera view); right click anywhere on the screen to bring up the menu and click on the

Zoom icon (see note below). If the camera has been in a multi-view, it will now be in a full

screen view at 2X zoom; or, from the DVR front panel press the “Zoom”

button (if no zoom button on your DVR model, press the camera button for

the desired camera). To change zoom ratio or leave the zoom mode, right

click and choose the desired zoom factor or Exit. Or, from the DVR front

panel: press the “Zoom” (or camera) button to cycle between 2X and 4X zoom; press the “Esc”

button to exit (if no ‘Esc’ button on your DVR press

‘Menu” to exit). While in 2X or 4X zoom, you can

navigate the ‘virtual pan and tilt’, changing the portion of

the original view which is displayed: either use the DVR

front panel up/down/left/right arrow keys or the jog

(vertical) and shuttle (horizontal) controls; or, by moving

the mouse to the outer portion of the image along the

direction you wish the viewing window to move. The

mouse pointer will transform into a directional arrow;

clicking the mouse when the directional arrow is displayed will move the viewing window one step

in the direction of the arrow. Upon exiting the zoom function, the screen will return to the display as

it was before entering the zoom function.

Note: If you have launched playback from the results of a Search, at present a mouse right-click

during playback from a Search brings up the context-specific search related menu. In those cases,

please enter the zoom mode by pressing the front panel button (‘Zoom’ button on P264 and ECOR-

264X series; camera button on ECOR264-4D1/F1 and ECOR264-8D2). Once the zoom function is

called up, a right click on the image brings up the zoom select menu (2X, 4X, Exit). To return to the

context-specific search related menu, exit the zoom mode.

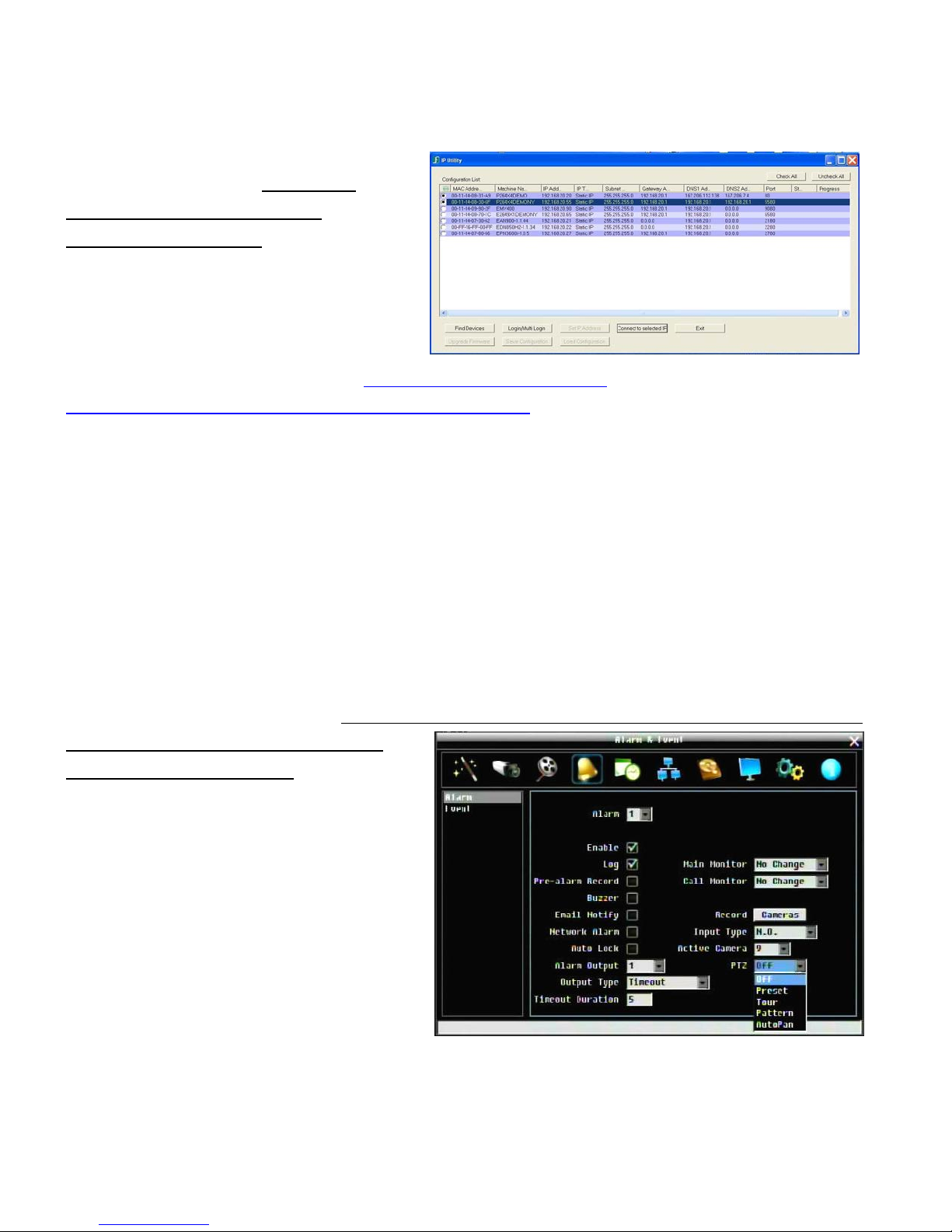

5. IP Utility compatibility(1) – This

capability allows you to access and

change the DVR basic network

configuration from a PC over a LAN (IP

address, subnet mask, gateway IP, DNS1

IP DNS 2 IP, and Machine Name), even if

the current IP configuration in the DVR

does not match the settings for the LAN.

This utility can be downloaded from http://www.everfocus.com/tools.cfm Item 7 IP Utility program or

http://www.everfocus.com/downloads/product_software/IPUtility.exe

Launch the utility, click the “Find Devices” button. DVRs on the LAN will be listed. The Machine

Name is the DDNS name of the DVR. To change values, first select a device; then click “Login”. In

the popup window enter the admin ID and password of the DVR and click “OK”; then click on the

values to be changed, enter the new values and when complete click on “Set Configuration”. To

verify the changes, click “Find Devices” again. The HTTP port will be reported by the utility, but

must be changed within the DVR menu system. To connect to a DVR, select it and click on

“Connect to Selected Device”. (The “Firmware Upgrade” button is used for IP cameras only; DVR

firmware must be upgraded thought the local or web I/F DVR menu system.)

6. Alarm PTZ preset trigger(3) – An alarm condition may be programmed to send a command to

move to a PTZ preset or initiate a tour,

pattern or autopan function. In the Alarm

menu there is now a choice for ‘PTZ

Preset’; picking Preset, Tour or Pattern will

offer another drop down to choose the

corresponding number for this instruction.

Autopan requires no number. This

instruction will be sent to the camera

indicated in the “Active Camera” drop

down according to the RS-485 setup in the

DVR. Please verify normal RS-485 control

operation before activating this feature.

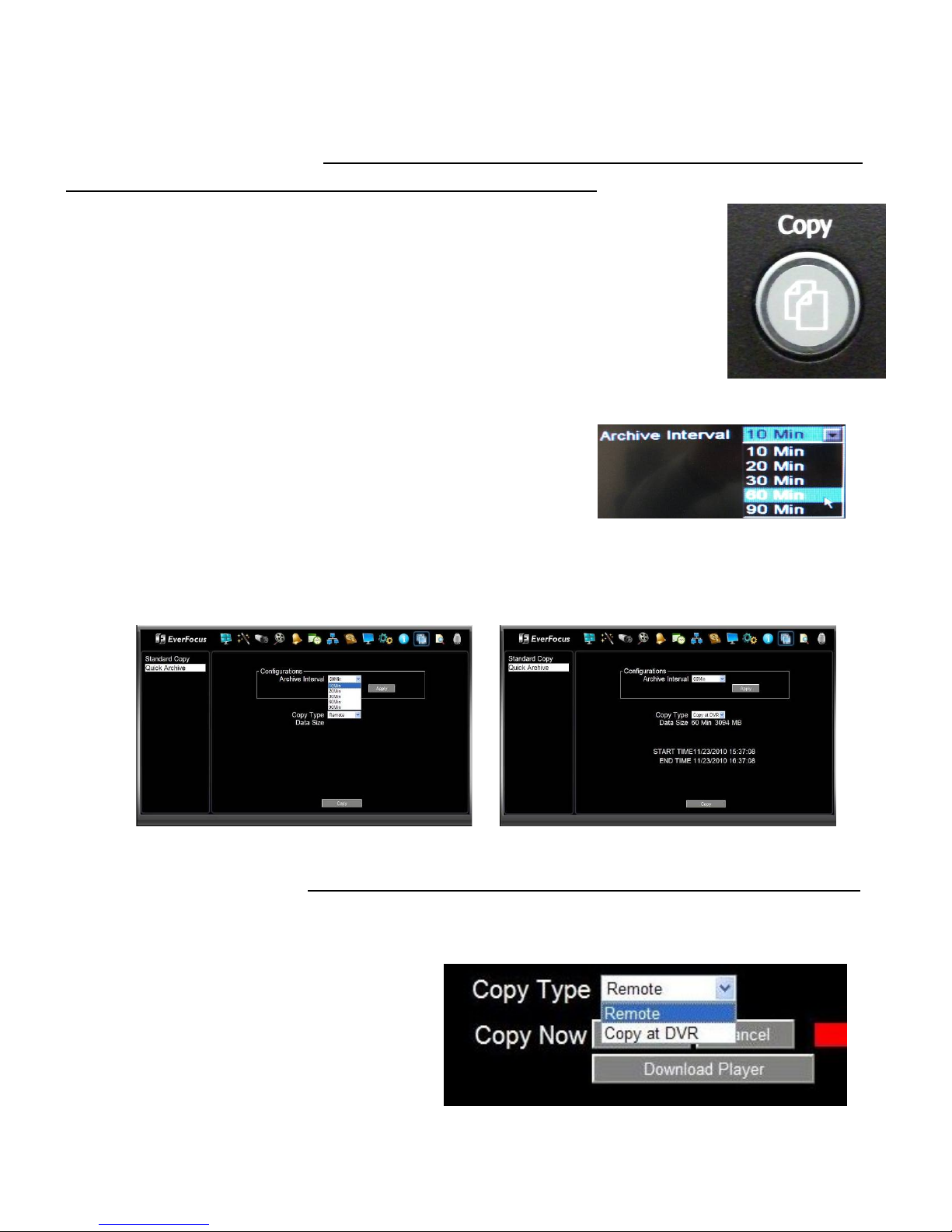

7. Quick Archive function (3) – Press and hold a single button to copy the previous 10 (or 20, 30,

60, 90) minutes of video prior to the current time for all cameras, even if front panel keys are locked.

Leave a blank DVD in the drive in case of events/emergencies. At the DVR,

press and hold the COPY key; a beep will sound and the process begins;

DVR will beep again on completion and DVD ejects. Give the DVD to the

authorities when it ejects (DVR automatically copies player software onto

media as well). Copies to USB (if present) first, even if a blank DVD is present.

If insufficient space is available for then entire requested time, it fills available

media, ending at the current time.

Interval is set in the DVR Configuration Menu on the Quick

Archive screen. From the web interface, in the COPY menu

on the QuickArchive screen, choose interval from drop down

menu, and choose LOCATION for copy. “Remote” means

Quick Copy over the network onto the HDD of the PC; “Copy at DVR” has the same result as if the

Quick Copy had been started at the DVR (as above) and the copy goes onto the USB or DVD in

the DVR!

8. Copy at DVR (1) function - copies video to the USB or DVD at the DVR from a remote location.

In addition to the QuickArchive described in #6 above, from the standard IE web interface you can

avoid having to copy GB of data across a slow WAN connection and write video onto media AT

THE DVR regardless of where you are. Just

set up an on-demand COPY at your PC, but

choose “Copy at DVR” to write the video

onto the USB or DVD AT THE DVR!! The

choice of “Remote” copies the video to the

PC, as before.

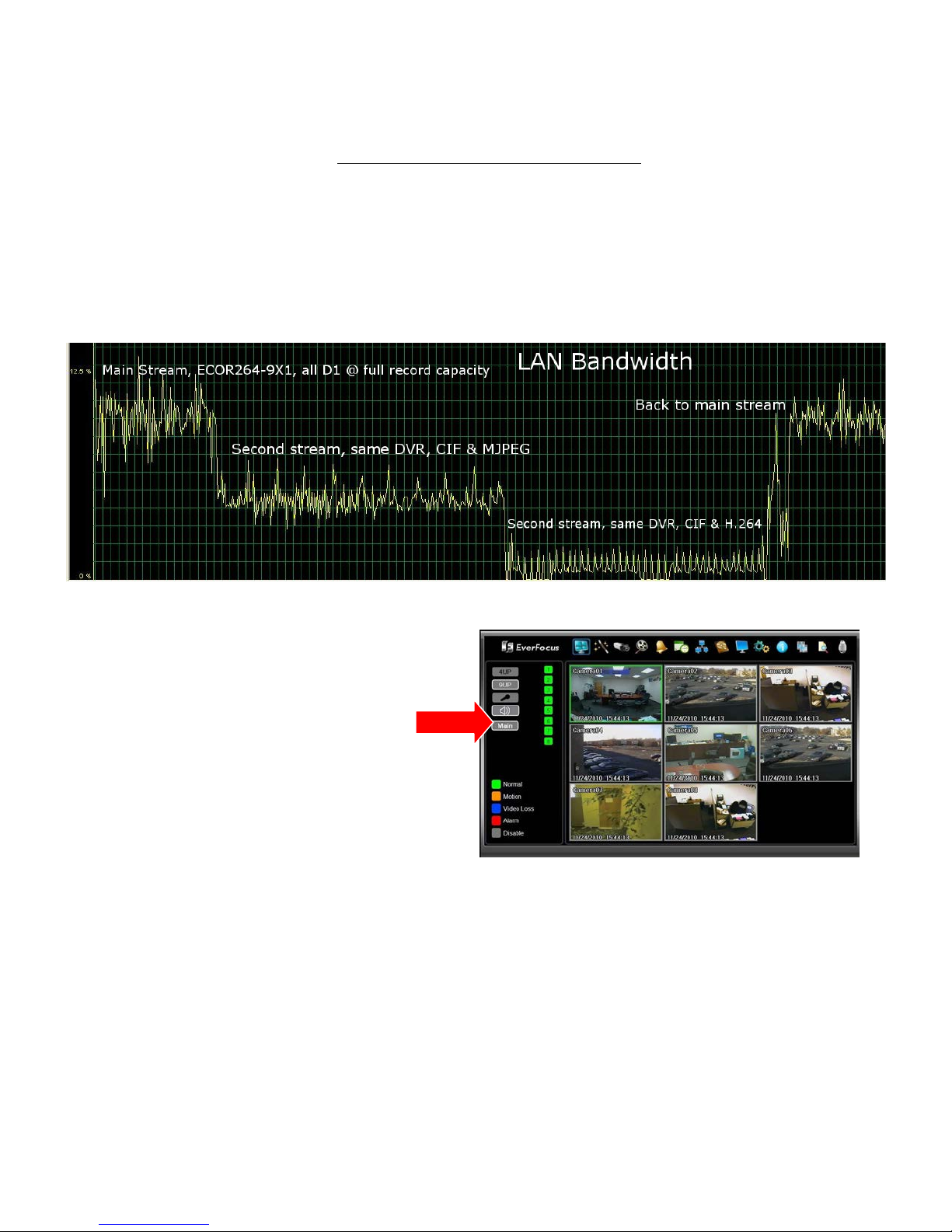

9. Main/Sub stream setting (1) – Improve network transmission speed by switching the web

interface to display a lower bandwidth subsidiary stream. The Main stream will attempt to transmit

to the web interface the video in the format recorded to the hard drive according to the settings in

the DVR’s camera menu and other record configuration parameters. The second or ‘sub’ stream

always transmits a CIF image; if the DVR is recording D1/4CIF or 2CIF images, this can reduce the

bandwidth used. Another option allows the choice of either an H.264 or MJPEG format for the ‘sub’

stream. Please see graph and stream format selection below.

The selected stream being viewed by the web

interface (Main/Sub) is displayed and selected

by a button to the left of the live view window.

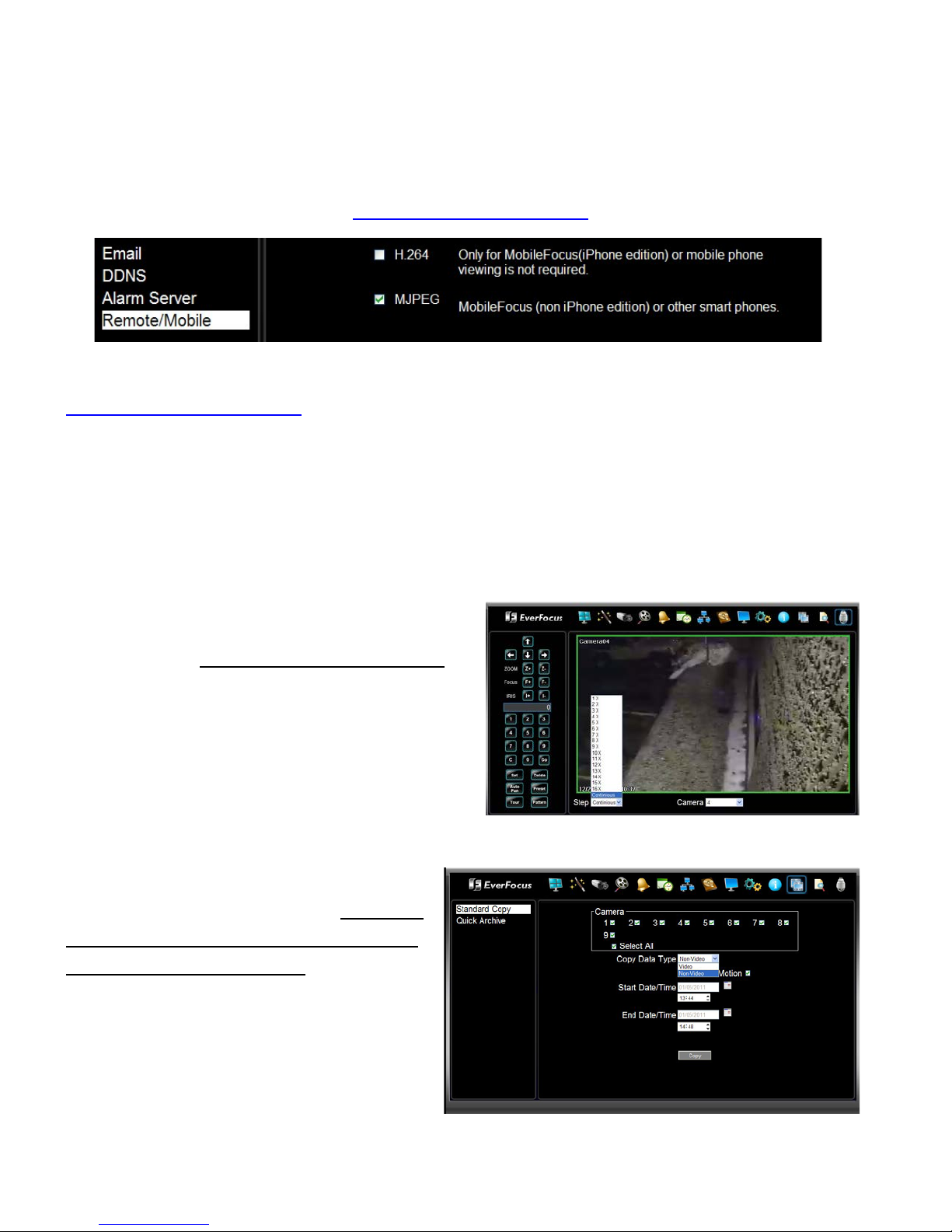

10. Sub Stream format setting(3) option. The compression format used for the ‘sub’ stream may

be selected as:

a. H.264 which is compatible with the iPhone and Android MobileFocus apps and the

standard IE PC web interface.

b. MJPEG which is compatible with general web browser viewing on many smart phones and

other web browsers (FireFox, MAC Safari, Opera, etc.)

The stream type selection is made in the Network Menu on the Remote/Mobile screen.

The more efficient H.264 format requires a special decoder which is found in the standard Internet

Explorer web interface and in the MobileFocus application forAndroid and iPhone/iPod Touch

devices. When viewing from MobileFocus in this case, the JPEG mode setting for the DVR should

be “Off”. Also in this case, the link http://dvr-address/m/live.htm will be disabled.

Motion JPEG (MJPEG) images may be viewed on a wide range of browsers (using the link

http://dvr-address/m/live.htm ). However, MJPEG data streams generally use more bandwidth than

H.264 streams.

The choice whether to use H.264 or MJPEG compression for the sub stream will be determined by

whether or not there are remote viewing devices other than PCs using Internet Explorer, and

whether these other devices are exclusively running MobileFocus. If a remote device is using a

browser other than Internet Explorer, retain the MJEPG stream.

11. PTZ Step Control (1) option for IE web

interface allows control of PTZ reaction speed to

commands issued via the web. There is now a

pop-up menu which allows speed control from

1X through 16X. Choose the speed which fits

your requirements.

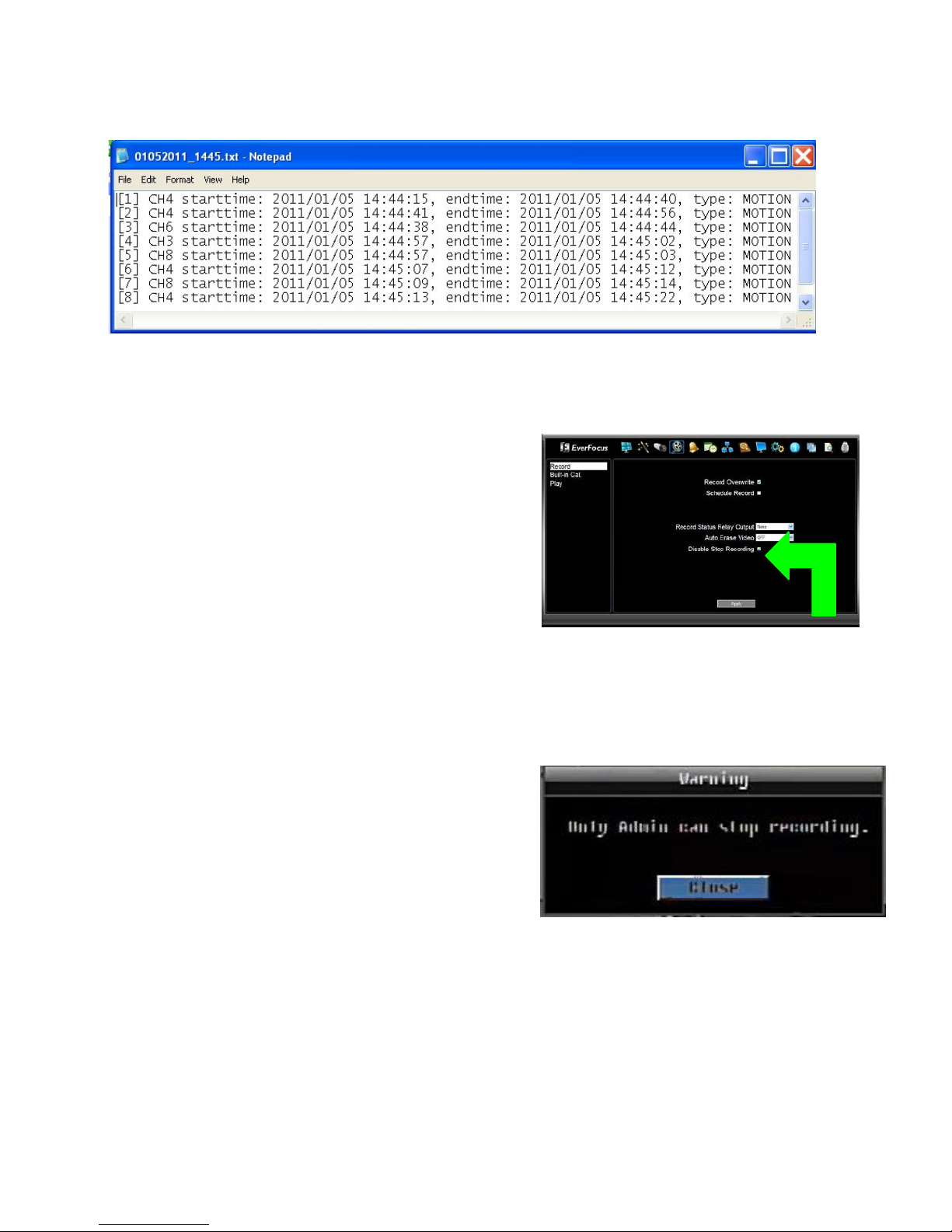

12. Non Video archiving (3) – Located in

the COPY menu. Users can now save a list

of selected Motion and/or Alarm log events

within a specified time period. The log is

saved in a text file format. Motion and Alarm

event information will include start and end

time of each event, channel number, and

event type.

Model Specific

13. Disable Record Stop (P2, Paragon 264X4) (1,3)

On this model, pressing the STOP button will end

playback, but could also direct the DVR to stop

recording; to prevent terminating recording by accident,

two changes have been made. One is a check box

which limits the STOP button function to ending

playback, and not effecting recording. The default will

be for the “disable Stop Recording” box to be checked.

The second change is that, if this box is not checked, only a user with “admin” rights can stop

recording. If the stop button is pressed, before recording is stopped, the DVR will present a pop-up

“Are you sure? Y/N” box; if a “stop’ is requested by a ‘manager’ or ‘user’ a popup will advise that

admin rights are required and no action is taken.

14. Improved Network Connectivity (P2, P264X4, ECOR264X1)(1)TCP/IP connection reliability

in low bandwidth and under other conditions has been improved. A popup which implied that the

connection had failed when it was still intact has been removed.

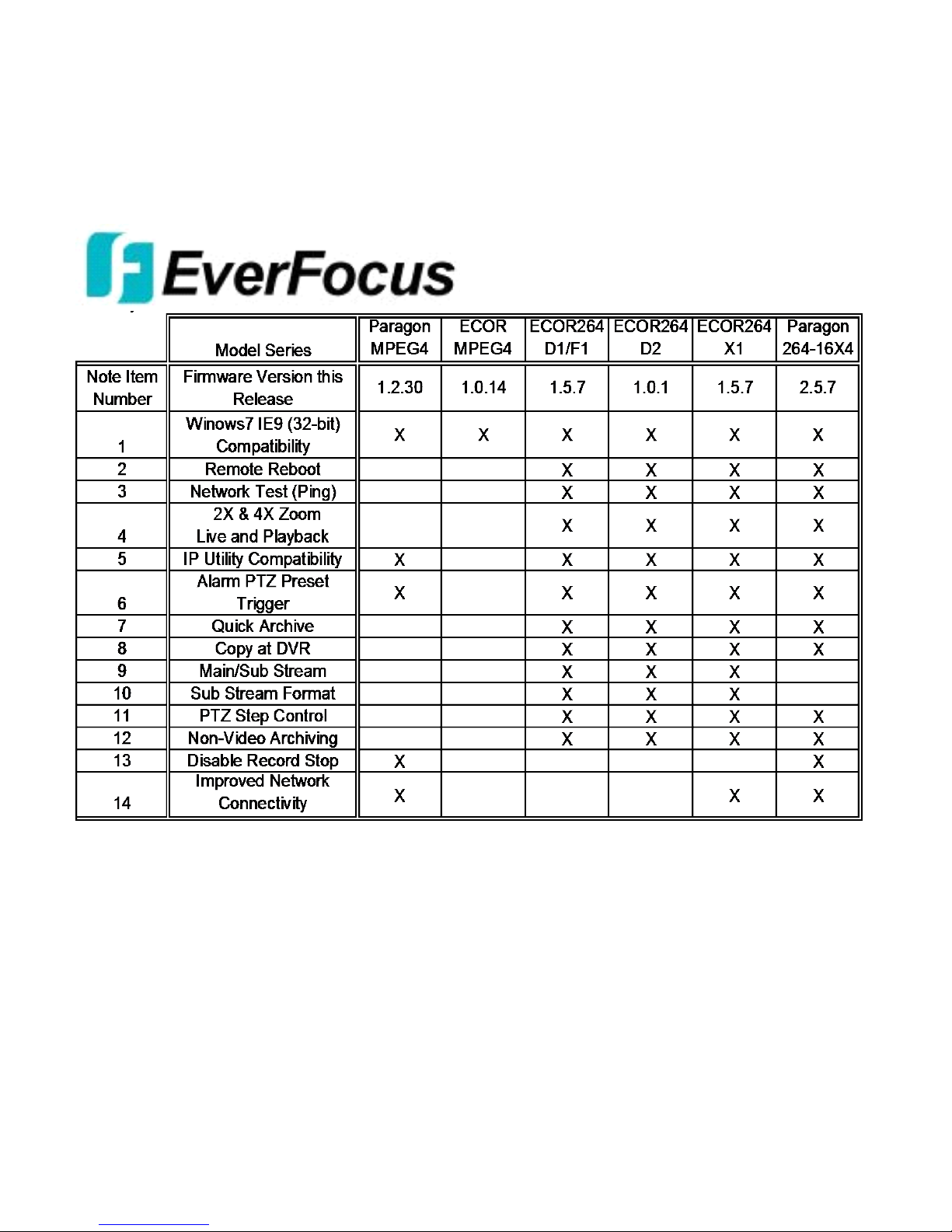

The following chart shows the firmware release versions and the related features for each model

series.
