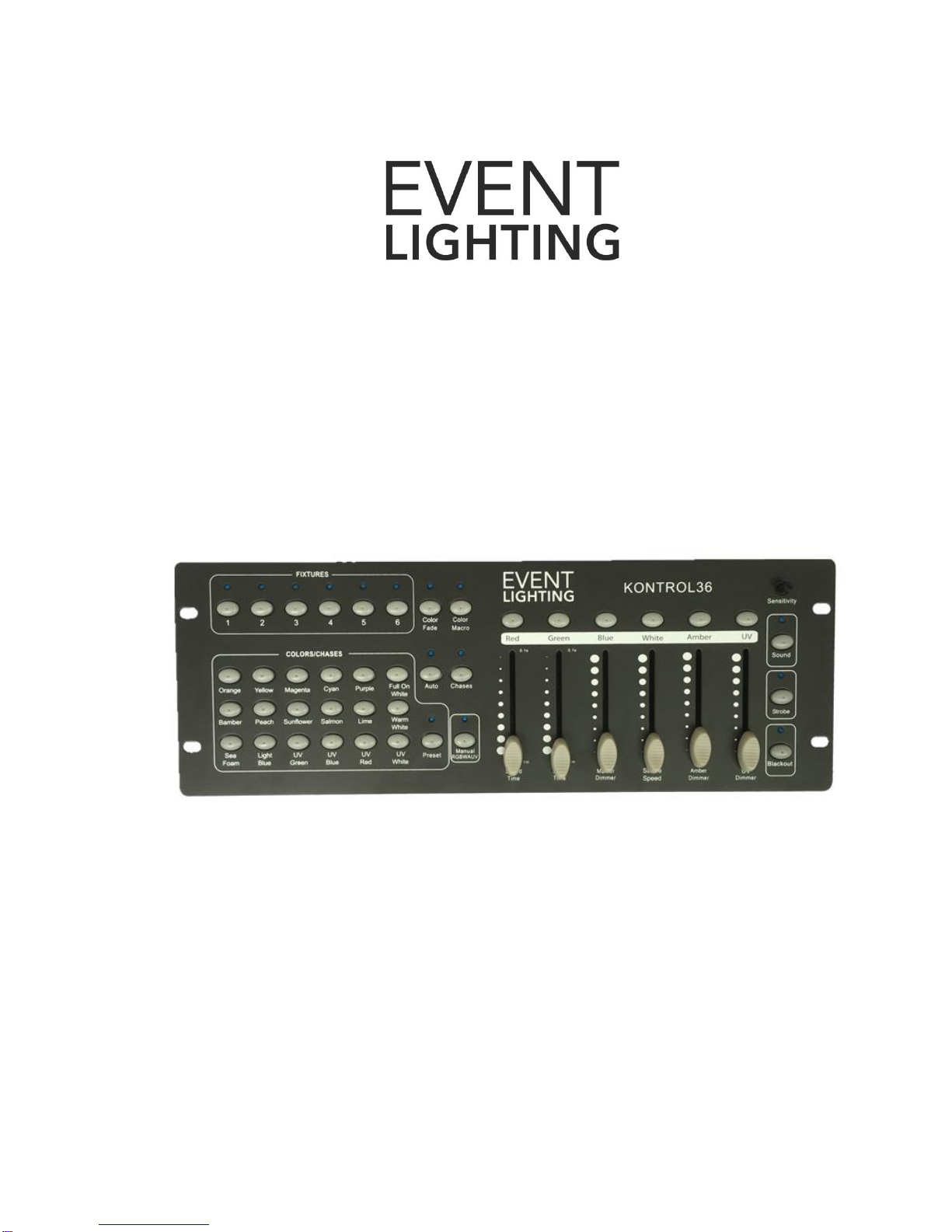

Event Lighting KONTROL36 User manual
KONTROL36
6 x RGBWAU fixture DMX controller
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au V1.1
www.event-lighting.com.au
1
Safety Instructions
WARNING
•Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
•Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
•Do not connect this device to a dimmer or rheostat.
•The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Product description
The KONTROL36 is a compact DMX controller designed for an independent control of up to six fixtures with a
RGBWAU control mode.
Fixtures can be doubled up on addresses to allow control of more than six fixtures.
www.event-lighting.com.au
2
Control Surface
Fixtures
The KONTROL36 has six fixture buttons allowing independent control of your fixtures.
By selecting a fixture the corresponding LED will light up and the dimming sliders will then control the fixtures six
channels.
Multiple fixtures can be selected at one time.
Manual RGBW
The KONTROL36 has a manual control function, selecting this mode by pressing the Manual RGBWAU button then,
select the fixture you want to control and then you can manually adjust the colours by the 6 sliders.
Colour Fade
The KONTROL36 has a built in Colour fader program, selecting this mode will fade the colours of all selected fixtures.
Speed, Fade time, Master Dimmer, Sound and sound level can be set prior or after selecting this mode.
Auto
The KONTROL36 has built in automatic random colour programs. Selecting this mode will start the program of selected
fixtures. Speed, Fade time, Master Dimmer, Sound and sound level can be set prior or after selecting this mode.
Chases
The KONTROL36 has built in chase programs. Selecting this mode will start the program on selected fixtures and the
mode can be change by selecting presets which are based on the following table. Speed, Fade time, Master Dimmer,
Sound and sound level can be set prior or after selecting this mode.
Orange
Yellow
Magenta
Cyan
Purple
F White
Bamber
Peach
Sunflower
Red /
Green
Green /
Blue
Red /
Blue
Red /
Cyan
Green /
Magenta
Yellow /
Blue
White /
Blackout
Colour
Cycle
Yellow /
Magenta
Salmon
Lime
Warm
White
Sea
Foam
Light
Blue
Green
UV
Blue UV
Red UV
White
UV
Red /
Green
Green /
Blue
Red /
Blue
Red /
Cyan
Green /
Magenta
Yellow /
Blue
White /
Blackout
Colour
Cycle
Yellow /
Magenta
Preset Mode
The KONTROL36 has preset colour presets, selecting this mode allows you to select the colours from the 18 buttons.
First, select the fixture you want to control and then select the colour from the preset buttons. Master dimmer, fade time
and speed can be set prior to selecting the colour.
Colour Macro Mode
The KONTROL36 has preset colour macros, selecting this mode allows you to select the colours from the Speed slider.
First, select the fixture you want to control and then select the colour from the Speed slider. Master dimmer and fade
time can be set prior and after selecting the colour.
www.event-lighting.com.au
3
Follow Mode
The KONTROL36 has colour follow chaser mode, selecting the Colour fade and the Auto button will active this mode.
Speed, Fade time, Master Dimmer, Sound and sound level can be set prior or after selecting this mode.
Sound
The KONTROL36 has built in microphone which can be used in Auto and Chasers modes, the sensitivity can be
adjusted by the sound knob.
Strobe
The KONTROL36 has built in strobe function. The rate of the strobe can be adjusted by the Strobe slider
DMX Addresses
Fixtures should be set to the following addresses to be controlled by the Kontrol36
Fixture 1 = Address 1
Fixture 2 = Address 7
Fixture 3 = Address 13
Fixture 4 = Address 19
Fixture 5 = Address 25
Fixture 6 = Address 31
TECHNICAL SPECIFICATIONS
DMX512 protocol with 36channels
Independent control of 6 fixtures, 6ch each (RGBWAU)
Each fixture can be set in different playback modes simultaneously
Sound-activated: synchronized music activation through internal microphone with adjustable sensitivity
Preset: 18 color preset for an immediate operation
Macro: Virtual color wheel to scroll the whole color spectrum
Variable fade times for all playback modes
Variable strobe 0-30Hz
Slider for master dimmer
Adjustable blackout allows fixtures to fade out
Power: 9V DC 500mA
MIDI Signal: 5 din pin standard interface
Dimensions: 393 x 140 x 50 mm
Weight: 1.5kg
WARRANTY
Please refer to your local dealer or please contact Event Lighting.
