USER’S MANUAL

DuraMAR

2150

Rugged Rolling Stock Mobile Access Route

Rev. 1.0 - December 2008 - ETH_ DuraMAR2150_USM1.0

DIGITAL TECHNOLOGIES FOR A BETTER WORLD

www.eurotech.com

DuraMAR 2150 – User’s Manual

Disclaimer

The information in this manual has been carefully checked and is believed to be accurate. Eurotech assumes no

responsibility for any infringements of patents or other rights of third parties, which may result from its use.

Eurotech assumes no responsibility for any inaccuracies that may be contained in this document. Eurotech makes no

commitment to update or keep current the information contained in this manual.

Eurotech reserves the right to make improvements to this document and/or product at any time and without notice.

Warranty

This product is supplied with a limited warranty. The product warranty covers failure of any Eurotech manufactured

product caused by manufacturing defects. Eurotech will make all reasonable effort to repair the product or replace it with

an equivalent alternative. Eurotech reserves the right to replace the returned product with an alternative variant or an

equivalent fit, form and functional product. Delivery charges will apply to all returned products.

Trademarks

All trademarks, both marked and not marked, appearing in this document are the property of their respective owners.

WEEE

The information below is issued in compliance with the regulations as set out in the 2002/96/CE directive, subsequently

superseded by 2003/108/CE. It refers to electrical and electronic equipment and the waste management of such

products.

When disposing of a device, including all of its components, subassemblies and materials that are an integral part of the

product, you should consider the WEEE directive.

This symbol has been attached to the equipment or, if this has not been possible, on the packaging,

instruction literature and/or the guarantee sheet. By using this symbol, it states that the device has been

marketed after August 13th 2005, and implies that you must separate all of its components when possible,

and dispose of them in accordance with local waste disposal legislations.

•Because of the substances present in the equipment, improper use or disposal of the refuse can cause

damage to human health and to the environment

•According to WEEE, the disposal of this product with normal urban refuse is prohibited. Arrangements

should be instigated for separate collection and disposal

•Contact your local waste collection body for more detailed recycling information

•In case of illicit disposal, sanctions will be levied on transgressors.

RoHS

This device, including all it components, subassemblies and the consumable materials that are an integral part of the

product, has been manufactured in compliance with the European directive 2002/95/EC known as the RoHS directive

(Restrictions on the use of certain Hazardous Substances). This directive targets the reduction of certain hazardous

substances previously used in electrical and electronic equipment (EEE).

Eurotech S.p.A.

A member of the Eurotech Group

Via Fratelli Solari, 3/a

33020 - AMARO (UD)

ITALY

DuraMAR 2150 – User’s Manual

Introduction

Conventions used within this Manual

The following conventions are used throughout this manual.

Warnings and Important Notices:

Within this manual you will find the following tables, please ensure that you read and understand these as

they are intended to highlight potential risks or precautions that should be taken.

Warnings:

Warnings icons precede potentially dangerous procedures (potential personal injury or

damage to a system, device, or program) throughout this manual. Instructions

contained in the warnings must be followed. You should also use all other safety

precautions, which you deem necessary for the operation of the equipment in your

operating environment.

Information and/or Notes:

Indicates important features or instructions that should be observed

Safety Notices and Warnings

General safety precautions must be observed during all phases of operation, service, and repair of this

equipment. They are listed in the Quick Reference Guide that comes with your DuraMAR-2150.

Failure to comply with those precautions or with specific warnings elsewhere in this manual violates safety

standards of design, manufacture, and intended use of the equipment.

Eurotech S.p.A. assumes no liability for the customer’s failure to comply with these requirements.

The safety precautions listed represent warnings of certain dangers of which Eurotech is aware.

You, as the user of the product, should follow these warnings and all other safety precautions necessary for

the safe operation of the equipment in your operating environment.

Trademarks

All trademarks both marked and not marked appearing in this document are the property of their respective

owners.

Warranty

This product is supplied with a limited warranty. The product warranty covers failure of any Eurotech

manufactured product caused by manufacturing defects. Eurotech will make all reasonable effort to repair

the product or replace it with an equivalent alternative. Eurotech reserves the right to replace the returned

product with an alternative variant or an equivalent fit, form and functional product. Delivery charges will

apply to all returned products.

DuraMAR 2150 – User’s Manual

CE Notice

This product is marked in accordance with the Class 2 product requirements specified in the R&TTE

Directive, 1999/5/EC.

The CE Mark on the product indicates that the system has been tested and conforms to the provisions of the

89/336/EEC Electromagnetic Compatibility Directive and the 73/23/EEC Low Voltage Directive.

Eurotech shall not be liable for use of our products with equipment (i.e., power supplies, personal computers,

etc.) that are not CE marked and do not comply with the Low Voltage Directive.

Technical Assistance

If you have a technical question or if you cannot isolate a problem with your device, please send an e-mail to

the Eurotech Technical Support Team at: email: [email protected]

Before returning any Eurotech supplied product, for any reason whatsoever, you must first send and e-mail

to the Technical Support Team at the above email address, providing information listed below. After this you

will receive an RMA number (Returned Material Authorization) for the return of the material:

Information to be provided in RMA request:

•Model number

•Serial number

•Detailed fault description

•Company Details

•Contact details

Pack the product in anti-static material and ship it in a sturdy cardboard box with

enough packing material to adequately protect the shipment.

Any product returned to Eurotech improperly packed will immediately void the

warranty for that particular product!

DuraMAR 2150 – User’s Manual

Table of Contents

Introduction.......................................................................................................................................................3

Conventions used within this Manual.................................................................................................................3

Warnings and Important Notices:............................................................................................................................. 3

Safety Notices and Warnings.............................................................................................................................3

Trademarks.............................................................................................................................................................. 3

Warranty.................................................................................................................................................................. 3

CE Notice................................................................................................................................................................. 4

Technical Assistance..........................................................................................................................................4

Table of Contents .............................................................................................................................................5

Chapter 1 Product Overview .......................................................................................................................7

Description..........................................................................................................................................................7

Architecture.........................................................................................................................................................8

CISCO 3200 ISR...................................................................................................................................................... 8

Eurotech Communications Controller (ECC) ........................................................................................................... 8

System interfaces.............................................................................................................................................10

Front panel connector layout ................................................................................................................................. 10

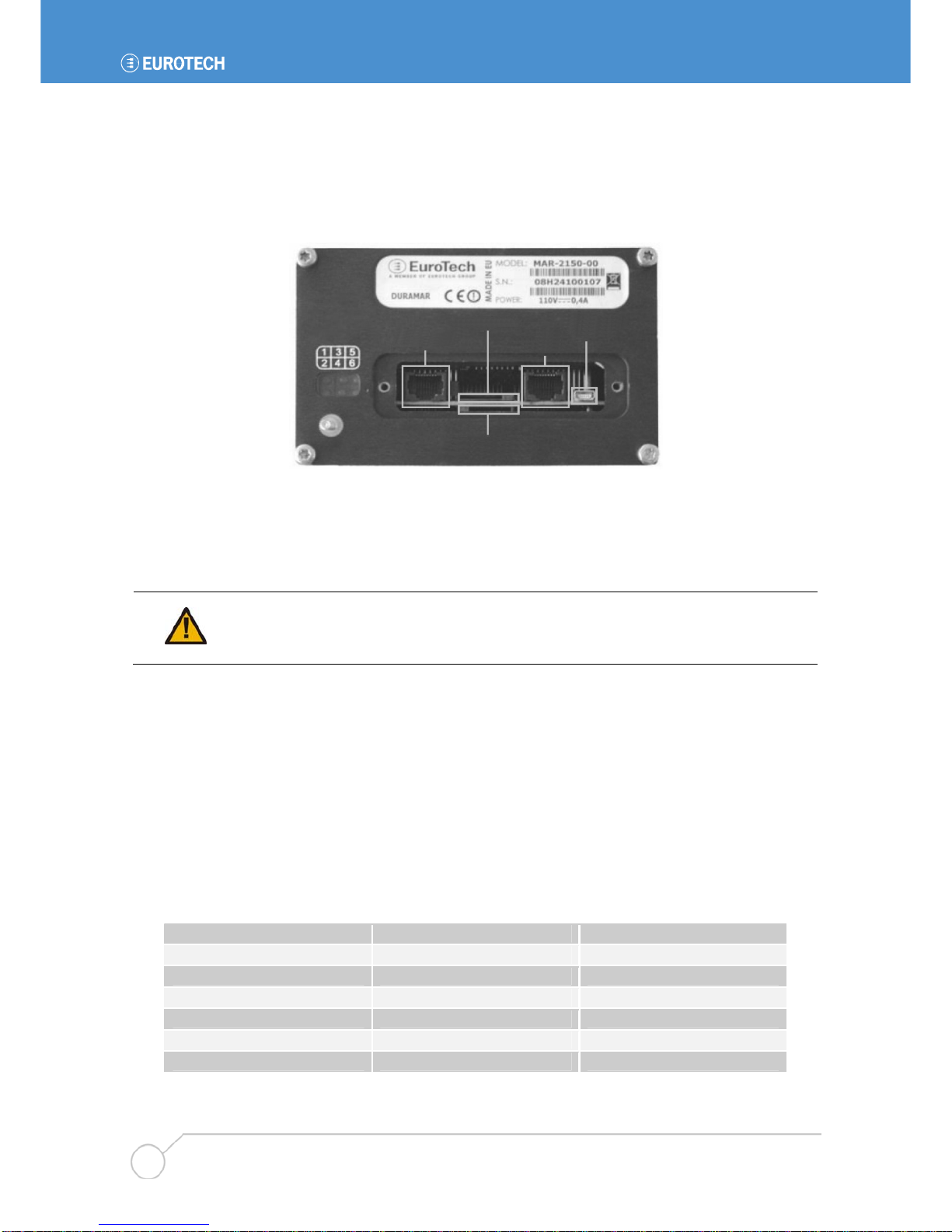

Rear panel connector layout.................................................................................................................................. 11

Chapter 2 Physical Installation .................................................................................................................13

Installation considerations ................................................................................................................................13

External Connections........................................................................................................................................14

Chapter 3 System Operation.....................................................................................................................15

Overview...........................................................................................................................................................15

Operation Mode................................................................................................................................................15

DuraMAR-2150 configuration...........................................................................................................................16

Command Line Interface ..................................................................................................................................16

User Mode ............................................................................................................................................................. 16

Configuration Mode................................................................................................................................................ 17

Using the no-form of commands............................................................................................................................ 17

Using commands history........................................................................................................................................ 18

Configuration files.............................................................................................................................................18

Network interfaces general configuration.........................................................................................................19

Ethernet interface configuration........................................................................................................................19

HSDPA interface configuration.........................................................................................................................19

Router Mode.......................................................................................................................................................... 19

Bridge Mode........................................................................................................................................................... 20

Forcing the cellular network to use ........................................................................................................................ 21

Commands reference ............................................................................................................................................ 22

HSDPA interface information............................................................................................................................23

Cellular network information.............................................................................................................................23

SNMP configuration..........................................................................................................................................24

System administration ......................................................................................................................................24

Changing 'admin' user password........................................................................................................................... 24

Limiting remote access to the system.................................................................................................................... 25

Rebooting the system............................................................................................................................................ 25

Setting controller time and date ............................................................................................................................. 25

DuraMAR 2150 – User’s Manual

Setting the time zone............................................................................................................................................. 25

Log files ................................................................................................................................................................. 26

Setting up static routes to access external resources............................................................................................ 26

Upgrading the system............................................................................................................................................ 26

Installing a new firmware using the DuraMAR USB-disk key................................................................................. 28

Using the integrated CISCO router for hosting controller system image files. ....................................................... 29

DuraMAR-2150 service interface .....................................................................................................................30

Chapter 4 Environmental and Electrical Specs.......................................................................................33

Mechanical Characteristics...............................................................................................................................33

Operating Characteristics.................................................................................................................................33

Absolute Maximum Ratings..............................................................................................................................34

Compliance.......................................................................................................................................................34

Revision History .............................................................................................................................................35

Eurotech Group Worldwide presence..........................................................................................................37

DuraMAR 2150 – User’s Manual

Chapter 1 Product Overview

Description

The DuraMAR® 2150 is a rugged integrated wireless router designed for providing net-centric connectivity in

rolling stock installations such as on trains and metros.

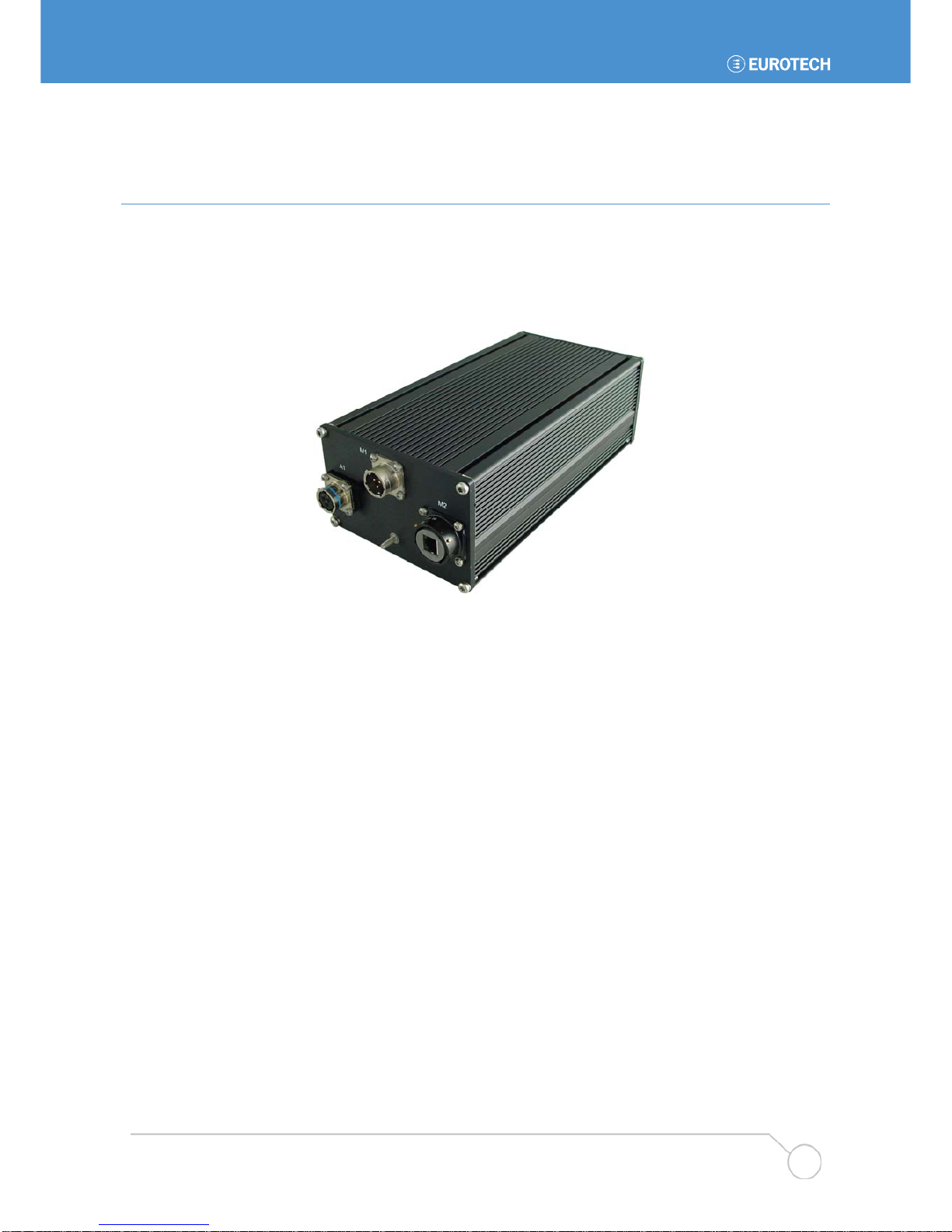

Figure 1. Picture of the DuraMAR-2150

Key features include:

•Compliance with train and rail standards, EMC, EMI, shock and vibration

•Extended operating temperature range: –20°C / +55°C (70°C for 10 minutes) EN50155 class T1

•Wide storage temperature range: –20°C up to 70°C EN50155 class T1

•Conduction cooled system

•Solid state system storage, 512 MB Flash Disk

•Rugged mechanical construction

•IP65 ingress protection

•Rugged locking circular connectors with strain relief

•Nominal 110Vdc train feeder supply

DuraMAR 2150 – User’s Manual

Architecture

The DuraMAR-2150 system consists of:

•a CISCO 3200 series Integrated Services Router (ISR) core running the industry standard IOS®

software

•a Eurotech Communication Controller (ECC) featuring an integrated high speed wireless HSDPA

interface

CISCO 3200 ISR

Cisco® 3200 Series wireless and mobile router offers secure data, voice and video communication. It

supports multiple wired and wireless links, including integrated 802.11b/g and 4.9-GHz wireless

technologies. With a flexible, compact form factor, these rugged router cores are ideally suited for integration

in vehicles or installations outdoors. Standard Mobile IP services provide transparent roaming in wireless

networks for mobile installations. The Cisco IOS® Software includes data security, manageability, and

scalability, along with interoperability between networks, while supporting new and evolving network and

wireless technologies.

The CISCO 3200 ISR core of the DuraMAR-2150 includes:

•Mobile Access Router Card (MARC)

•Fast Ethernet Switch Mobile Interface Card (FESMIC)

Eurotech Communications Controller (ECC)

The Eurotech Communication Controller interfaces the CISCO 3200 ISR core with various wireless terminals

such as GPRS, UMTS, HSDPA, HSUPA or CDMA2000 using a 10/100Mbit Ethernet interface. The use of

industry-standard mini PCI-Express form wireless terminals guarantees an easy upgrade path to adopt new

technologies with the change of only a single module.

The core of the Eurotech Communications Controller subsystem consists of the following parts:

•Eurotech CPU-1452 (standard x86 architecture)

•System carrier including power supply, HSDPA and GSM/GPRS modems

HSDPA Section

The Sierra Wireless MC8775V HSDPA module is mounted within the system.

HSDPA features:

•Tri-band UMTS/HSDPA: 850/1900/2100 MHz

oDownlink up to 7.2 Mbps

oUplink up to 1 Mbps

•Power Class: 3 (+24 dBm)

EDGE features:

•Quad-band EDGE/GPRS/GSM: 850/900/1800/1900 MHz

oDownlink up to 216 kbps

oUplink up to 108 kbps

•GSM Power Class 4 for 850 / 900 bands, GSM

•Power Class 1 for 1800 / 1900 bands

•EDGE class E2

DuraMAR 2150 – User’s Manual

GSM/GPRS Section

A Siemens MC55 GSM/GPRS modem is mounted within the system.

GSM/GPRS features:

•Support for Tri-band GSM/GPRS networks 900/1800/1900MHz bands

•Up to 56Kbps GPRS data rate depending on network bandwidth

•GPRS downlink data rate up to 85.6kbps

•Full SMS support

•GPRS mobile station class B and multi-slot class 10 compliant

•Output power: 2W for EGSM900 and 1W for GSM1800/1900

•Approvals: R&TTE, FCC, IC, GFC, PCCRB and local approvals as well as mobile operator

certifications

•Interfaces to the system CISCO/controller through a serial port

Power supply subsystem features

The DuraMAR-2150 power supply subsystem features include:

•Input power filtering and protection circuitry with high power tranzorb over-voltage protection diodes

•Isolated train qualified DC/DC converter with post regulators providing power to all system devices

•Reverse voltage protection up to –200VDC

The system can be powered directly from a train feeder supply:

•Nominal power supply: 110VDC

•Typical power consumption: < 44W

Warning:

Electric current from power and communication cables is hazardous. To avoid shock

hazard when connecting or disconnecting cables, follow appropriate safety

precautions. Ensure that the correct operating voltage is used when powering the

device.

DuraMAR 2150 – User’s Manual

System interfaces

Front panel connector layout

USB firmware

upgrade port

HSDPA SIM

LEDs CPU console Cisco console

GND GSM/GPRS SIM

Figure 2. Front panel layout (with protection cover removed)

Service interfaces

Some service interfaces are provided on the front panel of the system under a protection cover. It is possible

to remove this cover by removing the two Torx screws.

Warning:

While the protection cover is removed it is not possible to maintain the IP protection

grade

The service interfaces can be used for debugging, firmware uploading, system configuration and diagnostics:

•SIM card holder for HSDPA

•SIM card holder for GSM/GPRS

•CISCO 3200 ISR serial console port

•ECC serial console port

•USB1.1 port of embedded controller for firmware upgrading

LED indicators

On the front panel of the system there are 6 LED indicators with functions as described below.

LED Number Function Comments

1 Not Connected -

2 Power Good +12 V present

3 GSM activity Software programmable

4 HSDPA activity Software programmable

5 Power #1 On 5 V present

6 Power #2 On 3.3 V present

Table of contents

Other Eurotech Network Router manuals

Eurotech

Eurotech Winner Series User manual

Popular Network Router manuals by other brands

Allnet

Allnet ALL0333AU user guide

HomeSeer

HomeSeer HT-SEL Getting started guide

Sercomm

Sercomm Genesis OC3505D Quick installation guide

Billion

Billion BIPAC 5102 Series user manual

TP-Link

TP-Link TD-8817 QIG

Motorola

Motorola MR1900 user guide

Digi

Digi IX14 user guide

Cisco

Cisco NCS 540 Hardware installation guide

XAVi

XAVi X8821e user manual

BEC

BEC 6200WZL Quick installation guide

MikroTik

MikroTik hAP ac3 Series quick start

Korenix

Korenix JetNet 5428G Series user manual

NETGEAR

NETGEAR FS526T - Switch installation guide

Korenix

Korenix JetNet 5710G Series user manual

Automated Logic

Automated Logic ZN551 Technical instructions

Cisco

Cisco ASR 1000 Series Installation and configuration guide

EnGenius

EnGenius ESR-9710 quick start guide

Cisco

Cisco 805 Series Product overview
