ETIC IPL-M156 User manual
IPL-M156 : PSTN router
IPL-I1128: ISDN router
IPL-L134 : Dedicated line router
IPL-RS232 : Serial interface router
_________________
User manual
Document reference : 9017109-01
_________________
Page 2 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router
The IPL-M156 and IPL-I1128 and IPL-L134 routers are manufactured by
ETIC TELECOMMUNICATIONS
13 Chemin du vieux chêne
38240 MEYLAN
FRANCE
:
TEL : + 33 4-76-04-20-00
FAX : + 33 4-76-04-20-01
E-mail : hotline@etictelecom.com
web : www.etictelecom.com
CONTENT
IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 3
OVERVIEW
1PRODUCTS IDENTIFICATION .................................................................................... 7
2SPECIFICATIONS........................................................................................................ 8
3PRODUCT OVERVIEW............................................................................................. 10
INSTALLATION
1PRODUCT DESCRIPTION........................................................................................ 13
1.1 Leds ............................................................................................................... 13
1.2 Connectors ................................................................................................... 14
1.3 DIP-switches ................................................................................................. 16
2VENTILATION............................................................................................................ 16
3SUPPLY VOLTAGE ................................................................................................... 16
4ETHERNET INTERFACE ........................................................................................... 16
5RS232 INTERFACE ................................................................................................... 17
6RS485 INTERFACE ................................................................................................... 17
7INPUT & OUTPUT CONNECTION............................................................................. 17
8PSTN LINE (IPL-M156) .............................................................................................. 18
9ISDN LINE (IPL-I1128) ............................................................................................... 19
10 DEDICATED LINE (IPL-L134) ................................................................................... 19
CONFIGURATION
1OVERVIEW................................................................................................................. 21
2CONNECTING A PC TO THE ETHERNET INTERFACE .......................................... 21
3MODIFYING THE CONFIGURATION PARAMETERS THROUGH THE LAN ..........22
4WRONG IP ADDRESS OR PASSWORD................................................................... 22
../..
CONTENT
Page 4User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router
…CONFIGURATION
5SAVING CONFIGURATION MODIFICATIONS ......................................................... 23
6ASSIGNING AN IP ADDRESS TO THE LAN INTERFACE...................................... 23
7MODEM CONFIGURATION....................................................................................... 24
7.1 PSTN modem (IPL-M156)............................................................................. 24
7.2 ISDN adapter (IPL-I1128).............................................................................. 24
7.3 Dedicated line modem (IPL-L134)............................................................... 24
8CONFIGURING CONNECTIONS BETWEEN ROUTERS......................................... 25
8.1 Dial-up PSTN or ISDN connection .............................................................. 25
8.2 Dedicated line connection........................................................................... 28
9CONFIGURING STATIC ROUTES ............................................................................31
10 REMOTE USERS CONNECTION .............................................................................. 32
10.1 Configuring the users list............................................................................ 33
11 RESTRICTING THE RIGHTS OF A REMOTE USER................................................ 34
11.1 Filter structure .............................................................................................. 34
11.2 Configuration................................................................................................ 35
12 SERIAL TO IP GATEWAY ......................................................................................... 38
12.1 Modbus gateway .......................................................................................... 39
12.2 RAW TCP gateway ....................................................................................... 42
12.3 Multicast gateway......................................................................................... 44
13 ADVANCED FUNCTIONS.......................................................................................... 46
13.1 Alarms ........................................................................................................... 46
13.2 Configuring the web portal..........................................................................48
13.3 Restricting access to the administration server....................................... 49
../..
CONTENT
IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 5
MAINTENANCE
1DIAGNOSTIC ............................................................................................................. 51
2SAVING THE PARAMETERS FILE ........................................................................... 52
3UPDATING THE FIRMWARE .................................................................................... 52
APPENDIX 1 : HTML configuration server
CONTENT
Page 6User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router
OVERVIEW
IPL-M156 / IPL-I1128 / IPL-L134 routerUser manual ref. 9017109-01 Page 7
1 Products identification
IPL-
RS232
IPL-
M156
IPL-
I1128
IPL-
L134
A
nalog switched telephone line (PSTN) •
ISDN ETSI BRI interface ( one B channel 64 kb/s) •
Dedicated, voice band, 2 wire line •
RJ45 Ethernet 10 Mb/s 1 1 1 1
RS232-RS85 1111
IP router ••••
NAT – DNAT – Port forwarding ••••
SNMP traps ••••
DNS ••••
DHCP client or server (LAN interface) ••••
Firewall SPI ••••
Remote access server (RAS) ••••
VPN PPTP, IPSEC, SSL ••••
Remote access server •• • •
Digital input for email alarms 3333
Serial gateway :
Raw TCP client and server,
Telnet server,
Multicast,
Modbus client and server,
Unitelway
••••
Html Configuration ••••
Option software IO Viewer ••••
OVERVIEW
Page 8 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router
2 Specifications
General characteristics
Dimensions 128 x 38 x 107 mm (h, l, p)
Electrical safety EN 60950- UL 1950
CEM
ESD : EN61000-4-2 : Discharge 6 KV
RF field : EN61000-4-3 : 10V/m < 2 GHz
Fast transient : EN61000-4-4
Surge voltage : EN61000-4-5 : 4KV line / earth
RoHS 2002/95/CE (RoHS)
Supply voltage 9 to 60 VDC - 125 mA at 24 VDC
Operating T° -20°C / + 60°C Humidity 5 - 95 %
PSTN / ISDN / Dedicated line
PSTN
Analog PSTN line (2 wires)
V90 modem 56 kb/s
DTMF and pulse dialling
International and programmable line interface
ISDN
ETSI EURO-ISDN conform
BRI interface
1 B channel management (64 kb/s)
Dedicated line
2 wires line
V34 modem –33.4 kb/s
Voice band 300-3400 Hz
Ethernet / IP router
Ethernet One Ethernet 10BT interface
IP router Remote connections- static routes - RIP V2
Ip address
translation
Source IP @ translation (NAT)
Destination IP @ translation (DNAT)
Port translation (Port forwarding)
DNS Domain name
IP address assignment Fixed IP @ or DHCP client or DHCP server
OVERVIEW
IPL-M156 / IPL-I1128 / IPL-L134 router User manual ref. 9017109-01 Page 9
Security
Connection
PPP connection
Login & password
Call-back
VPN
Client or server IPSEC or TLS/SSL or PPTP
Encryption 3DES
Certificate 509
Logs Date and time stamped logs
Remote access server (RAS)
User list 25 users
Connection
PPP connection
Login & password
call-back
Alarms 3 inputs : emails
Serial interface
RS232 1200 - 115200 kb/s parity N / E / O
Serial to IP gateways
Modbus master and slave
Raw client et server
Telnet
Multicast
UDP multicast
unitelway
OVERVIEW
Page 10 User manual ref. 9017109-01 IPL-M156 / IPL-I1128 / IPL-L134 router

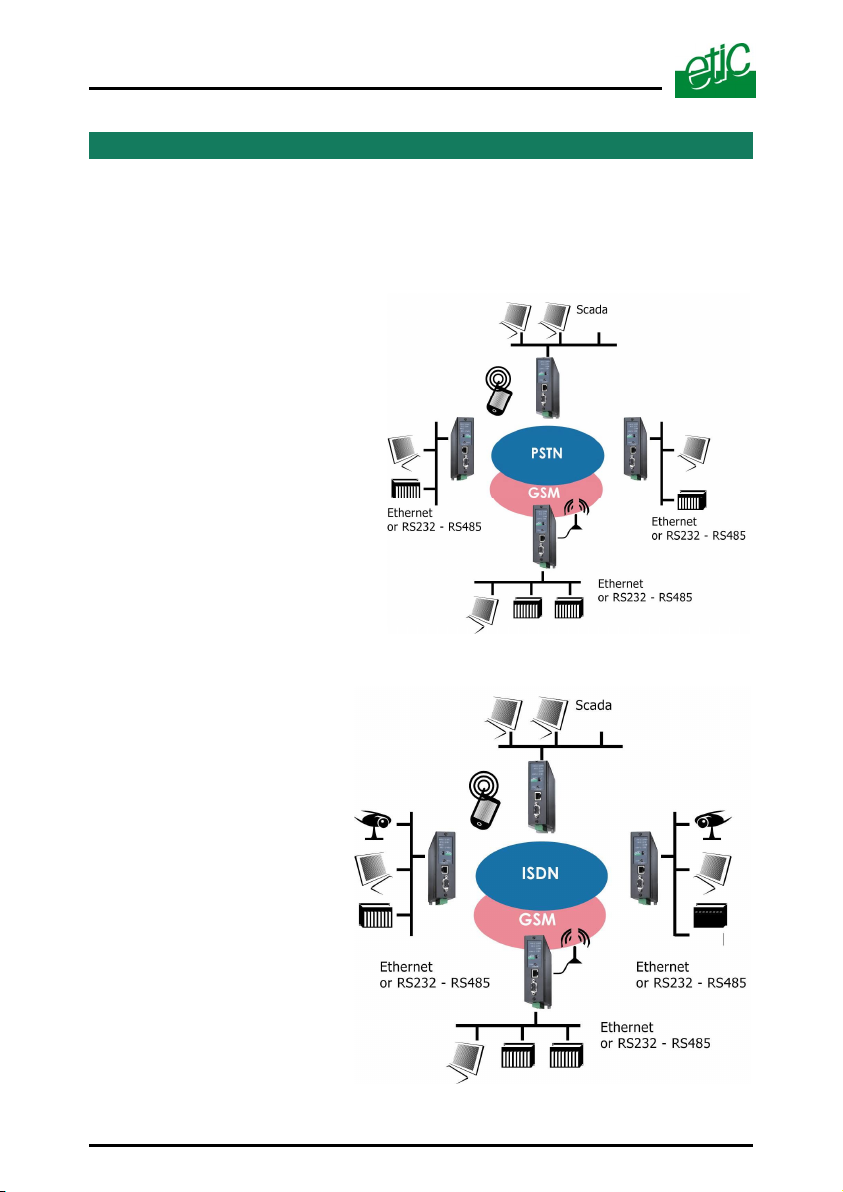

3 Product overview
The IPL is designed to interconnect safely automated devices over the
PSTN or ISDN or dedicated lines.
PSTN network
ISDN network
