ESAB SDE-100 User manual

SDE-100

Instruction manual

0448 019 001  GB  20230315

TABLE OF CONTENTS

0448 019 001 -3- © ESAB AB 2023

1 SAFETY ...................................................................................................................................... 4

1.1 Meaning of symbols .................................................................................................... 4

1.2 Safety precautions ...................................................................................................... 4

2 INTRODUCTION ......................................................................................................................... 4

2.1 Oven use and purpose................................................................................................ 4

3 TECHNICAL DATA ..................................................................................................................... 5

4 INSTALLATION........................................................................................................................... 5

4.1 Operation...................................................................................................................... 5

ORDERING NUMBERS ......................................................................................................................... 6

WIRING DIAGRAM ................................................................................................................................ 7

ORDERING SPARE PARTS .................................................................................................................. 8

1  SAFETY

0448 019 001 -4- © ESAB AB 2023

1 SAFETY

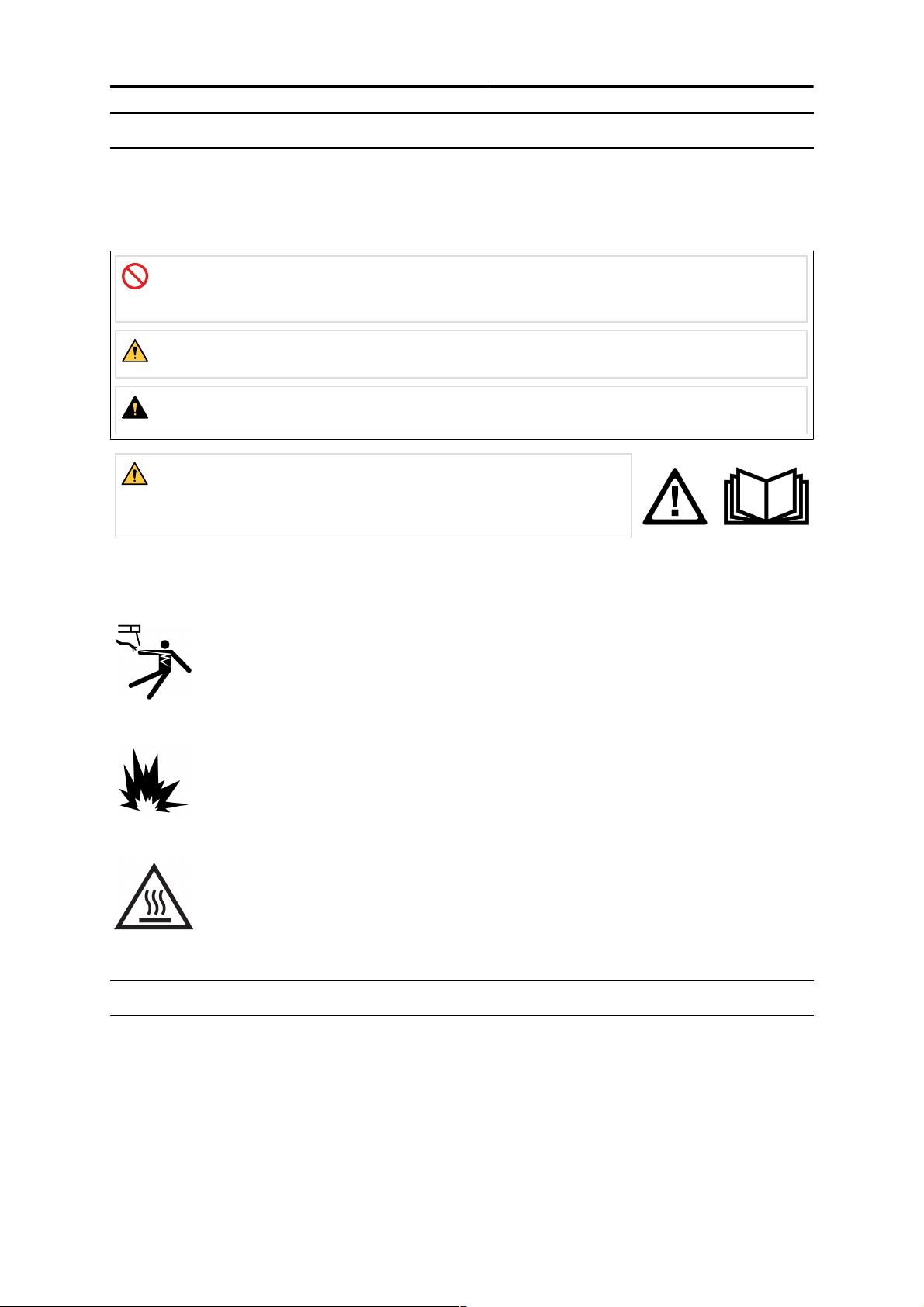

1.1 Meaning of symbols

As used throughout this manual: Means Attention! Be Alert!

DANGER!

Means immediate hazards which, if not avoided, will result in immediate, serious

personal injury or loss of life.

WARNING!

Means potential hazards which could result in personal injury or loss of life.

CAUTION!

Means hazards which could result in minor personal injury.

WARNING!

Before use, read and understand the instruction manual and

follow all labels, employer´s safety practices and Safety Data

Sheets (SDSs).

1.2 Safety precautions

ELECTRIC SHOCK - Can kill

• Do not touch live electrical parts or electrodes with bare skin, wet gloves

or wet clothing.

• Insulate yourself from work and ground.

• Ensure your working position is safe.

FIRE HAZARD

• Do not use if the power cord is broken or abnormal temperature variation

(not recommended as per manual/factsheet) seen on the oven as it may

can cause fire.

• Make sure that there are no inflammable materials nearby.

HOT SURFACE - Parts can burn

• Do not touch parts bare handed.

• Allow cooling period before handling or working with the equipment.

• To handle hot parts, use proper tools and/or insulated welding gloves to

prevent burns.

2 INTRODUCTION

2.1 Oven use and purpose

The SDE-100 oven model is designed to dry and store stick welding electrodes at a desired

temperature to remove moisture. Desired temperature can be set, based on the recommendation from

the electrode manufacturer to achieve correct drying, ensuring the moisture content and for storage.

This oven should only be used for its recommended setting and usage.

4  INSTALLATION

0448 019 001 -5- © ESAB AB 2023

3 TECHNICAL DATA

SDE-100

Capacity 100kg (220lbs.)

Voltage 3 phase 380-415V

Frequency 50/60Hz

Output 3000W

Temperature Up to 400°C (752°F) Digital thermostat

Outer dimensions (L*W*H, cm) 53 × 72 × 138

Weight (Without electrodes) 90kg (198lbs.)

NOTE!

Oven heating temperature can be set from surrounding ambient to 400°C.

4 INSTALLATION

NOTE!

Make sure that the technical specification on the product corresponds to the electrical supply

in your network.

Check the voltage, frequency information and check that there is no fault that will affect the

operation of the product.

4.1 Operation

WARNING!

When the oven is not in use, turn the power knob to “O” position and remove power cord plug

from electrical outlet.

• Connect oven power cord plug to a power outlet as recommended in the technical

information. Make sure the power outlet socket matches the oven power plug type.

• Load electrodes onto oven shelfs (trays). Do not place anything else (packaging

material, etc. as high temperature can burn it and cause fire inside the oven) besides

electrodes on these metal trays. Do not overfill trays and make sure the door can be

latched properly.

• Lock the door.

• On the oven control panel, to turn on the oven change power knob to “I” position.

APPENDIX

0448 019 001 -6- © ESAB AB 2023

• Once the power is turned on, depending upon the type of your oven i.e 1Φ one green

lamp will glow or 3Φ three green pilot lamps will glow. If the lamps or not glowing,

then check the power connection. Refer the below image.

• Setting the desired temperature

○ When the unit is turned on the controller display will show the current

temperature and set value.

○ Press and hold the SET button for 2 seconds to set a different

temperature. Use up and down keys to reach the desired set

temperature. Once the controller read out shows the desired

temperature, press SET key again.

○ The oven will now automatically heat up or cool down to the set

temperature. The oven will automatically turn off heating when the set

temperature is reached. The green lamp will also turn off.

• To remove electrodes from oven, when they have been dried at the desired

temperature.

○ Open and release the release valve on the top to avoid the hot smoke

exhaust when opening the front door.

○ Either turn off the oven completely or cautiously remove from the metal

trays and transfer to a portable oven (like PSE 5 or 10).

WARNING!

To achieve the maximum drying of electrode it is recommended to use FIFO (First In First Out)

principle. Must be cautious to not over-dry electrodes by leaving old electrodes inside oven

while only removing the newly added electrodes.

APPENDIX

ORDERING NUMBERS

Ordering number Denomination Type Notes

0700 100 068 Stationary welding electrode drying oven SDE-

100

Three phase

380-

415VAC50/60Hz

Technical documentation is available on the Internet at: www.esab.com

APPENDIX

0448 019 001 -7- © ESAB AB 2023

WIRING DIAGRAM

APPENDIX

0448 019 001 -8- © ESAB AB 2023

ORDERING SPARE PARTS

Item no. Qty. Ordering number Description Notes

1 1 0700 100 002 Digital thermostat DT-109A

23 0700 100 003 Signal lamp 220V

3 0700 100 004 Signal lamp 110V

3 1 0700 100 074 Fiberglass wick

4 1 0700 100 018 Power switch

5 1 0700 100 020 Air valve

6 1 0700 100 006 Door handle

7 2 0700 100 054 Tray

82 0700 100 008 Castors without brake Back

2 0700 100 009 Castors with brake Front

9 1 0700 100 031 Cable gland

10 2 0700 100 011 Heating element 220V

2 0700 100 012 Heating element 110V

11 1 0700 100 017 Contactor 220V UNI 220V

1 0700 100 023 Contactor 110V UNI 110V

12 2 0700 100 015 Fuse (automatic) 10A

1 0700 100 016 Fuse (automatic) 2A

13 1 0700 100 019 Terminal Set

14 1 0700 100 013 Power cable with plug CEE 5x32A 400V plug

1 0700 100 014 Power cable with plug 110V

15 1 0700 100 165 Thermocouples

APPENDIX

0448 019 001 -9- © ESAB AB 2023

For contact information visit http://esab.com

ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00

manuals.esab.com
