Erreka MAXI Operating instructions

MAXI

Quick installation and programming guide English

WARNING

This quick guide is a summary of the complete installation manual. The manual contains safety warnings and

other explanations which must be taken into account. The installation manual can be downloaded by going

to the "Downloads" section of Erreka website:

http://www.erreka-automation.com

I277B

Elements of the complete installation

Electrical wiring

A: Main power supply

B: Closing photocells

C: Pushbutton / wall key

D: LUMI flashing light

E: Operator (motor / encoder)

Assembly levels

Level H: the track should remain 10 cm above the

highest point of the door (see detail H ).

Total length (operator + guide) / working stroke:

– track ref. AMX01: 3,380mm / 2,788mm

– track ref. AMX02: 4,480mm / 3,888mm

MSP-030/00

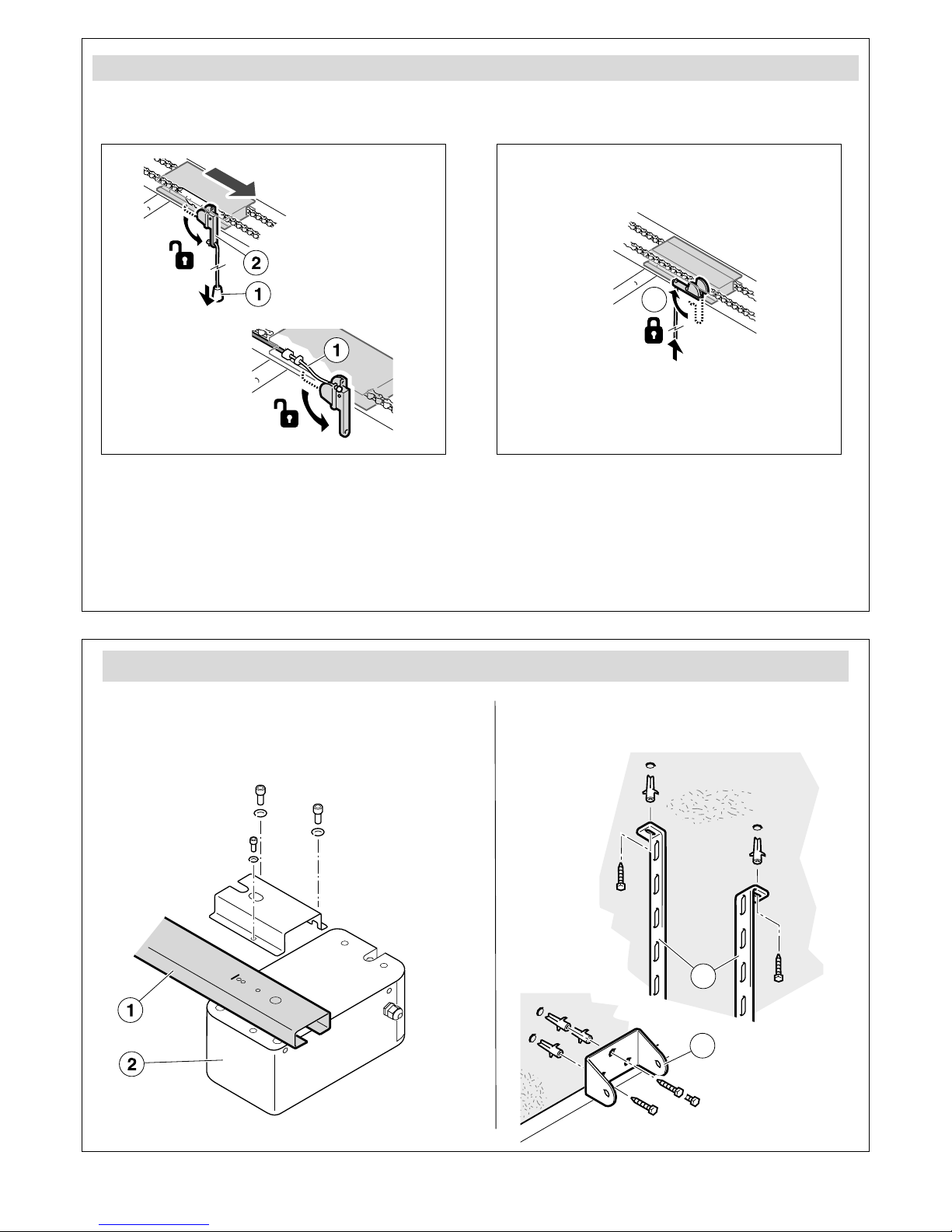

Unlocking and locking

Unlocking

Unlocking for manual operation

Pull the knob or cable (1) until the release lever (2) is

vertical.

Locking

Motorised operation locking

Place the lever in horizontal position (3). Locking will take

place when the operator starts up.

D277C

D277D

P277A

P260B

Assembly

Secure the track (1) in the operator (2).

Position the overhead strips (3) and front support (4).

Bear in mind assembly level H(see “assembly levels”

on the previous page).

P277G

P277F

Install the central mount (9).

Open the door and install the opening stopper

(10) until it comes up against the carriage (11).

Use two self-drilling, self-tapping screws.

P260D

P260E

Position the anchoring (5) in the upper part of the door using the arms

(6) and (7), and couple it to the carriage (8).

Tighten the nut as far as possible,

and then loosen it slightly until the

sleeve can be turned by hand.

P277C

Mount the track (1) + operator (2) on the supports (3) and (4).

OThe track (1) must be horizontal.

P277H

Close the door and install the closing stopper

(12) until it comes up against the carriage (11).

Use two self-drilling, self-tapping screws.

P277Z

MAXI

MXS120

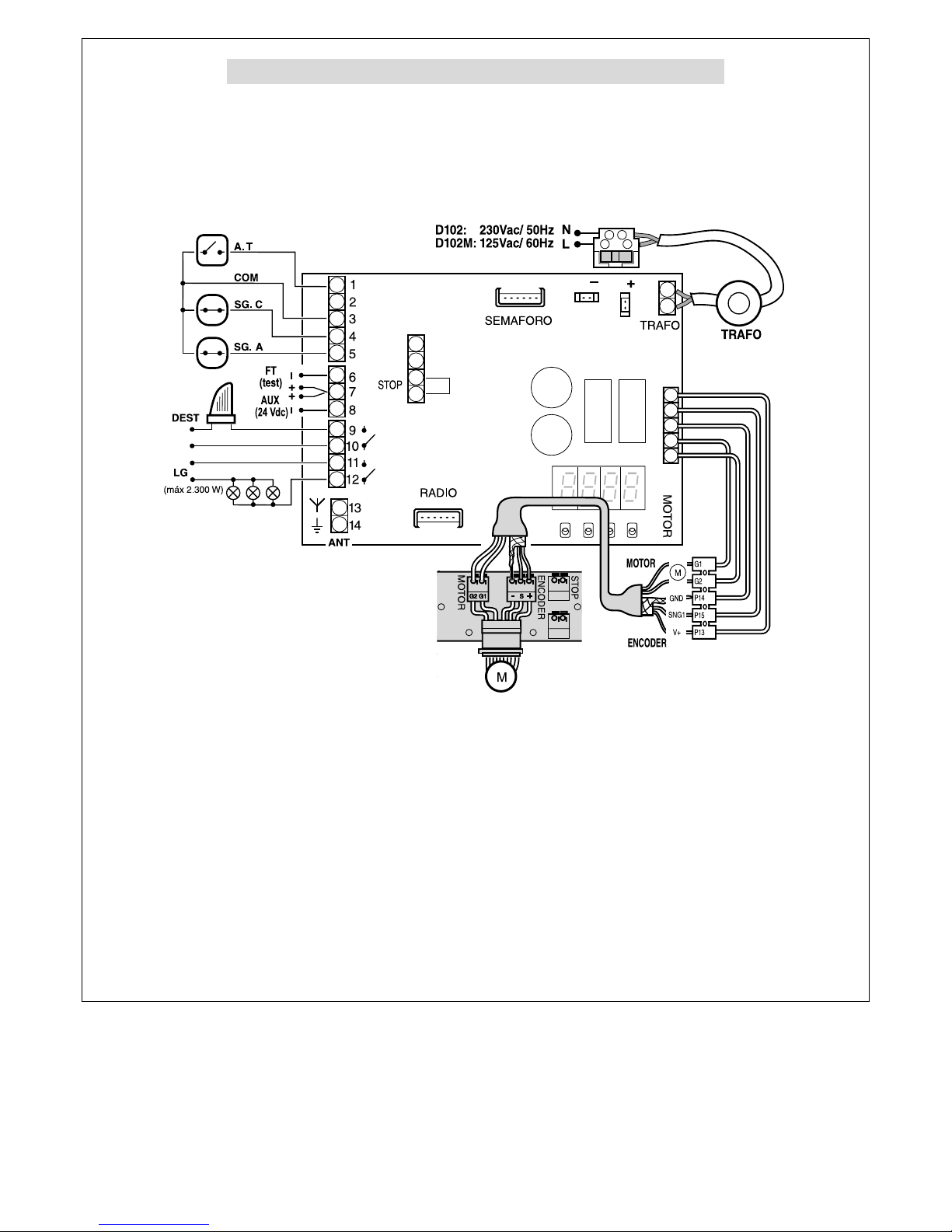

Electrical connections (panel VIVO-D102)

A.T. Wall key or pushbutton

SG.C Closing safety device

(closing photocell:)

SG.A Opening safety device

(opening photocell:)

FT Connection for photocells with testing

AUX Power supply for peripherals (24 Vdc)

STOP Not used, perform bridging

DEST Flashing light (LUMI)

LG Garage lights

G1 Blue (motor)

G2 Red (motor)

P14 (GND) Mesh (encoder mesh) (–)

P15 (SNG1) Green (encoder signal) (S)

P13 (V+) Brown (encoder power supply) (+)

Disconnect the power supply before connecting or disconnecting any component.

The A.T., S and STOP devices must be voltage-free in order to prevent any damage to the control board.

(max. 2300W)
