Ergotron 870-03-005 User manual

Maximize the effectiveness of Flat Panel Monitors

Flat Panel Monitor

Mounting Solutions

870-03-005, rev.05/30/03

Orderguide

Quartex Informatica

www.quartex.it

Quartex Informatica

Via Paolo Giovio n.5

20144 Milano

tel 02 4984998

fax 02 4985894

e-mail: [email protected]

Show-Room

Via Paolo Giovio Angolo Via

Andrea Verga

20144 Milano

Orderguide

Flat Panel Monitor ARMS

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

How to Select ARMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Flat Panel ARMS Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . 5

ARMS Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

400 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

300 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

200 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

100 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

FX Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DS100 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

DS400 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

HD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

VL Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

MD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Carts: Mobile WorkStand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Surface Attachment Options . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Direct Mounting, Wall Plates, Furniture Mounts . . . . . . . . . . . . . . . . . 38

Wall Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Command Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Pole Mounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Slatwall Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Accessory Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Keyboard/Mouse Trays, Laptop Trays & Accessories . . . . . . . . . . . . . 44

Monitor Interface Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

CPU Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Storage Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Peripheral Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Footrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Monitor Interface & VESA®Standard Guide . . . . . . . . . . . . . . 47

Ergonomics Data & Mounting Heights . . . . . . . . . . . . . . . . . . 48

Ergonomic Ground Rules – English Units . . . . . . . . . . . . . . . . . . . . . 48

Ergonomic Ground Rules – Metric Units . . . . . . . . . . . . . . . . . . . . . . 49

Mounting Height Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Weight Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Performance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Interface Dimensions for Direct Mounting . . . . . . . . . . . . . . . . . . . . . 54

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Sample Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

4 • ARMS Orderguide • rev. 05/30/03 870-03-005

Introduction

Flat panel monitors provide space-saving convenience. Ergotron’s

Adjustable Rotating Mounting Solutions (ARMS) deliver this

technology where you need it. Patented ARMS products instantly lift,

swing, tilt and rotate for optimum ergonomic positioning without the

need for knobs or adjustment levers. Our Paraview Technology

allows multiple monitors to be attached to a single arm or stand.

In short, ARMS increase work space while improving productivity.

How to Select ARMS for your Application

When deciding which ARMS to order, consider three topics:

1. Determine which method of Monitor Suspension you need…

•400 Series for long reach adjustability

•300 Series for full adjustability

•200 Series for monitor extension/retraction adjustability

•100 Series for short reach with partial adjustability

•FX Series: Fixed mounting

•DS100 Series: Desk stand that mounts multiple monitors

•DS400 Series: Desk stand for improved adjustment

•HD Series for multiple monitors, laptops & heavy flat panel systems

•VL Series: Vertical lift system

•MD Series installs flat panel and/or keyboard into 19" rack or enclosure

•Mobile WorkStand: Computer carts for any application

2. Choose a Surface Attachment Option…

• Attach to a wall

• Place on a desk

• Fasten to a post

• Clamp to a frame

• Hang under a shelf

• Suspend from a ceiling

3. Select Accessories for your system…

• Keyboard/Mouse Trays, Laptop Trays & Accessories

• Extenders

• Monitor Interface Accessories

• CPU Holders

• Storage Components

• Peripheral Table

• Footrest

870-03-005 rev. 05/30/03 • ARMS Orderguide • 5

Flat Panel ARMS Product Overview

Extenders

CPU Holders

& Storage

Components

Keyboard/Mouse

Trays, Laptop Trays

Wrist Rests &

Mouse Pads

400

Series

300

Series

200

Series

100

Series

Monitor Suspension Surface Attachments Accessory Options

Ergotron Carts

Wall

Plates

Wall

Tracks

Desk Mounts

Mobile

WorkStand

Mobile

WorkCenter

Monitor

Interface

Accessories

Furniture

Mounts

Pole Mounts

Direct

Mounting

Command

Posts

Slatwall

Components

Series

HD Series

Cart

Series

6 • ARMS Orderguide • rev. 05/30/03 870-03-005

ARMS Product Selection

400 Series The 400 Series provides up to 24 inches (610 mm) of vertical, sit-to-stand adjustability –

enough to accommodate sitting and standing users at the same workstation! Provides

smooth adjustment while maintaining touch-screen stability. Other features include: cable

management that conceals and routes cables; internal steel construction; easy-to-clean

plastic exterior.

Range of Motion

Vertical Mount Monitor Arms

Note: Height adjustment of Single Pivot Arms = 20"; Double Pivot Arms = 24"

Horizontal & Surface Mount Arms

Monitor Tilt/Pivot

•Single Pivot: 180˚up/down tilt

•Single Pivot w/ P/L: 180˚up/down tilt & 360˚portrait/landscape (P/L)

•Double Pivot w/ P/L: 180˚up/down tilt, 360˚P/L, & 180˚left/right tilt

Keyboard/Laptop Arms

Combo Arms

0˚

Fixed Arm

180˚

Rotate Arm

180˚20" to 24"

(508 to 610 mm)

Top View Side View

90˚

360˚

Top View Side View

180˚180˚360˚

180°

22"

(559 mm)

Side View

180˚180˚150˚

Keyboard Tray

Movement

Monitor

Movement

Arm Vertical Movement

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

Top View

870-03-005 rev. 05/30/03 • ARMS Orderguide • 7

45-003-xxx

45-042-xxx

45-030-xxx

45-002-xxx

45-043-xxx

45-007-xxx

45-005-xxx

45-006-xxx

45-032-xxx

45-029-xxx

400 Series Vertical Mount Arms

Part Description Shipping

Number Weight

Monitor Mounts Weight Capacity

45-003-099, grey Fixed, Single Pivot 28 lbs 11 lbs

45-003-085, black (12.7 kg) (5 kg)

45-042-099, grey Fixed, Single Pivot w/ P/L 25 lbs 13 lbs

45-042-085, black (11.3 kg) (5.9 kg)

45-030-099, grey Fixed, Double Pivot w/ P/L 23 lbs 12 lbs

45-030-085, black (10.4 kg) (5.5 kg)

45-002-099, grey Rotate, Single Pivot 28 lbs 12 lbs

45-002-085, black (12.7 kg) (5.5 kg)

45-043-099, grey Rotate, Single Pivot w/ P/L 25 lbs 13 lbs

45-043-085, black (11.3 kg) (5.9 kg)

45-007-099, grey Rotate, Double Pivot w/ P/L 23 lbs 13 lbs

45-007-085, black (10.4 kg) (5.9 kg)

Keyboard/Laptop Mounts

45-005-099, grey* Fixed, Keyboard/Laptop Pivot 7.5 lbs 11 lbs

45-005-085, black* (3.4 kg) (5 kg)

45-006-099, grey* Rotate, Keyboard/Laptop Pivot 7.5 lbs 12 lbs

45-006-085, black* (3.4 kg) (5.5 kg)

Combo Mounts

45-032-099, grey*†Fixed, Combo Flat Panel/Keyboard Arm Mon: 20 lbs (9 kg) 14 lbs

45-032-085, black*†Kybd: 7.5 lbs (3.4 kg) (6.4 kg)

45-029-099, grey*†Rotate, Combo Flat Panel/Keyboard Arm Mon: 20 lbs (9 kg) 15 lbs

45-029-085, black*†Kybd: 7.5 lbs (3.4 kg) (6.8 kg)

Extenders Dimensions (L x W x D)

44-253-100, grey Extender, 12-inch 12" x 2" x 6-1/4" 7 lbs

44-253-101, black (305 x 51 x 159 mm) (3.2 kg)

44-254-100, grey Extender, 18-inch 18" x 2" x 6-1/4" 9 lbs

44-254-101, black (457 x 51 x 159 mm) (4.1 kg)

44-255-100, grey Extender, 24-inch 24" x 2" x 6-1/4" 12 lbs

44-255-101, black (610 x 51 x 159 mm) (5.5 kg)

44-256-100, grey Extender, 30-inch 30" x 2" x 6-1/4" 14 lbs

44-256-101, black (762 x 51 x 159 mm) (6.4 kg)

* Keyboard/Mouse Tray or Laptop Tray ordered separately. See page 44.

†Compatible with monitors that have a removable base and the measurement between the bottom of monitor and

its lower mounting holes is no more than 6" (152 mm).

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

44-253-xxx

44-254-xxx

44-255-xxx

44-256-xxx

Mounting Options & Accessories for 400 Series Vertical Mount Arms

Page #

Accessory Options

Extenders

Keyboard/Mouse Trays, Laptop Trays & Accessories

Monitor Interface Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

above

Surface Attachment Options

Direct Mounting, Wall Plates, Furniture Mounts

Wall Tracks

Command Posts

Pole Mounts

Slatwall Components

Mobile WorkStands

Attention: For dimensional information,

see page 58.

8 • ARMS Orderguide • rev. 05/30/03 870-03-005

400 Series Horizontal Mount Arms

Attach above worksurface, countertop or other horizontal surface.

Part Description Shipping

Number Weight

Monitor Mounts Weight Capacity

45-012-099, grey Single Pivot 28 lbs 12 lbs

45-012-085, black (12.7 kg) (5.5 kg)

45-054-099, grey Single Pivot w/ P/L 25 lbs 14 lbs

45-054-085, black (11.3 kg) (6.4 kg)

45-016-099, grey Double Pivot w/ P/L 23 lbs 15 lbs

45-016-085, black (10.4 kg) (6.8 kg)

Keyboard/Laptop Mounts

45-036-099, grey* Keyboard/Laptop Pivot 7.5 lbs 13 lbs

45-036-085, black* (3.4 kg) (5.9 kg)

Desk Clamp Attach to …

60-060, black Surface Clamp Surface edge ≤1-3/4" (44 mm) thick 2 lbs

(.9 kg)

* Keyboard/Mouse Tray or Laptop Tray ordered separately. See page 44.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

400 Series Suspend Mount Arms

Suspend from a ceiling, shelf or other horizontal surface.

Part Description Shipping

Number Weight

Monitor Mounts Weight Capacity

45-010-099, grey Single Pivot 28 lbs 12 lbs

45-010-085, black (12.7 kg) (5.5 kg)

45-044-099, grey Single Pivot w/ P/L 25 lbs 14 lbs

45-044-085, black (11.3 kg) (6.4 kg)

45-014-099, grey Double Pivot w/ P/L 23 lbs 15 lbs

45-014-085, black (10.4 kg) (6.8 kg)

Ceiling Clamp Attach to …

60-060, black Surface Clamp Surface edge ≤1-3/4" (44 mm) thick 2 lbs

(.9 kg)

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

45-012-xxx

45-054-xxx

45-016-xxx

45-036-xxx

45-010-xxx

45-044-xxx

45-014-xxx

60-060

Mounting Options & Accessories for 400 Horizontal/Suspend Mount Arms

Page #

above

Accessory Options

Keyboard/Mouse Trays, Laptop Trays & Accessories

Monitor Interface Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

Surface Attachment Options

Surface Clamps

Direct Mounting

Furniture Mounts

Attention: For dimensional information,

see page 58.

870-03-005 rev.05/30/03 • ARMS Orderguide • 9

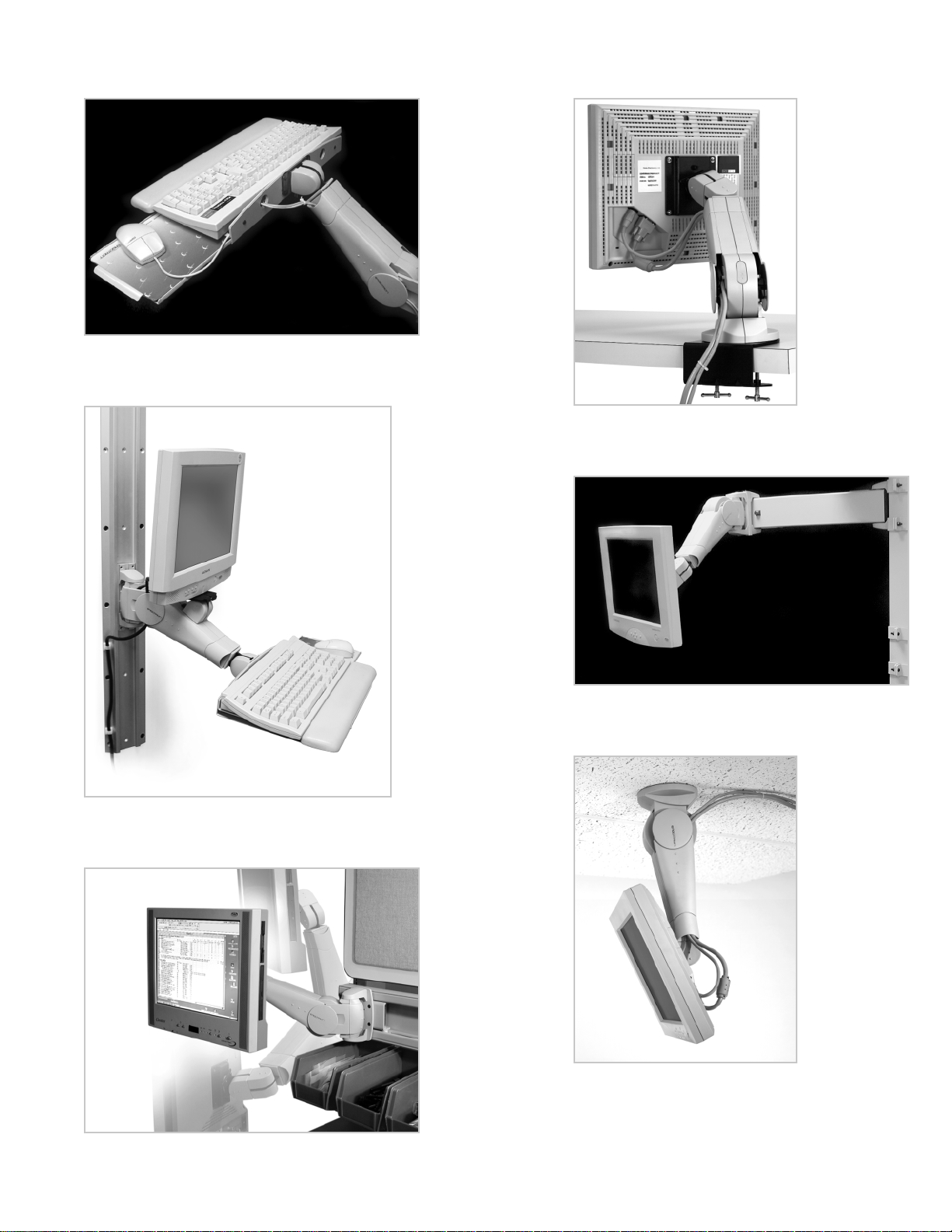

Photo Reference for 400 Series

The 400 Series Arm with Keyboard/Laptop Pivot features 22 inches

(559 mm) of vertical adjustability.

400 Series Arm suspended from a ceiling.

400 Combo Arm mounted on Wall Track.

A 400 Series Arm is teamed with an Extender to enhance

placement capability.

Note the VESA FDMI monitor interface where

the monitor attaches to the arm.Shown with

optional Surface Clamp.

Height Adjustment

Rotation

•Telescopic motion

Monitor Pivot

Keyboard/Laptop Adjustment

ARMS Product Selection

300 Series 300 Series Arms provide 16 to 20 inches (406 to 508 mm) of height adjustment.

Extensions add telescopic motion for extension and retraction. The 300 Series features

Pivot-ease®technology, which provides long-life monitor adjustment while maintaining

touch-screen stability.

Range of Motion

360˚

180˚

360˚

Arm folded back

9" Extension

23"

(584 mm)

180˚

180˚360˚

16"

(406 mm)

10 • ARMS Orderguide • rev. 05/30/03 870-03-005

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

Top View

20"

(508 mm)

This manual suits for next models

Table of contents

Other Ergotron Rack & Stand manuals

Ergotron

Ergotron Single Monitor Tall User Kit User manual

Ergotron

Ergotron Mini PC User manual

Ergotron

Ergotron 97-527-009 User manual

Ergotron

Ergotron 97-590 User manual

Ergotron

Ergotron 9" Vertical Lift User manual

Ergotron

Ergotron StyleView User manual

Ergotron

Ergotron 888-45-198 User manual

Ergotron

Ergotron Neo-Flex User manual

Ergotron

Ergotron NF Extend LCD Arm User manual

Ergotron

Ergotron NeoFlex 18-931 User manual

Ergotron

Ergotron Neo-Flex Series User manual

Ergotron

Ergotron HD Extend Arm User manual

Ergotron

Ergotron Neo-Flex Wall Mount Lift User manual

Ergotron

Ergotron C-Clamp Under Mount User manual

Ergotron

Ergotron Neo-Flex Mobile MediaCenter VHD User manual

Ergotron

Ergotron 97-585 User manual

Ergotron

Ergotron Grommet User manual

Ergotron

Ergotron LX Desk Mount LCD Arm User manual

Ergotron

Ergotron LX Series User manual

Ergotron

Ergotron WorkFit Dual Hinge Bow Accessory User manual

Ergotron

Ergotron Neo-Flex User manual

Ergotron

Ergotron Neo Flex User manual

Ergotron

Ergotron Neo-Flex 33-310-060 User manual

Ergotron

Ergotron LX Desk Mount LCD Arm User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
