Equinox Systems Nova Par 64 User manual

Order codes:

EQLED016 (Black Housing)

EQLED016A (Polished Housing)

Nova Par 64

User Manual

www.prolight.co.uk Nova Par 64 User Manual 2

Safety advice

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL

CAREFULLY BEFORE YOUR INITIAL START-UP!

• Before your initial start-up, please make sure that there is no damage caused during transportation.

• Should there be any damage, consult your dealer and do not use the equipment.

• To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

• Please note that damages caused by user modications to this equipment are not subject to warranty.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance

of this manual or any unauthorised modication to the equipment.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and

the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and/or property.

• Never let the power cable come into contact with other

cables. Handle the power cable and all mains voltage

connections with particular caution!

• Never remove warning or informative labels from the unit.

• Do not open the equipment and do not modify the unit.

• Do not connect this equipment to a dimmer pack.

• Do not switch the equipment on and off in short intervals,

as this will reduce the system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when

equipment is not in use or before cleaning! Only handle

the power-cable by the plug. Never pull out the plug by

pulling the power-cable.

• Make sure that the available voltage is between

100~240V, 50/60Hz.

• Make sure that the power cable is never crimped or

damaged. Check the equipment and the power cable

periodically.

• If the equipment is dropped or damaged, disconnect the

mains power supply immediately and have a qualied

engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic

temperature uctuation (e.g. after transportation),

do not connect power or switch it on immediately.

The arising condensation might damage the equipment.

Leave the equipment switched off until it has reached

room temperature.

• If your product fails to function correctly, stop use

immediately. Pack the unit securely (preferably in the

original packing material), and return it to your Pro Light

dealer for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be

carried out by a qualied technician. THIS UNIT CONTAINS

NO USER SERVICEABLE PARTS.

• WARRANTY: One year from date of purchase.

CAUTION!

KEEP THIS EQUIPMENT

AWAY FROM RAIN,

MOISTURE AND LIQUIDS

CAUTION!

TAKE CARE USING

THIS EQUIPMENT!

HIGH VOLTAGE-RISK

OF ELECTRIC SHOCK!!

www.prolight.co.uk Nova Par 64 User Manual 3

Product overview & technical specications

Featuring high intensity 10mm LEDs, this par can boasts not only a great

output but superb eye candy effects as well for performances of all sizes.

The units operate in several modes, including DMX, static colour, colour

mix, auto, sound active and master/slave. Internal programs guarantee a

stunning show when several units are linked together.

• 177 x 10mm LEDs (R: 60, G: 57, B: 60)

• Beam angle: 25°

• 1,785 Lux @ 2m (full on)

• DMX channels: 3 or 6 selectable

• Static colour, colour mix, auto, sound active and master/slave modes

• 0 - 100% dimming and variable strobe

• Bracket allows for multiple rigging and oor standing applications

• 4 push button menu with LED display

• IEC power input/output

• 3-Pin XLR input/output

• Convection cooled

Nova Par 64

Specications Nova Par 64

Power consumption 25W

Power supply 100~240V, 50/60Hz

Fuse F1A 250V

Dimensions 350 x 275 x 300mm

Weight 1.6kg

Order codes EQLED016 - Black housing

EQLED016A - Polished housing

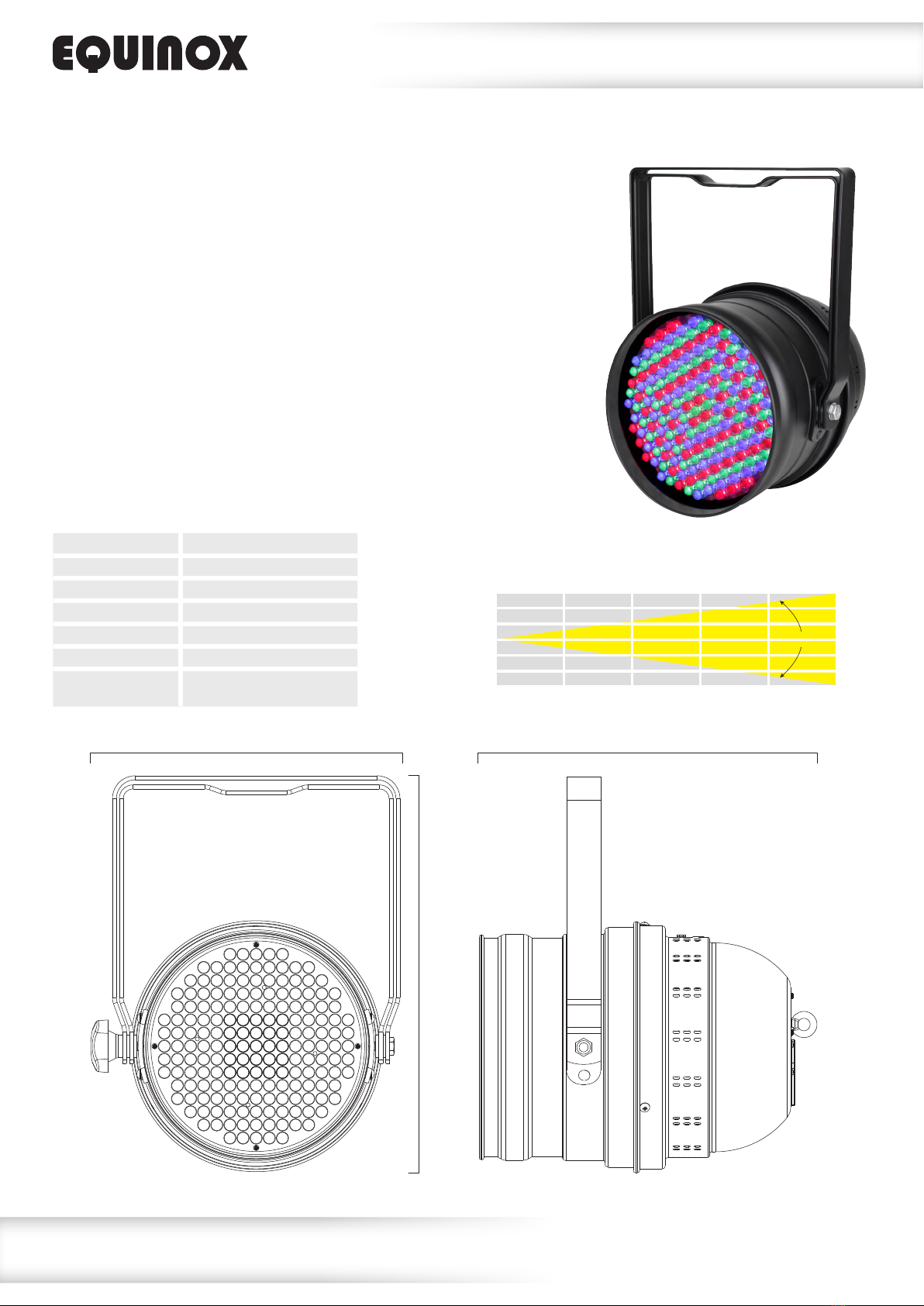

350mm

275mm 300mm

0m 1m 2m 3m 4m 5m

25° - Lux

FULL ON

7160

944

4960

1300

1785

236

1240

324

796

105

551

144

25°

447

310

286

37.8

198

51.8

www.prolight.co.uk Nova Par 64 User Manual 4

Technical specications

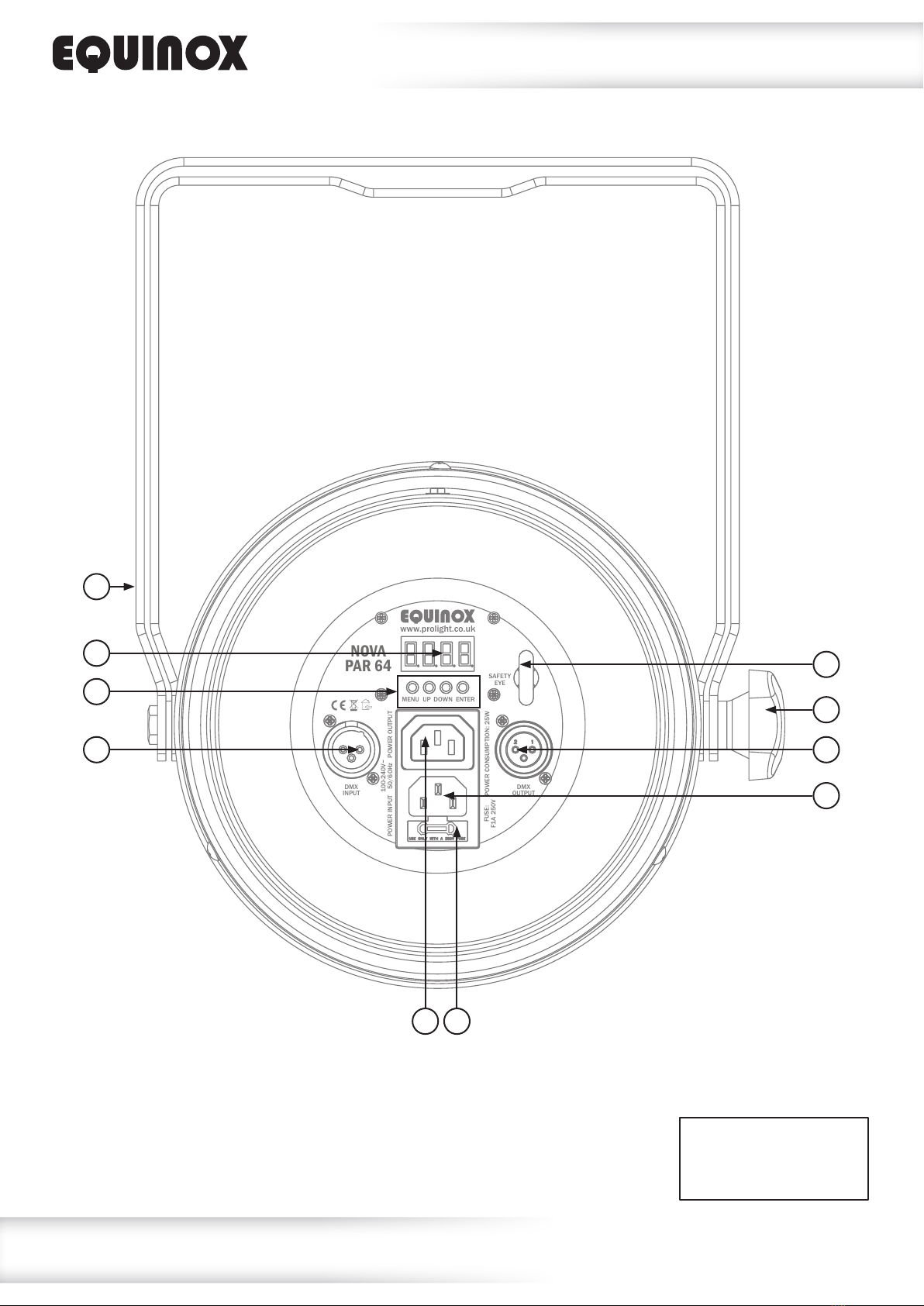

01 - LED display

02 - Function buttons

03 - 3-Pin DMX input

04 - 3-Pin DMX output

05 - IEC power input

06 - IEC power output

07 - Fuse F1A 250V

08 - Bracket knob

09 - Bracket

10 - Safety eye

In the box: 1 x xture,

1 x power cable,

& 1 x user manual

DOWNUPMENU ENTER

POWER OUTPUTPOWER INPUT

DMX

OUTPUT

SAFETY

EYE

DMX

INPUT

FUSE:

F1A 250V

100-240V~

50/60Hz

www.prolight.co.uk

POWER CONSUMPTION: 25W

NOVA

PAR 64

06 07

www.prolight.co.uk Nova Par 64 User Manual 5

Operating instructionsOperating instructions

A u 1

A u 2

Auto

Auto modes

S o 1

S o 2

Soun

Sound modes

S P 1

S P 9

SPEE

Speed setting

d I 1

d I 9

dINN

Master dimmer

S 0 1

S 0 7

St@t

Static colour mode

S E 1

S E 9

S E n S

Sound sensitivity

o n

oFF

b L n d

Blackout

S L A V

Slave mode

C o L o

r 0 0 1

g 0 0 1

r 2 5 5

g 2 5 5

b 0 0 1 b 2 5 5

Colour mix mode

d 1

d 5 1 2

DMX settings

A d d r

6 C H

3 C H

www.prolight.co.uk Nova Par 64 User Manual 6

DMX mode:

Operating in a DMX control mode environment gives the user the greatest exibility when it comes

to customising or creating a show. In this mode you will be able to control each individual trait of

the xture and each xture independently.

To access the DMX mode, press the “MENU” button and use the “UP” and “DOWN” buttons to show

Addr on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to

choose one of the 3 or 6 DMX channel modes. Press the “ENTER” button and use the “UP” and “DOWN”

buttons to set the required DMX address. Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

6 channel mode:

Channel Value Function

CH1 000-255 Master dimmer (0-100%)

CH2 000-255 Strobe (slow-fast)

CH3 000-255 Red dimmer (0-100%)

CH4 000-255 Green dimmer (0-100%)

CH5 000-255 Blue dimmer (0-100%)

CH6

000-009 No function

010-069 Auto program 1 (slow-fast)

070-129 Auto program 2 (slow-fast)

130-189 Sound program 1 (low-high)

190-255 Sound program 1 (low-high)

3 channel mode:

Channel Value Function

CH1 000-255 Red dimmer (0-100%)

CH2 000-255 Green dimmer (0-100%)

CH3 000-255 Blue dimmer (0-100%)

Operating instructions

Static colour mode:

To access the static colour mode, press the “MENU” button and use the “UP” and “DOWN” buttons

to show St@t on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN”

buttons to choose one of the static colours between S 01 ~ S 07.

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Auto modes:

To access the auto modes, press the “MENU” button and use the “UP” and “DOWN” buttons to show

Auto on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to

choose one of the auto modes between Au 1 ~ Au 2.

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Colour macros:

01 Red

02 Green

03 Blue

04 Yellow

05 Cyan

06 Magenta

07 White

www.prolight.co.uk Nova Par 64 User Manual 7

Sound modes:

To access the sound modes, press the “MENU” button and use the “UP” and “DOWN” buttons to show

Soun on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to

choose one of the sound modes between So 1 ~ So 2.

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Speed setting:

To access the speed setting for auto and sound modes, press the “MENU” button and use the “UP” and

“DOWN” buttons to show SPEE on the LED display. Now press the “ENTER” button and use the “UP”

and “DOWN” buttons to select between SP 1 ~ SP 9.

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Sound sensitivity:

To access the sound sensitivity setting, press the “MENU” button and use the “UP” and “DOWN” buttons

to show SEns on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN”

buttons to select the sound sensitivity between SE 1 ~ SE 9.

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Colour mix mode:

To access the colour mix mode, press the “MENU” button to show CoLo on the LED display.

Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose r001.

Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the brightness of Red

between 000 ~ 255. Value: 000 - 255 (000 = low, 255 = high).

Now press the “ENTER” button and repeat for gGreen, and b.

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Master dimmer:

To access the master dimmer setting, press the “MENU” button and use the “UP” and “DOWN” buttons

to show dINN on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN”

buttons to select the brightness between dI 1 ~ dI 9.

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Please note: this overrides the brightness for static colour, auto, sound and colour mix modes.

www.prolight.co.uk Nova Par 64 User Manual 8

Blackout setting:

To access the blackout when DMX fails setting, press the “MENU” button and use the “UP” and “DOWN”

buttons to show bLnd on the LED display. Now press the “ENTER” button and use the “UP” and

“DOWN” buttons to choose between on or ofF. Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Master/slave mode:

To set the master unit, press the “MENU” button and use the “UP” and “DOWN” buttons to select one of

the program modes.

To set the other units in slave mode, press the “MENU” button and use the “UP” and “DOWN” buttons to

show SLAV on the LED display. Press the “ENTER” button to conrm the setting.

The unit will now run in sequence with the master unit.

To exit out of any of the above options, press the “MENU” button.

Please ensure that all slave units are set to the same DMX channel mode as the master unit.

Operating instructions

www.prolight.co.uk Nova Par 64 User Manual 9

Setting the DMX address:

The DMX mode enables the use of a universal DMX controller. Each xture requires a “start address”

from 1- 512. A xture requiring one or more channels for control begins to read the data on the channel

indicated by the start address. For example, a xture that occupies or uses 7 channels of DMX and was

addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105

and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the

chain starts at 107.

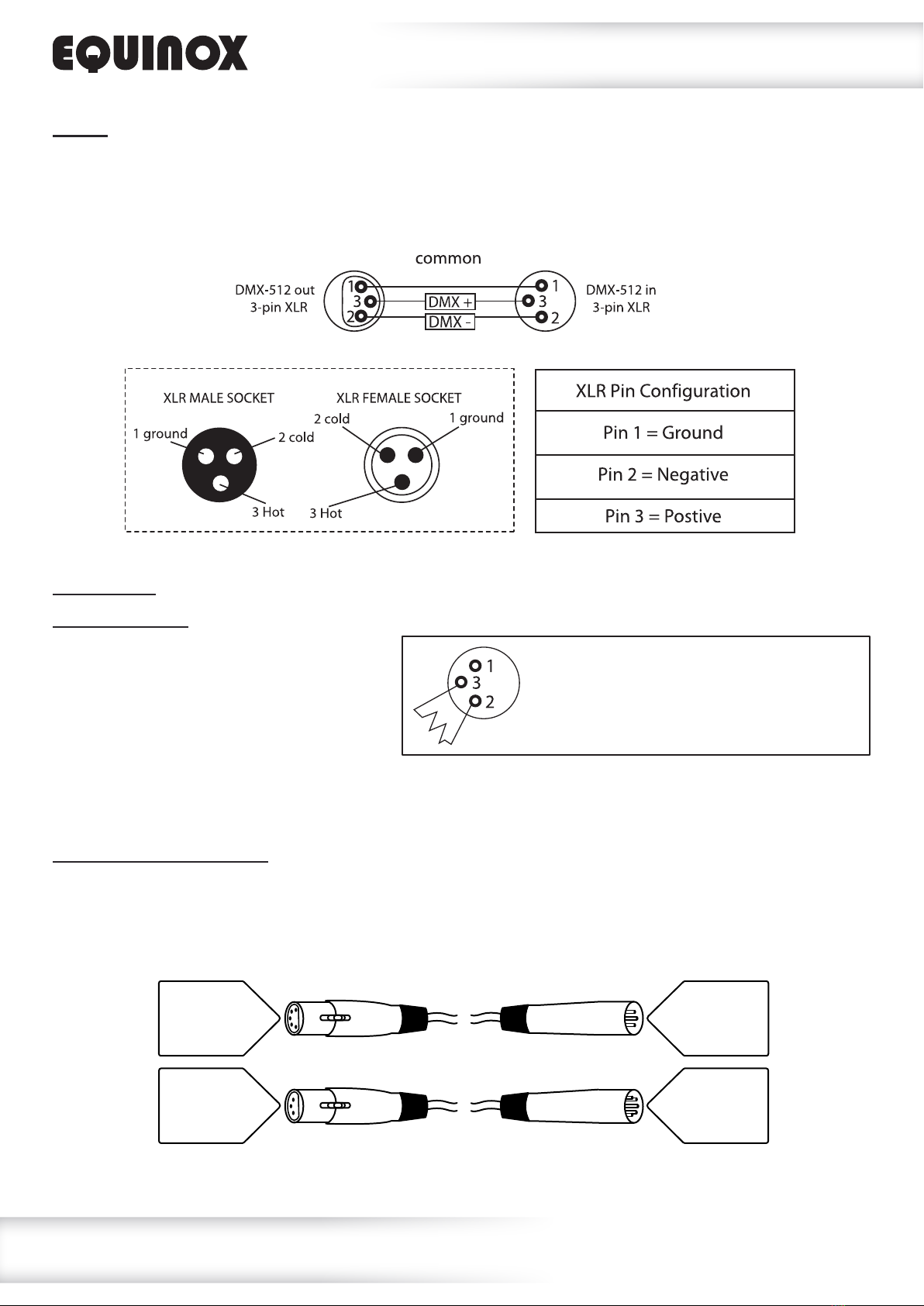

DMX 512:

DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent

xtures and controllers. A DMX controller sends DMX data instructions form the controller to the xture.

DMX data is sent as serial data that travels from xture to xture via the DATA “IN” and DATA “OUT”

XLR terminals located on all DMX xtures (most controllers only have a data “out” terminal).

DMX linking:

DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX xtures try to use the shortest

cable path possible. The order in which xtures are connected in a DMX line does not inuence the

DMX addressing. For example; a xture assigned to a DMX address of 1 may be placed anywhere in

a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a

DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit,

no matter where it is located in the DMX chain.

DATA cable (DMX cable) requirements (for DMX operation):

This xture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit.

Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output,

see image below.

Also remember that DMX cable must be daisy chained and cannot be split.

DMX setup

Further DMX cables can be

purchased from all good sound

and lighting suppliers or

Pro Light Concepts dealers.

Please quote:

CABL10 – 2m

CABL11 – 5m

CABL12 – 10m

www.prolight.co.uk Nova Par 64 User Manual 10

Notice:

Be sure to follow the diagrams below when making your own cables. Do not connect the cables

shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs

outer casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special note:

Line termination:

When longer runs of cable are used,

you may need to use a terminator on

the last unit to avoid erratic behaviour.

Using a cable terminator will decrease

the possibilities of erratic behaviour.

(3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89)

5-pin XLR DMX connectors:

Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR xtures

may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a

3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.

Termination reduces signal transmission

problems and interference. it is always

advisable to connect a DMX terminal,

(resistance 120 Ohm 1/4 W) between pin 2

(DMX-) and pin 3 (DMX+) of the last xture.

5-pin XLR (female)

Pin 1: GND (screen)

Pin 2: Signal (-)

Pin 3: Signal (+)

Pin 4: N/C

Pin 5: N/C

3-pin XLR (female)

Pin 1: GND (screen)

Pin 2: Signal (-)

Pin 3: Signal (+)

3-pin XLR (male)

Pin 1: GND (screen)

Pin 2: Signal (-)

Pin 3: Signal (+)

5-pin XLR (male)

Pin 1: GND (screen)

Pin 2: Signal (-)

Pin 3: Signal (+)

Pin 4: N/C

Pin 5: N/C

DMX setup

This manual suits for next models

Table of contents

Other Equinox Systems Lighting Equipment manuals

Equinox Systems

Equinox Systems Saturn Spot User manual

Equinox Systems

Equinox Systems PEGASUS II User manual

Equinox Systems

Equinox Systems LED Par 64 User manual

Equinox Systems

Equinox Systems PIXELpoint Batten User manual

Equinox Systems

Equinox Systems CAPRICORN EQLA22 User manual

Equinox Systems

Equinox Systems VIXEN EQLA36 User manual

Equinox Systems

Equinox Systems Party Par EQLED015 User manual

Equinox Systems

Equinox Systems EQLED032A User manual

Equinox Systems

Equinox Systems Cirrus User manual

Equinox Systems

Equinox Systems EQLED013 User manual

Equinox Systems

Equinox Systems PREDATOR User manual

Equinox Systems

Equinox Systems GEOMETRIX EQLA35 User manual

Equinox Systems

Equinox Systems Power Flower EQLED77 User manual

Equinox Systems

Equinox Systems Megabar System EQLED63 User manual

Equinox Systems

Equinox Systems FUSION SPOT MAX MKII User manual

Equinox Systems

Equinox Systems Power Par Series User manual

Equinox Systems

Equinox Systems Goboceptor User manual

Equinox Systems

Equinox Systems SCORPIO EQLA11 User manual

Equinox Systems

Equinox Systems CARINA User manual

Equinox Systems

Equinox Systems COBALT User manual

Equinox Systems

Equinox Systems QUADZILLA User manual

Equinox Systems

Equinox Systems Explo Strobe EX-2500 User manual

Equinox Systems

Equinox Systems GEMINI User manual

Equinox Systems

Equinox Systems KAMIKAZE EQLA14 User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
