Equinox Systems Flame Machine 1.5M User manual

USER MANUAL

EQUINOX 1.5M Flame Machine (FLAM08)

EQUINOX 2M Flame Machine (FLAM09)

www.prolight.co.uk

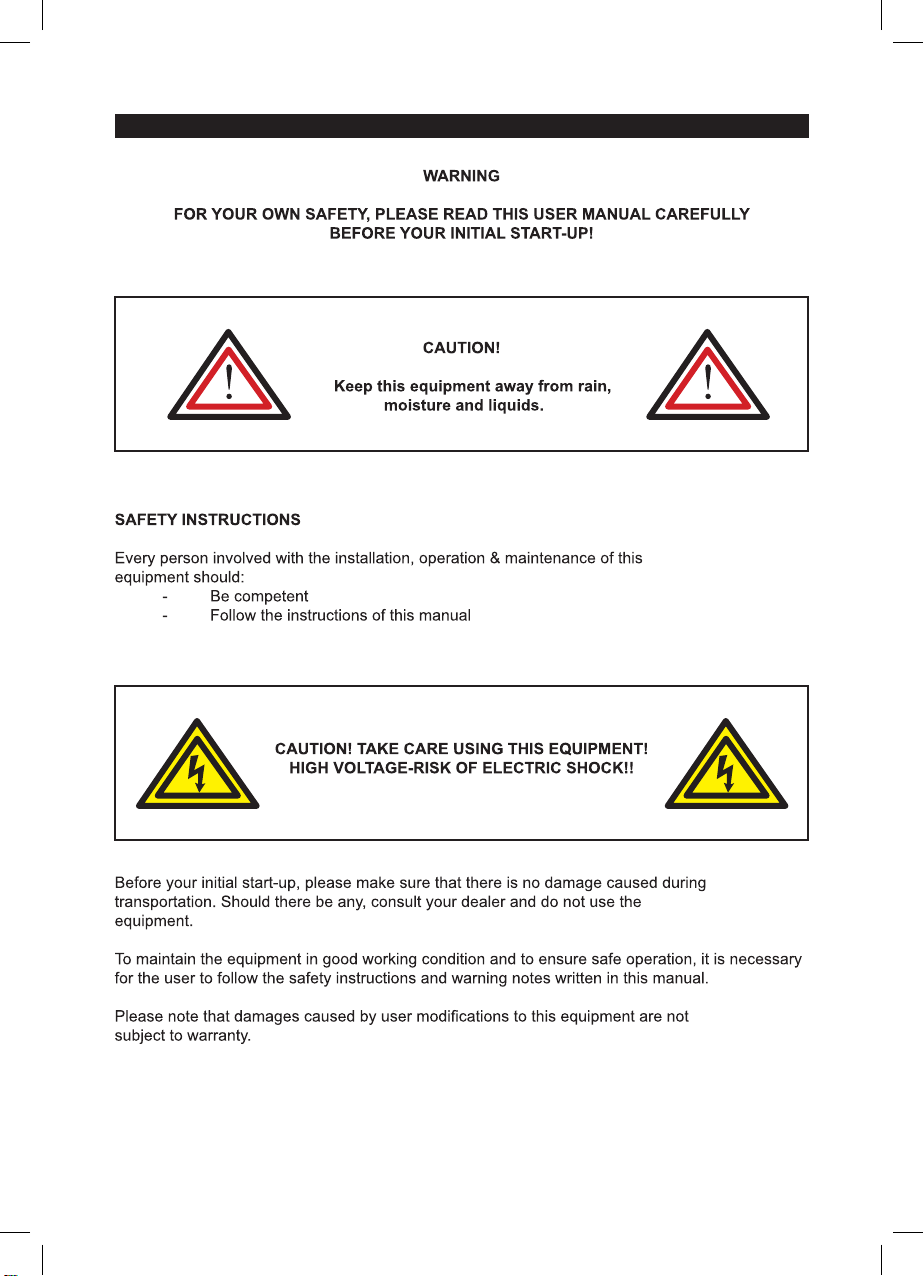

Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modification to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to flammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualified engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature fluctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualified

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

Technical Specifications

You should find inside the Equinox carton the following items:

1, Equinox 1.5M or 2M Flame machine 2, User manual 3, Power cable

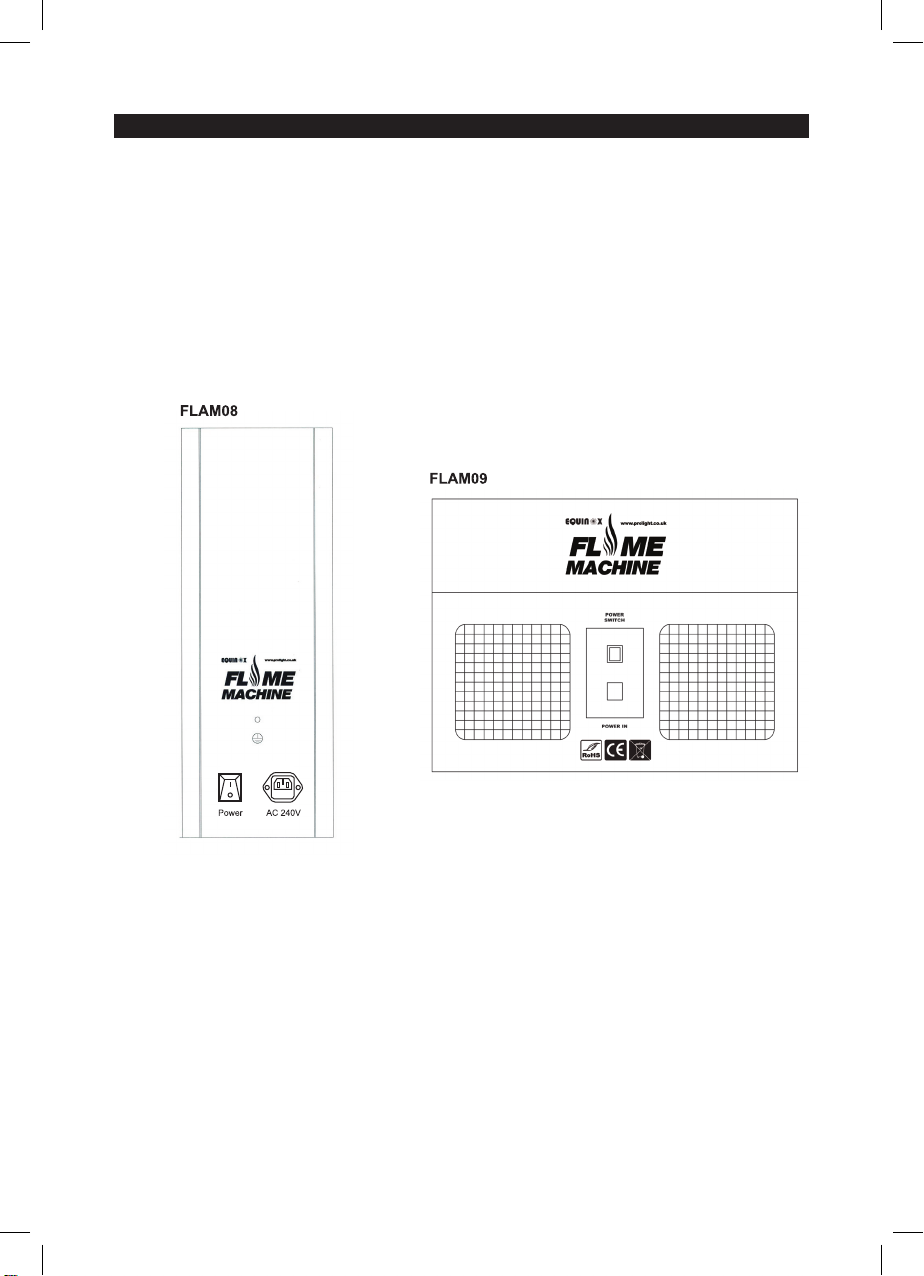

Operation:

To activate the unit, first connect the IEC cable into the unit and then connect the plug into a AC 240V

power supply. Once the unit has been connected use the “POWER SWITCH” located next the “POWER

IEC” input socket to turn the unit ON or OFF.

Overviews:

FLAM08 Features:

54 Ultra Bright 10mm LEDs (R: 27, B: 27)

High velocity fans (not suitable for low noise

applications)

Lightweight robust housing

On/Off power switch

Max flame height: 1.5M

Specifications:

Power supply: 240V

Dimensions: 512 x 240 x 330mm

Weight: 9.7Kgs

FLAM09 Features:

108 Ultra Bright 10mm LEDs (R: 78, B: 30)

High velocity fans (not suitable for low noise

applications)

Robust housing

On/Off power switch

Max flame height: 2M

Specifications:

Power supply: 240V

Dimensions: 510 x 405 x 400mm

Weight: 15.8Kgs
