EPSON Product Support Bulletin

Date: 1/27/05 Originator: SA/JA

PSB #: PSB.2005.01.002 Authorization:

Reference: N/A Total Pages: 4

Product(s): ColorBurst RIP for Stylus Pro 4000

Subject: Image Clipping Update

Stylus Pro 4000 ColorBurst RIP Image Clipping Update

This document provides instructions and how to correct image length clipping issues from Stylus Pro 4000

ColorBurst Rip when printing on sheet paper.

Macintosh OS X Instructions

1. Download the updated version of the ColorBurst Rip Server version 3.8.2 from Epson’s web site.

The file name is epson11321 and can be downloaded from www.epson.com.

2. Install the ColorBurst Rip Server update and the PPD file. For instructions please refer to the

What’s Changed.PDF file that is included with the ColorBurst 3.8.2 updater.

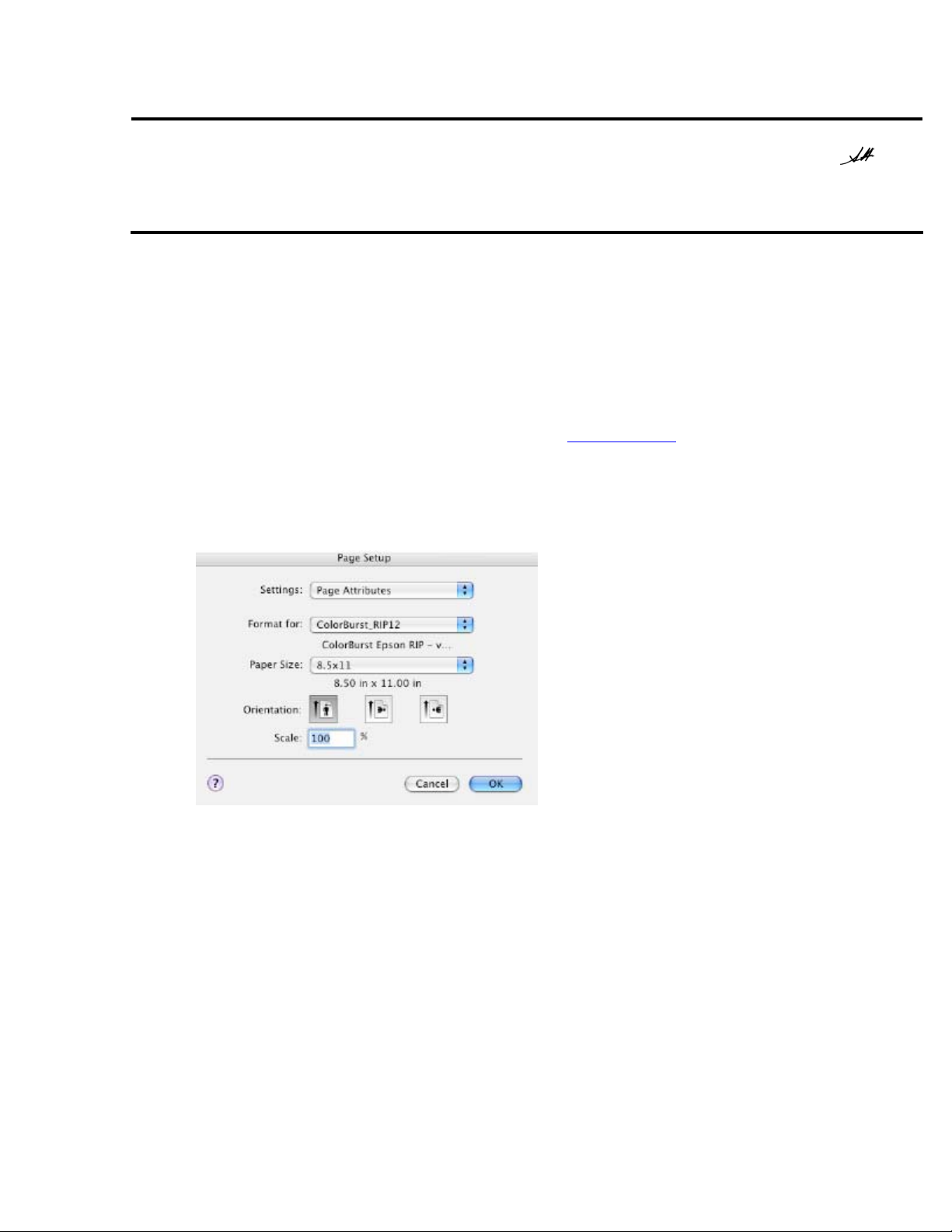

3. Once the updates have been installed setup your print jobs as normal from your applications.

Select ColorBurst as your printer driver. Select the page size that you want to print on. This can

be a predefined page size or a custom page size.

4. Launch the ColorBurst Rip on the server computer. Once the ColorBurst Rip window is up and

running, select your environment for the media that you are using. Click on the Printer Settings

button.

5. Under Printer Controls select Print from Sheet for your media source. Check Use Page

Settings and input the page width and height values in the Paper Size box. These settings must

match the settings you selected from your application under Page Setup.

For example, if you selected Letter Size from your application, enter 8.5” for the width and 11” for

the heigth.

For Image Offset select Auto Center to center the image. Click on OK to finish.

Note: With the Auto Center option selection, if your image size is larger then the actual printable area

supported by the printer hardware some clipping may still occur in the image length, approximately

1/16 of an inch. The printer always has a fixed bottom margin of .56 inches. If you are printing an

8x10 image on an 8.5x11 page auto centering will clip part of the image lengthwise in order to center

the image top to bottom. To avoid clipping the image you must select Manual Position under Image

Offset and also uncheck auto centering option under your application and set the margins manually.

You may have to set the top margin in your application to .25” to get the full 8x10 image to print.

6. Now you are ready to send the job from your application or drag and drop into the hot folder.

PC Windows XP/2000 Instructions

No updated software is required to correct the image clipping issue under Windows XP/2000. However the

following changes have to be made.

1. Setup your print jobs as normal from your applications. Select ColorBurst as your printer driver.

Select the page size that you want to print on. This can be a predefined page size or a custom page

size.

2. Launch the ColorBurst Rip on the server computer. Once the ColorBurst Rip windows is up and

running go to Options menu then select Printer Options.

3. Under Page Setup select User page dimensions option and enter the page width and height

dimensions.

4. Select Position upper left corner of job option. This option does not center the image, but it will

allow to print the full image without clipping. Click on OK to close the window.

Note: To center the image select Center job within page dimensions. With the Center job within

page dimensions option, if your image size is larger then the actual printable area supported by the

printer hardware then some clipping may still occur in the image length, approximately 1/16 of an

inch. The printer always has a fixed bottom margin of .56 inches. If you are printing an 8x10 image

on an 8.5x11 page auto centering will clip part of the image lengthwise in order to center the image top

to bottom. To avoid clipping the image you must select Position upper left corner of job option and

also uncheck auto centering option under your application and set the margins manually. You may

have to set the top margin in your application to .25” to get the full 8x10 image to print.

5. Now you are ready to send the job from your application.

EPSON Professional Graphics Group Page 1 of 8.

EPSONPRODUCT SUPPORT BULLETIN

Date: 07/14/2004 Originator: JD&RS

Bulletin #: PSB.2004.07.001 Authorization:

Reference: NA Total Pages: 8

Product: Stylus Pro 4000

Subject: Roll Media Borderless Printing

1. BORDERLESS PRINTING WITH AUTO EXPAND OVERVIEW

In order to achieve a true borderless print on roll media with minimal clipping with the Stylus Pro 4000 printer driver select the Auto Expand feature.

This is intended to be a quick solution to automatically expand your image width by 3% to produce a borderless print. Depending on the print size you choose some

clipping is normal. If clipping of the image is an issue you can try adjusting your image print size so when “Auto Expand” is selected minimal clipping occurs. This

document outlines the steps required to produce roll media prints with minimal clipping of the left and right edges of your image.

The examples in this document represent how you would create a borderless 8” X 10” print on Epson 10” roll media with the Auto Expand feature of the Epson driver.

The application used was Adobe PhotoShop CS, using Macintosh O/S 10.3.3 and Windows XP.

The table below details roll paper widths and the corresponding image width recommendations to print images with minimal clipping of the left and right

edges of your image when the Auto Expand driver feature is selected.

* Non Epson Roll media widths.

2. SETTING YOUR IMAGE SIZE

2.1 Start Photoshop

2.2 Open Your Image.

2.3 From the Image menu select Image Size and set your Document size to: Width 9.7075” X Height of 8”, click okay. You may need to uncheck

“Constrain Proportions” to set your desired document size.

Roll Paper Width 8”* 8.3” 10” 12”* 14”* 16” 17”

Image Width 7.7675” 8.06 9.7075” 11.695” 13.695” 15.6” 16.6”

EPSON Professional Graphics Group Page 2 of 8.

3. BORDELESS PRINTING MACINTOSH

3.1 From the File menu in PhotoShop select “Print with Preview”.

3.2 Click the Page Setup button.

3.3 From the Settings selection drop down menu select Custom Page

Size.

3.4 Create a Custom Paper size.

For this example we want to produce a borderless 8in. X 10 in. print.

To do this you must create a custom page size for the finished print

size as follows:

3.4.1 Click the New button and name your custom paper

size. (For this example we will use 10*8)

3.4.2 For Paper Size setting use a Width of 10 inches and a

height of 8 inches.

3.4.3 Be sure to zero out the Printer Margin settings.

3.4.4 Click Save, then click Ok.

3.5 From the Print With Preview screen click the Page Setup button.

3.6 From the Page Setup screen:

3.6.1 Select your Custom Page Size “10X8”

EPSON Professional Graphics Group Page 3 of 8.

3.7 From the Format For: selection, select “Roll Paper - Borderless

(Auto Expand)”

3.8 From the “Print with Preview” screen Click the PRINT button

3.8.1 From the Printer pull down menu select “Roll Paper -

Borderless (Auto Expand)”

3.9 From the Copies & Pages drop down menu, select the “Roll Paper

Option”.

3.10 From the Auto Cut Options menu choose the “Single Cut” or

“Double Cut” option for borderless prints.

(See the “Cutting Option” section for cutting selection details)

Selecting an incorrect cut option, will result

in an unnecessary margin before or after

the printed image.

C A U T I O N

EPSON Professional Graphics Group Page 4 of 8.

4. From the “Print Settings” menu Continue with other settings, such as like

Media Type, and Print Quality settings.

TIP

To obtain the best image quality select a resolution of

1440 or higher with High Speed unchecked. The finest

detail selection renders at 720dpi instead of 360dpi and

will reduce the maximum page length to 41.66” vs 83.3”

EPSON Professional Graphics Group Page 5 of 8.

5. BORDERLESS PRINTING WINDOWS

5.1 From the file menu in PhotoShop select “Print with Preview”.

5.2 Click the Page Setup button.

5.3 On the Page Setup screen click the Printer button.

5.4 Select your Stylus Pro 4000 and click the Properties button.

5.5 From the Epson drivers Paper tab select “User Defined” from the

paper size drop down menu.

EPSON Professional Graphics Group Page 6 of 8.

5.5.1 Give your user defined paper size a name, we will use

“10 X 8” for this example.

5.5.2 Give your user defined paper size a Width of 10” (1000

x .01) and a Height of 8” (800 x .01).

5.5.3 Click Save then OK.

5.6 Under the Paper tab choose the following settings:

5.6.1 For Paper Source select Roll Paper.

5.6.2 Check Select Borderless then select Auto Expand from

the drop down menu.

5.6.3 From the Auto Cut drop down menu select the “Single

Cut or “Double Cut” option for borderless prints.

(See the “Cutting Option” section for cutting selection details)

5.6.4 Under Paper Size make sure your User Defined paper

size of 10 X 8 is selected from the drop down list.

5.6.5 After all Paper selections are correct click on the Main

tab

5.6.6 On the Main screen do not select the “Print Preview”

option. If selected you will have a margin between

prints like the example shown under “CUTTING

OPTIONS” for Double Cut. This is due to the delay in

spooling the jobs to printer because of the preview.

As a result they are handled as if they were individual

print requests. To eliminate the margin between prints

when multiple jobs are spooling turn Off the Print Pre-

view driver option.

Selecting an incorrect cut option, will result

in an unnecessary margin before or after

the printed image.

C A U T I O N
