Epson PowerLite Pro G5150NL User manual
V1.7
Contents
Product Description / Lens Specifications
Distance charts and formulas
Dimensional Drawings
Accessories/Ceiling Mounts
Projector Interface Panel and Control Panel
Pin outs and RS232 Control codes
Product Description
PowerLite Pro G5150NL (V11H273920) / G5350NL (V11H286920)
Type: 3LCD Projector Brightness: G5150 – 4000 / 3200
0.8” Poly Silicon TFT G5350 – 5000 / 4000
Resolution: XGA - 1024 x 768 Dimensions: 18.5” (W) x 5.96” (H) x 12.26” (D)
Fan Noise: 35dB/29dB (G5150) / 38dB/31dB (G5350) Weight: 14.5lbs (G5150) /14.8lbs (G5350)
Power Rating: G5150 – 343W (max) BTU: G5150 – 1171 BTU/hr
G5350 – 423W (max) G5350 – 1444 BTU/hr
Available Lens
(Part Number)
V12H004S03 Standard Zoom Lens
V12H004R03 Rear Projection Wide Lens
V12H004M04 Middle Throw Zoom Lens #1
V12H004M05 Middle Throw Zoom Lens #2
V12H004L06 Long Throw Zoom Lens
Lens Specifications
ELPLS03 Throw Ratio: 1.3 – 2.4:1 Focal Length: 21.27mm – 37.93mm
V12H004S03 Screen Sizes 30” – 300” F/#: 1.64 – 2.5
Zoom Ratio: 1 – 1.82:1
ELPLR03 Throw Ratio: 0.78:1 Focal Length: 12.76mm
V12H004R03 Screen Sizes 30” – 200” F/#: 2.03
Zoom Ratio:
ELPLM04 Throw Ratio: 2.4 – 3.6:1 Focal Length: 38.07mm – 57.09mm
V12H004M04 Screen Sizes: 40” – 300” F/#: 1.83 – 2.45
Zoom Ratio: 1 – 1.53:1
ELPLM05 Throw Ratio: 3.5 – 5.4:1 Focal Length: 56.95mm – 85.5mm
V12H004M05 Screen Sizes: 40” – 300 F/#: 1.83 – 2.53
Zoom Ratio: 1 – 1.53:1
ELPLL06 Throw Ratio: 5.3 – 7.2:1 Focal Length: 84.91mm – 114.61mm
V12H004L06 Screen Sizes 40” – 300” F/#: 1.83 – 2.32
Zoom Ratio: 1 – 1.36:1
PowerLite Pro Series
G5150NL / G5350NL
V1.7

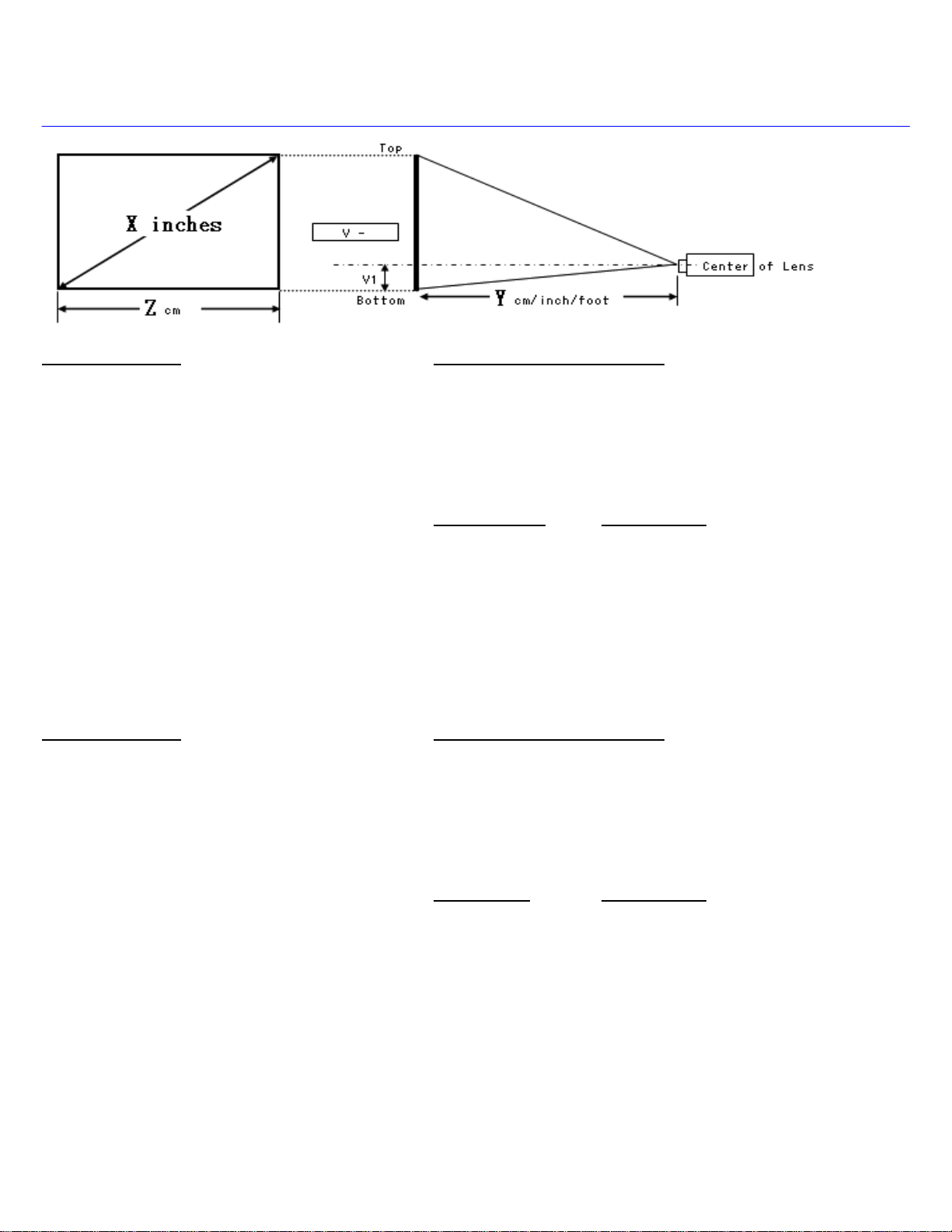

Lens Formulas - XGA Models (G5150 / G5350)
Distance Formulas (4:3) Definitions (units are in inches)
ELPLR03 Y = 0.64X -1.54 Y = throw distance
V1 = 0.3X X = diagonal screen size
W = image width
ELPLS03 Y(wide) = 1.07X – 1.80 H = image height
Y(tele) = 1.92X – 1.72 V1 = vertical offset
V1 = 0X ~ 0.6X
ELPLM04 Y(wide) = 1.92X – 3.94
Y(tele) = 2.91X – 3.88 4:3 Formulas 16:9 Formulas
V1 = 0X ~ 0.6X W = X / 1.25 W = X / 1.147375
W = H x 4/3 W = H x 9/16
ELPLM05 Y(wide) = 2.88X – 6.48 H = W x 4/3 H = W x 9/16
Y(tele) = 4.37X – 6.34
V1 = 0X ~ 0.6X
ELPLL06 Y(wide) = 4.31X – 6.99
Y(tele) = 5.81X – 7.18
V1 = 0X ~ 0.6X
Distance Formulas (16:9) Definitions (units are in inches)
ELPLR03 Y = 0.69X – 1.67 Y = throw distance
V1 = 0.245X X = diagonal screen size
W = image width
ELPLS03 Y(wide) = 1.16X – 1.96 H = image height
Y(tele) = 2.09X – 1.87 V1 = vertical offset
V1 = -0.081X ~ 0.572X
ELPLM04 Y(wide) = 2.09X – 4.30
Y(tele) = 3.17X – 4.22 4:3 Formulas 16:9 Formulas
V1 = -0.081X ~ 0.572X W = X / 1.25 W = X / 1.147375
W = H x 4/3 W = H x 9/16
ELPLM05 Y(wide) = 3.14X – 7.06 H = W x 4/3 H = W x 9/16
Y(tele) = 4.76X – 6.91
V1 = -0.081X ~ 0.572X
ELPLL06 Y(wide) = 4.69X – 7.62
Y(tele) = 6.33X – 7.83
V1 = -0.081X ~ 0.572X
** Note – popular screen sizes are listed in the charts below. If you do not see your screen size in the chart, please
use the formulas above **
V1.7
Distance Charts – Standard Lens (ELPLS03) - XGA Models (G5150 / G5350)
V1.7
Distance Charts – Rear Projection Wide Lens (ELPLR03) - XGA Models (G5150 / G5350)
V1.7
Distance Charts – Mid Throw Lens (ELPLM04) - XGA Models (G5150 / G5350)
V1.7
Distance Charts – Mid Throw Lens (ELPLM05) - XGA Models (G5150 / G5350)
V1.7
Distance Charts – Long Throw Lens (ELPLL06) - XGA Models (G5150 / G5350)
V1.7
Projector Dimensions
V1.7
Available Accessories
V12H007T16 IR Mouse Receiver for Remote Control
V13H010L47 Replacement Lamp for PowerLite Pro G5150
V13H010L46 Replacement Lamp for PowerLite Pro G5200W
V13H010L46 Replacement Lamp for PowerLite Pro G5350
V12H005C28 Remote Control Cable Set
V13H134A17 Air Filter
V12H306P11 Optional Wireless 802.11 g/b/a Module for PowerLite Pro G5150NL/G5350NL
Available Ceiling Mounts
ELPMBPRG Advanced Projector Ceiling Mount with Precision Gear
ELPMBP01 Adjustable Suspended Ceiling Channel Kit
ELPMBP02 False Ceiling Plate
ELPMBP03 Structural Round Ceiling Plate
ELPMBC01 Adjustable Extension Column (Pipe) 8" - 11"
V1.7
Projector Panel

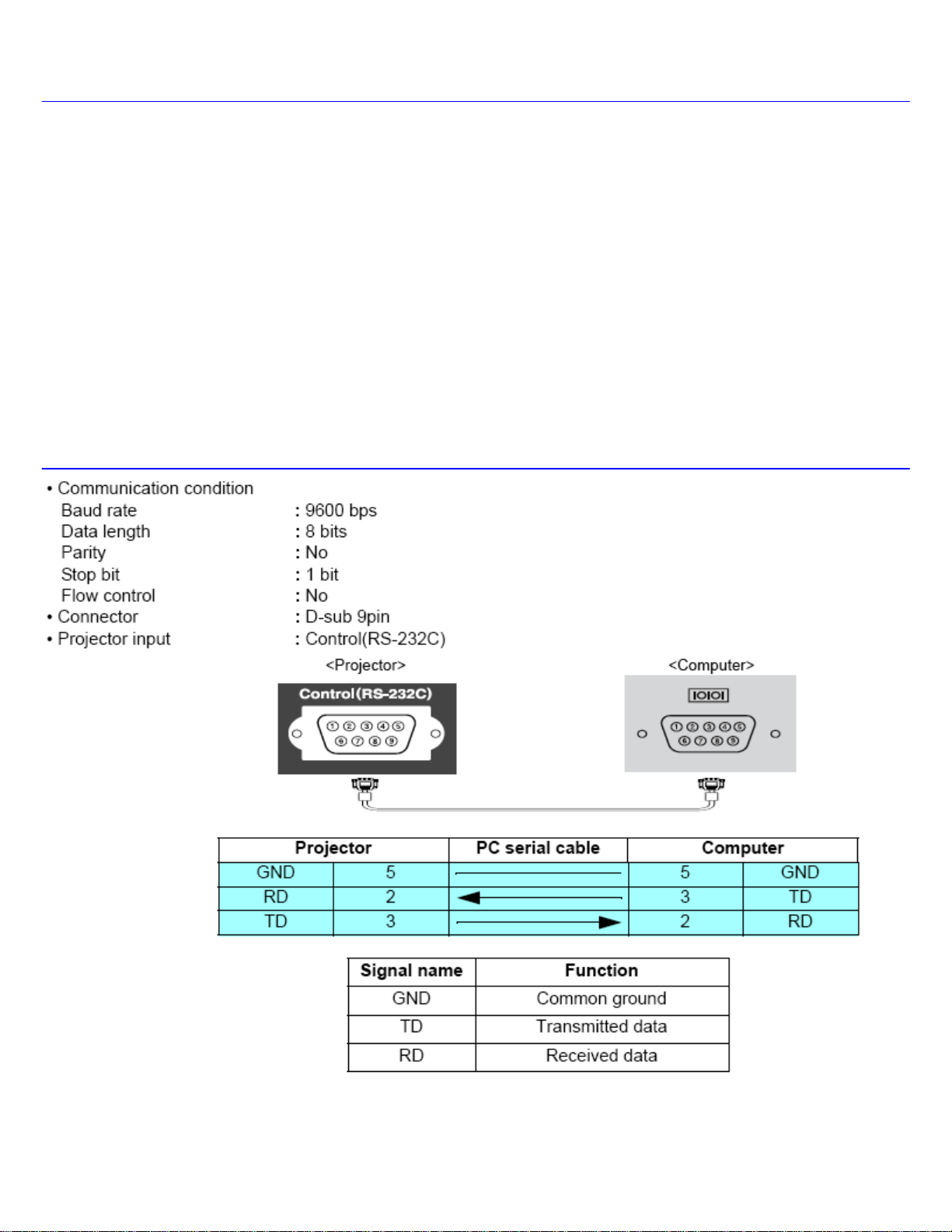

Serial Cable Connection
