Epson PowerLite Pro Cinema 4040 User manual

Epson Projector

Source Setup Guide

Xbox One S

Epson Pro Cinema 4040, 6040UB

Home Cinema 5040, 5040UBe

Console Setup Instructions

Get the maximum video performance from the Xbox One S on the

Epson Pro Cinema 4040, 6040UB, and

Home Cinema 5040UB, 5040UBe Projectors

Step 1

Physical Connections

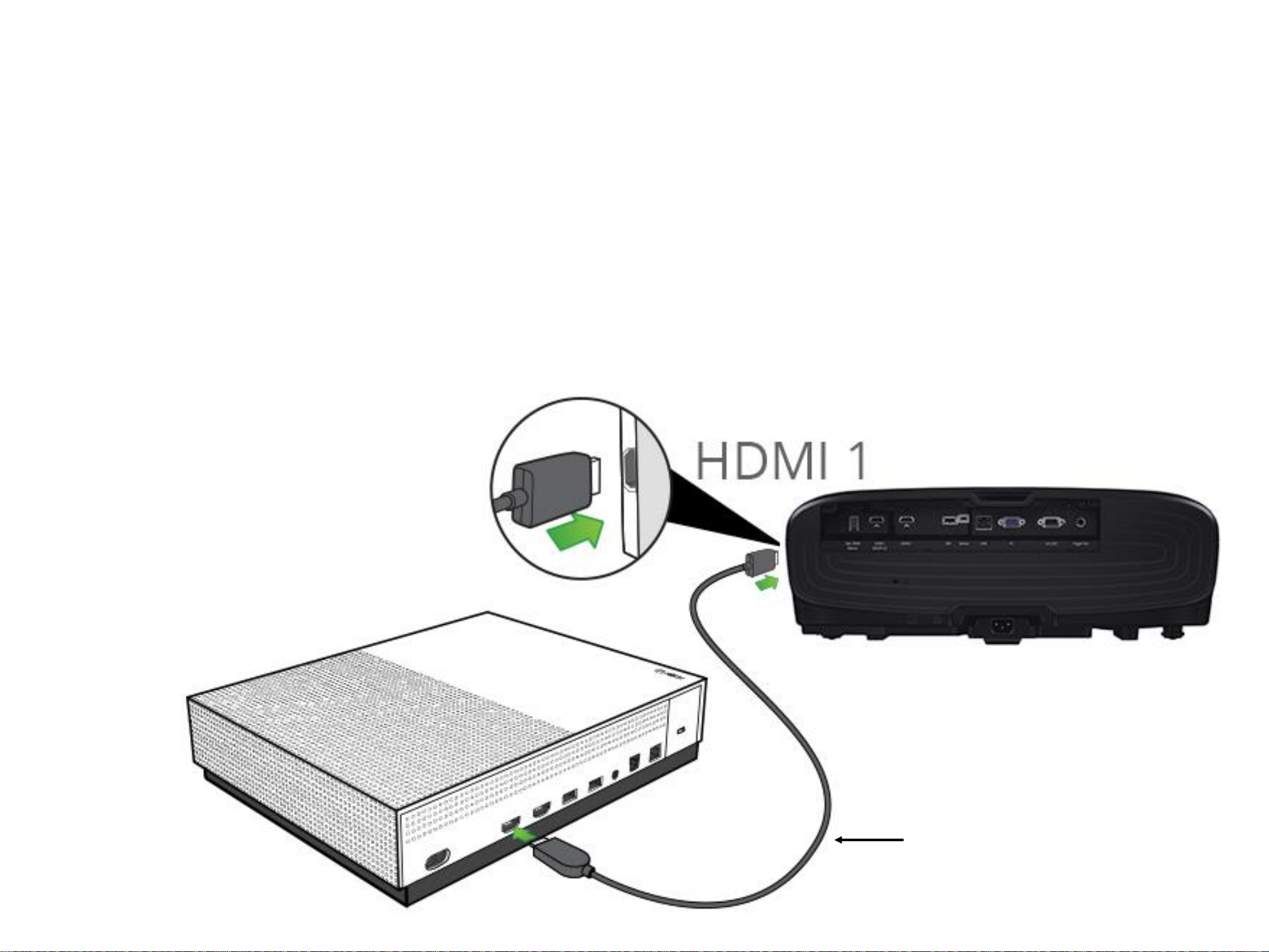

•Connect the Xbox (HDMI OUT) to the Epson (HDMI INPUT 1)

with a 4K capable HDMI cable

4K Capable

Step 2

Configuration Resets

•The following instructions assume both the Epson Projector and Xbox

One S are using factory default settings.

•After the Xbox initial setup steps, reset the video output of the Xbox.

•**Make note of any custom settings to the

projector, as this reset will remove them.

•To reset the Epson Projector:

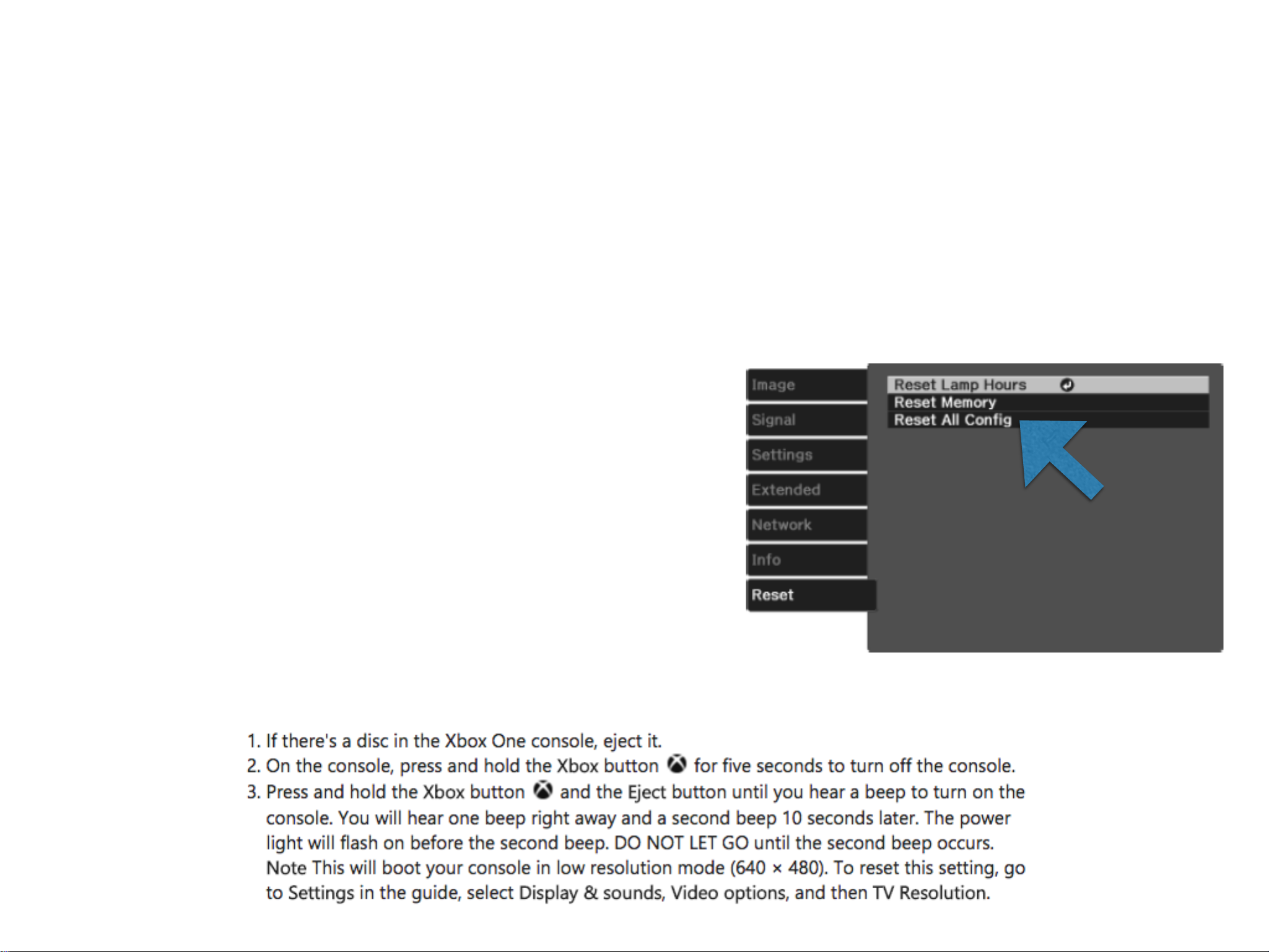

•Select “Reset All Config” from the

projectors internal menu on the “Reset”

menu tab.

Step 3

Configure the Xbox

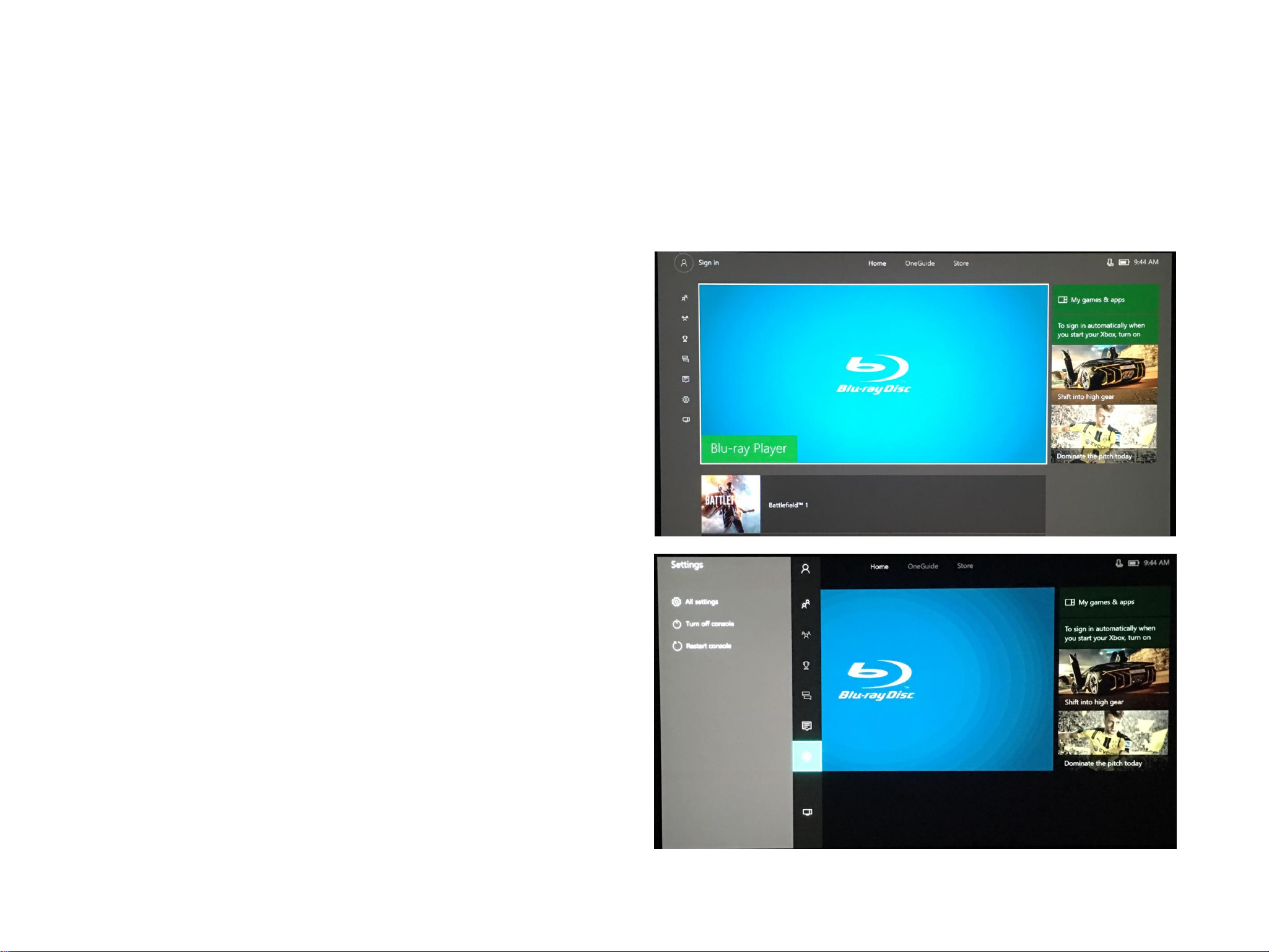

•Power On the Xbox and wait

for the Home Screen to load.

•Navigate “LEFT” to bring up

the sidebar menu.

•Navigate “DOWN” till you get

to the “Settings” tab.

Step 3

Configure the Xbox (cont…)

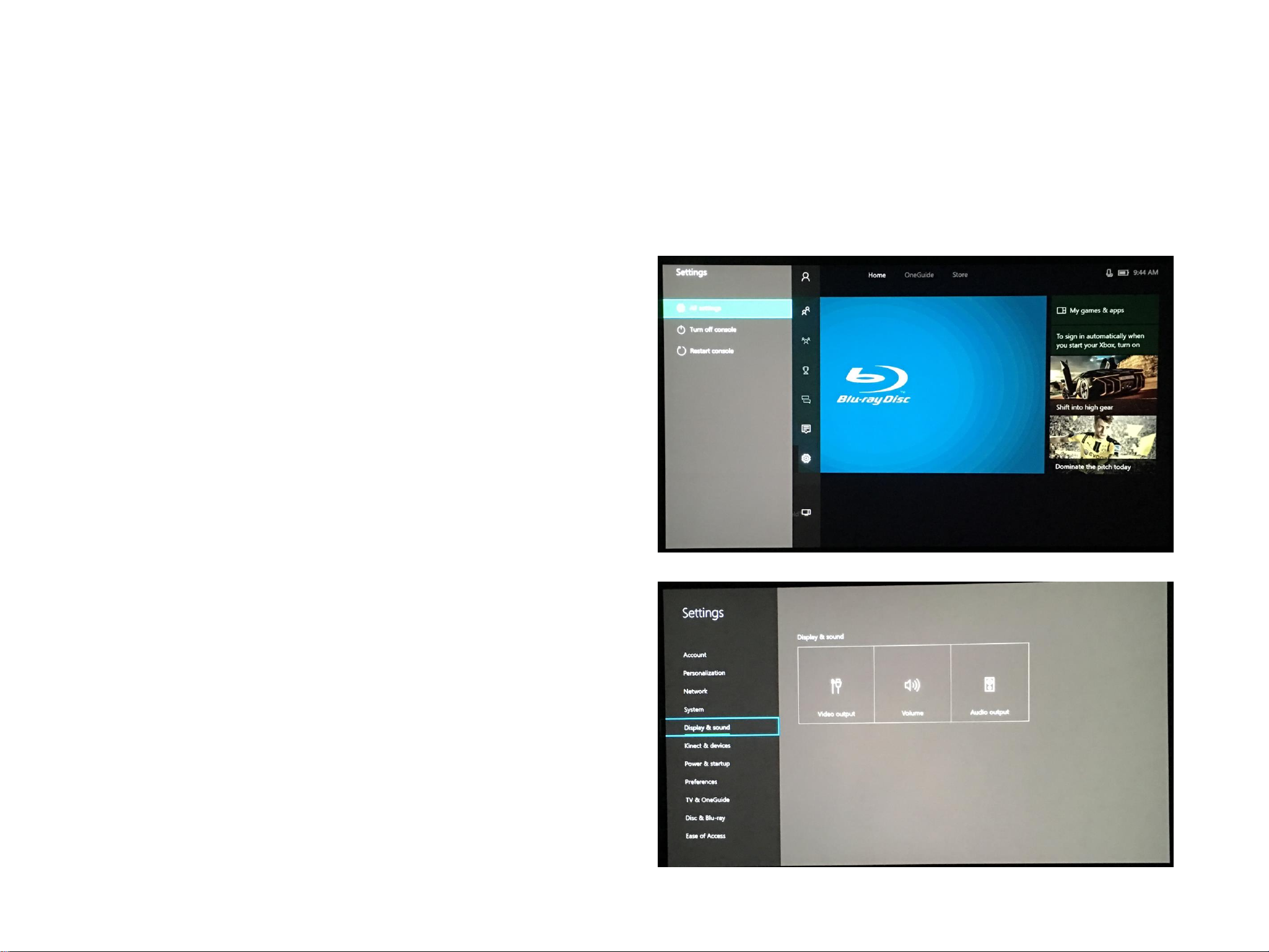

•Press “A” to access the

“Settings” menu

•Highlight the “All Settings”

Option

•Press “A” to enter the “All

Settings” menu

•Navigate down to the “Display

& Sound” option

•Press “A” to enter the “Display

& Sound” sub menu

Step 3

Configure the Xbox (cont…)

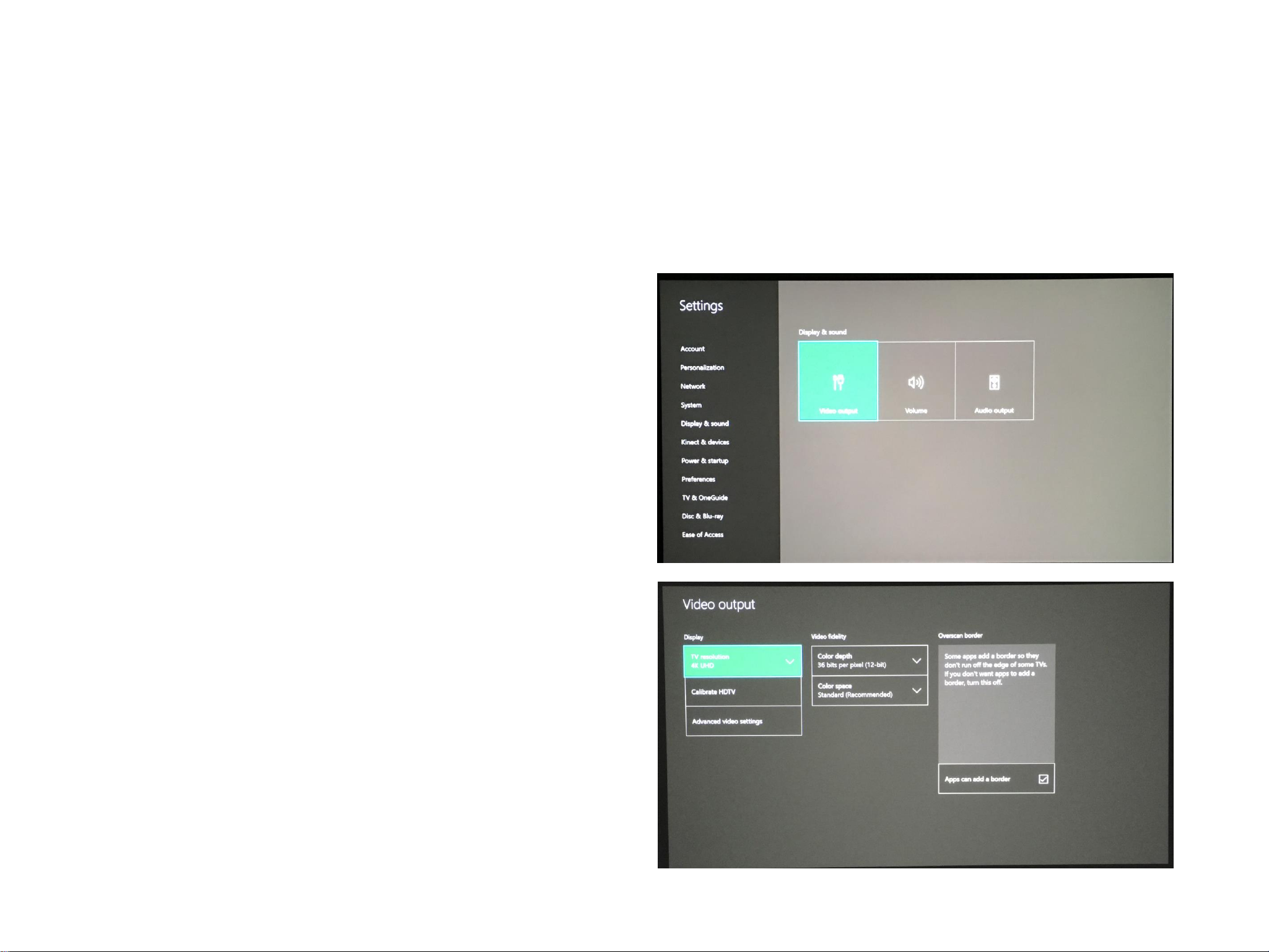

•Highlight “Video Output”

•Press “A” to enter the “Video

Output” menu

•Highlight the “TV Resolution”

option

Step 3

Configure the Xbox (cont…)

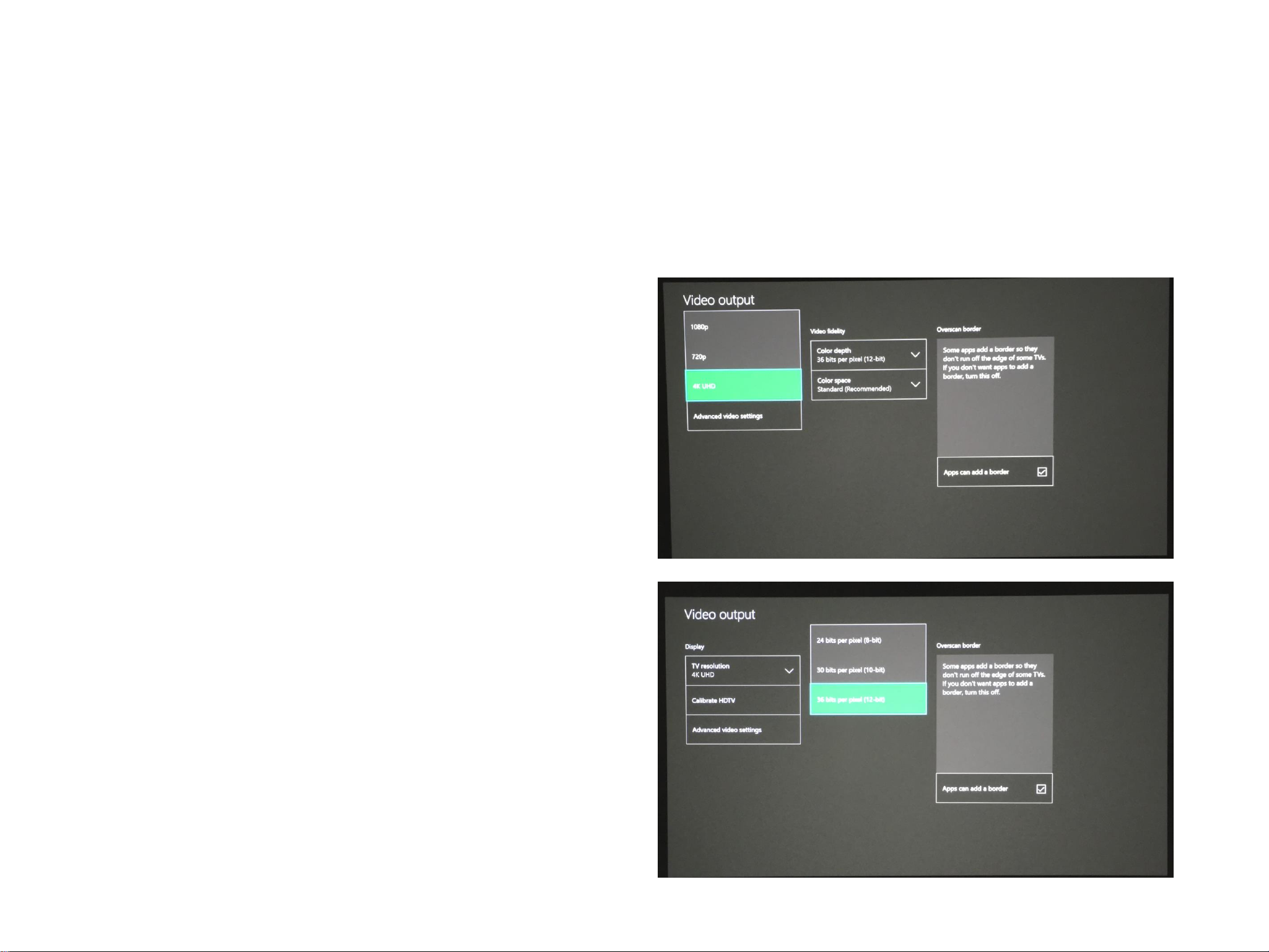

•Press “A” to open the “TV

Resolution” sub menu

•Highlight the “4K UHD” option

•Press “A” to select this option

•Navigate right to the “Color

Depth” option

•Press “A” to select this option

•Highlight “36 bits per pixel (12-

bit)” option

•Press “A” to select this option

Step 3

Configure the Xbox (cont…)

•Select “Advanced Video

Settings”

•Press “A” to enter the

Advanced Video Settings sub

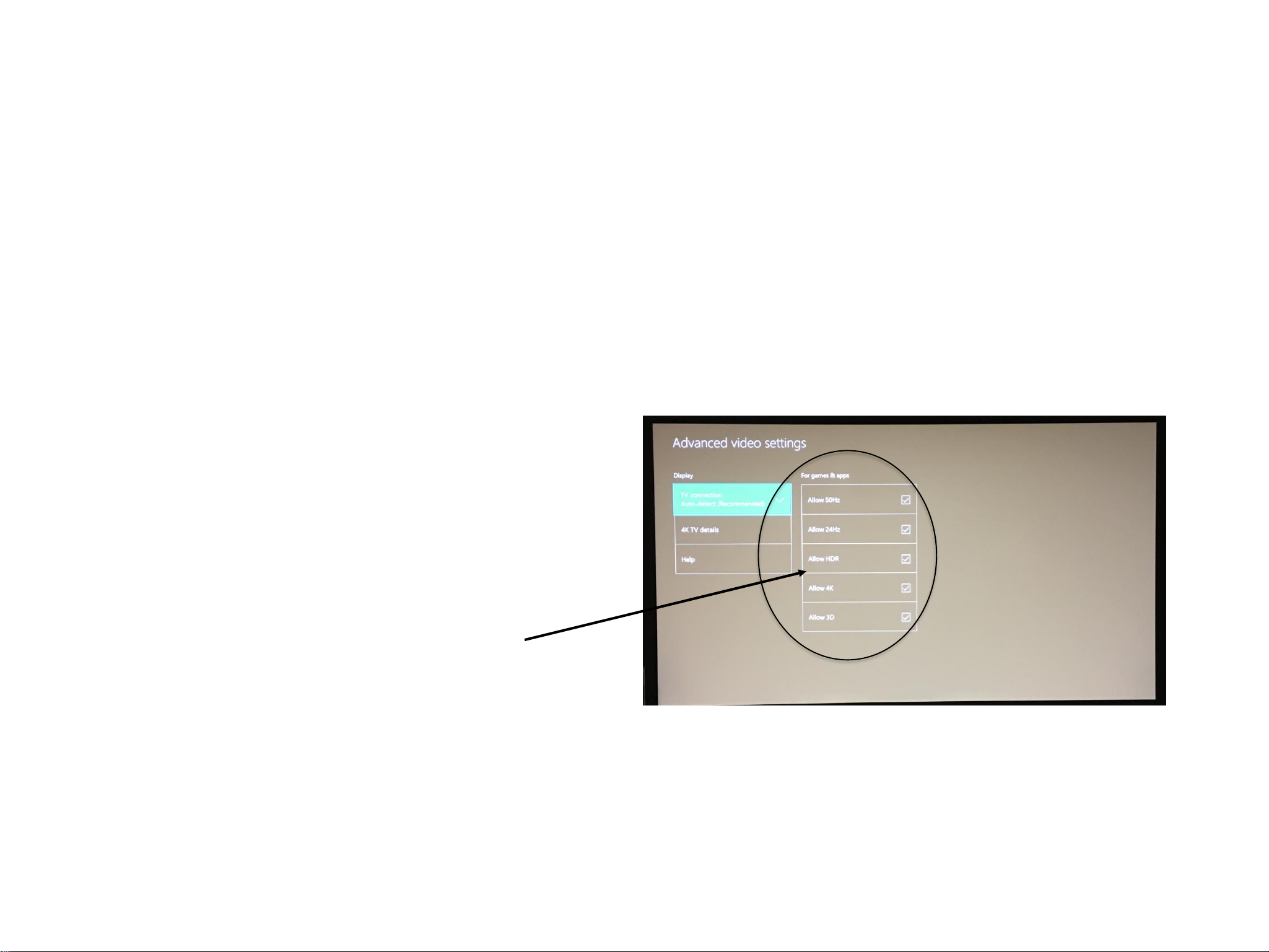

•Ensure all of the boxes are

checked as shown here

•Press “B” to exit this menu and

return to the Video Output

Step 3

Configure the Xbox (cont…)

•Color Space should be set to “Standard”

•Exit out of the settings menu all the way

back to the home screen

•The image will blank out momentarily as

the options are saved and updated

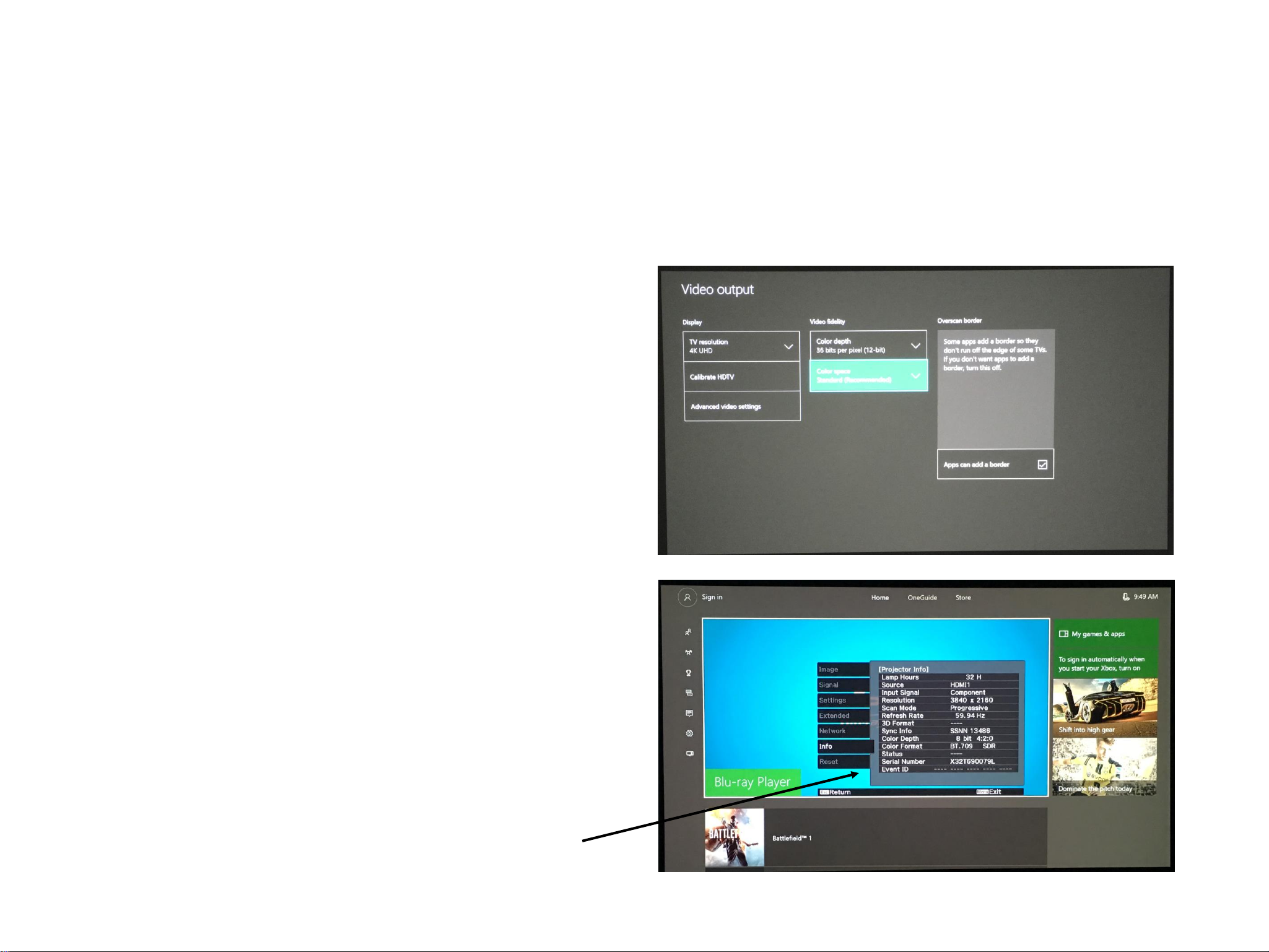

•Check your settings:

•With the Epson remote, press “Menu”

•Navigate to the “Info” tab on the left

•Select “Projector Information”

•Settings should appear as shown
