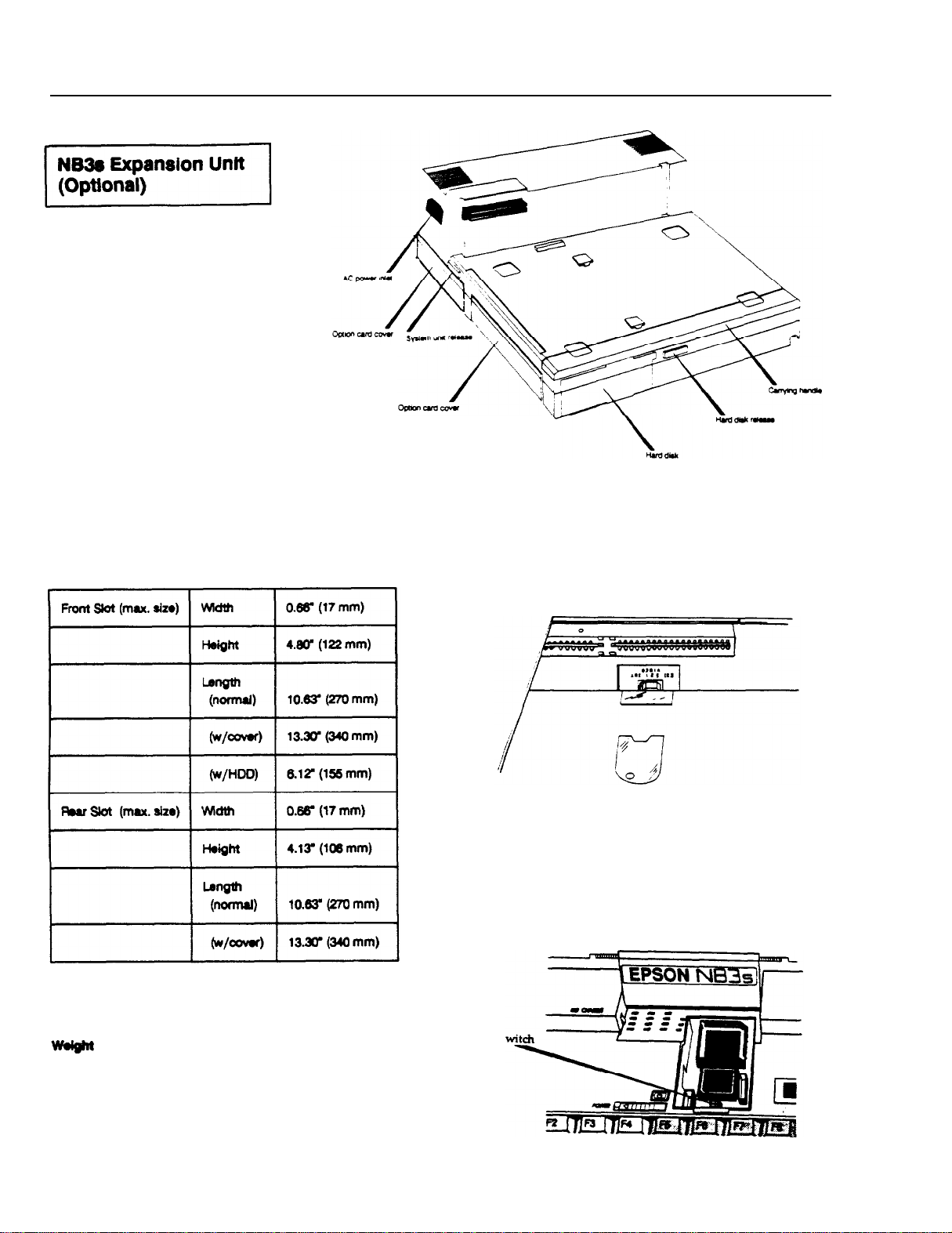

EPSON NB3s
power an optional full-size keyboard.
Hard Disk Interchangeable, slide-out 120MB hard disk;
19 ms average access time; built-in
controller.
Option Slots Two standard I/O expansion slots, 8/16-bit
ISA-compatible.
Dimensions
(WxDxH)mm
297 x 284 x 43 (front); 92.8 (rear)
Approximately 3.75 Ibs., 1.7 kg
Power Supply Automatic 100-240 V sending, 50/60 Hz.
Supplies enough power to operate the
computer, recharge the battery pack and
Video Controller Switch
If you wish to install a video card in the NB3s Expansion Unit,
you must disable the onboard video controller. To do this, set
the video switch to the EXT position. The video switch is
located beneath the connector in the expansion unit’s rear
option slot.
In addition, you must check the position of the DIP switch
located in the slot for the optional coprocessor and RAM card.
Remove the RAM card, if installed. The DlP switch is
immediately below the BlOS chip.
If you are installing a color
video card, be sure that DIP switch 1 is OFF. If you-
installing a monochrome video card, be sure that DIP switch 1
is ON.
DIPS
block
NB3s-6 11/30/90
