Epson S5U13U00P00C100 USB 2.0 User manual

Rev. 1.1

S5U13U00P00C100 USB 2.0

Adapter Board User Manual

Document Number: I00Z-G-018-01.1

All manuals and user guides at all-guides.com

NOTICE

No part of this material may be reproduced or duplicated in any form or by any means without the written permission

of Seiko Epson. Seiko Epson reserves the right to make changes to this material without notice. Seiko Epson does

not assume any liability of any kind arising out of any inaccuracies contained in this material or due to its application

or use in any product or circuit and, further, there is no representation that this material is applicable to products

requiring high level reliability, such as, medical products. Moreover, no license to any intellectual property rights

is granted by implication or otherwise, and there is no representation or warranty that anything made in accordance

with this material will be free from any patent or copyright infringement of a third party. When exporting the

products or technology described in this material, you should comply with the applicable export control laws and

regulations and follow the procedures required by such laws and regulations. You are requested not to use, to resell,

to export and/or to otherwise dispose of the products (and any technical information furnished, if any) for the devel-

opment and/or manufacture of weapon of mass destruction or for other military purposes.

All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective

companies.

Evaluation Board/Kit and Development Tool Important Notice

1. This evaluation board/kit or development tool is designed for use for engineering evaluation, demonstration, or develop-

ment purposes only. Do not use it for other purposes. It is not intended to meet the requirements of design for finished

products.

2. This evaluation board/kit or development tool is intended for use by an electronics engineer and is not a consumer product.

The user should use it properly and in a safe manner. Seiko Epson does not assume any responsibility or liability of any

kind of damage and/or fire caused by the use of it. The user should cease to use it when any abnormal issue occurs even

during proper and safe use.

3. The part used for this evaluation board/kit or development tool may be changed without any notice.

2Seiko Epson Corporation S5U13U00P00C100 USB 2.0 Adapter Board

Rev. 1.1

All manuals and user guides at all-guides.com

S5U13U00P00C100 USB 2.0 Adapter Board Seiko Epson Corporation 3

Rev. 1.1

Table of Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1 USB driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4 Technical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.1 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.2 Host Bus Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.3 Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6 Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7 PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

8 Sales and Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

All manuals and user guides at all-guides.com

4Seiko Epson Corporation S5U13U00P00C100 USB 2.0 Adapter Board

Rev. 1.1

All manuals and user guides at all-guides.com

Introduction

S5U13U00P00C100 USB 2.0 Adapter Board Seiko Epson Corporation 5

Rev. 1.1

1 Introduction

This manual describes the setup and operation of the S5U13U00P00C100 USB2.0 Adapter

Board. This board was designed as an evaluation interface for connecting Epson LCD

Controllers Evaluation Boards to a computer using USB connection.

This user manual is updated as appropriate. Please check the Epson Research and Devel-

opment Website at vdc.epson.com for the latest revision of this document before beginning

any development.

We appreciate your comments on our documentation. Please contact us via email at

vdc-documentation@ea.epson.com.

All manuals and user guides at all-guides.com

Features

6Seiko Epson Corporation S5U13U00P00C100 USB 2.0 Adapter Board

Rev. 1.1

2 Features

The S5U13U00P00C100 USB2.0 Adapter Board includes the following features:

• Header Signals for connecting Epson LCD Controllers Evaluation Boards

• 5V input power (separate power input, not from USB)

• 3.3V power supply available for Epson LCD Controllers Evaluation Boards

• LED power indicator

• Bidirectional voltage translation buffers for the host bus signals, to interface to wide

range of host bus voltages

All manuals and user guides at all-guides.com

Installation

S5U13U00P00C100 USB 2.0 Adapter Board Seiko Epson Corporation 7

Rev. 1.1

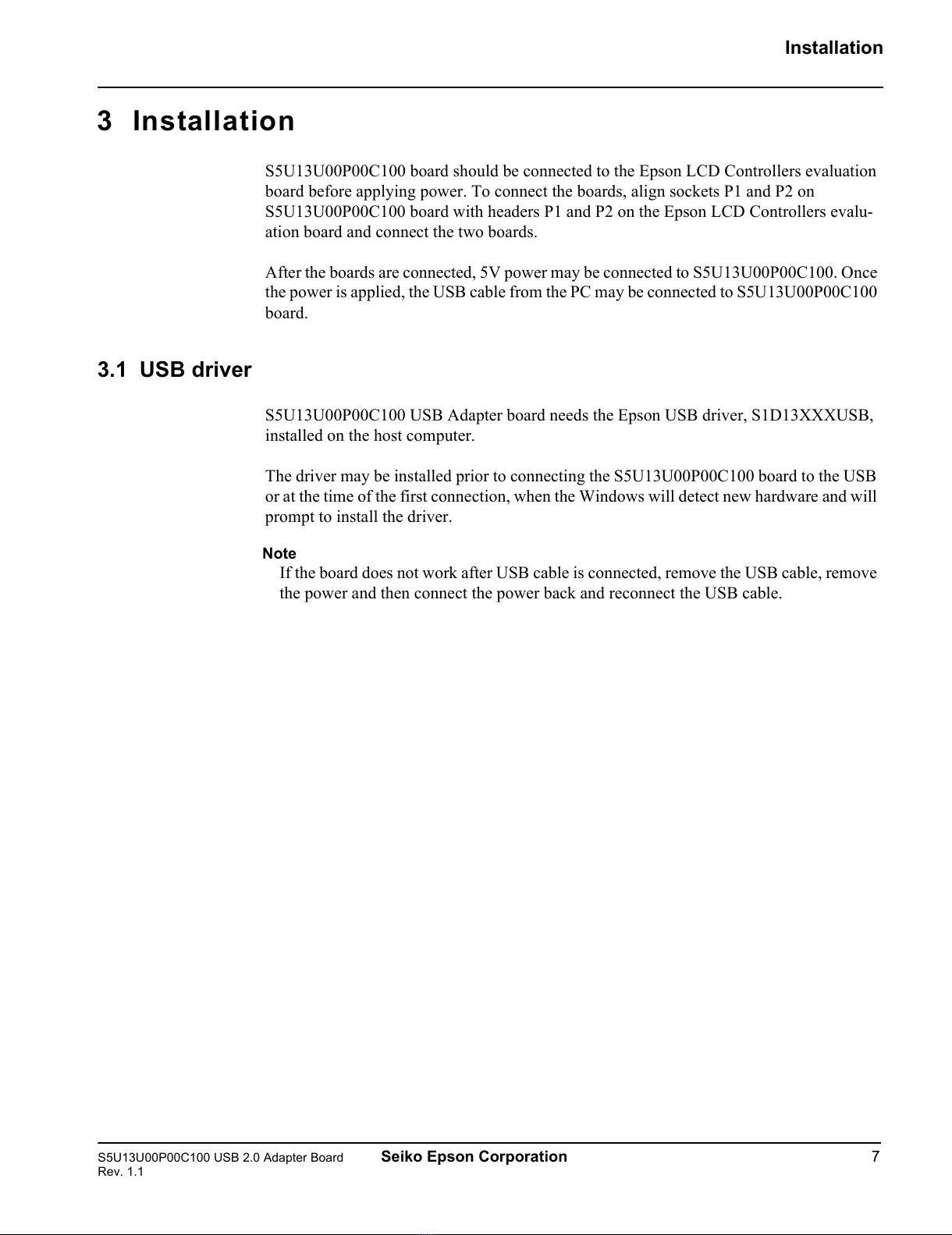

3 Installation

S5U13U00P00C100 board should be connected to the Epson LCD Controllers evaluation

board before applying power. To connect the boards, align sockets P1 and P2 on

S5U13U00P00C100 board with headers P1 and P2 on the Epson LCD Controllers evalu-

ation board and connect the two boards.

After the boards are connected, 5V power may be connected to S5U13U00P00C100. Once

the power is applied, the USB cable from the PC may be connected to S5U13U00P00C100

board.

3.1 USB driver

S5U13U00P00C100 USB Adapter board needs the Epson USB driver, S1D13XXXUSB,

installed on the host computer.

The driver may be installed prior to connecting the S5U13U00P00C100 board to the USB

or at the time of the first connection, when the Windows will detect new hardware and will

prompt to install the driver.

Note

If the board does not work after USB cable is connected, remove the USB cable, remove

the power and then connect the power back and reconnect the USB cable.

All manuals and user guides at all-guides.com

Technical Description

8Seiko Epson Corporation S5U13U00P00C100 USB 2.0 Adapter Board

Rev. 1.1

4 Technical Description

4.1 Power

S5U13U00P00C100 does not uses power from the USB. The boards need an external 5V

power supply. The power supply should be able to supply a current up to 2A at 5V.

The external power supply may be connected to PWR1 power jack. This is regular power

jack, with a 2.1mm diameter center pin. The positive of the power supply must be on the

center terminal.

S5U13U00P00C100 has internal voltage regulator to generate all the internal voltages and

also the 3.3V power available for the Epson LCD Controllers evaluation board. The 3.3V

power is available on pin 5 of P2 socket.

4.2 Host Bus Power

S5U13U00P00C100 has voltage translation buffers for the host bus. The voltage of the host

bus may be provided by the Epson LCD Controllers evaluation boards, through pin 11 of

connector P1, or it may be provided by the 3.3V voltage regulator on S5U13U00P00C100.

The host bus voltage is selected with JP1 jumper.

JP1 - Host Bus Voltage

JP1 selects the voltage level of the host bus on connectors P1 and P2.

When the jumper is at position 1-2, the voltage level is HIOVDD provided by the Epson

LCD Controllers evaluation boards (recommended setting).

When the jumper is at position 2-3, the voltage level is +3.3V.

All manuals and user guides at all-guides.com

Technical Description

S5U13U00P00C100 USB 2.0 Adapter Board Seiko Epson Corporation 9

Rev. 1.1

Figure 4-1: Jumper JP1 Location

4.3 Status Indicators

S5U13U00P00C100 has a green LED “5V PWR” to indicate when 5V power is present.

The board outputs 2 signals on connector P1 to indicate if the board is working and if the

board has completed enumeration on USB.These signals are 3.3 volt, regardless of the host

bus voltage selection.

On pin 9 of connector P1 is output the signal ‘Heartbeat’. When the board is working

correctly, this is a toggling signal with a frequency around 2Hz. If a LED is used as an

indicator, it will be blinking.

On pin 10 of connector P2 is output the signal ‘Enumerated’. This signal goes high when

the S5U13U00P00C100 enumerated successfully on the USB. If a LED is used as an

indicator, it will turn on upon successful enumeration on the USB.

All manuals and user guides at all-guides.com

Parts List

10 Seiko Epson Corporation S5U13U00P00C100 USB 2.0 Adapter Board

Rev. 1.1

5 Parts List

Table 5-1:

Item Quantity Reference Part PCB

Footprint Notes

159

C1,C4,C5,C7,C8,C9,

C10,C11,C12,C13,C28,

C32,C33,C36,C37,C40,

C41,C44,C45,C48,C49,

C52,C53,C56,C57,C60,

C61,C102,C103,C104,

C105,C106,C107,C108,

C109,C110,C111,C157,

C158,C159,C160,C161,

C162,C163,C164,C165,

C166,C172,C173,C174,

C175,C176,C180,C185,

C186,C196,C197,C200,

C205

0.1uF C0402 Yageo America

04022F104Z7B20D

C2,C3,C178,C179,C194,

C195 10uF 16V T C3528 Kemet

T494B106K016AS

365

C6,C14,C15,C16,C17,

C18,C19,C20,C29,C30,

C31,C34,C35,C38,C39,

C42,C43,C46,C47,C50,

C51,C54,C55,C58,C59,

C82,C83,C84,C85,C86,

C87,C88,C89,C90,C91,

C92,C93,C94,C95,C96,

C97,C98,C99,C100,

C101,C137,C138,C139,

C140,C141,C142,C143,

C144,C145,C146,C147,

C148,C149,C150,C151,

C152,C153,C154,C155,

C156

0.01uF C0402 Panasonic - ECG

PCC103BQCT

451

C21,C22,C23,C24,C25,

C26,C27,C62,C63,C64,

C65,C66,C67,C68,C69,

C70,C71,C72,C73,C74,

C75,C76,C77,C78,C79,

C80,C81,C117,C118,

C119,C120,C121,C122,

C123,C124,C125,C126,

C127,C128,C129,C130,

C131,C132,C133,C134,

C135,C136,C177,C189,

C193,C201

1nF C0402 Yageo America

04022R102K9B20D

510

C112,C113,C114,C115,

C116,C167,C168,C169,

C170,C171

1uF C0402 Panasonic - ECG

ECJ-0EB0J105M

6 2 C181,C199 4.7uF 10V T C3528 Kemet

T491B475K010AS

All manuals and user guides at all-guides.com
