EPIC OPTIX Epic event User manual

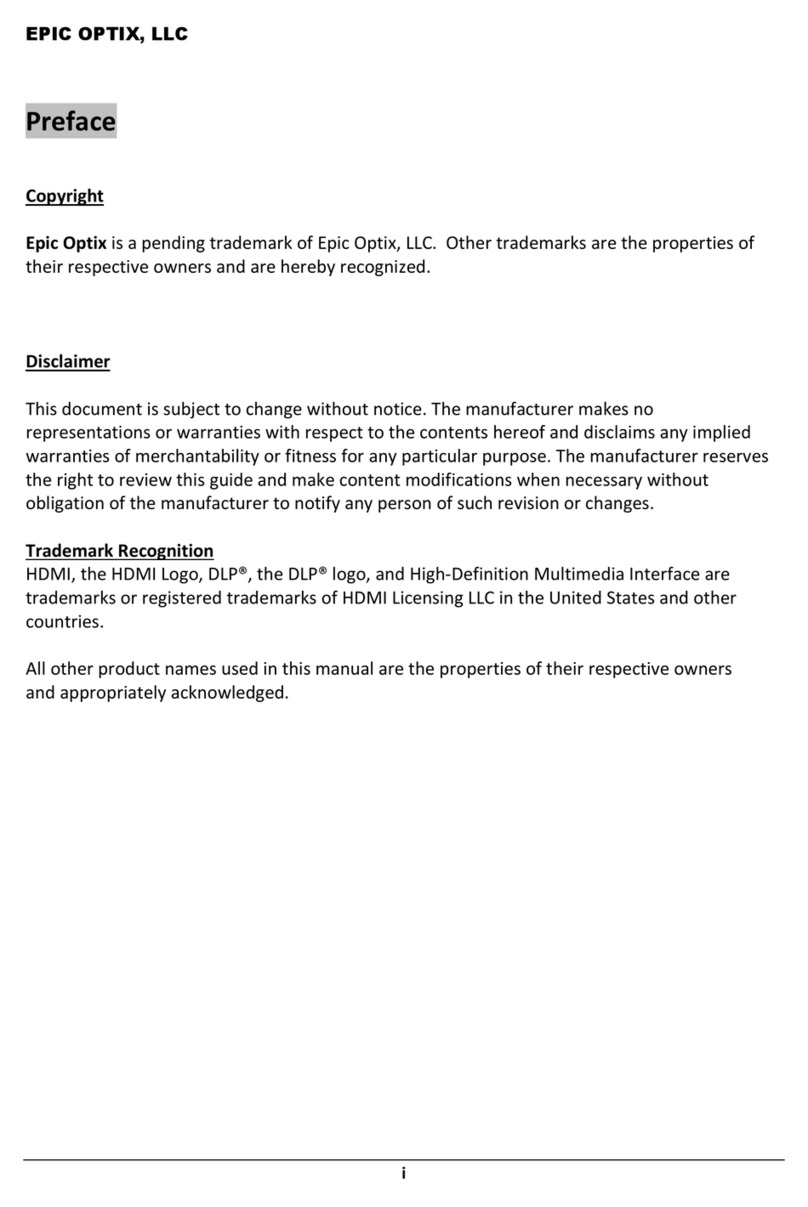

Preface

Epic Optix is a pending trademark of Epic Optix, Inc. Other trademarks are the

properties of their respective owners and are hereby recognized.

Disclaimer

This document is subject to change without notice. The manufacturer makes no

representations or warranties with respect to the contents hereof and disclaims any

implied warranties of merchantability or fitness for any particular purpose. The

manufacturer reserves the right to review this guide and make content modifications

when necessary without obligation of the manufacturer to notify any person of such

revision or changes.

Trademark Recognition

HDMI, the HDMI Logo, DLP®, the DLP® logo, and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the

United States and other countries.

All other product names used in this manual are the properties of their respective

owners and appropriately acknowledged.

Critical Safety Information

It is imperative that you carefully read this section before using the PROJECTOR.

Safety and use instructions will ensure that you experience the approved use of the

PROJECTOR. It is important to keep this manual for future reference.

Warning Symbols

Warning symbols are used on the unit and in this manual to warn you of potential

hazardous situations.

The following warnings are used in this manual to notify you of important

information:

Note: Provides additional information on the topic at hand.

Important: Provides additional information that should not be overlooked.

Caution: Alerts you to situations that may damage the unit.

Warning: Alerts you to situations that may damage the unit, create a

hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD (On-Screen Display)

menus are noted in bold font as in this example:

“Press the Menu button on the remote control to open the Main menu.”

General Safety Information

• Never open the sealed projector case/enclosure. For servicing, contact

qualified service personnel, because self-service is not an option.

• Follow all warnings and cautions stated in this manual and designated on

the unit case.

• By design, the projection light source is extremely bright. To avoid

damage to eyes, NEVER look directly into the lens when the Projector is

on.

• Do not place the unit on an unstable surface or stand.

• Avoid using the system near water, in direct sunlight, or near a heating

device.

• Do not place heavy objects such as books or bags on the unit.

PROJECTOR Installation Notice

Allow at least a 50cm clearance around the exhaust vents.

• Make sure intake vents do not recycle hot air from the exhaust vent.

• When operating the PROJECTOR in an enclosed space, make sure that the

surrounding air temperature within the enclosure does not exceed operating

Minimum 50cm

iii

temperature while the PROJECTOR is running and the air intake and exhaust

vents are unobstructed.

• All enclosures should pass a certified thermal evaluation to make sure that

the PROJECTOR does not recycle exhaust air, as this may cause the device to

shut down even if the enclosure temperature is within the acceptable

operating temperature range.

• If the temperature of the PROJECTOR feels “hot” to the touch, discontinue

use immediately.

Caution: Avoid using the PROJECTOR in dusty environments.

Power Safety

• Use the supplied adapter ONLY.

• The adapter cable should be unencumbered. Therefore, do not place

anything on the adapter cable and place it where it will not be in the way of

foot traffic.

• When not in use for long periods of time, please remove the battery from

the remote control.

PROJECTOR Maintenance

• Always unplug the cable before cleaning. See Cleaning the PROJECTOR.

Note: The PROJECTOR will be warm after usage. Allow PROJECTOR to

cool down before storing in an enclosed compartment.

Regulatory Warnings

Before installing and using the PROJECTOR, read the regulatory notices in the

Regulatory Compliance section.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for

disposal of electrical and electronic equipment. EU countries require the

use of separate recycling collection services. Consult your local regulations

before disposing of this product.

Main Features

• Lightweight and easy to pack and transport.

• High brightness rating allows for presentations in daylight or in lit rooms

with adjustments in projected image size.

• Flexible setup allows for front, rear, ceiling and rear ceiling projection

positions.

• Direct projections are undistorted, with advanced keystone correction for

angled projections.

About this User Manual

This publication is intended for end users and describes how to install and operate

the PROJECTOR. Wherever possible, relevant information—such as an illustration and

its description—has been kept on one page. This printer-friendly format is both for

your convenience and to help save paper, thereby protecting the environment. It is

suggested that you only print sections that are relevant to your needs or consult the

Manual via online links.

Table of Contents

Preface ..............................................................................................................................................................i

Chapter 1. At a Glance..............................................................................................................................1

Overview ................................................................................................................................................... 1

Accessories...............................................................................................................................................3

Remote Control......................................................................................................................................4

PROJECTOR and Remote Control Buttons ..................................................................................4

Chapter 2. Getting started ......................................................................................................................5

What You Need...................................................................................................................................... 5

Setting Up the PROJECTOR............................................................................................................... 6

Chapter 3. PROJECTOR Wi-Fi Mirroring Suite...............................................................................14

Overview .................................................................................................................................................14

iOS Wi-Fi Direct Mirroring mode.............................................................................................15

iOS Wi-Fi AP Mirroring mode ...................................................................................................18

Android Mirroring mode.............................................................................................................22

Chapter 4. HDMI Mode..........................................................................................................................28

Chapter 5. On-Screen Display (OSD) Settings ..............................................................................28

OSD Menu Controls ...........................................................................................................................28

Chapter 6. Taking Care of Your PROJECTOR .................................................................................34

Cleaning the PROJECTOR and Lens .............................................................................................34

Troubleshooting ..................................................................................................................................34

Specifications ........................................................................................................................................36

Projection Distance vs. Image Size ...............................................................................................36

Dimensions ............................................................................................................................................37

Regulatory Compliance.....................................................................................................................38

Disposal and Recycling .....................................................................................................................38

Chapter 7 - Warranty Statement........................................................................................................39

CHAPTER 1

At a Glance

Overview

FRONT/TOP/RIGHT VIEW:

KEYPAD:

Cooling Vent

Do not obstruct

Cooling Vent

Do not obstruct

Lens

Projection

Lens

Focus Lever

Focus the

projected image

Keypad

Shows On-Screen Display

(OSD)

Up Button

Navigate, change Source Menu

and increase Volume

Right Button

Navigate and change Mode Menu

•Android mode select

Down Button

Navigate, change Source Menu

and decrease Volume

Menu Button

Shows On-Screen Display (OSD)

Select Button

Change settings & Input source select

•Short press: 2.4GHz/5GHz select in

iOS mode

•Long press: Wi-Fi mirroring/HDMI

Power Button

Turn on/off

the

PROJECTOR

Left Button

Navigate and change

Mode Menu

•iOS mode select

REAR/TOP/LEFT VIEW:

BOTTOM VIEW:

Cooling Vent

Do not obstruct

Cooling Vent

Do not obstruct

IR Receiver

Receive IR signal from

Remote Control

Audio Out

Connect audio cable to speakers or

headphones

Power Button

Turn on/off the

PROJECTOR

HDMI

Connect HDMI cable

from HDMI device

Rubber Foot Pads

Stabilize and vent

Tripod Adaptor Slot

Stabilize and vent

(You can insert Magnet Adaptor

for Battery Pack)

DC IN

Connect the Power

Adapter

Battery Terminal

for connect to Battery

Pack Power

HDMI

Accessories

The following accessories are included with the PROJECTOR:

Remote Control

(One 3V CR2025 battery included)

Standard HDMI Cable

Regional Power Cord and

Power Adapter

Documentation Kit

(Quick Start Guide, Warranty Card)

Carrying Case

Tripod Adapter

Magnet Adapter

Battery Pack

If any items are missing, appear damaged, or if the unit does not work, please contact your dealer

immediately. It is recommended that you keep the original packing material should you ever need

to return the equipment for warranty service.

Remote Control

PROJECTOR and Remote Control Buttons

The PROJECTOR can be operated using the remote control or the keypad located on top of

the PROJECTOR. All operations can be performed with the remote control.

The remote control is used to navigate the cursor in the menus.

Up Button

Navigate, change Source

Menu and increase Volume

Right Button

Navigate and change Mode Menu

•Android mode select

Down Button

Navigate, change Source Menu

and decrease Volume

Menu Button

Shows On-Screen Display

(OSD)

Select Button

Change settings & Input source select

• Short Press: 2.4GHz/5GHz select in iOS mode

• Long Press: Wi-Fi mirroring/HDMI

Left Button

Navigate and change Mode Menu

•iOS mode select

Power Button

Turn on/off the PROJECTOR

Mute Button

Mute built-in speaker

Important:

1. Be sure nothing obstructs the path between the remote control and the

PROJECTOR. If the path between the remote control and the PROJECTOR is

obstructed, the signal may be blocked.

2. The buttons and keys on the PROJECTOR have the same layout and similar

functions as the corresponding buttons on the remote control. This User Manual

describes the functions based on the remote control.

CHAPTER 2

Getting Started

What You Need

Several external devices and peripherals can be connected to the PROJECTOR. DVD, VCD

and VHS players can be connected to play movies/video. Camcorders and digital cameras

can also be used to play videos and display photos. Computers and peripherals can be

connected to show documents, presentations and other types of media.

These devices can be connected to the PROJECTOR by using the appropriate cable. Make

sure the connecting device has an appropriate output connector.

HDMI

Connect HDMI

peripherals

Connect Audio

Warning:

As a safety precaution, disconnect all power and devices to the PROJECTOR before making

connections.

DC IN

Connect the Power

Adapter

IR Receiver

Receive IR signal from

Remote Control

Audio Out

Connect audio cable to

speakers or headphones

Table of contents

Other EPIC OPTIX Projector manuals

EPIC OPTIX

EPIC OPTIX PROJECTOR User manual

Popular Projector manuals by other brands

iEmmet

iEmmet MP-312 user manual

Epson

Epson VS400 Specifications

Sony

Sony VPL-HS10 Marketing Specifications & Features manual

Sony

Sony VPL-HW65ES Quick reference manual

Toshiba

Toshiba TLP-791U Specifications

Philips

Philips LC1341 Declaration of conformity

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB operating instructions

NEC

NEC NP600S EDU Specifications

BenQ

BenQ SH753P user manual

Eiki

Eiki EK-623U series quick start guide

Epson

Epson PowerLite Pro Cinema 6020UB user guide

Epson

Epson PowerLite Home Cinema 705HD user guide

Christie

Christie LHD700 user manual

Navitar

Navitar FX instruction manual

InFocus

InFocus LitePro 560 user guide

Sony

Sony SRX-R815P operating instructions

Vivitar

Vivitar DP1500 X specification

Acer

Acer C20 Series manual
