Envision Envision Professional G22LWK User manual

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color

monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide proper protection against harmful interference to a

residential installation. This monitor generates, uses, and can radiate radio

frequency energy. Harmful interference to radio communication may be led

as a result if it‘s not properly installed and used. However, there is no

guarantee that interference will not occur in a particular installation. If this

monitor does cause serious interference to radio or television reception,

resetting the monitor may determine it. Moreover, users are encouraged to

correct interference by doing one or more of the following:

 Reorient or relocate the receiving antenna.

 Move the monitor and the receiver further away from each other.

 Connect the monitor into an outlet on a circuit different from that to

which the receiver is connected.

 Consult your local dealer or an qualified technician.

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded

power supply cord and the provided shielded video interface cable with

bonded ferrite cores. Also, any unauthorized changes or modifications to

this monitor would void the user‘s authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be

used to meet the emission level limits.

Content

Safety Precautions.............................................................................1

First Setup .........................................................................................2

Quick Installation.............................................................................2-3

Front View of the Product ..................................................................4

Rear View of the Product...................................................................4

Using On Screen Display (OSD) Functions ....................................5-7

Supporting Timing Modes..................................................................8

Technical Information.........................................................................9

Care and Maintenance.....................................................................10

Troubleshooting ...............................................................................10

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user’s

safety comes first. However, improper use or installation may result danger

to the monitor as well as to the user. Carefully go over the following

WARNINGS before installation and keep this guide handy.

WARNINGS:

 This monitor should be operated only at the correct power sources

indicated on the label on the rear end of the monitor. If you’re unsure of

the power supply in your residence, consult your local dealer or power

company.

 Do not try to repair the monitor yourself as it contains no

user-serviceable parts. The monitor should only be repaired by a

qualified technician.

 Do not remove the monitor cabinet. There is high-voltage parts inside

that may cause electric shock to human bodies, even when the power

cord is disconnected .

 Stop using the monitor if the cabinet is damaged. Have it checked by a

service technician.

 Put your monitor only in a clean, dry environment. Unplug the monitor

immediately if gets wet and consult your service technician.

 Always unplug the monitor before cleaning it. Clean the cabinet with a

clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not

directly onto the glass screen.

 Keep the monitor away from magnetic objects, motors, TV sets, and

transformer.

 Do not place heavy objects on the cable or power cord.

 For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed

near the equipment and shall be easily accessible.

First Setup

Congratulation for purchasing this monitor of high performance!

This monitor comes with the following accessories:

 Power Cable

 D-Sub Cable (15 pin)

 DVI Cable (24 pin)

 Audio Cable

 User’s Guide

 Quick Start Guide

 Warranty Documents

Quick Installation

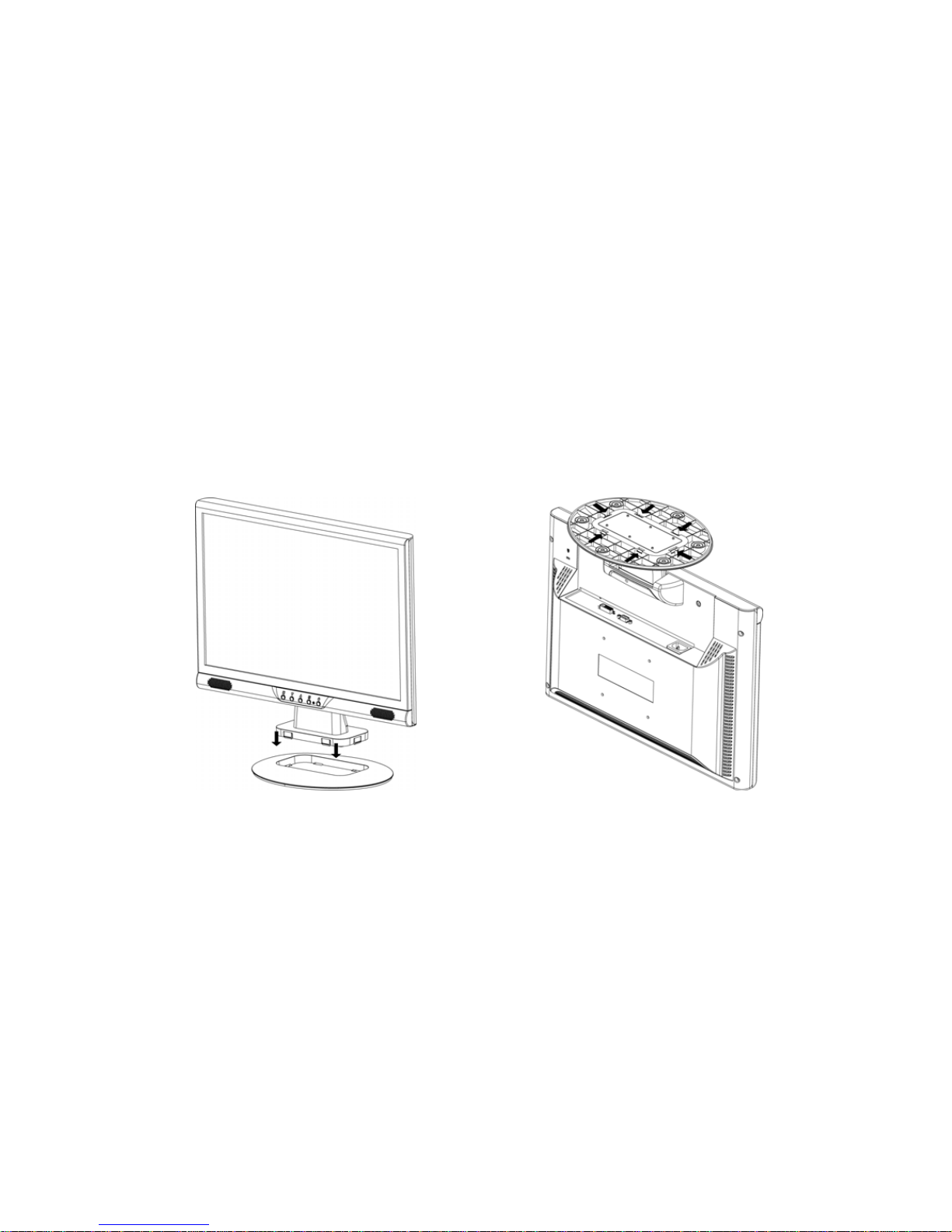

Installing & Removing the Base

Install Remove

Connecting the Monitor

1. Connect Power Cable

Connect the power cable to the back of the monitor. Plug the power cable to a

nearby power outlet.

2. Connect Analog video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video

cable ( D-Sub cable) to the computer, then to the monitor.

3. Connect DVI cable (Optional)

Connect the DVI cable from DVI output of computer to the DVI input of the

monitor.

4. Connect audio cable

Connect one end of the audio cable to the back of the monitor and connect the

other end to the computer’s audio out port.

5. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

6. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1680 x 1050 @ 60 Hz (Recommended Resolution)

Resolution Right-click on the Windows desktop > Properties > Settings >

“Desktop Area”. Set the resolution.

Refresh Rate (vertical frequency) See your graphic card’s user guide for

instructions.

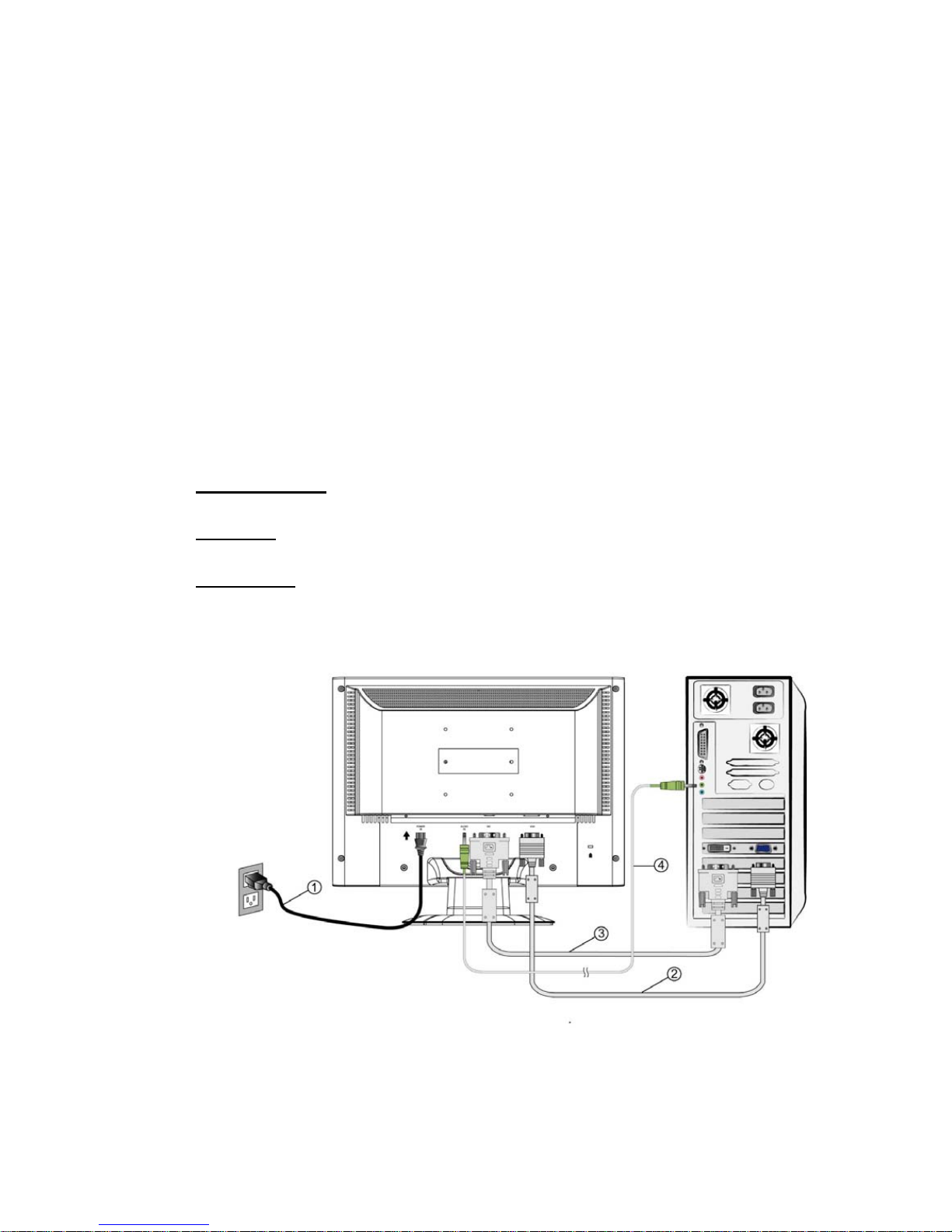

Connection Diagram:

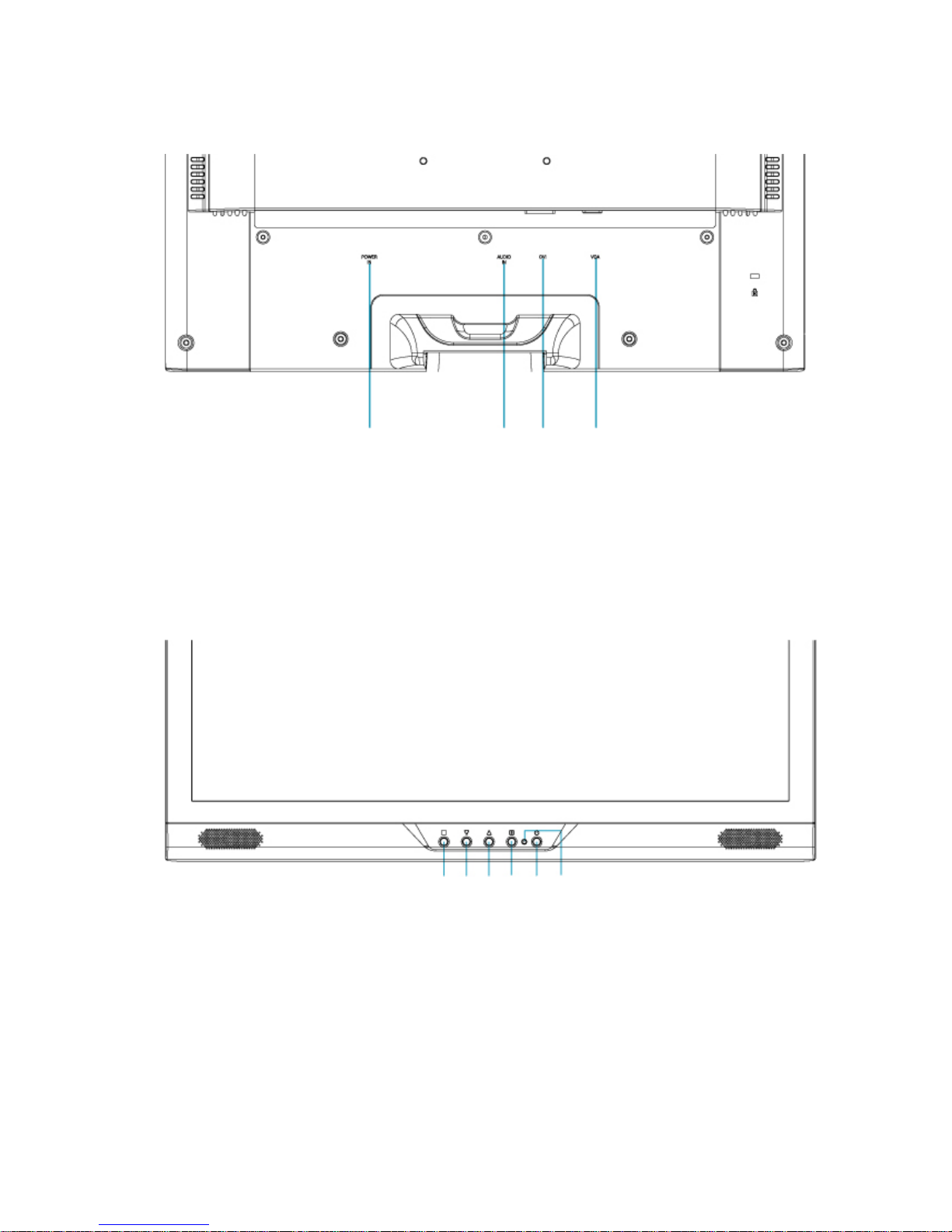

Rear View of the Product

➐➑➒ ➓

➐ POWER INPUT ➒ DVI INPUT (DVI 24 PIN)

➑ AUDIO INPUT ➓ VGA INPUT (D-SUB 15 PIN)

Front View of the Product

➊ ➋➌➍ ➎ ➏

➊ OSD TURN ON/OFF ➍ CONFIRMSELECTION

➋ SCROLL DOWN/DECREASE ➎ POWER ON/OFF

➌ SCROLL UP/INCREASE ➏ LED INDICATER

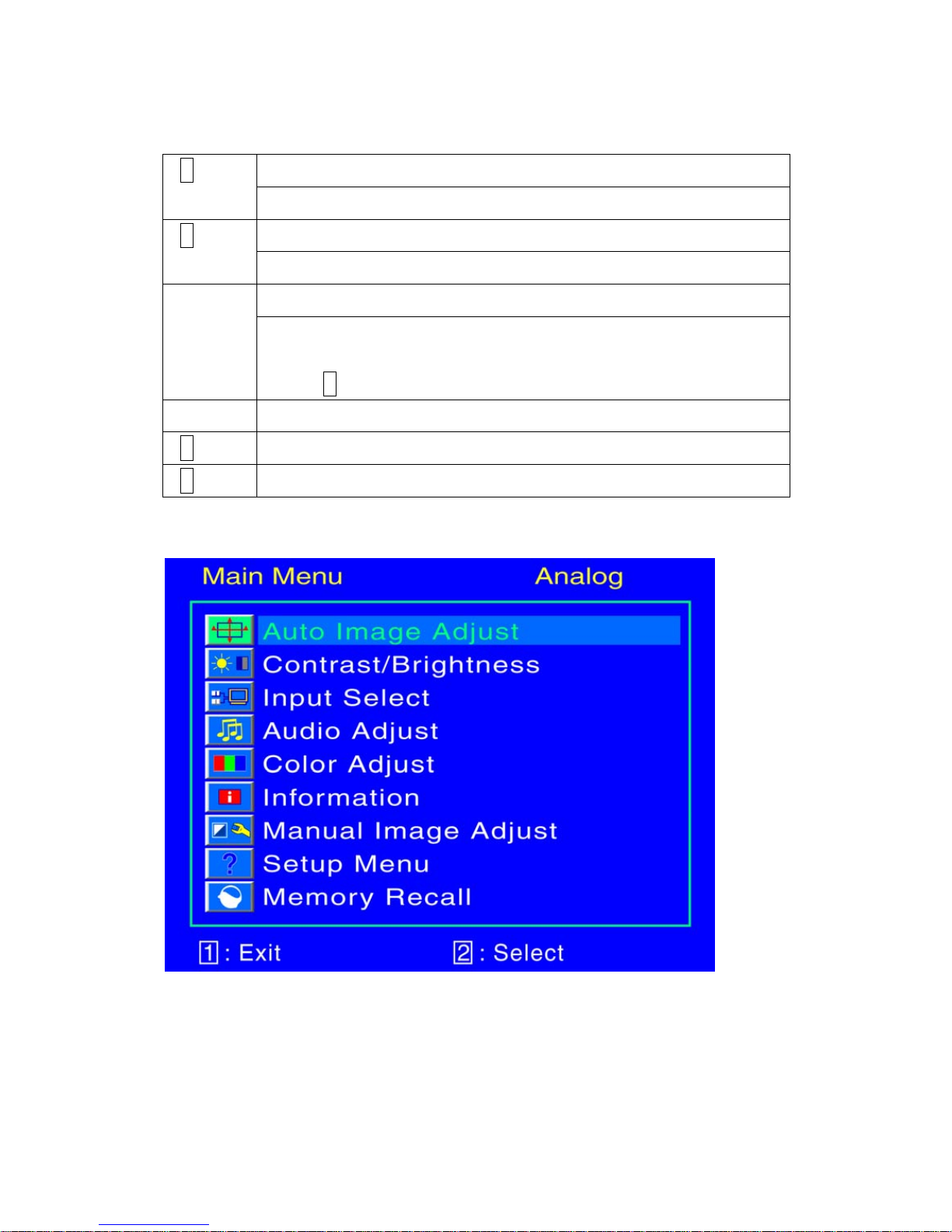

Using On Screen Display (OSD) Functions

Display main menu.1

Exit from OSD menu.

Auto adjust the image when not in main menu.2

Confirm the selection.

Select the desired item when in OSD menu.Vor W

When not in OSD menu, it is to immediately activate Contrast/

Brightness. It should be change to Contrast/ Brightness by pressing

button 2.

▼+ ▲Recall both of Contrast and Brightness.

1 + ▼Power Lock (when not in OSD menu)

1 + ▲OSD Lock (when not in OSD menu)

Main Menu

OSD Functions

Auto Image Adjust : Auto adjust Horizontal Position, Vertical Position,

Phase (Fine Tune) and Clock (H. Size) of the screen. Available in

Analog mode only.

Contrast : Adjust the foreground white level of screen image.

V:increase contrast, W: decrease contrast.

Brightness : Adjust the luminance of the video.

V: increase brightness, W:decrease brightness.

Input Select : Select Analog (D-sub) or Digital (DVI) Input

Audio Menu : Adjust the audio functions.

Volume :Adjust the volume of speaker output.

Mute :Turn the Mute ON/OFF.

Color Adjust : Select the color temperature between 9300, 6500, 5400,

and User Color to meet user’s preference.

9300 : Adds blue to screen image for cooler white.

6500 : Adds red to screen image for warmer white and richer red.

5400 : Adds green to screen image for a darker color.

User Color : Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press▼or ▲button to adjust selected color.

Information : Display the information regarding the current input signal

coming from the graphic card in your computer.

Note: See your graphic card user guide for more information about

changing the resolution and refresh rate.

Horizontal Size : Adjust the width of the screen image.

W:decrease the width of screen image, V:increase the width of screen

image.

H./V. Position : Adjust the horizontal and vertical position of the video.

H. Position : V:move screen to the right, W:move screen to the left.

V. Position : V: move screen up, W:move screen down.

Fine Tune : Adjust the delay time of data and clock.

Press ▼or ▲to adjust to your preference.

Sharpness : Adjust the clarity of a non-WXGA (1440x900) signal with

▼or ▲button.

Setup Menu : Set up Language Select, Resolution Notice, OSD Position,

OSD Time Out, and OSD Background.

Setup Menu>Language Select : Allow users to choose from available

languages.

Setup Menu>Resolution Notice: Resolution Notice is to remind the user to

set the resolution to 1680x1050 for best image quality when the resolution

setting is not at 1680 x 1050.

 Choose “Enable”: Every 30 seconds, it will show a window “For best

picture quality change resolution to 1680 x 1050” to remind the user to

set the resolution to 1680x150 for best image quality.

 Choose “Disable”: It will not show a window to remind the user to set

the resolution to 1680 x 1050.

Setup Menu>OSD Position : Press 2 button to select between

horizontal and vertical OSD Position adjustment.

Horizontal OSD Position : Adjust the OSD position vertically.

V:move OSD to the right, W:move OSD to the left.

Vertical OSD Position : Adjust the OSD position horizontally.

V: move OSD up, W:move OSD down.

Setup Menu>OSD Time Out : Automatically turn off On Screen

Display(OSD)after a preset period of time.

Setup Menu>OSD Background : Allows the user to turn the OSD

background On or Off.

Memory Recall : Recall factory settings for Video & Audio controls.

Press button 2 to select the Memory Recall menu option.
