Envirovent ECO DMEV User manual

ECO DMEV

ECO DMEV SELV

)LJD

)LJE





33 3

6:

6:

6:

6:

6:













)LJ

Fig.3

GND

LS’

+17V

ECO dMEV

230Vac

50/60Hz

CT-17/18

230Vac

50/60Hz

+17V

ECO dMEV SELV

TIME-DELAY

FUSE

125 mA

MAX.

Fig.4

GND

LS’

+17V

CT-17/18

230Vac

50/60Hz

230Vac

50/60Hz

+17V

ECO dMEV

ECO dMEV SELV

TIME-DELAY

FUSE

125 mA

MAX.

Fig.5

GND

LS’

+17V

CT-17/18

230Vac

50/60Hz

230Vac

50/60Hz

+17V

ECO dMEV

ECO dMEV SELV

TIME-DELAY

FUSE

125 mA

MAX.

Fig.6

GND

LS’

+17V

230Vac

50/60Hz

CT-17/18

230Vac

50/60Hz

+17V

ECO dMEV

ECO dMEV SELV

TIME-DELAY

FUSE

125 mA

MAX.

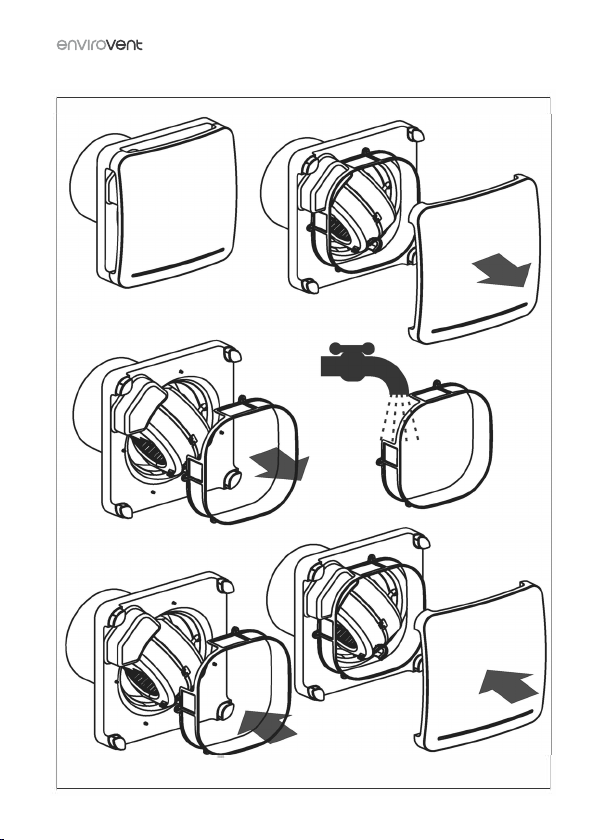

Fig.8

Fig.7

-min.

-HR%.

min.

ECO dMEV Centrifugal Extract Fan

The ECO dMEV extract fan range is

manufactured to the highest stan-

dards of production and quality as

laid down by the international Quality

Standard ISO 9001. All components

have been checked and every one of

the ﬁnal products will have been in-

dividually tested at the end of the ma-

nufacturing process.

On receipt of the product we recom-

mend that you to check the following:

1. That it is the correct model.

2. That the details on the rating label

are those you require: voltage, fre-

quency...

The installation must be carried out in

accordance with Building Regulations

and the current I.E.E. wiring regu-

lations (BS7671) or the equivalent

standards in force in your country.

This appliance can be

used by children aged

from 8 years and above

and persons with re-

duced physical, sensory

or mental capabilities

or lack of experience

and knowledge if they

have been given su-

pervision or instruction

concerning use of the

appliance in a safe way

and understand the

hazards involved. Chil-

dren shall not play with

the appliance. Cleaning

and user maintenance

shall not be made by

children without super-

vision.

INSTALLATION

IMPORTANT: Before installing and

wiring the unit, ensure that the mains

supply is disconnected.

Fig. 1b:

1. Front grille

2. Protection cover

3. Support

4. Connection terminals

5. Cable entry

6. Dip switches

7. Potentiometer

8. Air ﬁlter

The ECO DMEV is suitable for wall or

ceiling mounting and can either ex-

tract directly to the outside or through

a ducted system (see Fig. 2).

Make a Ø105 mm hole in the wall or

ceiling.

If the unit is to be installed with duct-

This manual suits for next models
