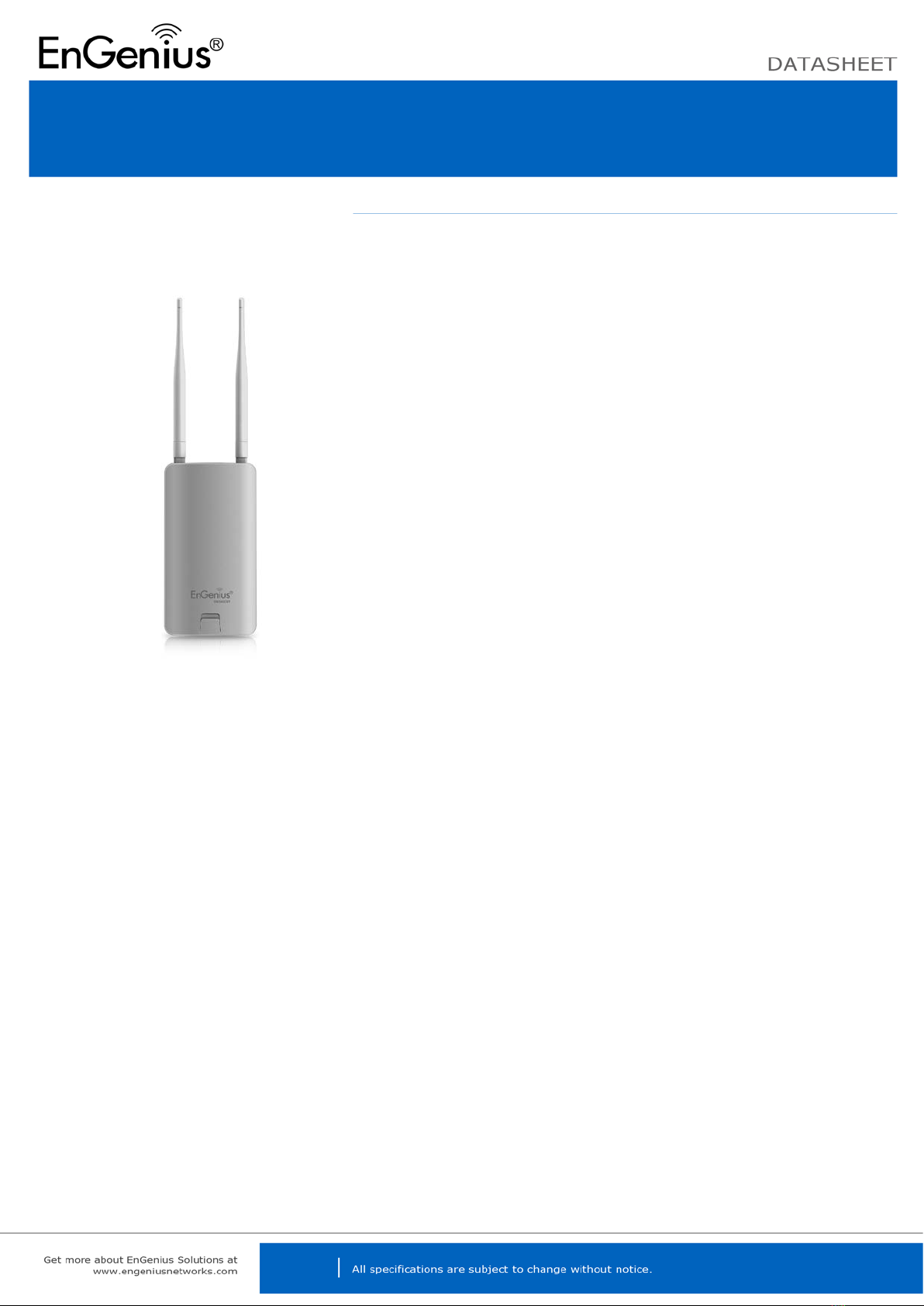

EnGenius ENS500EXT User manual

ENS500EXT

LONG RANGE WIRELESS 11N OUTDOOR AP/CB

IEEE802.11a/n 2T+2R 300Mbps High Performance

Package Contents

1 x ENS500EXT

2 x 5GHz 5dBi Omni Antenna

1 x Power Adapter (24V/0.6A)

1 x PoE Injector (EPE1212)

1 x Pole Mount set

1 x Screw Set

1 x CD(User Manual)

1 x Quick Guide

1 x Supporting Card

ENS500EXT Wireless Outdoor unit provides not only external

antenna connectors for antenna upgrade, but also high output

power and high sensitivity can extend the transmission range to

deliver a stable wireless connection. ENS500EXT integrates 4

operation modes: Access Point, Client Bridge, Client Router and

WDS.

Advanced multi-function operation modes offer flexibility in

constructing scalable wireless networks for all possible

applications. ENS500EXT is designed to deliver reliable service

under harsh outdoor environment with certified IP65 protection

and tailored to accommodate multimedia streaming services

with data-rate up to 300Mbps. Most importantly, it is built-in

encryption standards (WEP, WPA, WPA2, TKIP/AES and

IEEE802.1x) ensure maximum security and compatibility.

ENS500EXT

LONG RANGE WIRELESS 11N OUTDOOR AP/CB

IEEE802.11a/n 2T+2R 300Mbps High Performance

FEATURES

Hardware Features

High output power Transmit high output power programmable for different country

selections

High Data Rate High speed transmitting rate up to 300Mbps with 2T2R 802.11n

Long range transmitting Transmit power control and distance control (ACK timeout)

Signal Strength Display Indicate RF signal strength to be shown as LEDs of 3 colors, making

network build-up easier. LED indicators have the best transmit and

receive signal for traffic communication

PoE Support Support proprietary 24V passive power over Ethernet

Software Features

Multiple SSID 4 SSID supported. Each SSID can set itself wireless or WAN access

setting

PPPoE Point-to-Point Protocol over Ethernet at Client Router mode. This

function will keep trying when failed or disconnected

PPTP Point-to-Point Tunneling Protocol (PPTP) is a method for implementing

virtual private networks

VLAN Pass-through Support VLAN Pass-through

Firmware Upgrade

Upgrading firmware via web browser, setting are reserved after

upgrade

Reset & Backup Reset to factory default. User can export all setting into a file via WEB

Ping & Trace Route Built-in PING function & Trace Route function in Web GUI

MIB MIB I, MIB II(RFC1213), Private MIB

SNMP V1, V2c, V3

SPECIFICATION

Hardware Specification

MCU Atheros AR9344

RF None

Memory 64MB

Flash 16MB

Physical Interface 2 x RJ-45 for 10/100 Fast Ethernet

ENS500EXT

LONG RANGE WIRELESS 11N OUTDOOR AP/CB

IEEE802.11a/n 2T+2R 300Mbps High Performance

1 x Reset Button

Power Requirements - Active Ethernet (Power over Ethernet)

- Proprietary PoE design

- Power Adapter 24V / 0.6A

RF Specification

Frequency Band 802.11a/n

Data rate 300 Mbps

Radio Frequency Band

(The Max. Power may be

different depending on local

regulations)

Channel Data Rate Tx Avg. Power

(±2dBm)

Rx Sensitivity

(±2dBm)

802.11a (5.18

~ 5.825GHz)

6Mbps 26 -95

9Mbps 26 -92

12Mbps 26 -89

18Mbps 26 -85

24Mbps 26 -81

36Mbps 25 -79

48Mbps 23 -76

54Mbps 21 -75

802.11n(5.18

~ 5.825GHz)

MCS0 / MCS8 26 -95

MCS1 / MCS9 26 -93

MCS2 / MCS10 26 -90

MCS3 / MCS11 26 -87

MCS4 / MCS12 24 -84

MCS5 / MCS13 23 -79

MCS6 / MCS14 22 -75

MCS7 / MCS15 21 -73

Antenna 2 x External SMA Connector

Software Specification

Operation Mode Access Point / Client Bridge / Client Router / WDS

Wireless/Network Auto Channel Selection (Setting varies by Regular Domains)

Obey Regulatory Power

Distance Control (802.1x Ack timeout)

CLI Supported

802.1x Supplicant (CB Mode)

Multiple SSID (4 SSID), BSSID

ENS500EXT

LONG RANGE WIRELESS 11N OUTDOOR AP/CB

IEEE802.11a/n 2T+2R 300Mbps High Performance

WDS AP / WDS Bridge / WDS Station

Multicast Supported

RADIUS Accounting

VLAN Tag / VLAN Pass-through

Auto Reboot

WiFi Scheduling

Security WEP Encryption-64/128/152 bit

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise (WPA-EAP using TKIP)

Hide SSID in beacons

MAC address filtering, up to 50 field

Wireless STA (Client) connected list

QoS WMM

Environment & Mechanical

Temperature Range Operating -20°C~70°C

Storage -30°C to 80°C

Humidity (non-condensing) 0%～90% typical

Dimensions 186mm (L) x 100mm (W) x 29mm (H)

Weight 300g
