Endress+Hauser Proline 500 digital HART Technical specifications

Products Solutions Services

Brief Operating Instructions

Proline 500 – digital

HART

Transmitter with thermal mass flowmeter sensor

These instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Brief Operating Instructions part 2 of 2: Transmitter

Contain information about the transmitter.

Brief Operating Instructions part 1 of 2: Sensor →  3

KA01446D/06/EN/01.20

71487090

2020-09-17

Proline 500 – digital HART

2 Endress+Hauser

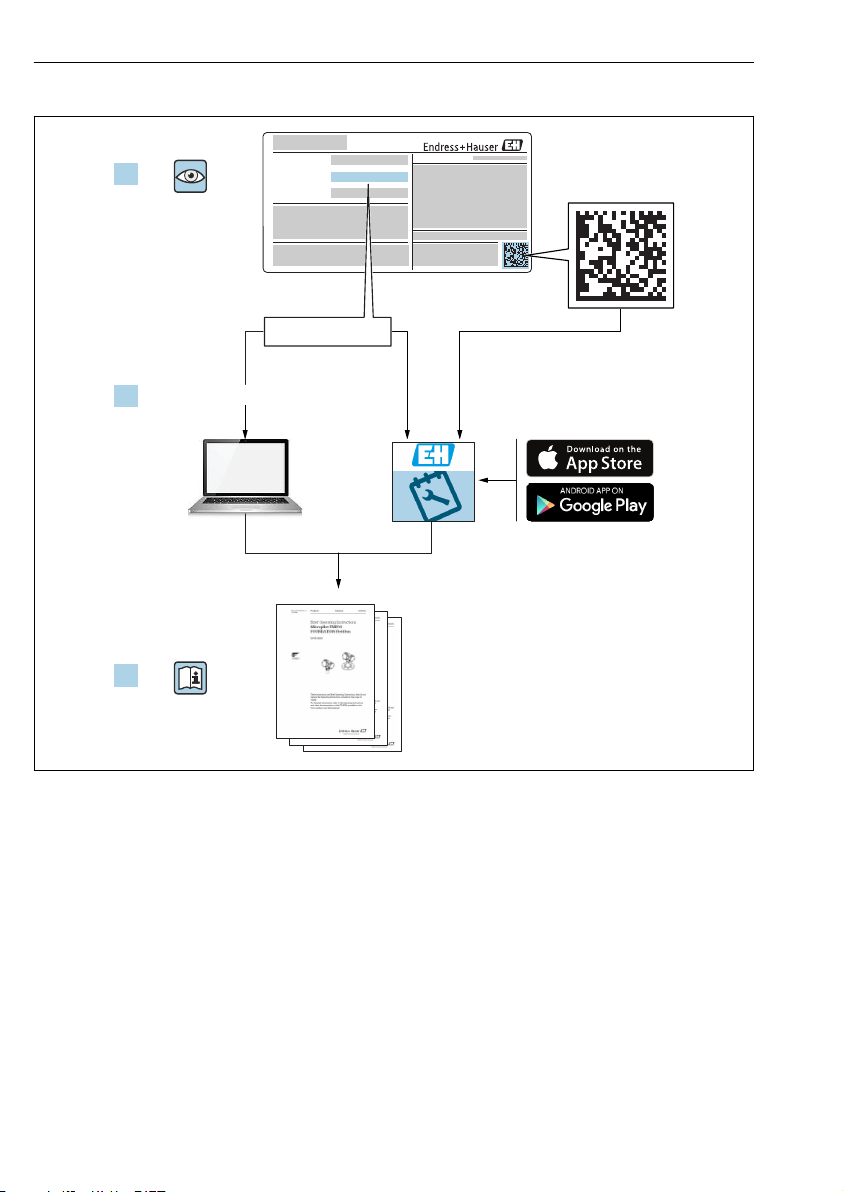

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Proline 500 – digital HART Brief Operating Instructions for the flowmeter

Endress+Hauser 3

Brief Operating Instructions for the flowmeter

The device consists of a transmitter and a sensor.

The process of commissioning these two components is described in two separate manuals,

that form the Brief Operating Instructions of the flowmeter:

• Brief Operating Instructions part 1: Sensor

• Brief Operating Instructions part 2: Transmitter

Please refer to both Brief Operating Instructions when commissioning the flowmeter as the

contents complement one another:

Brief Operating Instructions part 1: Sensor

The Sensor Brief Operating Instructions are aimed at specialists with responsibility for

installing the measuring device.

• Incoming acceptance and product identification

• Storage and transport

• Installation

Brief Operating Instructions part 2: Transmitter

The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for

commissioning, configuring and parameterizing the measuring device (until the first

measured value).

• Product description

• Installation

• Electrical connection

• Operation options

• System integration

• Commissioning

• Diagnostic information

Additional device documentation

These Brief Operating Instructions are the Brief Operating Instructions part 2:

Transmitter.

The "Brief Operating Instructions part 1: Sensor" are available via:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

Detailed information about the device can be found in the Operating Instructions and the

other documentation:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline 500 – digital HART

4 Endress+Hauser

Table of contents

1 About this document .............................................................. 5

1.1 Symbols used ......................................................................... 5

2 Safety instructions ................................................................ 7

2.1 Requirements for the personnel ............................................................ 7

2.2 Designated use ........................................................................ 7

2.3 Workplace safety ...................................................................... 8

2.4 Operational safety ......................................................................8

2.5 Product safety ......................................................................... 9

2.6 IT security ............................................................................ 9

2.7 Device-specific IT security ................................................................ 9

3 Product description .............................................................. 10

4 Installation ...................................................................... 11

4.1 Post mounting ....................................................................... 11

4.2 Wall mounting ....................................................................... 12

4.3 Transmitter post-installation check ........................................................ 12

5 Electrical connection ............................................................ 13

5.1 Electrical safety .......................................................................13

5.2 Connection conditions .................................................................. 13

5.3 Connecting the measuring device ......................................................... 20

5.4 Ensuring potential equalization ........................................................... 25

5.5 Ensuring the degree of protection ......................................................... 25

5.6 Post-connection check ..................................................................26

6 Operation options ............................................................... 27

6.1 Overview of operation options ............................................................ 27

6.2 Structure and function of the operating menu ................................................ 28

6.3 Access to the operating menu via the local display ............................................. 29

6.4 Access to the operating menu via the operating tool ............................................ 32

6.5 Access to the operating menu via the Web server .............................................. 32

7 System integration .............................................................. 32

8 Commissioning .................................................................. 32

8.1 Function check ....................................................................... 32

8.2 Setting the operating language ........................................................... 33

8.3 Configuring the measuring device ......................................................... 33

8.4 Protecting settings from unauthorized access ................................................. 34

9 Diagnostic information .......................................................... 34

Proline 500 – digital HART About this document

Endress+Hauser 5

1 About this document

1.1 Symbols used

1.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation

Reference to page

Reference to graphic

… Series of steps

Result of a step Visual inspection

1.1.3 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

About this document Proline 500 – digital HART

6 Endress+Hauser

Symbol Meaning

Protective Earth (PE)

A terminal which must be connected to ground prior to establishing any other connections.

The ground terminals are situated inside and outside the device:

• Inner ground terminal: Connects the protectiv earth to the mains supply.

• Outer ground terminal: Connects the device to the plant grounding system.

1.1.4 Communication symbols

Symbol Meaning Symbol Meaning

Wireless Local Area Network

(WLAN)

Communication via a wireless, local

network.

LED

Light emitting diode is off.

LED

Light emitting diode is on.

LED

Light emitting diode is flashing.

1.1.5 Tool symbols

Symbol Meaning Symbol Meaning

Torx screwdriver Flat blade screwdriver

Cross-head screwdriver Allen key

Open-ended wrench

1.1.6 Symbols in graphics

Symbol Meaning Symbol Meaning

1, 2, 3,... Item numbers

… Series of steps

A, B, C, ... Views A-A, B-B, C-C, ... Sections

Hazardous area

Safe area (non-hazardous area)

Flow direction

Proline 500 – digital HART Safety instructions

Endress+Hauser 7

2 Safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Designated use

Application and media

The measuring device described in this manual is intended only for the flow measurement of

gases.

Depending on the version ordered, the measuring device can also measure potentially

explosive, flammable, poisonous and oxidizing media.

Measuring devices for use in hazardous areas, or where there is an increased risk due to

process pressure, are labeled accordingly on the nameplate.

To ensure that the measuring device remains in proper condition for the operation time:

‣Keep within the specified pressure and temperature range.

‣Only use the measuring device in full compliance with the data on the nameplate and the

general conditions listed in the Operating Instructions and supplementary documentation.

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area (e.g. explosion protection, pressure vessel safety).

‣Use the measuring device only for media to which the process-wetted materials are

sufficiently resistant.

‣If the ambient temperature of the measuring device is outside the atmospheric

temperature, it is absolutely essential to comply with the relevant basic conditions as

specified in the device documentation.

‣Protect the measuring device permanently against corrosion from environmental

influences.

Incorrect use

Non-designated use can compromise safety. The manufacturer is not liable for damage caused

by improper or non-designated use.

LWARNING

Danger of breakage due to corrosive or abrasive fluids and ambient conditions!

‣Verify the compatibility of the process fluid with the sensor material.

‣Ensure the resistance of all fluid-wetted materials in the process.

‣Keep within the specified pressure and temperature range.

Safety instructions Proline 500 – digital HART

8 Endress+Hauser

NOTICE

Verification for borderline cases:

‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in

verifying the corrosion resistance of fluid-wetted materials, but does not accept any

warranty or liability as minute changes in the temperature, concentration or level of

contamination in the process can alter the corrosion resistance properties.

LWARNING

Injury from sensor being ejected!

‣The sensor gland should be opened only when in an unpressurized state.

LWARNING

Risk of injury if the process connection and gland of the sensing element are opened

under pressure.

‣The process connection and sensor gland should be opened only when in an unpressurized

state.

NOTICE

Penetration of dust and moisture when the transmitter housing is opened.

‣Only open the transmitter housing briefly, ensuring that no dust or moisture enters the

housing.

Residual risks

LWARNING

The electronics and the medium may cause the surfaces to heat up. This presents a burn

hazard!

‣For elevated fluid temperatures, ensure protection against contact to prevent burns.

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

For welding work on the piping:

‣Do not ground the welding unit via the measuring device.

If working on and with the device with wet hands:

‣Due to the increased risk of electric shock, gloves must be worn.

2.4 Operational safety

Risk of injury.

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Proline 500 – digital HART Safety instructions

Endress+Hauser 9

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate.

It meets general safety standards and legal requirements. It also complies with the EU

directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms

this by affixing the CE mark to the device.

2.6 IT security

Our warranty is valid only if the device is installed and used as described in the Operating

Instructions. The device is equipped with security mechanisms to protect it against any

inadvertent changes to the settings.

IT security measures, which provide additional protection for the device and associated data

transfer, must be implemented by the operators themselves in line with their security

standards.

2.7 Device-specific IT security

The device offers a range of specific functions to support protective measures on the operator's

side. These functions can be configured by the user and guarantee greater in-operation safety

if used correctly.

For detailed information on device-specific IT security, see the Operating Instructions for

the device.

2.7.1 Access via service interface (CDI-RJ45)

The device can be connected to a network via the service interface (CDI-RJ45). Device-specific

functions guarantee the secure operation of the device in a network.

The use of relevant industrial standards and guidelines that have been defined by national

and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended.

This includes organizational security measures such as the assignment of access authorization

as well as technical measures such as network segmentation.

Product description Proline 500 – digital HART

10 Endress+Hauser

3 Product description

The measuring system consists of a Proline 500 - digital transmitter and a Proline t-mass

thermal mass flowmeter sensor.

The transmitter and sensor are mounted in physically separate locations. They are

interconnected by a connecting cable.

1 Transmitter

2 Connecting cable: cable, separate, standard

3 Sensor connection housing with integrated ISEM (intelligent sensor electronics module)

For detailed information on the product description, see the Operating Instructions for

the device

This manual suits for next models

Table of contents

Other Endress+Hauser Transmitter manuals

Endress+Hauser

Endress+Hauser AT1000 AT1 User manual

Endress+Hauser

Endress+Hauser Levelflex M FMP41C User manual

Endress+Hauser

Endress+Hauser Commubox FXA291 User manual

Endress+Hauser

Endress+Hauser Levelflex M FMP45 User manual

Endress+Hauser

Endress+Hauser Proline 500 Technical specifications

Endress+Hauser

Endress+Hauser Proline Prosonic Flow 93 User manual

Endress+Hauser

Endress+Hauser CM14 User manual

Endress+Hauser

Endress+Hauser Liquisys M CLM 223 User manual

Endress+Hauser

Endress+Hauser iTEMP TMT162 Technical specifications

Endress+Hauser

Endress+Hauser Liquisys M CLM223F User manual

Endress+Hauser

Endress+Hauser Liquisys M CPM223 User manual

Endress+Hauser

Endress+Hauser Proline 500 digital Modbus RS485 Technical specifications

Endress+Hauser

Endress+Hauser L20221 Technical specifications

Endress+Hauser

Endress+Hauser iTEMP TMT125 User manual

Endress+Hauser

Endress+Hauser iTEMP TMT86 User manual

Endress+Hauser

Endress+Hauser Liquisys M CLM223/253 User manual

Endress+Hauser

Endress+Hauser Heat Technical specifications

Endress+Hauser

Endress+Hauser Cerabar S PMC71 User manual

Endress+Hauser

Endress+Hauser easytemp TSM 470 G User manual

Endress+Hauser

Endress+Hauser PROline promag 53 Installation instructions

Endress+Hauser

Endress+Hauser Prosonic S FMU90 Operating and installation instructions

Endress+Hauser

Endress+Hauser iTEMP TMT162 User manual

Endress+Hauser

Endress+Hauser Prosonic S FMU90 Manual

Endress+Hauser

Endress+Hauser iTEMP TMT187 User manual

Popular Transmitter manuals by other brands

NIVELCO

NIVELCO EasyTREK SCA-300 Series Programming manual

Honeywell

Honeywell 5816WMBR installation instructions

Kamstrup

Kamstrup READy MTU Installation and operation guide

Omega

Omega ZW Series user guide

ABB

ABB Field 264H Instructions for installation

Alinco

Alinco DJ-V17T Service manual

Dejero

Dejero EnGo 3x manual

Rosemount

Rosemount 4600 Reference manual

Speaka Professional

Speaka Professional 2342740 operating instructions

trubomat

trubomat GAB 1000 instruction manual

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 instructions

Rondish

Rondish UT-11 quick start guide

MG 10JRE instruction manual

Burkert

Burkert 8177 operating instructions

Firetide

Firetide HotPort 3203 Hardware installation guide

Tele Radio

Tele Radio T9-02 User instructions

Rotronic

Rotronic HygroFlex HF3 Series user guide

Jamara

Jamara FCX6 Pro Tel Instruction
