Brief Operating Instructions

Levelflex FMP53

FOUNDATION Fieldbus

Guided wave radar

These Instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Detailed information about the device can be found in the

Operating Instructions and the other documentation:

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

KA01108F/00/EN/06.22-00

71565960

2022-04-05

Associated documentation Levelflex FMP53 FOUNDATION Fieldbus

2 Endress+Hauser

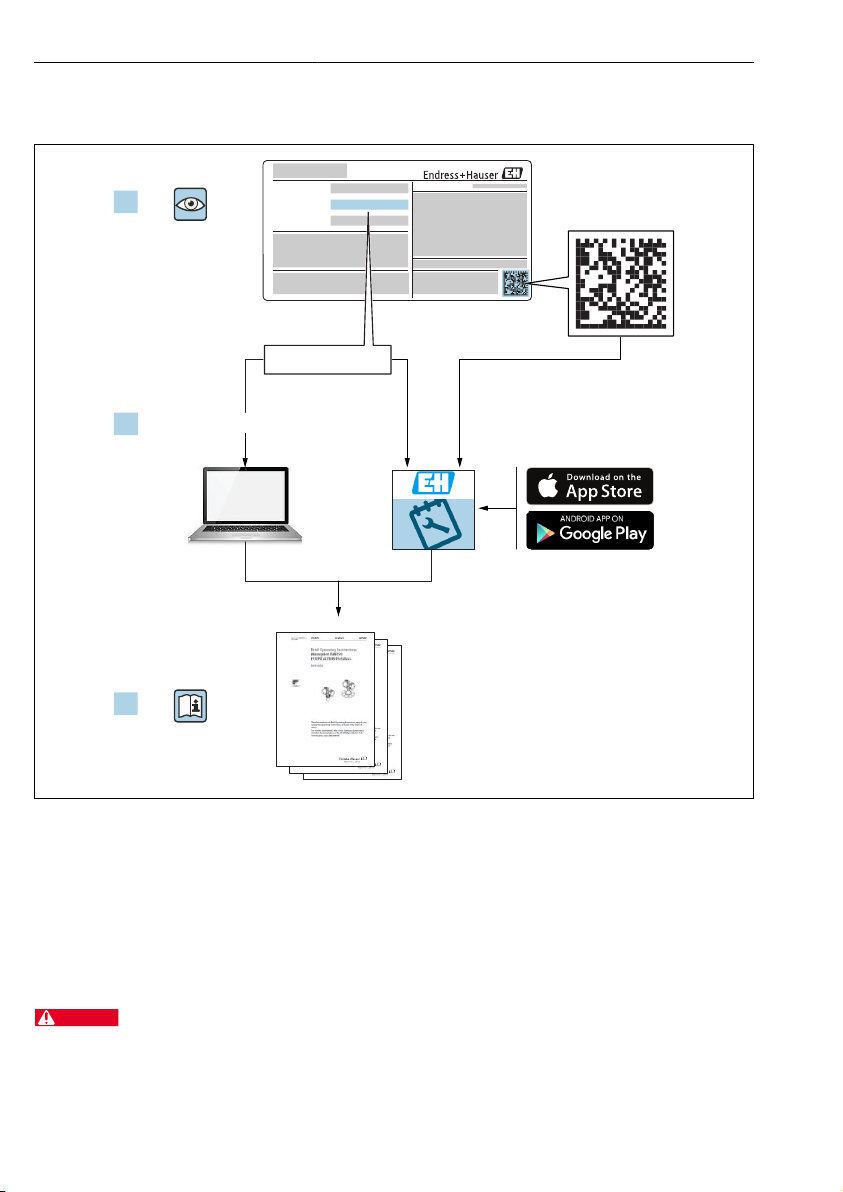

1 Associated documentation

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

2 About this document

2.1 Symbols

2.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

Levelflex FMP53 FOUNDATION Fieldbus About this document

Endress+Hauser 3

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

2.1.2 Electrical symbols

Protective earth (PE)

Ground terminals that must be connected to ground prior to establishing any other

connections.

The ground terminals are located on the inside and outside of the device.

• Inner ground terminal; protective earth is connected to the mains supply.

• Outer ground terminal; device is connected to the plant grounding system.

2.1.3 Tool symbols

Flat-blade screwdriver

Allen key

Torx screwdriver

Open-ended wrench

2.1.4 Symbols for certain types of information and graphics

Permitted

Procedures, processes or actions that are permitted

Forbidden

Procedures, processes or actions that are forbidden

Tip

Indicates additional information

Reference to documentation

Reference to graphic

Notice or individual step to be observed

Basic safety instructions Levelflex FMP53 FOUNDATION Fieldbus

4 Endress+Hauser

Series of steps

Result of a step

Visual inspection

1, 2, 3, ...

Item numbers

A, B, C, ...

Views

2.1.5 Symbols on the device

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions

Temperature resistance of the connection cables

Specifies the minimum value of the temperature resistance of the connection cables

3 Basic safety instructions

3.1 Requirements for personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for the specific function

and task

‣Are authorized by the plant owner/operator

‣Are familiar with federal/national regulations

‣Must have read and understood the instructions in the manual and supplementary

documentation

‣Follow instructions and comply with conditions

3.2 Intended use

Application and media

The measuring device described in this manual is intended only for the level measurement of

liquids. Depending on the version ordered, the measuring device can also measure potentially

explosive, flammable, poisonous and oxidizing media.

If the limit values specified in the "Technical data" and the conditions listed in the manual and

additional documentation are observed, the measuring device may be used for the following

measurements only:

‣Measured process variables: level

‣Calculable process variables: volume or mass in any shape of vessel (calculated from the

level by the linearization functionality)

Levelflex FMP53 FOUNDATION Fieldbus Basic safety instructions

Endress+Hauser 5

To ensure that the measuring device remains in proper condition for the operation time:

‣Use the measuring device only for media to which the process-wetted materials have an

adequate level of resistance.

‣Observe the limit values in the "Technical data".

Incorrect use

The manufacturer is not liable for damage caused by improper or non-intended use.

Verification for borderline cases:

‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in

verifying the corrosion resistance of fluid-wetted materials, but does not accept any

warranty or liability.

Residual risks

Due to heat transfer from the process as well as power loss in the electronics, the temperature

of the electronics housing and the assemblies contained therein (e.g. display module, main

electronics module and I/O electronics module) may rise up to 80 °C (176 °F). When in

operation, the sensor may reach a temperature close to the medium temperature.

Danger of burns from contact with surfaces!

‣In the event of high medium temperatures, ensure protection against contact to prevent

burns.

3.3 Workplace safety

When working on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

With divisible probe rods, medium may penetrate the joints between the individual parts of

the rod. This medium may escape when the joints are loosened. This can cause injuries in the

case of dangerous (e.g., aggressive or toxic) media.

‣When loosening the joints between the individual parts of the probe rod, wear appropriate

protective equipment according to the medium.

3.4 Operational safety

Risk of injury!

‣Operate the device only if it is in proper technical condition, free from errors and faults.

‣The operator is responsible for the interference-free operation of the device.

Modifications to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers:

‣If modifications are nevertheless required, consult with the manufacturer.

Repair

To ensure continued operational safety and reliability:

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to the repair of an electrical device.

Incoming acceptance and product identification Levelflex FMP53 FOUNDATION Fieldbus

6 Endress+Hauser

‣Use only original spare parts and accessories from the manufacturer.

Hazardous area

To eliminate danger to persons or the installation when the device is used in the hazardous

area (e.g. explosion protection, pressure vessel safety):

‣Check the nameplate to verify whether the ordered device can be put to its intended use in

the hazardous area.

‣Observe the specifications in the separate supplementary documentation, which is an

integral part of this manual.

3.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate. It meets the general safety standards and legal requirements.

NOTICE

Loss of degree of protection by opening of the device in humid environments

‣If the device is opened in a humid environment, the degree of protection indicated on the

nameplate is no longer valid. This may also impair the safe operation of the device.

3.5.1 CE mark

The measuring system meets the legal requirements of the applicable EU directives. These are

listed in the corresponding EU Declaration of Conformity together with the standards applied.

The manufacturer confirms successful testing of the device by affixing to it the CE mark.

3.5.2 EAC conformity

The measuring system meets the legal requirements of the applicable EAC guidelines. These

are listed in the corresponding EAC Declaration of Conformity along with the standards

applied.

The manufacturer confirms successful testing of the device by affixing to it the EAC mark.

4 Incoming acceptance and product identification

4.1 Incoming acceptance

Check the following during incoming acceptance:

• Are the order codes on the delivery note and the product sticker identical?

• Are the goods undamaged?

• Do the nameplate data match the ordering information on the delivery note?

• If required (see nameplate): are the Safety Instructions (XA) provided?

If one of these conditions is not met, please contact your Endress+Hauser sales office.

Levelflex FMP53 FOUNDATION Fieldbus Incoming acceptance and product identification

Endress+Hauser 7

4.2 Product identification

The device can be identified in the following ways:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

‣Enter serial number from nameplates in W@M Device Viewer

(www.endress.com/deviceviewer)

 All of the information on the measuring device and on the scope of the technical

documentation pertaining to the device is displayed.

‣Enter the serial number from the nameplate in the Endress+Hauser Operations app or scan

the 2-D matrix code on the nameplate with the camera

 All of the information on the measuring device and on the scope of the technical

documentation pertaining to the device is displayed.

4.3 Storage and transport

4.3.1 Storage temperature

• Permitted storage temperature: –40 to +80 °C (–40 to +176 °F)

• Use original packaging.

4.3.2 Transporting the product to the measuring point

LWARNING

Housing or rod may become damaged or pull off.

Risk of injury!

‣Transport the measuring device to the measuring point in its original packaging or by the

process connection.

‣Always secure lifting equipment (slings, eyes, etc.) at the process connection and never lift

the device by the electronic housing or probe. Pay attention to the center of gravity of the

device so that it does not tilt or slip unintentionally.

‣Follow the safety instructions and transport conditions for devices weighing more than 18

kg (39.6 lbs) (IEC 61010).

A0014267

Mounting Levelflex FMP53 FOUNDATION Fieldbus

8 Endress+Hauser

5 Mounting

5.1 Mounting requirements

5.1.1 Suitable mounting position

1 2

A0014130

 1 Installation conditions for Levelflex

Spacing requirements when mounting

• Distance (A) between the vessel wall and rod probes:

• For smooth metallic walls: > 50 mm (2 in)

• For plastic walls: > 300 mm (12 in) to metallic parts outside the vessel

• Distance (B) between rod probes and internal fittings (4): > 300 mm (12 in)

• When using more than one Levelflex:

Minimum distance between the sensor axes: 100 mm (3.94 in)

• Distance (C) from the end of the probe to the bottom of the vessel: > 10 mm (0.4 in)

Levelflex FMP53 FOUNDATION Fieldbus Mounting

Endress+Hauser 9

5.2 Mounting the device

5.2.1 Turning the transmitter housing

To provide easier access to the connection compartment or display module, the transmitter

housing can be turned:

max. 350°

8 mm

2. 3.1.

A0032242

1. Unscrew the securing screw using an open-ended wrench.

2. Rotate the housing in the desired direction.

3. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or

stainless steel housing).

5.2.2 Turning the display

Opening the cover

3 mm

A0021430

1. Loosen the screw of the securing clamp of the electronics compartment cover using an

Allen key (3 mm) and turn the clamp 90 ° counterclockwise.

2. Unscrew the electronics compartment cover and check the cover seal; replace it if

necessary.

Electrical connection Levelflex FMP53 FOUNDATION Fieldbus

10 Endress+Hauser

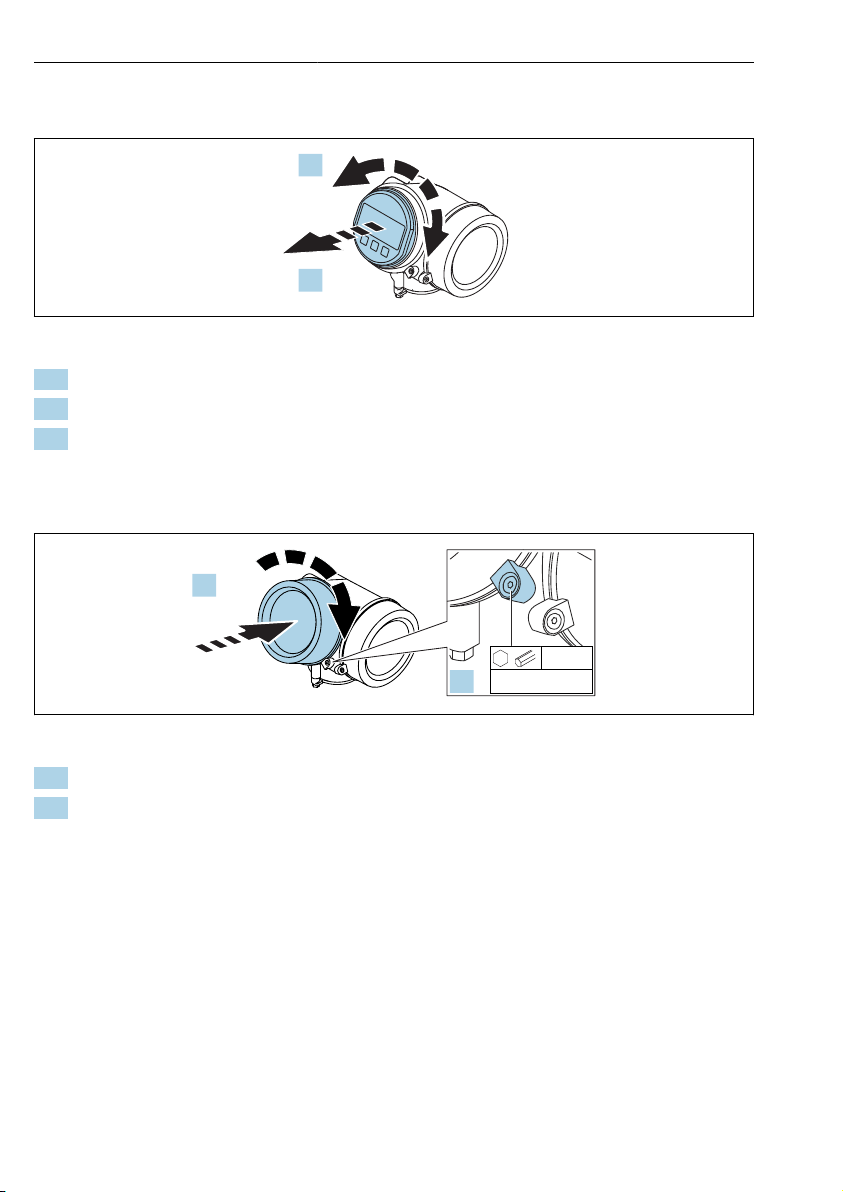

Turning the display module

A0036401

1. Pull out the display module with a gentle rotational movement.

2. Turn the display module to the desired position: Max. 8 × 45 ° in each direction.

3. Feed the coiled cable into the gap between the housing and main electronics module

and plug the display module into the electronics compartment until it engages.

Closing the cover of the electronics compartment

2. 2.5 Nm

3 mm

A0021451

1. Screw down the cover of the electronics compartment.

2. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm),

tighten the screw of the securing clamp on the electronics compartment cover with

2.5 Nm.

6 Electrical connection

6.1 Connecting requirements

6.1.1 Terminal assignment

Other manuals for Levelflex FMP53 FOUNDATION Fieldbus

Table of contents

Other Endress+Hauser Radar manuals

Endress+Hauser

Endress+Hauser PROFIBUS PA Micropilot FMR53 Technical specifications

Endress+Hauser

Endress+Hauser Micropilot FMR56 Technical specifications

Endress+Hauser

Endress+Hauser Levelflex M FMP45 User manual

Endress+Hauser

Endress+Hauser Micropilot FMR56 Technical specifications

Endress+Hauser

Endress+Hauser PROFIBUS PA Micropilot FMR56 Technical specifications

Endress+Hauser

Endress+Hauser Micropilot M FMR250 User manual

Endress+Hauser

Endress+Hauser Micropilot FMR56 Technical specifications

Endress+Hauser

Endress+Hauser micropilot S FMR 532 User manual

Endress+Hauser

Endress+Hauser Micropilot M FMR250 User manual

Endress+Hauser

Endress+Hauser Levelflex FMP56 Technical specifications

Endress+Hauser

Endress+Hauser Levelflex FMP56 Manual

Endress+Hauser

Endress+Hauser Levelflex FMP51 User manual

Endress+Hauser

Endress+Hauser Micropilot FMR60 Instructions for use

Endress+Hauser

Endress+Hauser Micropilot FMR51 User manual

Endress+Hauser

Endress+Hauser levelflex M FMP 40 User manual

Endress+Hauser

Endress+Hauser Micropilot FMR67B User manual

Endress+Hauser

Endress+Hauser FOUNDATION Fieldbus Micropilot FMR51 Technical specifications

Endress+Hauser

Endress+Hauser Micropilot FMR51 User manual

Endress+Hauser

Endress+Hauser FOUNDATION Fieldbus Micropilot FMR56 Technical specifications

Endress+Hauser

Endress+Hauser Micropilot FMR67B Technical specifications

Endress+Hauser

Endress+Hauser Levelflex M FMP45 User manual

Endress+Hauser

Endress+Hauser Levelflex FMP56 Technical specifications

Endress+Hauser

Endress+Hauser Micropilot FMR53 Technical specifications

Endress+Hauser

Endress+Hauser Micropilot FWR30 User manual

Popular Radar manuals by other brands

SAW D2L

SAW D2L Valentine One Gen2 owner's manual

Raymarine

Raymarine Raytheon R20X instruction manual

Simrad

Simrad CA34 manual

ECHOMAX

ECHOMAX Active-X-Band manual

AGD

AGD 340 product manual

Kustom Signals

Kustom Signals Eagle 3 user manual

SYMEO

SYMEO STU product manual

Axis

Axis D2110-VE installation guide

MALA

MALA MIRA operating manual

Emerson

Emerson ROSEMOUNT 5300 Reference manual

Rosemount

Rosemount 5300 Series Reference manual

TERMA

TERMA SCANTER 5102 Technical maintenance manual

GSSI

GSSI UtilityScan quick start guide

Acconeer

Acconeer A111 datasheet

Crosley

Crosley CR37 instruction manual

AGD

AGD 318 product manual

Cobra

Cobra SLR 650G user manual

Faselase

Faselase D10 user manual
