Emerson PACSystems RX3i User manual
QUICK START GUIDE
GFK-2939A
Sep 2019
PACSystems™ RX3i
ENERGY PACK
(IC695ACC402)
Quick Start Guide Contents
GFK-2939A Sep 2019
Contents i
Table of Contents
1. Overview ........................................................2
Ordering Information .......................................................4
2. Hardware Installation......................................5
Mounting the Energy Pack on a DIN Rail ........................6
Mounting the Energy Pack Directly on a Panel................7
Installation Location ........................................................8
3. Cable Connections.........................................11
Connecting to the Energy Pack ..................................... 11
Connecting the Energy Pack to the Controller............... 12
4. Grounding..................................................... 13
5. Power-Up...................................................... 14
6. LED Indications.............................................. 15
7. Firmware Updates.........................................16
LED Indications for Firmware Updates .......................... 16
8. Replacing the Cap Pack Module ..................... 17
9. Additional Information.................................. 19
General Contact Information ......................................... 20
Quick Start Guide Cautions and Warnings
GFK-2939A Sep 2019
Warnings and Cautions ii
Caution, Warnings & Danger Notes
as Used in this Publication
Warning
Warning Notices are used in this publication
to emphasize that hazardous voltages,
currents, temperatures, or other conditions
that could cause personal injury exist in this
equipment or may be associated with its use.
In situations where inattention could cause
either personal injury or damage to
equipment, a Warning notice is used.
arning
Caution
Caution notices are used where equipment
might be damaged if care is not taken.
arning
Note: Notes merely call attention to information that is
especially significant to understanding and operating the
equipment.
These instructions do not purport to cover all details or
variations in equipment, nor to provide for every possible
contingency to be met during installation, operation,
and maintenance. The information is supplied for
Quick Start Guide Cautions and Warnings
GFK-2939A Sep 2019
Warnings and Cautions iii
informational purposes only, and Emerson makes no
warranty as to the accuracy of the information included
herein. Changes, modifications, and/or improvements
to equipment and specifications are made periodically
and these changes may or may not be reflected herein. It
is understood that Emerson may make changes,
modifications, or improvements to the equipment
referenced herein or to the document itself at any time.
This document is intended for trained personnel familiar
with the Emerson products referenced herein.
Emerson may have patents or pending patent
applications covering subject matter in this document.
The furnishing of this document does not provide any
license whatsoever to any of these patents.
Emerson provides the following document and the
information included therein as-is and without warranty
of any kind, expressed or implied, including but not
limited to any implied statutory warranty of
merchantability or fitness for particular purpose.
© 2019 Emerson. All rights reserved.
Emerson Terms and Conditions of Sale are available
upon request. The Emerson logo is a trademark and
service mark of Emerson Electric Co. All other marks are
the property of their respective owners.
Quick Start Guide Chapter 1
GFK-2939A Sep 2019
Overview 2
1. Overview
The ACC402 Energy Pack is used exclusively with the
CPE330 RX3i CPU. It preserves user memory in the
Controller during power fluctuations or outages.
If system power is lost, the Energy Pack maintains power
long enough for the connected CPE330 to write its user
memory contents to non-volatile memory. When system
power is restored, the user memory is restored if the
CPE330 is configured to power up from RAM.

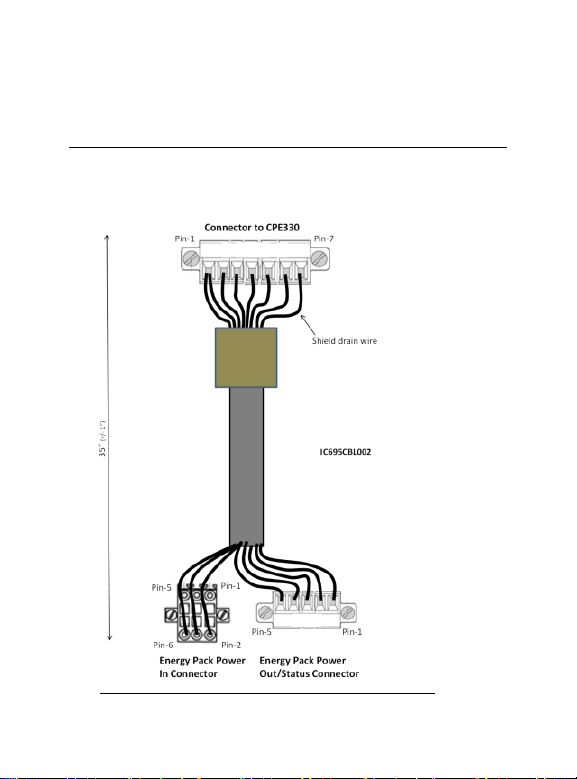

The ACC402 Energy Pack is connected to the
IC695CPE330 CPU via a dedicated cable IC695CBL002
(shown above). This arrangement allows the Energy Pack
to source power from the RX3i backplane in order to
charge its circuitry. The cable also allows the CPU to
monitor the status of the Energy Pack. Upon loss of
backplane power, the CPU automatically switches over
to the Energy Pack power source, ensuring an orderly
power-down sequence.
Quick Start Guide Chapter 1
GFK-2939A Sep 2019
Overview 3
Figure 1.1: Connection Diagram
Quick Start Guide Chapter 1
GFK-2939A Sep 2019
Overview 4
Ordering Information
IC695ACC402
CPE330-compatible Energy Pack.
Includes Base, Cap Pack module, CPU
connecting cable & ground strap.
IC695ACC412
Replacement Cap Pack module.
IC695CBL002
Replacement 1m (36”) CPU connecting
cable.
Quick Start Guide Chapter 2
GFK-2939A Sep 2019
Hardware Installation 5
2. Hardware Installation
The ACC402 Energy Pack may be mounted on a standard
EN50022 DIN rail or directly on an equipment panel. It is
designed to be mounted adjacent to the CPE330
Controller and connected to the Controller using the 1m
cable provided (IC695CBL002).
Heat dissipation: A minimum clearance of 25mm (1 inch)
needs to be provided on all four sides of the unit (right,
left, top and bottom).
Quick Start Guide Chapter 2
GFK-2939A Sep 2019
Hardware Installation 6
Mounting the Energy Pack on a
DIN Rail
The Energy Pack snaps easily onto the DIN rail. No tools
are required.
Figure 2.1: Mounting on to DIN-Rail
Quick Start Guide Chapter 2
GFK-2939A Sep 2019
Hardware Installation 7
Mounting the Energy Pack
Directly on a Panel
Recommended fasteners:
The baseplate accommodates four M4-0.7 machine
screws (8-36 UNF). Minimum length of 25mm (or 1”) is
recommended. Secure with matching nuts.
