EluneVision Atlas Series User manual

User Manual for

Atlas

Manual Screen

To the purchaser:

Thank you for purchasing our Atlas manual projection screen with

CSR. This screen is design to give you years of trouble free enjoyment.

Please take a moment to read this manual before installing.

When assembling, please DO NOT stand directly under the screen

to avoid personal injury. Ensure the Expansive bolts and hanging

hardware are ﬁrmly attached and ﬁxed to the wall or ceiling.

1. Our exclusive patented CSR buffer slows the projection

screens return into the housing

2. Patented self locking mechanism with advance bearing

design. Stops the screen in any position.

3. Easily mountable to both wall and ceiling.

4. Flat screen surface with ﬂame retardant and mildew

resistant material.

1. Please open the packaging and check you

have all the listed accessories.

2. Refer to the following assembly instructions.

3. Keep the screen in a horizontal and level position

while mounting.

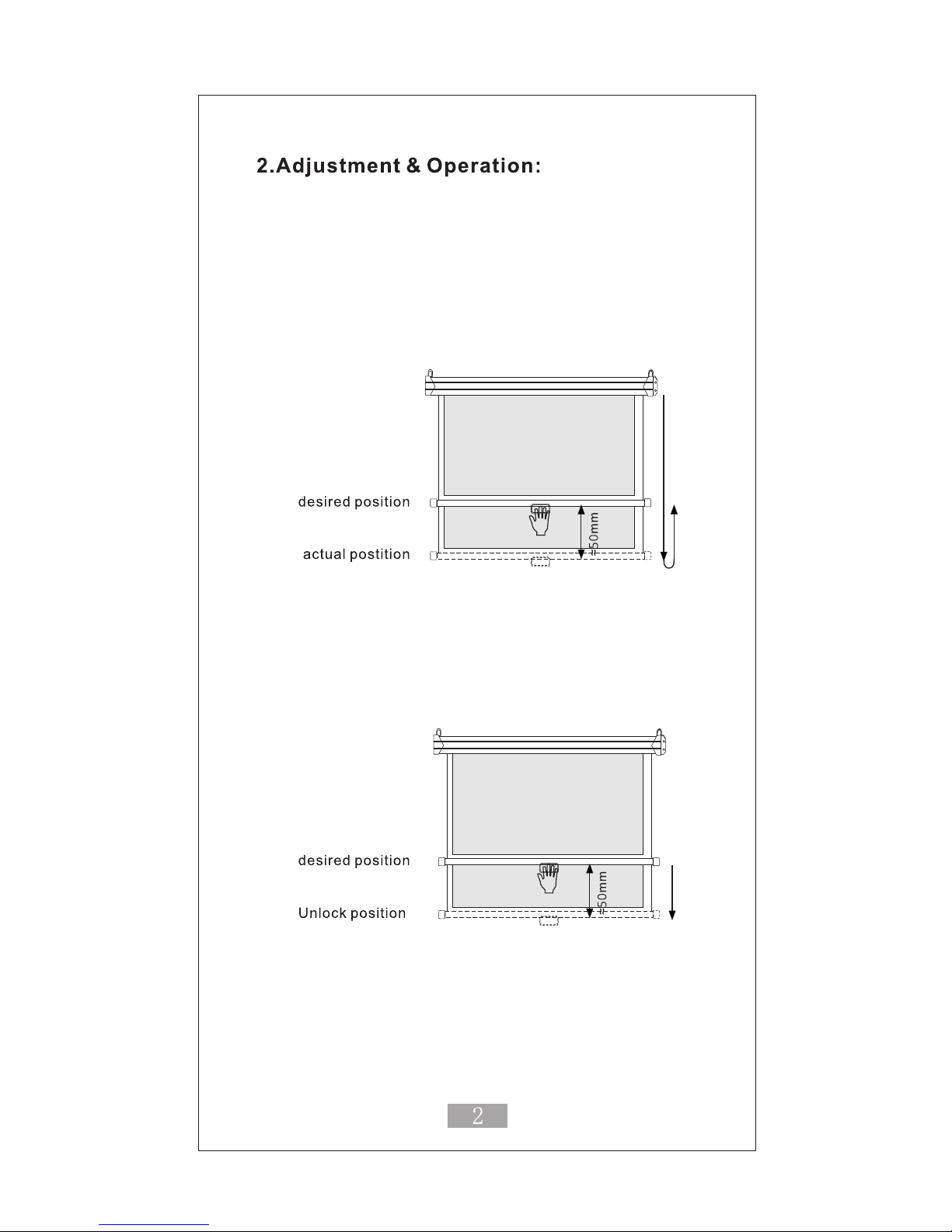

Opening the screen

Pull down the screen slowly stopping (50mm) just past

the desired position and then hold and release.

The screen will self lock.

*When the standard amount of black drop appears. DO NOT

over extend the fabric to avoid damaging your screen.

Retracting the screen

Unlocking

After usage, pull down the screen about 50mm, the

screen will unlock automatically.

Constant Speed Motion: CSR

After unlocking the screen, pull down about 100mm then

release, the screen will slowly return to the Housing

Clean with a soft moistened cloth with water or

water and mild liquid soap only. Don’t use alcohol

or abrasive detergents as this will damage the

screen surface.

Clean with

feather duster

Clean material with

feather duster Brush with cotton cloth

Clean with mild soap solution

then dry with soft cloth. Be careful

not to scratch the casing
