ELNA 434 User manual
1/3
ELNA 434
COVER HEM GUIDE
ENGLISH
This guide can be used for 5/8” to 1-3/4” (1.5 to 4.5 cm) wide hems.
WARNING:
Turn the power switch off when attaching this guide.

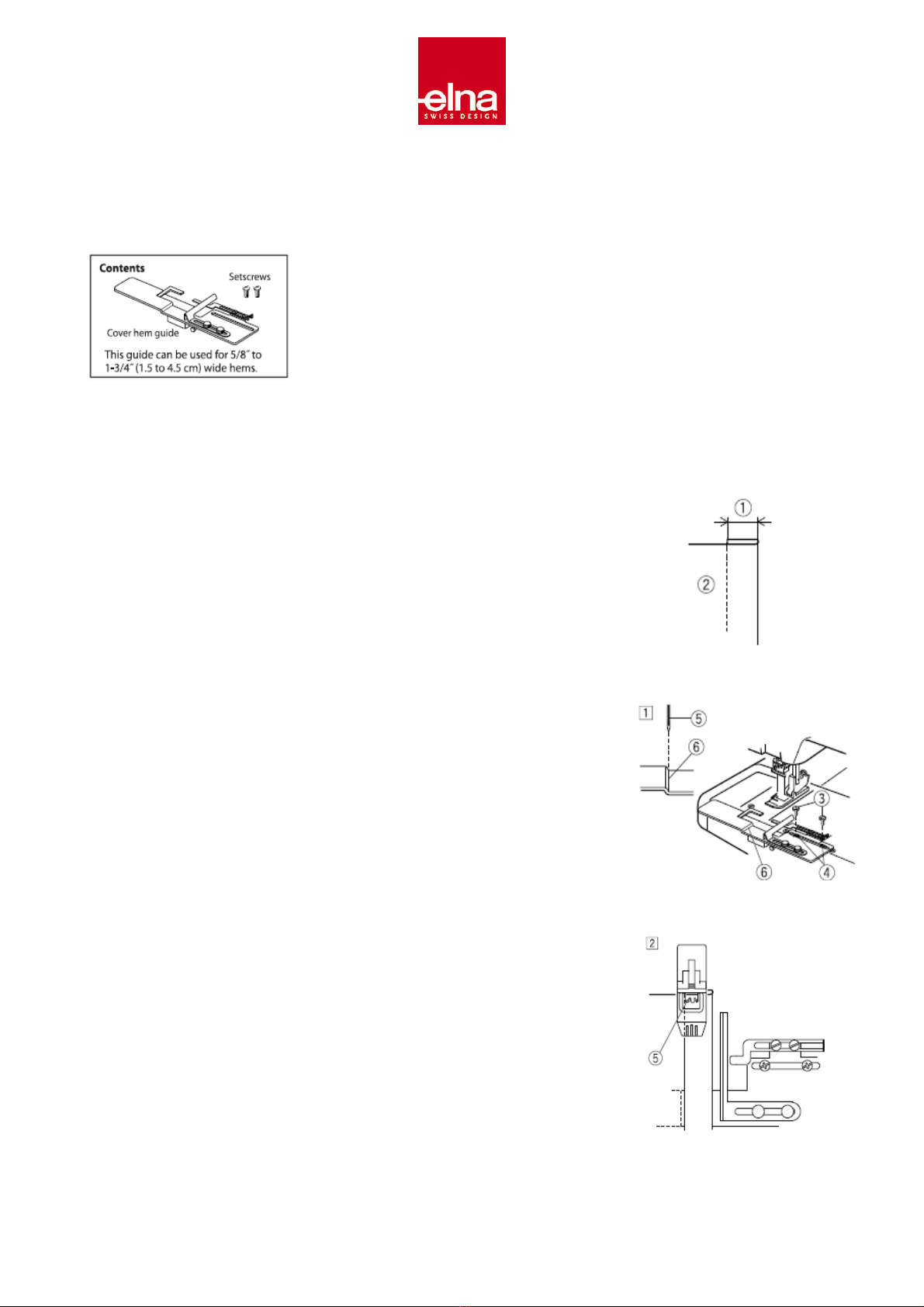

1. PREPARATION
Turn back the hem to the desired width and press with an iron.
(1) Hem width
(2) Right side of fabric
2. ATTACHING THE COVER HEM GUIDE
[1] Place the cover hem guide on the machine and fix it to the looper
cover with the two setscrews.
Use the inner pair of screw holes in the looper cover.
Note:
Tighten the setscrews slightly so you can still move the cover hem
guide.
(3) Setscrews
(4) Screw holes
[2] Setting the Fabric
Place the fabric on the guide and under the presser foot. Lower the
needle so the left needle scarcely catches the raw edge. Lower the
presser foot.
(5) Left needle
2/3

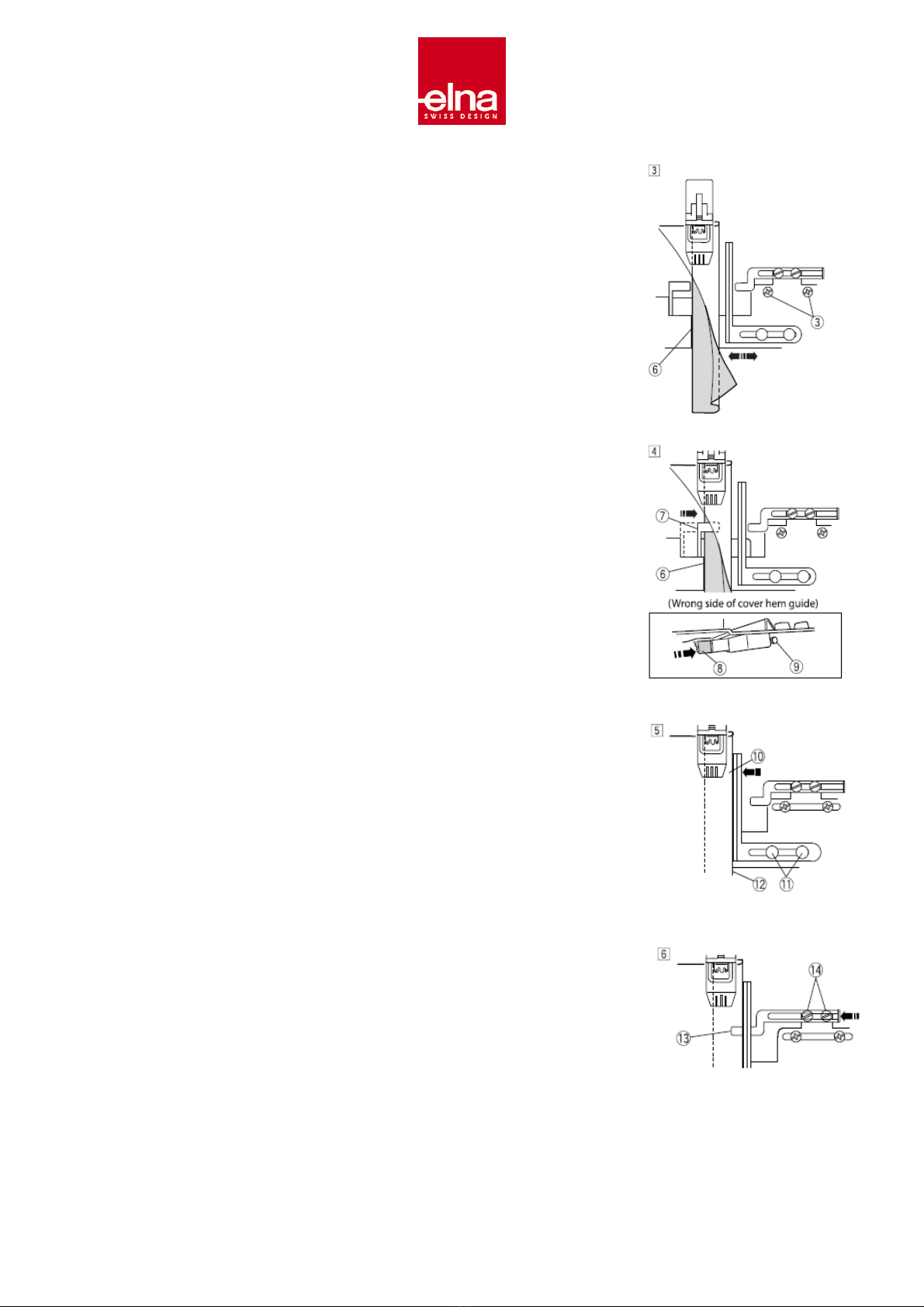

[3] Slide the cover hem guide and align the guide step with the raw edge
then tighten the two setscrews securely.
(6) Guide step
[4] Insert the sliding guide into the hem by pushing the lever under the
cover hem guide as shown.
Note:
To release the sliding guide, push the release button under the cover
hem guide.
(6) Guide step
(7) Sliding guide
(8) Lever
(9) Release button
[5] Loosen the two thumbscrews and move the cloth guide to the left
until it touches the hem edge. Tighten the two thumbscrews
securely.
(10) Cloth guide
(11) Thumbscrews
(12) Hem edge
[6] Push the hem smoother to the left to hold the hem with the tip of the
smoother.
(13) Hem smoother
Note:
You do not need to loosen the two hinge screws.
Sew on test fabric before sewing the actual garment.
(14) Hinge screws
3/3

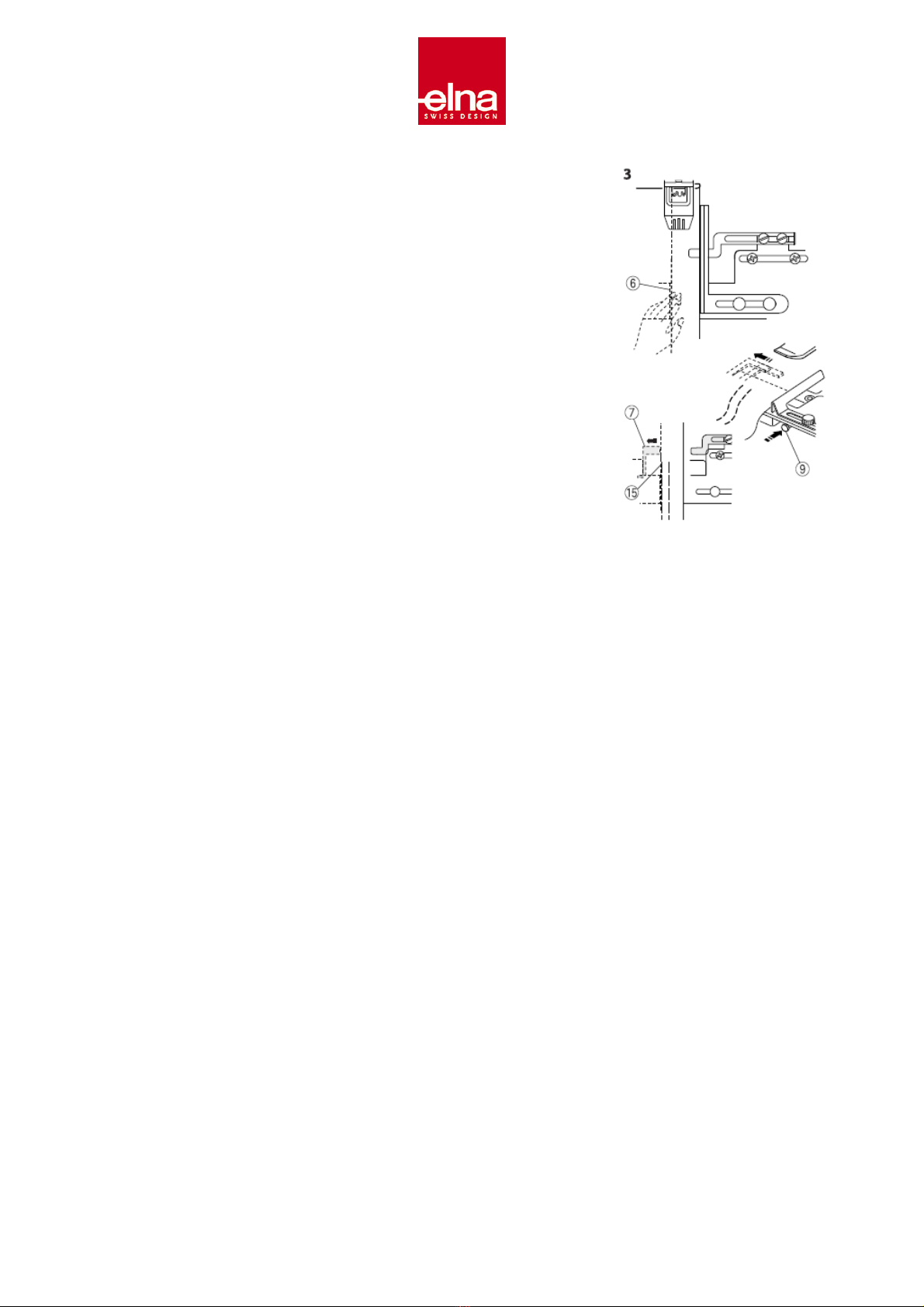

3 SEWING
Sew while guiding the raw edge along the guide step with your left
hand.
Note:
When sewing a hem of a tubular item such as a skirt, release the
sliding guide by pushing the release button just before reaching the
start of sewing.
(15) Start sewing position
Part No. 795-839-104
