Elite Screens Insta-DE Series User manual

08102015EA!!!!!!!!!!!!!!!!!!!!www.elitescreens.com! ! !!!!!!!!!!!1!

Insta-DE Series

Soft7padded!Dry7erase!Whiteboard!Projection!Screen!

!"#$%"&'()*#&

Product Features

!Award winning and GREENGUARD certified VersaWhite

material.

!1.1 gain with 180 degree wide viewing angle.

!Special anti-scratch layer to ensure long use as a dry-erase

projection screen.! !

Application Advantages

!Instantly converts flat surfaces/walls into a dry-erase whiteboard projection screen.

!Includes dry-erase pens, eraser, and pen holder.

!Perfect dry-erase and projection solution for today's short throw projectors.

!Ideal and effective instructional presentation tool in the classroom, boardroom, and training facilities.

What’s in the package Pad

Please make sure all parts listed below are included. If anything is missing please contact us immediately.

&&&&&&&&&&&&&&&&&&&&+,&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&-,&&&&&&&&&&&&&&&&&&.,&&&&&&&&&&&&&&*,&&&&&&&&&&&&&&#,&&&&&&&&&&&&&&/,&&&&&&&&&&&&&0,&&&&&&&&&1,&

Notes:

1. For best results and maximum product longevity, ONLY use

Elite Screens high density whiteboard Eraser

2. Please use a microfiber cloth and clean water to cleanse the

surface every 2-4 weeks to maintain a fresh and clean

projection surface.

Parts List

Qty

+,&23"4+567&8.$##3&9+4#$)+:&

-,&;#3&<=:*#$&

.,&6=(-:#5")*#*&4+>#&$=::"&

See!table!below!

*,&?1)4#-=+$*&@+$A#$"&

#,&7:)4#&">#.)+:&1)01&*#3")4B&#$+"#$&

/,&C,D@@EFG@@&8.$#H&

0,&;=H*#$&I=@>=(3*&

See!table!below!

1,&8@==41)30&J==:&

Model Number(s)

Tape Qty

Powder Qty

iWB63VW

iWB84VW/iWB95XW/

iWB102HW/iWB4x10HW

iWB4x20HW

iWB4x30HW

08102015EA!!!!!!!!!!!!!!!!!!!!www.elitescreens.com! ! !!!!!!!!!!!2!

Tools Required (not included):

Carpenter’s Pencil Measuring Tape Shop towels Roller cover and frame Paint Tray 150 grit sandpaper

Dust mask Safety goggles R-35 Primer

Pre-Installation Notice:

The Insta-DE product is to be solely installed on flat surfaces. Prepare the flat wall/surface by cleaning the entire

area. Do not install if any imperfections are found on the surface such as drilled holes, glue/tape residue, dents,

etc. We recommend sanding the area first to make sure you have a clean flat and smooth surface. Failure to

remove such imperfections can damage the product. The dry erase function of this product requires a smooth

writeable surface and Elite Screens is not responsible should these instructions are not be properly followed.

Take the Insta-DE Screen out of the package, unroll it on a clean surface and lay it on its front side.

Before applying the Insta-DE, the application surface must be dry, clean, smooth, and structurally sound.

1. Clean the surface to remove any dirt, grease, and wax.

2. Fill any depressions or holes with a drywall compound

3. Use sandpaper to smooth any bumps and blemishes. Sand until the surface is completely flat.

4. Level-5 finish to the surface and apply one coat of Professional R-35 primer

The warranty of this product will be voided if any bubbling occurs due to the use of an after-market

spray adhesive or if the screen was applied on to a textured wall.!

Installation

Double Sided Tape Installation- Only use this method for models iWB63VW/iWB84VW/iWB95XW. For

sizes larger sizes, refer to the glue powder compound method detailed on page 4.

1. Clean the location where the Insta-DE Screen will be installed.

2. Measure and mark the top-right and bottom-right corner of the installation location

Wal

08102015EA!!!!!!!!!!!!www.elitescreens.com!!!!!!!!!!!!!!3!

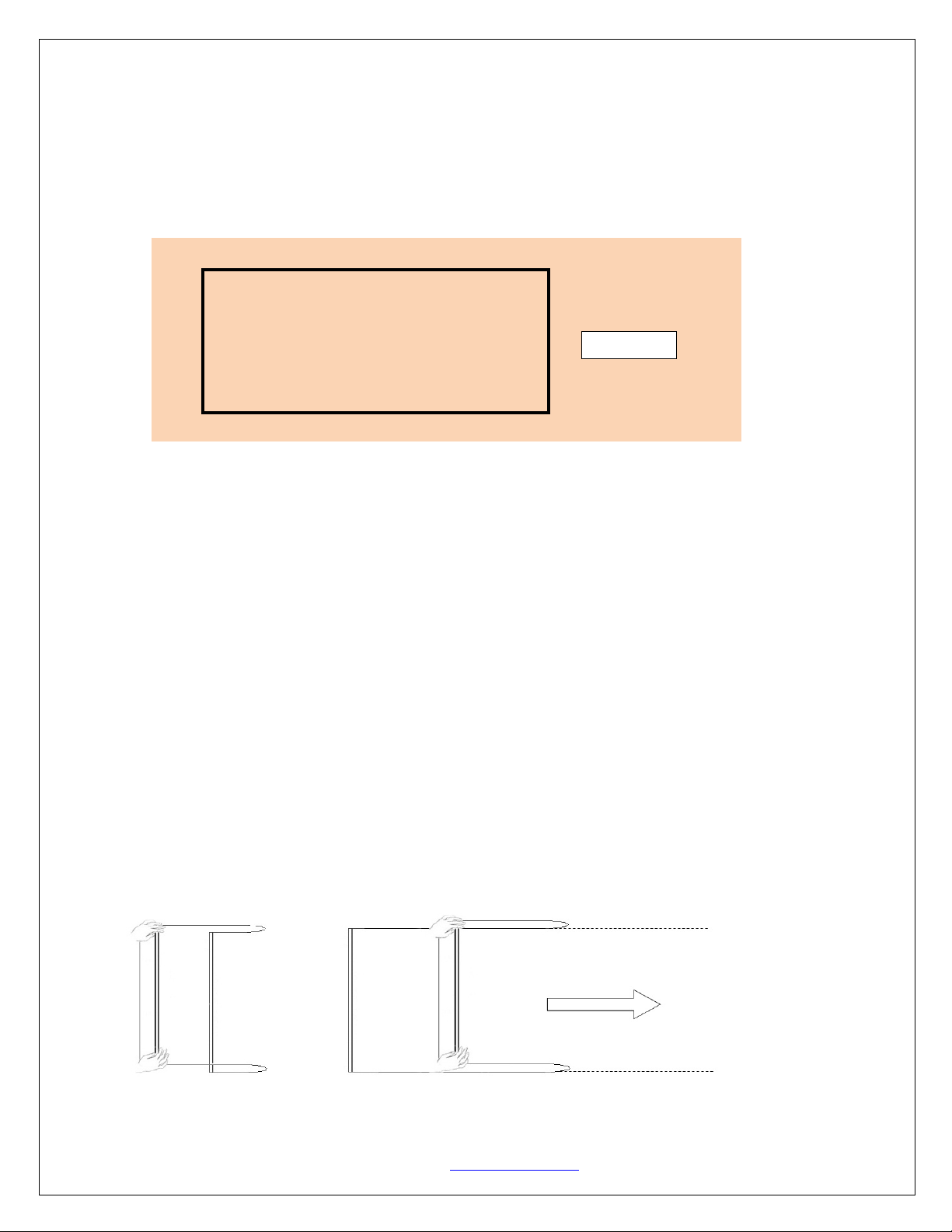

3. Apply double-sided film tape all around the edges of the Insta-DE back padding.

4. Completely peel the entire left side (back) vertical tape strip and peel off a 1-inch length tape film on the

rest of the tape strips.

5. Attach the Insta-DE Screen to the top-right and bottom-right corner of the installation location.

6. Remove the tape film on the horizontal sides while unrolling the material and firmly attach to the taping

line with pressure.

7. Continue attaching the double-sided adhesive tape until you’ve reached the end.

8. Lastly, remove the entire vertical tape strip at the end, line up with the tape line to complete the

installation.

Wall!

Pen!holder!!

Wal

Double7sided!tape!

08102015EA!!!!!!!!!!!!www.elitescreens.com!!!!!!!!!!!!!!4!

Glue Powder Compound Method for models iWB102HW/iWB4x10HW/iWB4x20HW/iWB4x30HW

We strongly recommend two or more people for this installation.

1. Smoothen the entire surface of the wall with sandpaper.

2. Clean the entire surface with a wet sponge or lint-free towel to remove any dust left from sanding the

wall.

3. Measure and outline the screen installation area.

4. Apply the included double-sided tap over the line. Do not remove the top film of the tape.

5. Pour an entire powder bag into a paint bucket filled with 25 oz. of room temperature water and stir until all

lumps are gone and the compound has a syrup texture. This will make the mixture into an adhesive compound for

sticking the film to the wall.

Note: Once the compound has been mixed, it must be applied within 4 hours to ensure a sealed installation of

the Insta-DE to the wall. Use one bag for every 25 oz. of water.

6. Pour the mixture into a paint tray and dip the roller.

7. Evenly apply a thin coat of adhesive to the surface evenly with a paint roller.

8. Wait for the adhesive to dry.

9. Sand the surface until no adhesive residue remains.

10. Apply one coat of Professional R-35 Primer (do not allow it to dry) and immediately apply the Insta-DE to

the wall.

11. Unroll the Insta-DE on to the wall lining it up with the drawn line from Step 1.

K=4#&L&6=&3=4&+::=H&41#&@+4#$)+:&4=&H$)3A:#&=$&.$#+"#&4=&+M=)*&>#$@+3#34&*+@+0#,&

!!!!!!Wall!!!!!!!!

cecececece!

08102015EA!!!!!!!!!!!!www.elitescreens.com!!!!!!!!!!!!!!5!

12. Flatten the surface with a flexible wall smoothing tool in a 45 degree angle to avoid scratching the surface.

I+(4)=3L!J1#&"@==41)30&4==:%"&#*0#&)"&"1+$>,&I+$#/(::B&".$+>#&41#&".$##3&H1#3&$#@=M)30&+)$&-(--:#"&4=&+M=)*&

".$+4.1)30&41#&"($/+.#,&

13.!Lift!edges!and!smoothen!out!any!remaining!air!bubbles.!

14.!Peel!off!the!top!layer!of!the!double7sided!tape!and!flatten!the!screen’s!edges!with!the!smoothing!tool.!

15.!Use!a!soft!damp!towel!or!sponge!to!clean!entire!surface.!

Pen!holder!installation!

9#41=*&=3#:!Peel!the!tape!strip!off!the!back!of!the!pen!holder!and!attach!the!pen!holder!to!the!wall!or!your!

preferred!location.!

9#41=*&4H=:!Install!the!included!screw!in!the!wall!and!hang!the!pen7holder.!See!diagram!below!for!details.!

I+(4)=3L!

The double-sided tape is meant to be permanent for the life of the product. It does not remove easily. Please

attach very carefully to avoid having to remove the product and positioning it in a different location.

Use!only!the!included!erasers!to!remove!and!erase!dry7erase!markings.!!For!a!deep!clean,!we!recommend!using!

a!non7alcohol!based!dry7erase!board!cleaner!with!a!soft!microfiber!cloth.!!!

Elite!offers!a!replacement!kit!(>+$4&3(@-#$&N7OF),!which!includes:!!

1!x!bottle!of!8.45!oz!cleaning!solution!

1!x!microfiber!cloth!

2!x!high!density!foam!erasers!

2!x!sets!of!dry7erase!markers!(4!total)!

For more information visit www.elitescreens.com/zer3

Contact your reseller or visit shop.elitescreens.com for pricing and purchase.

08102015EA!!!!!!!!!!!!!!!!!!!!www.elitescreens.com! ! !!!!!!!!!!!6!

Safety Precautions:

A. Avoid using sharp objects directly on the screen which can result in permanently damaging the product and

voiding your warranty.

B. Creases or wrinkles caused by improper installation are not removable.

Attention:!Prior!to!installation,!please!view!the!following!on7line!video!found!at!this!link!for!your!reference"!!

www.elitescreens.com/ide2install!(Same!method!for!Insta7DE)!

Below!are!sample!pictures!of!improper!installations.!

The above pictures are the result of improper installations.

For!more!information,!technical!support!or!your!local!Elite!Screens!contact,!

please!visit!www.elitescreens.com
