Electrolux PLHV36W6C User manual

PRODUCT NO. BASE MODEL NO. BRAND/SERIES MARKET COLOR

PLHV36W6CC PLHV36W6C Electrolux North America stainless steel

PRODUCT NO. EXHAUST-CFM VOLTAGE OWNER’S GUIDE INSTL. INSTR.

PLHV36W6CC 405 CFM 120 316137227 316137227

PRODUCT NO. WIRING DIAGRAM PRODUCTION DATE

PLHV36W6CC 5995397790 2004

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

©2003 Electrolux Home Products, Inc. All rights reserved

Publication No.

5995397790

031022

-EN/SERVICE /KC

099

Range Hood

11/13/2003 2

Publication No. PLHV36W6CC

5995397790

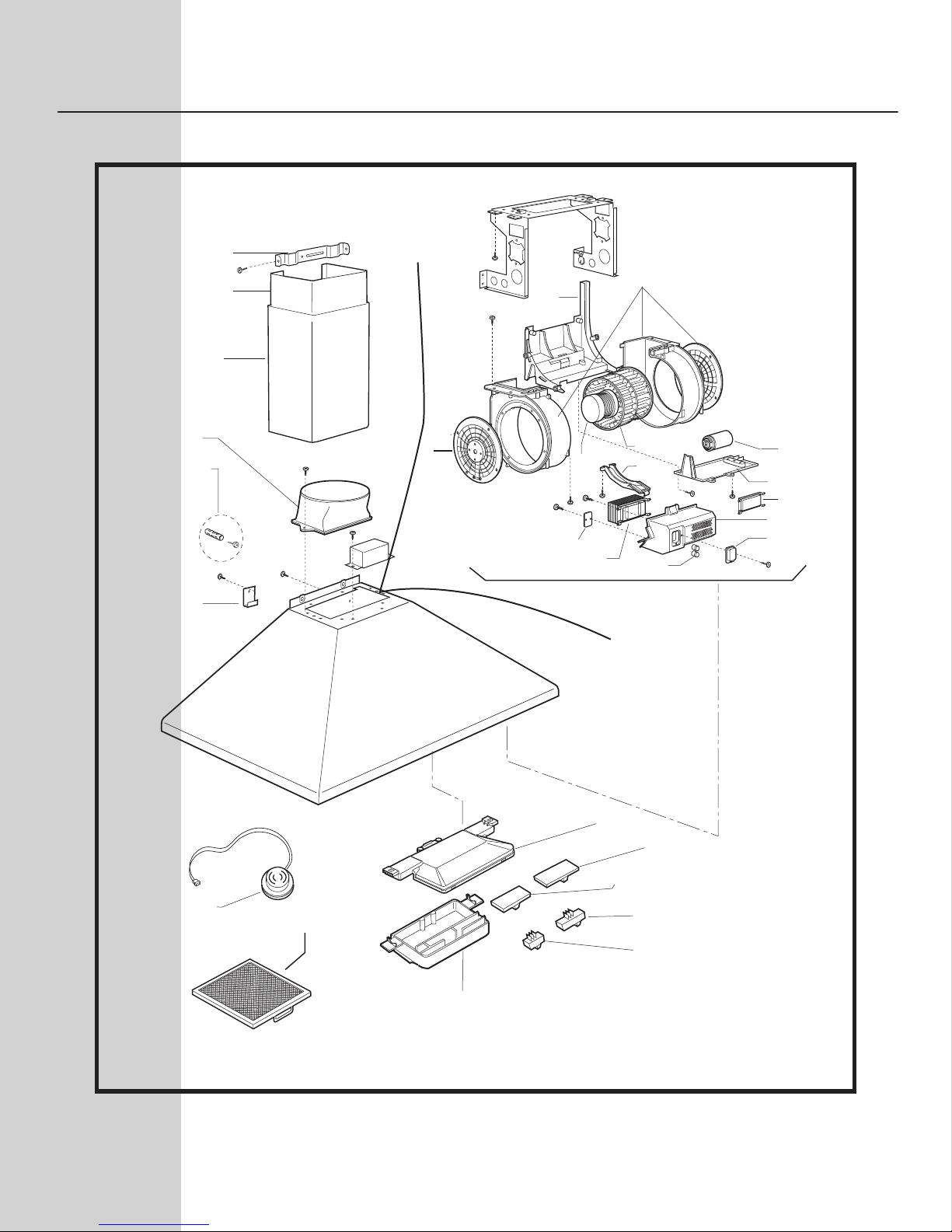

Exploded No. $1349

87

461

56

57

97

348

19

514

14

470

508

510

84

6

7511

509

48

8

46

47

42

43

40

41

31

23

85

REPLACEMENT PARTS

# = Fast Moving Part 3 11/13/2003

* = Non-Illustrated Part

PLHV36W6CC Publication No.

5995397790

REPLACEMENT PARTS

POS. NO PART NO DESCRIPTION

6 # 5304425236 Blower Wheel,fan

7 # 5304425237 Motor,blower fan

8 5304425238 Support,motor

14 5304425239 Housing,blower fan

19 # 5304425240 Capacitor,12.5 microfarad

23 # 5304425241 Filter,grease ,aluminum ,washable

31 # 5304425242 Lamp Assy,halogen G4 base,20 W,12 V,

w/holder,cover

40 5304435617 Control Box

41 5304425244 Control Panel

42 5304425245 Actuator,lamp key

43 5304425246 Actuator,motor key

46 # 5304425247 Switch,light ,sliding

47 # 5304425248 Switch,fan motor ,sliding

48 # 5304425249 Control Board,printed circuit ,120 V

56 5304425250 Chimney,duct cover ,lower ,fixed

57 5304425251 Chimney,duct cover ,upper ,sliding

84 # 5304425252 Transformer,60 Hz ,120 V

85 5304425253 Bracket,mounting hook ,hood rear

87 5304425254 Connector,transition duct

97 5304425255 Bracket,chimney support ,ceiling/rear

348 5304425256 Cover,capacitor box

461 5304425257 Anchor Assy,drywall ,with screw

470# 5304425258 Fuse

508 5304425259 Cover,fuse

509 5304425260 Plate,fuse holder

510 5304425261 Housing,transformer box

511 5304425262 Channel,xfmr box canal

514 5304425263 Housing,capacitor box

11/13/2003 4

Publication No. PLHV36W6CC

5995397790

WIRING DIAGRAM
