Electrolux ERHC1238S Instruction Manual

Installation & User manual

ERHC1238S (120 cm)

ERHC938S (90 cm)

Canopy range hood

Congratulations

Congratulations and thank you for choosing

our rangehood. We are sure you will find it a

pleasure to use.

Before you use the rangehood, we

recommend that you read through the

relevant sections of this m anual, which

provides a description of your appliance and

its functions.

To avoid the risks that are always present

when you use an appliance, it is important

that the appliance is installed correctly and

that you read the safety instructions

carefully to avoid misuse and hazards.

We recommend that you keep this

instruction booklet for future reference and

pass it on to any future owners.

After unpacking the appliance, please check

it is not damaged. If in doubt, do not use the

appliance but contact your local customer

care centre.

Conditions of use

This appliance is intended to be used in

household and similar applications such as :

• st aff kit ch en areas in sh o ps, o ffices an d

other working environments.

• f ar m h o uses.

• b y client s in h o t els, m ot els an d ot h er

residential type environments.

• b ed an d breakfast t yp e en vir o nm ent s

Contents

Important Safety instructions………..3

Description of rangehood……………..4

Components list…………………………….4

Technical specification………………….4

Rangehood dimensions…………………5

Installation…………………………………….5

Using your rangehood……………….…..9

Maintaining your rangehood…..…...10

Troubleshooting…………………………..11

Optional ducting accessories…….….12

Warranty……………………………………...13

TIPS& INFORMATION

IMPORTANT –CHECK FOR ANY DAMAGES OR

MARKS. If you find the rangehood is damaged

or marked, you must report it within 7 days if

you wish to claim for damage/ marks under

t h e m an ufact u r er‟s w ar rant y. Th is do es not

affect your statutory rights.

ENVIRONMENTALTIPS

INFORMATION ON DISPOSALFOR USERS

• Mo st o f t he p ackin g m at erials are recyclab le.

Please dispose of those materials through

your local recycling depot or by placing them

in appropriate collection containers.

• If yo u w ish t o d iscard t his pro duct , p lease

contact your local authorities and ask for the

correct method of disposal.

P a g e | 3

Accessible parts may become hot when used with cooking appliances.

Components list

Model

ERCH1238S

(120 cm)

ERHC938S

(90 cm)

Main body and fan assemblies

2 fans

1 fan

Grease filters

Exhaust transition

Exhaust transition seal

Damper

Exhaust transition screws

ERHC938S

ERHC1238S

Additional items required for installation

Fixings required to attach rangehood

body and anti tilt points

Worm drive clamps, Duct tape or cable

ties

Ducting accessories

Product Description

Technical specification

Power supply: 240 Volts 50 Hz. Connects to 10A power point

Lights:

o4 x 20 watt, 240 volts halogen (1200mm model)

o3 x 20 watt, 240 volts halogen (900 mm model)

P a g e | 5

Model

ERHC938S

900

415

580

ERHC1238S

1200

415

580

Cooker type

Minimum height*

Maximum height

Electric Hob

600 mm

1,200 mm

Gas Hob

650 mm

1,200 mm

Gas BBQ open grill

1,200 mm

* If the instructions of the hob specify a greater distance than the minimum above, then that

shall be the minimum height for installation.

Rangehood Installation

1. Using a sprit level mark a vertical

centre line on the wall where the

hood is to be positioned, and a

horizontal line at the hood base

position.

NOTE: See table below for the minimum

and maximum height of the underside of

the hood.

2. Mark the location for the wall

mounting points and anti-tilt fixing

points as shown in (Fig. B).

3. Install suitable screws for

rangehood mounting points (to

support a total weight of 50kg)

to the wall as marked (Fig. B).

Dimensions

Rangehood Installation (continued)

4. Prior to installing the hood into position fix exhaust transition duct using screws

supplied, ensuring the seal is between the rangehood top panel and the base of

the exhaust transition (Fig. C).

Transition pieces

1200mm model

Transition piece screw

holes (4 places)

Fig. C

Min.

Max

Top of

cooker

Mounting

points

Anti-tilt points

Fig. B

Warning: Failure to install the screws or fixing device in accordance with these instructions may

result in electrical hazards

P a g e | 7

Rangehood Installation (continued)

900mm model

366 mm

46 mm

500 mm

750mm

700 mm

650 mm

600 mm

787 mm

485 mm

1200mm model

366 mm

46 mm

900 mm

975 mm

925 mm

875 mm

825 mm

1085 mm

485 mm

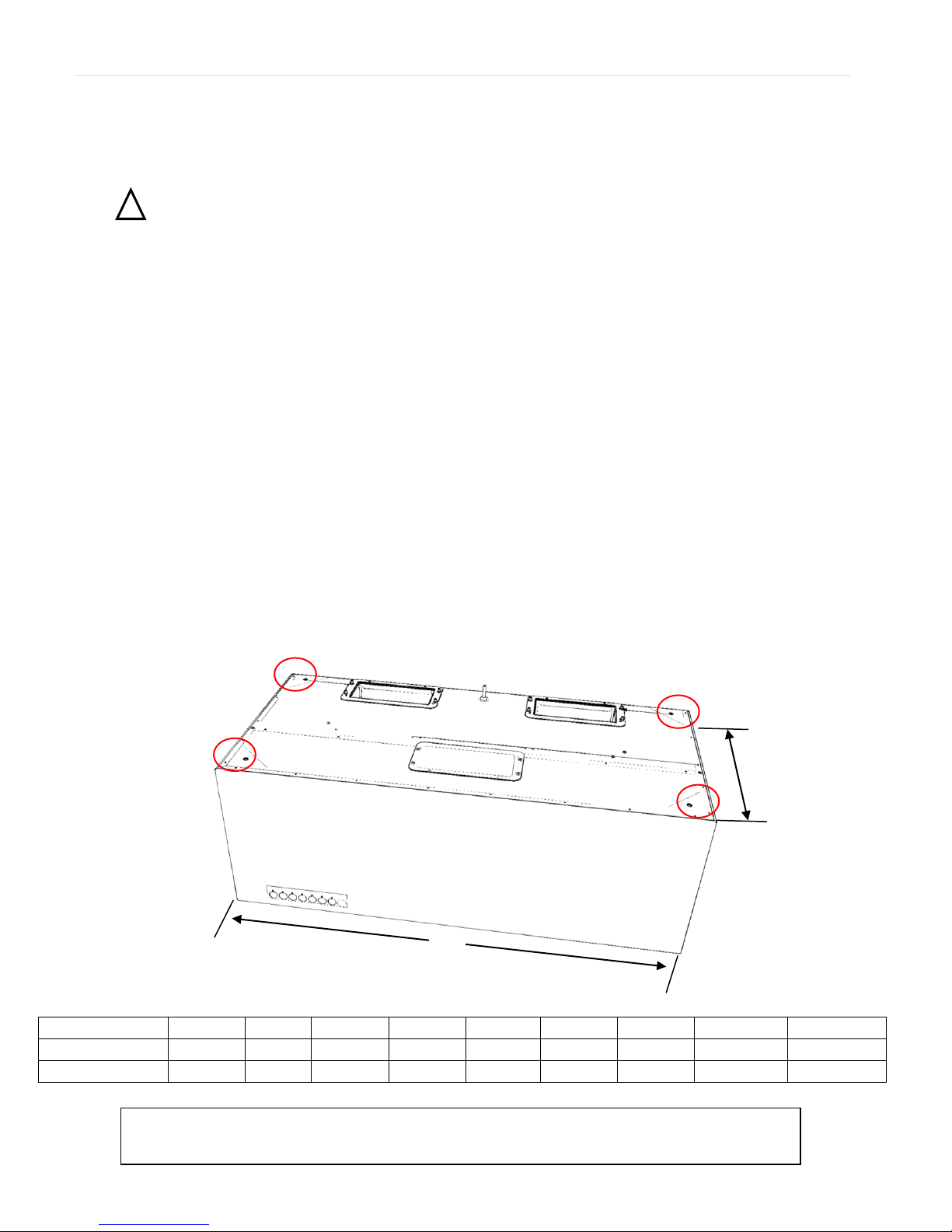

If additional or alternative mounting points are required there 4 x M10 threaded mounting

points on the top of the hood as highlighted in the image below.

5. Mounting and securing the transition pieces is shown in Figure C.

! Important note: Pre-formed holes must be used to secure transition piece.

Fitting screws in alternate locations may cause electrical safety risk.

6. Hang hood on the mounting screws, tighten mounting screws then secure at the anti-tilt

locations as indicated in (Fig. B).

7. The canopy rangehood has been supplied with duct transition piece/s, 200mm diameter non-

combustible flue pipe can be used with the transition piece/s. Continue the centre line to the

ceiling. Fit preferred flue pipe to the fan transition duct (Fig. D1 & D2).

Use worm drive clamps, cable ties or suitable duct tape to secure flexible pipe to the transition

duct.

NOTE: We recommend extending flue pipe through the roof to external roof cowl to vent

exhaust externally. We do not recommend venting into ceiling cavity.

NOTE: To ensure optimum performance of the rangehood, the use of rigid ducting is

recommended.

The use of bends should be avoided. Rigid flexible ducting is suitable, although loose flexible

ducting is unacceptable. All ducting must be fire retardant.

Electrical connection

Check that the installation complies with the standards of local building, gas and electrical

authorities. Before connecting to the mains supply ensure that the mains voltage corresponds

to the voltage on the rating plate inside the rangehood.

Roof cowl

Flue (extension may be

required, depending on

installation)

Transition

Flue cover & flue cover

supports (optional

accessory, depending on

installation type)

Transition

90°Elbow

Flue (extension may be

required, depending on

installation)

Wall Vent

Front

Rear

Fig. D1

Fig. D2

P a g e | 9

Using the Rangehood

Control operation

a. Lock

b. Speed 1 (minimum)

c. Speed 2

d. Speed 3

e. Speed 4 (maximum)

f. Timer off

g. Lamp

Lock –Press an d ho ld „lock‟ but t o n f or 3 seconds t o lo ck control interface when

cleaning, press and hold for 3 seconds to unlock control interface

Speed 1–suitable for light frying and light barbecuing

Speed 2–suitable for frying, wok cooking and barbecuing

Speed 3–suitable for intensive frying, intensive wok cooking and barbecuing

Speed 4–suitable for very smoky cooking and/ or to clear smoke from an area

that has a build up of smoke

Timer off–At the end of cooking if the timer is activated, the rangehood will

continue to run for an additional 5 minutes to remove any odours that remain at

the completion of cooking. During the 5 minute period the fan speed will

gradually reduce until the canopy turns itself OFF.

When t he t im er funct ion is act ivat ed t he “ Tim er ” LED w ill illu m in at e an d t h e

previously selected fan sped LED will turn off.

To deactivate the timer, press the timer button again or press a fan speed button

to resume normal operation

Lamp –Press t he „lam p‟ sym b o l t o t u r n t he lam p s ON, Th e first p ress w ill set t he

lamps to maximum intensity. The second press will set the lamps to half

intensity. The third press will turn the lamps OFF.

½ intensity

OFF

Maintenance and cleaning

Caution

• Before maintenance or cleaning is carried out, the canopy rangehood should be

disconnected from the main power supply. Ensure that the rangehood is switched

off at the wall socket and the plug removed.

• External & internal surfaces are susceptible to scratches and abrasions, so please

follow the cleaning instructions to ensure the best possible result is achieved

without damage.

Stainless Steel Surface

Clean stainless steel surfaces using non-abrasive cleaning products that are

specifically for use on stainless steel.

To ensure best results also use an even pressure and follow the grain of the stainless

steel. Use of a soft cloth reduces the risk of scratching. If the cloth is wet ensure that

a dry soft cloth is used to wipe down the surface again reducing the risk of any

surface rust appearing.

Control panel surface

Use non-abrasive cleaning products

The control panel can be cleaned using warm soapy water.

Ensure the cloth is well wrung before cleaning. Use a dry soft cloth to remove any

excess moisture left after cleaning.

Cleaning grease filters

The filters can be cleaned either by hand or in the dishwasher. After cleaning ensure

that the filters are completely dry before refitting.

By hand : Soak in warm water and some washing up liquid.

For stubborn grease stains use a soft nylon brush to help remove these stains.

In a dishwasher : Ensure that placement of the filters is made so as to not impede the

function of the dishwasher spray arm. Washing the filters in a dishwasher may cause

discolouration over time although it will not affect their performance. Filters should

be washed separately to crockery and kitchen utensils.

Inner panels and trough

After each use the inner panels and trough should be wiped clean with non-abrasive cleaning

products to prevent excessive build up of oils / grease.

Note: Do not use the range hood without filters installed
