Electrolux ECT6151S User manual

8VHUPDQXDO

ϡΪΨΘδϤϟ΍ϞϴϟΩ

ECT6151S

ECT9151S

2www.electrolux.com

CONTENTS

1. RECOMMENDATIONS AND SUGGESTIONS

..................................................................

2. USE

...........................................................................................................................................

3. MAINTENANCE

......................................................................................................................

4. CONTROLS

.............................................................................................................................

5. LIGHTING

................................................................................................................................

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it has

been designed with you in mind. So whenever you use it, you can be safe in the knowledge

that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data

available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

ENGLISH

1. SAFETY INFORMATION

For your safety and correct operation of the appliance,

read this manual carefully before installation and use.

Always keep these instructions with the appliance even if

you move or sell it. Users must fully know the operation

and safety features of the appliance.

The wire connection has to be done by specialized

technician.

• The manufacturer will not be held liable for any damages

resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and

the extractor hood is 650 mm (some models can be installed

at a lower height, please refer to the paragraphs on working

dimensions and installation).

• If the instructions for installation for the gas hob specify a

greater distance, this must be respected.

• Check that the mains voltage corresponds to that indicated

on the rating plate xed to the inside of the hood.

• Means for disconnection must be incorporated in the xed

wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power

supply guarantees adequate earthing.

• Connect the extractor to the exhaust ue through a pipe of

minimum diameter 120 mm. The route of the ue must be

as short as possible.

• Regulations concerning the discharge of air have to be

fullled.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, replaces, etc.).

• If the extractor is used in conjunction with non-electrical

appliances (e.g. gas burning appliances), a su󰀩cient degree

of aeration must be guaranteed in the room in order to

prevent the backow of exhaust gas. When the cooker hood

is used in conjunction with appliances supplied with energy

other than electric, the negative pressure in the room must

not exceed 0,04 mbar to prevent fumes being drawn back

into the room by the cooker hood.

• The air must not be discharged into a ue that is used for

4www.electrolux.com

exhaustingfumesfromappliancesburninggasorotherfuels.

• If the supply cord is damaged, it must be replaced from the

manufacturer or its service agent.

• Connect the plug to a socket complying with current

regulations, located in an accessible place.

• With regards to the technical and safety measures to be

adopted for fume discharging it is important to closely follow

the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the

protective lms.

• Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or xing device

in accordance with these instructions may result in

electrical hazards.

• Do not look directly at the light through optical devices

(binoculars, magnifying glasses…).

• Do not ambè under the range hood; risk of re.

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaninganduser maintenanceshall notbemadebychildren

without supervision.

• Children should be supervised to ensure that they do not

play with the appliance.

• Theapplianceis nottobeusedby persons(including children)

with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given

supervision or instruction.

Accessiblepartsmay becomehot whenusedwithcooking

appliances.

• Clean and/or replace the Filters after the specied time

period (Fire hazard). See paragraph Care and Cleaning.

• There shall be adequate ventilation of the room when the

range hood is used at the same time as appliances burning

gas or other fuels (not applicable to appliances that only

ENGLISH

discharge the air back into the room).

• The symbol on the product or on its packaging indicates

that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection

point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the

environment and human health, which could otherwise

be caused by inappropriate waste handling of this

product. For more detailed information about recycling

of this product, please contact your local city o󰀩ce, your

household waste disposal service or the shop where you

purchased the product.

“In case of replacement with halogen lamp use only

self-shielded tungsten halogen lamps or self-shielded

metal halide lamps.”

6www.electrolux.com

2. USE

• The extractor hood has been designed

exclusively for domestic use to elimi-

nate kitchen smells.

• Never use the hood for purposes other

than for which it has been designed.

• Never leave high naked ames under

the hood when it is in operation.

• Adjust the ame intensity to direct it

onto the bottom of the pan only, making

sure that it does not engulf the sides.

• Deep fat fryers must be continuously

monitored during use: overheated oil

can burst into ames.

3. MAINTENANCE

- The Activated charcoal lter

is not washable and cannot

be regenerated, and must be

replaced approximately every

4 months of operation, or more

frequently for particularly heavy

usage (W).

- The Grease lters must be cleaned

every 2 months of operation, or more

frequently for particularly heavy us-

age, and can be washed in a dish-

washer (Z).

- Control lights, if present.

• Clean the hood using a damp cloth

and a neutral liquid detergent.

ENGLISH

4. CONTROLS

BUTTON FUNCTIONS

L Light Turns the Lighting System on and o󰀨.

V1 Speed Turns the Motor on at Speed one.

Turns the Motor o󰀨.

V2 Speed Turns the Motor on at Speed two.

V3 Speed Turns the Motor on at Speed three.

5. LIGHTING

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code

4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100

8www.electrolux.com

www.electrolux.com

www.registerelectrolux.com

www.electrolux.com/shop

ARABIC

10 www.electrolux.com

This manual suits for next models

Table of contents

Other Electrolux Ventilation Hood manuals

Electrolux

Electrolux EFB90460OX User manual

Electrolux

Electrolux RH30WC40G Instruction Manual

Electrolux

Electrolux EFP 936 G User manual

Electrolux

Electrolux FHWC3055LSA User manual

Electrolux

Electrolux ECS9252K User manual

Electrolux

Electrolux EFC 929 User manual

Electrolux

Electrolux LFT419W User manual

Electrolux

Electrolux EFT716X User manual

Electrolux

Electrolux DI 8821 Specification sheet

Electrolux

Electrolux EFC 6940 User manual

Electrolux

Electrolux DD 6591 User manual

Electrolux

Electrolux PLHV42P8CC User manual

Electrolux

Electrolux EFP 60241 User manual

Electrolux

Electrolux EFD18000U User manual

Electrolux

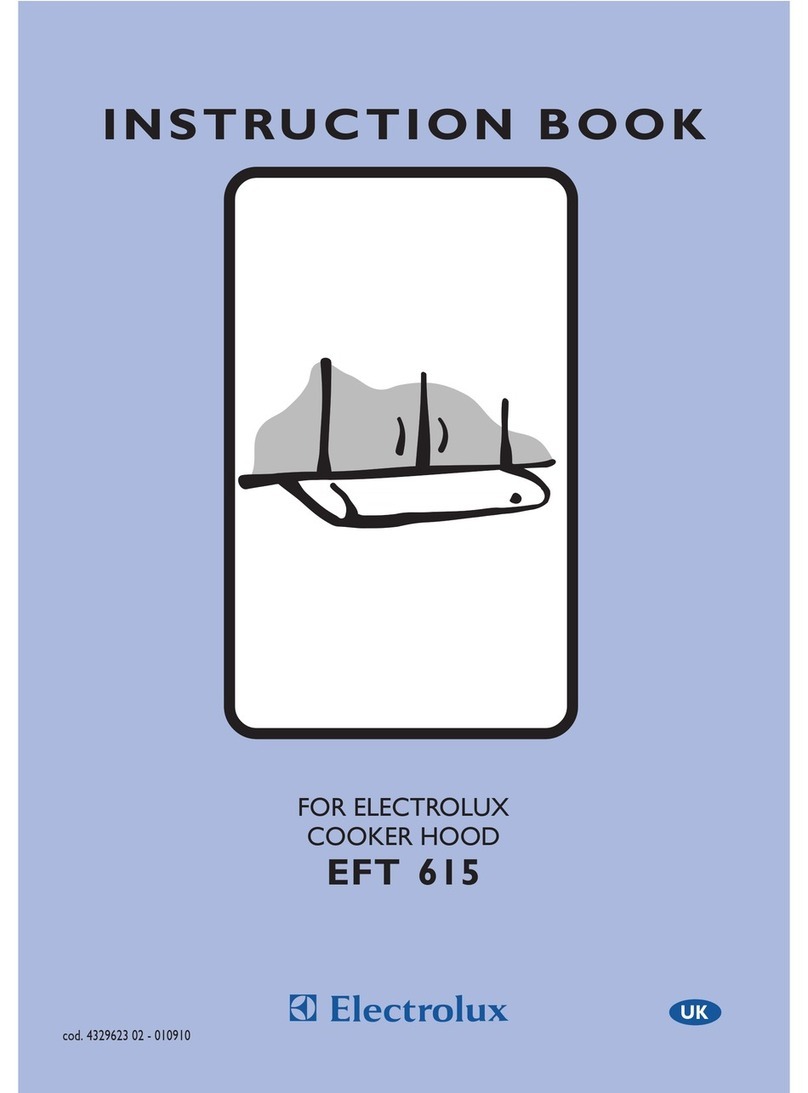

Electrolux EFT 615 User manual
