Electrolux Icon E42BS75EPS User manual
E23CS75DSS0.eps WR19876C.tif WR19877C.tif WR19878C.tif WR19879C.tif
WR19880C.tif WR19881C.tif WR19882C.tif WR19885C.tif WR19883C.tif
WR19884C.tif Wiring Diagram.tif
Product No. E42BS75EPS
Series built-in
Color stainless
Volts 115
Wiring Diagram 5304450974
Market North America
Service Data Sheet 5304450974
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995442596
05/08/22
(EN/SERVICE/KHB)
099
SIDE-BY-SIDE
REFRIGERATOR
Model No.
E42BS75EP
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995442596 E42BS75EPS
08/05 2

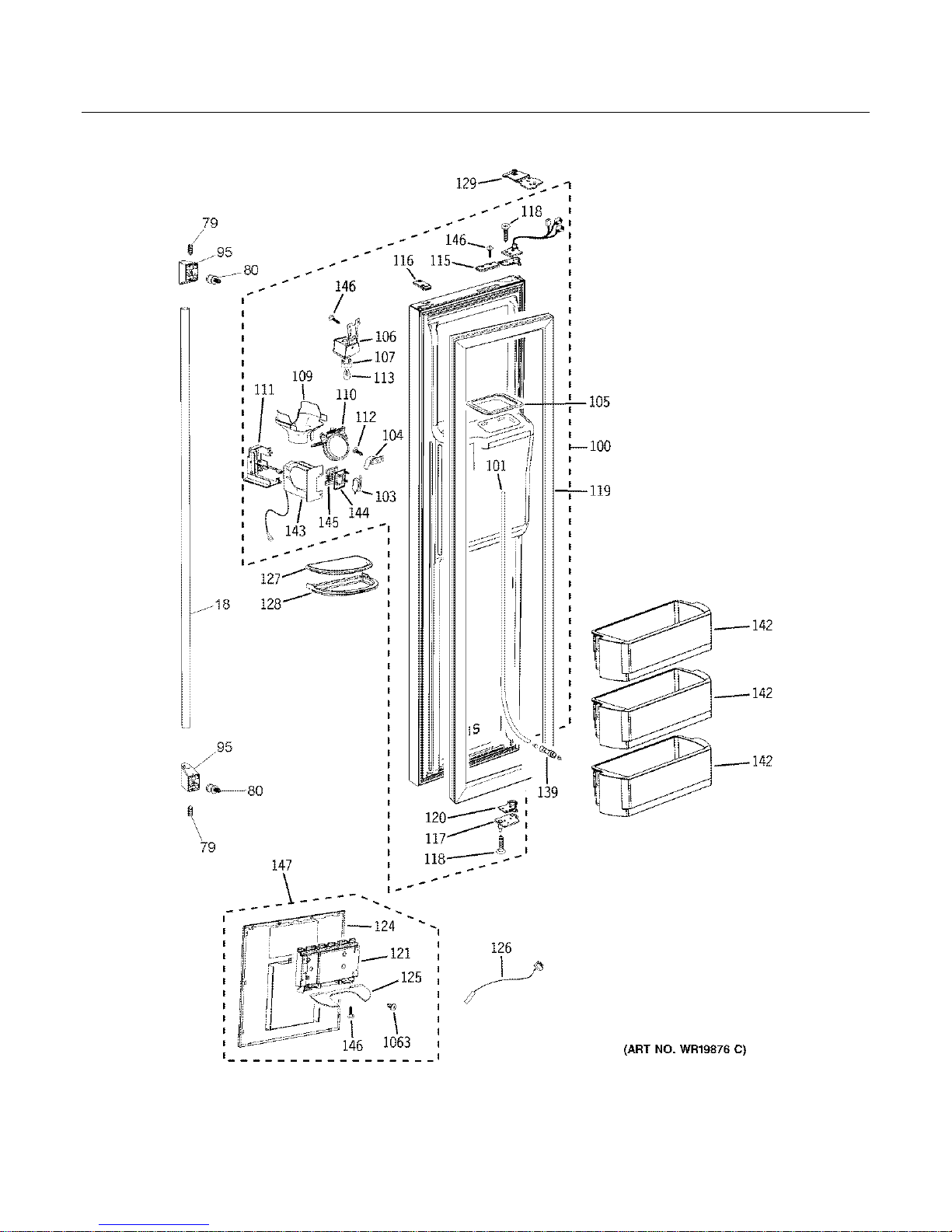

DOOR-FREEZER
E42BS75EPS Publication No: 5995442596
# Functional Parts 3 08/05
* Non-Illustrated Parts
DOOR-FREEZER
POS. NO PART NO. DESCRIPTION
18 241637810 Handle, stainless
79 218755401 Screw-set, 10-32 x 0.375
79* 241601001 Wrench, allen
80 218755503 Screw-shoulder, #10 AB, handle mounting
95 241637702 End Cap, handle trim, chrome
100 5304448838 DOOR-FRZR, COMPLETE
101 5304448839 Tube, water, door
103 5304448840 Switch-micro
104 5304448842 Cap
105 5304448843 Trim-Disp Chute
106 5304448844 Bracket-light socket
107 5304448845 Socket-light
109 5304448846 Chute-ice
110 5304448847 Door Assy-ice chute, w/gasket, insul
111 5304448848 Bracket
112 5304448850 Screw
113 5304448851 Light Bulb
115 5304448852 Strike-door
116 5304448853 Door Stop
117 5304448854 Bracket-lower hinge
118 5304448855 Screw
119 5304448856 Gasket-frzr door, magnetic
120 5304448857 Shim
121 5304448858 Control, dispenser
124 5304448859 Cover-module, stainless
125 5304448860 Shield, light
126 5304448861 Thermistor
127 5304448863 Drip Tray Insert
128 5304448862 Drip Tray, stainless
129 5304448864 Bracket-upper hinge
139 5304448865 Connector-water, straight
142 5304448866 Bin-door
143 5304448867 Motor, dispenser, w/cam
144 5304448868 Trim
145 5304448869 Actuator
146 5304448870 Screw, tapping
147 5304448871 Cover, dispenser
1063 5304448872 Screw, tapping
Publication No: 5995442596 E42BS75EPS
08/05 4
DOOR-FRESH FOOD/REFR
E42BS75EPS Publication No: 5995442596
# Functional Parts 5 08/05
* Non-Illustrated Parts
DOOR-FRESH FOOD/REFR
POS. NO PART NO. DESCRIPTION
18 241637810 Handle, stainless
79 218755401 Screw-set, 10-32 x 0.375
79* 241601001 Wrench, allen
80 218755503 Screw-shoulder, #10 AB, handle mounting
95 241637702 End Cap, handle trim, chrome
115 5304448852 Strike-door
118 5304448855 Screw
146 5304448870 Screw, tapping
120 5304448857 Shim
200 5304448912 Door-refr, stainless steel, complete assy
201 5304448913 Bracket-upper hinge
202 5304448914 Door Stop
203 5304448916 Shim
205 5304448917 Bracket-lower hinge
206 5304448919 Gasket, refr door seal, magnetic
215 5304448926 Pin-hinge
216 5304448924 Bracket-upper hinge
218 5304448925 Compartment-dairy, removable
220 5304448927 Door-dairy
221 5304448928 Bin-door
222 5304448929 Snugger, paddle type, small
223 5304448930 Bin-door, gallon
224 5304448931 Snugger-door bin, "paddle type", large
Publication No: 5995442596 E42BS75EPS
08/05 6
CABINET-FREEZER
E42BS75EPS Publication No: 5995442596
# Functional Parts 7 08/05
* Non-Illustrated Parts
CABINET-FREEZER
POS. NO PART NO. DESCRIPTION
301 5304448932 Evaporator Assy, frzr
302 5304448933 Evaporator, w/defr heater
304 5304448934 Motor-evap fan
305 5304448935 Housing-evaporator, front
306 5304448936 Housing-evaporator, rear
308 5304448937 Screw
309 5304448938 Thermistor-frzr
310 5304448939 Thermostat-defrost
311 5304448940 Bracket-thermostat mtg
312 5304448941 Heater Assy
314 5304448942 Thermistor-frzr
315 5304448943 Cover-evap coil
316 5304448944 Clamp-hose
317 5304448945 Drain Tube
318 5304448946 Cover-air duct
319 5304448947 Duct-air
320 5304448948 Cover-air duct
321 5304448949 Harness-wiring
322 5304448950 Socket-light
323 5304448951 Channel-shelf mtg, side, (2)
324 5304448952 Shield, light
325 5304448953 Cap-screw
326 5304448954 Cover, elctrical plug
327 5304448955 Bulb-light, 40W, 115V
328 5304448957 Heater, defrost, 115 V
519 5304448956 Screw, tapping
Publication No: 5995442596 E42BS75EPS
08/05 8
SHELVES-FREEZER
E42BS75EPS Publication No: 5995442596
# Functional Parts 9 08/05
* Non-Illustrated Parts
SHELVES-FREEZER
POS. NO PART NO. DESCRIPTION
400 5304448958 Shelf-cantilever, refr, (3)
401 5304448959 Basket-sliding, upper, full
404 5304448960 Basket-sliding
407 5304448961 Hanger-basket, RH
410 5304448962 Hanger-basket, LH
519 5304448956 Screw, tapping
* 5304450473 Owner's Manual
* 5304450474 Installation Instr
* 5304450974 Service Data Sheet
Publication No: 5995442596 E42BS75EPS
08/05 10
ICE MAKER/DISPENSER
