Electrolux Thermaline S90 User manual

Electrolux thermaline S90

Wall mounted burner range

The Electrolux thermaline S90 cooking equipment is designed for the very heavy duty requirements of small

institutions, hotels and restaurants. The range consists of a wide choice of modular elements that can be

installed as individual free-standing or wall mounted units, or assembled into a complete cooking suite.

Construction based on an internal stainless steel frame combined with a new plug-connection system ensures

that individual modules can be solidly connected with a virtually seamless working surface. The modules

described in detail on this sheet have independently controlled open burners and are wall mounted without any

base underneath.

EASY TO USE

• Different sizes of burners to suit

different cooking requirements

from rapid boiling to a gentle

simmer process.

• Manual gas valves with fixed

high and low positions allow

precise control of the flame

intensity.

• Large sized pan support in

stainless steel with long center fins

to allow the use of the largest

down to the smallest pans.

• The level of the pan support and

the top of the unit is the same,

which means it is possible to

move pans around the surface

without lifting (option not available

for the 10 KW burners).

EASY TO MAINTAIN

• Removable pan supports, burner

rings and flame ignition

components.

• Simply, convenient operation

with highly visible control panels

and knobs.

• Gas main valve built in as

standard.

EASY ON THE ENVIRONMENT

• 98% of the unit is recyclable by

weight.

• Packing free of toxic substances.

Electrolux thermaline S90

Wall mounted burner range

Internet: http://www.electrolux.com/foodservice

CFAC0102013-10-03Subject to change without notice

SOLID TOP PLATE F.OPEN BURNER-360X360MM 910718 910718

SIDE PANEL RIGHT-WALL MOUNTED, H=400MM 911956 911956

SIDE PANEL LEFT-WALL MOUNTED, H=400MM 911957 911957

S90 PAN REST CNS 430X430 MM THERMA 911988 911988

PORTIONING SHELF 500X200 MM 911873

PORTIONING SHELF 500X130 MM 911851

PORTIONING SHELF 1000X200 MM 911878

PORTIONING SHELF 1000X130 MM 911856

PAN REST STAINLESS STEEL-430X380 MM 910729 910729

LOWER SIDE PANEL WALL MOUNTING 300 MM RI 911672 911672

LOWER SIDE PANEL WALL MOUNTING 300 MM LE 911671 911671

KIT FOR WALL MOUNTING H = 700MM 911670

FLEXIBLE CONNECTION HOSE 3/4'' 910720 910720

ACCESSORIES

PAN REST CAST-IRON-430X399 MM 1 1

KIT FOR WALL MOUNTING 400 MM 1 1

INCLUDED ACCESSORIES

Net weight - kg. 50 100

Front burners power - kW 5 5, 7

Front burners dimension - mm 420x440 420x440, 420x440

Back burners power - kW 7 7, 5

Back burner dimensions - mm 420x440 420x440, 420x440

height 400 400

depth 900 900

width 500 1000

External dimensions - mm

Configuration One-Side Operated One-Side Operated

Installation Wall mounted Wall mounted

Power supply Gas Gas

TECHNICAL DATA

GC1G10D5B

584235

GC1G20D5B

584243

MATERIALS

• Body is made of stainless steel

AISI 304 and pan supports are

made of cast iron.

• 3 mm work top in AISI 304

stainless steel.

• “Lasertec connection system” in

AISI 304 stainless steel creates a

nearly seamless work top.

• Heavy duty internal frame with

reinforcement on the top of 4 mm

in AISI 304 S/S.

APPROVALS

• The appliances are IPX5 certified

against water jets.

• All appliances are developed

and assembled according to

European safety and hygiene

standards and are H marked.

MODELS

• Some models are supplied with

the Ecoflam pan detection system,

which has the advantage of saving

energy and reducing unnecessary

heat radiation in the kitchen

(option not available for the 10 KW

burners).

• All the models have a C-board of

43 mm . The C-board on the rear

side of the appliances closes any

kind of gap between the unit and

the wall, for better hygiene.

• Models 582550 and 582551

have a power of 10 Kw.

Electrolux thermaline S90

Wall mounted burner range

Internet: http://www.electrolux.com/foodservice

CFAC0102013-10-03Subject to change without notice

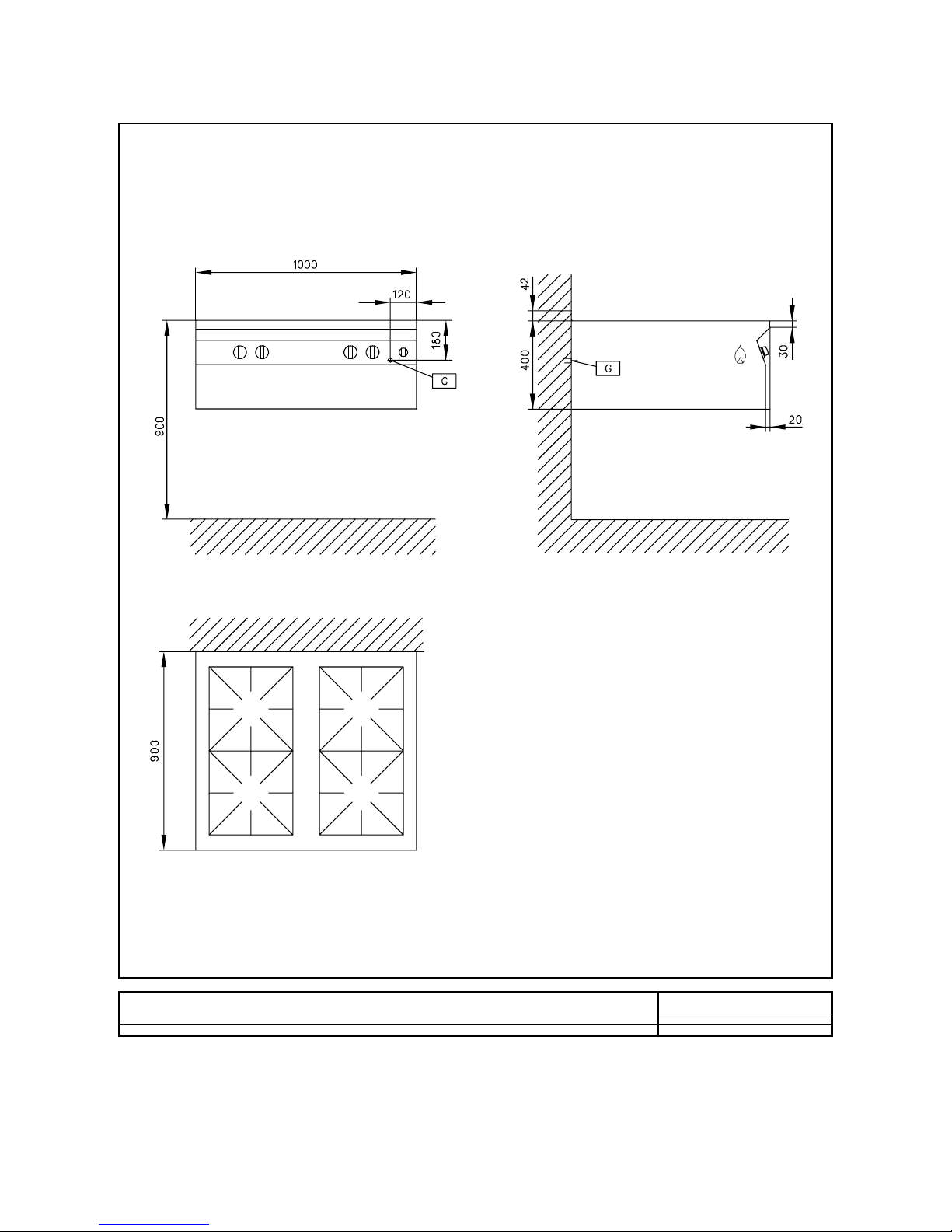

G - Gas connection 3/4"

LEGEND

GC1G10D5B

584235

Electrolux thermaline S90

Wall mounted burner range

Internet: http://www.electrolux.com/foodservice

CFAC0102013-10-03Subject to change without notice

G - Gas connection 3/4"

LEGEND

GC1G20D5B

584243
