Electrolux ICON E30GC64ESS User manual

E30GC64ESS.eps ME30GC64ESS.eps BE30GC64ESS.eps WE30GC64ESS.tif

Product No. E30GC64ESS

Series 30" gas

Color stainless

Market North America

Wiring Diagram WE30GC64ESS

Owner's Guide 5995426235

Installation Instructions 5995426250

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378

Augusta, GA 30917

Publication No.

5995431037

05/03/09

(EN/SERVICE/ECL)

377

GAS COOK-TOP

RANGE

Model No.

E30GC64E

Publication No: 5995431037 E30GC64ESS

03/05 2

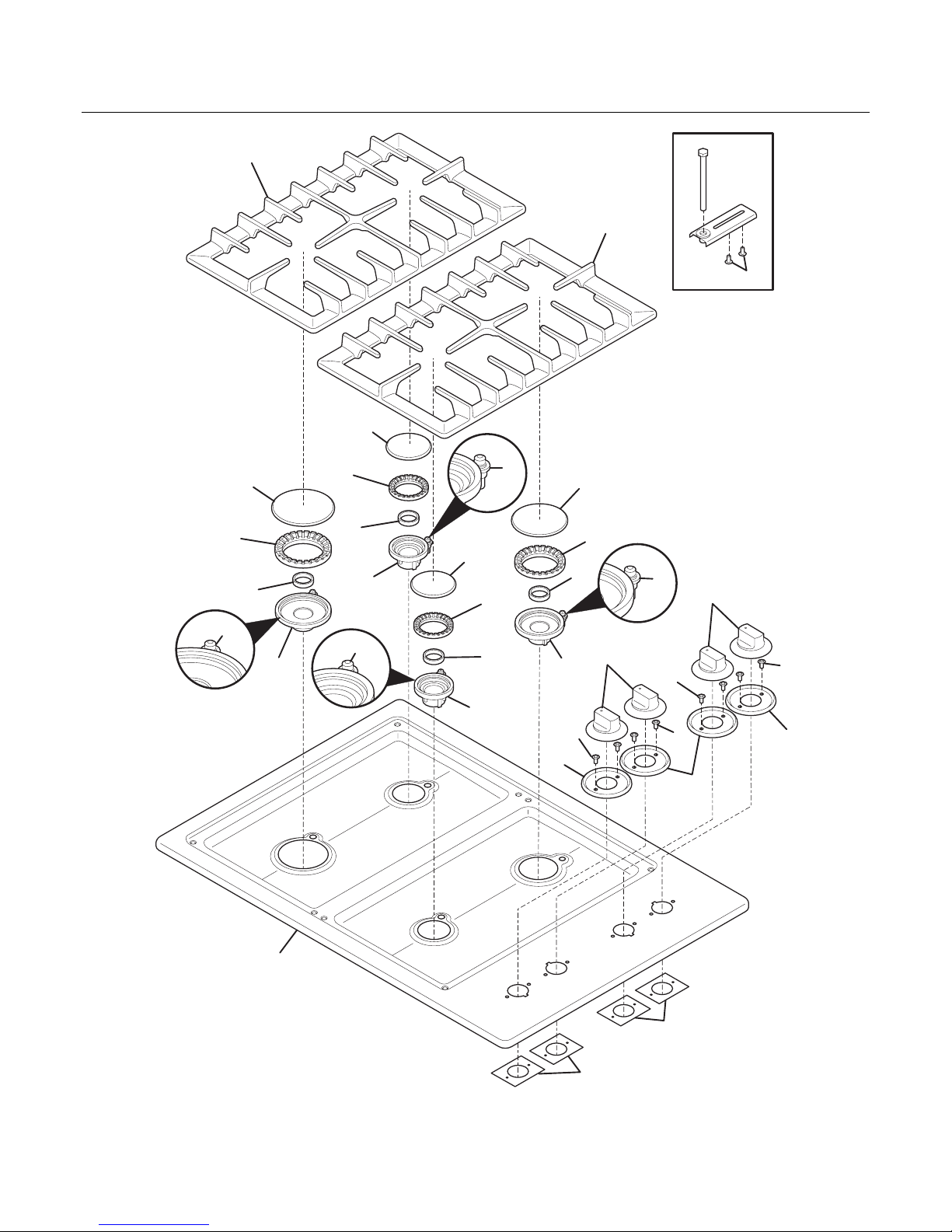

COOK TOP

ME30GC64ESS

7C 8

E30GC64ESS Publication No: 5995431037

# Functional Parts 3 03/05

* Non-Illustrated Parts

COOK TOP

POS. NO PART NO. DESCRIPTION

1 5304446037 Grate, burner, (2)

2 5304446038 Maintop, stainless

3 5304446029 Knob, burner, (4)

4 5304446031 Bezel, burner knob, (4)

5 5304446019 Screw, phil TRS, #8-3/8, (8)

6 5304446000 Plate, backing, (4)

7 5304446011 Burner Head Assy, "C", 12500 BTU, w/ignitor

7A 5304446010 Burner Head Assy, "B", 8500 BTU, w/ignitor

7B 5304446012 Burner Head Assy, "D", 14000 BTU, w/ignitor

7C 5304446034 Burner Head Assy, "B", 8500 BTU, 90 deg rear, w/ignitor

8 5304446028 Nut, burner head, brass, (4)

9 5304446013 Rings, burner, set of 4

10 5304446033 Caps, burner, set of 4

11 5304446026 Ignitor Assembly, burner, (4)

11* 5304446002 Jacket, ignitor wire, (4)

12 5304445998 Bracket, assembly, hold down

* 5304446032 Cleaner, stainless steel

Publication No: 5995431037 E30GC64ESS

03/05 4

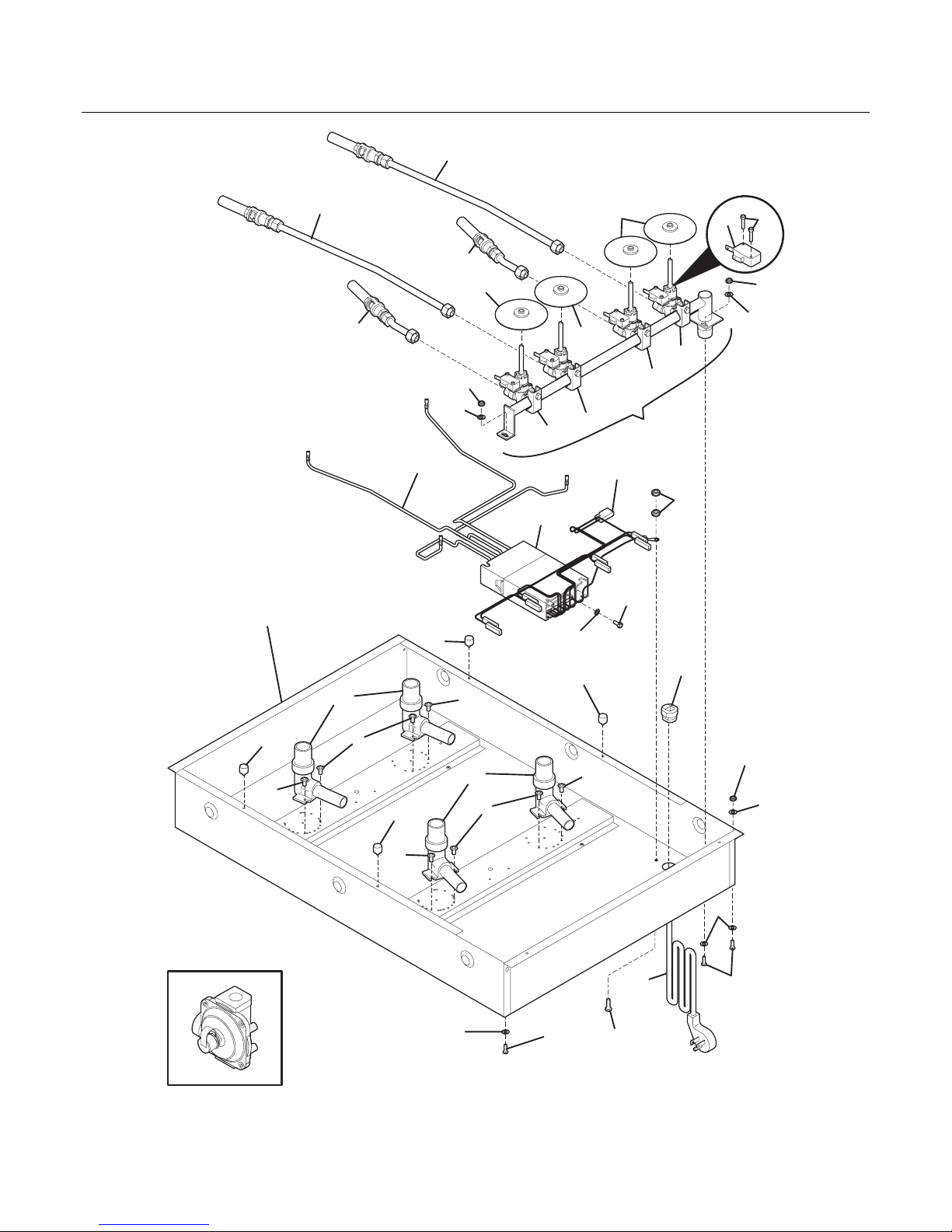

BURNER

18 22

10 11

Burner Box

(Not Replaceable)

BE30GC64ESS

E30GC64ESS Publication No: 5995431037

# Functional Parts 5 03/05

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 5304446006 Tubing Assembly, burner, left front

2 5304446007 Tubing Assembly, burner, left rear

3 5304446008 Tubing Assembly, burner, right front

4 5304446009 Tubing Assembly, burner, right rear

5 5304446019 Screw, phil TRS, #8-3/8, (8)

6 5304446040 Valve Assembly, burner, left front, w/ignite switch

7 5304446041 Valve Assembly, burner, left rear, w/ignite switch

8 5304446042 Valve Assembly, burner, right rear, w/ignite switch

9 5304446043 Valve Assembly, burner, right front, w/ignite switch

* 5304446027 Washer, burner valve, (4)

10 5304446014 Switch, ignitor, (4)

11 5304446023 Screw, ignitor switch, (8)

12 5304446036 Regulator, pressure

13 5304446001 Base, burner, (4)

14 5304446035 Manifold, assembly, w/valves

15 5304446030 Protector, burner valve, spill

16 5304446017 Bushing, strain relief

17 5304446022 Bumper, snap in, rubber, (4)

18 5304446005 Cord, power supply

19 5304445999 Module, assembly, ignitor spark

19* 5304446018 Hook & Loop, pair, 2" x 3"

20 5304446003 Harness, wiring

21 5304446004 Harness, assembly, ignitor wire

22 5304446021 Screw, phil pan, #8-32 x 1/2, (4)

23 5304446024 Washer, #8 x 7/16 OD, 3/64 t, zinc, (6)

24 5304446015 Nut, hex keps, #8-32, (5)

25 5304446020 Screw, phil pan, #8-3/8

26 5304446016 Washer, nylon

* 5304446039 Conversion Kit, LP gas

* 5304446025 Tool, burner ring, removal

Publication No: 5995431037 E30GC64ESS

03/05 6

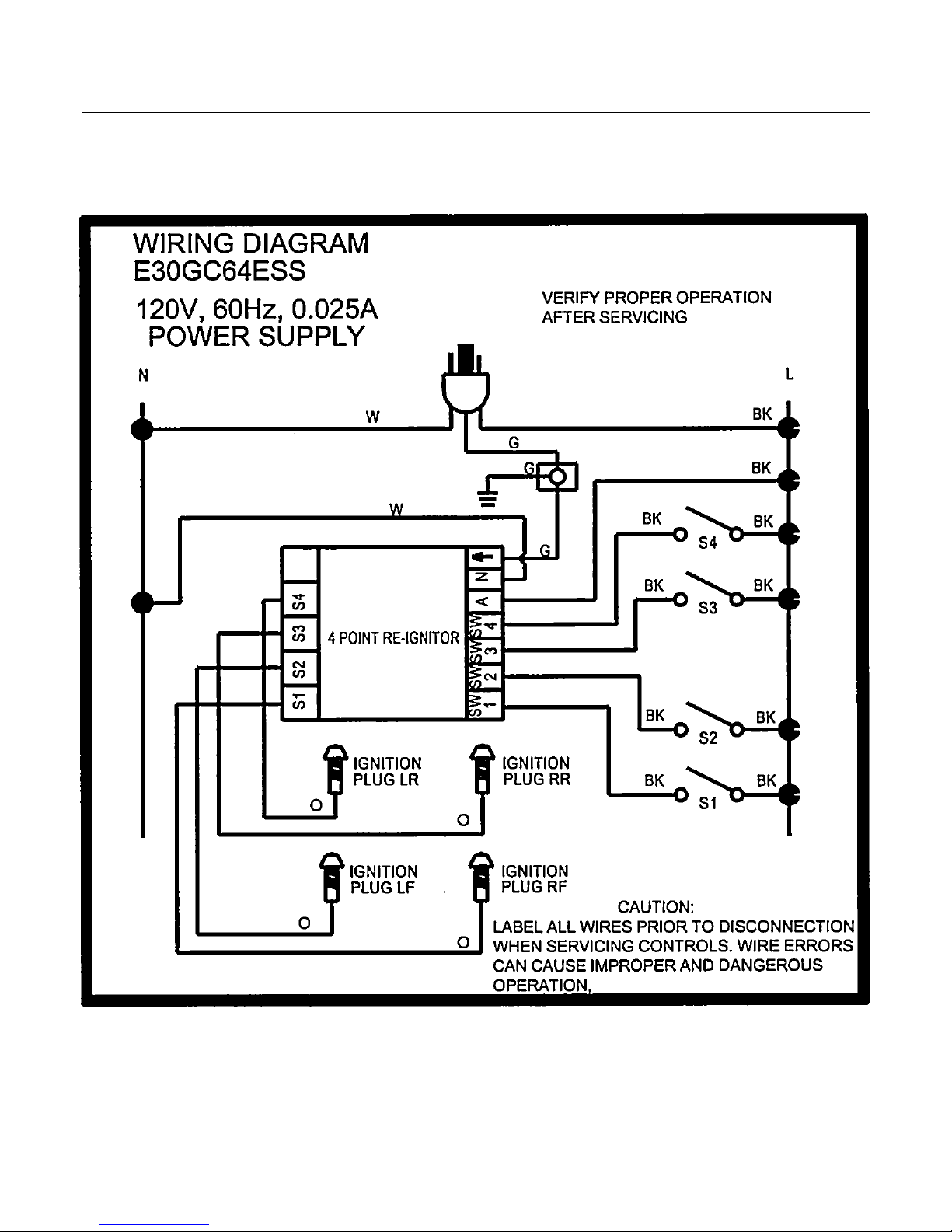

WIRING DIAGRAM
