Electrolux E36EC70FSS2 User manual

E36EC70F.tif CE36EC70FSS1.eps ME36EC70FSS1.eps 318046816.eps

Product No. E36EC70FSS2

38066463760S2

Series 36" elec

Color stainless

Market North America

Wiring Diagram 318046816

Owner's Guide 318200635

Installation Instructions 318201432

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995480406

06/12/08

(EN/SERVICE/BJH)

377

ELECTRIC COOK-TOP

RANGE

Model No.

E36EC70F

Publication No: 5995480406 E36EC70FSS2

12/06 2

CONTROL PANEL

E36EC70FSS2 Publication No: 5995480406

# Functional Parts 3 12/06

* Non-Illustrated Parts

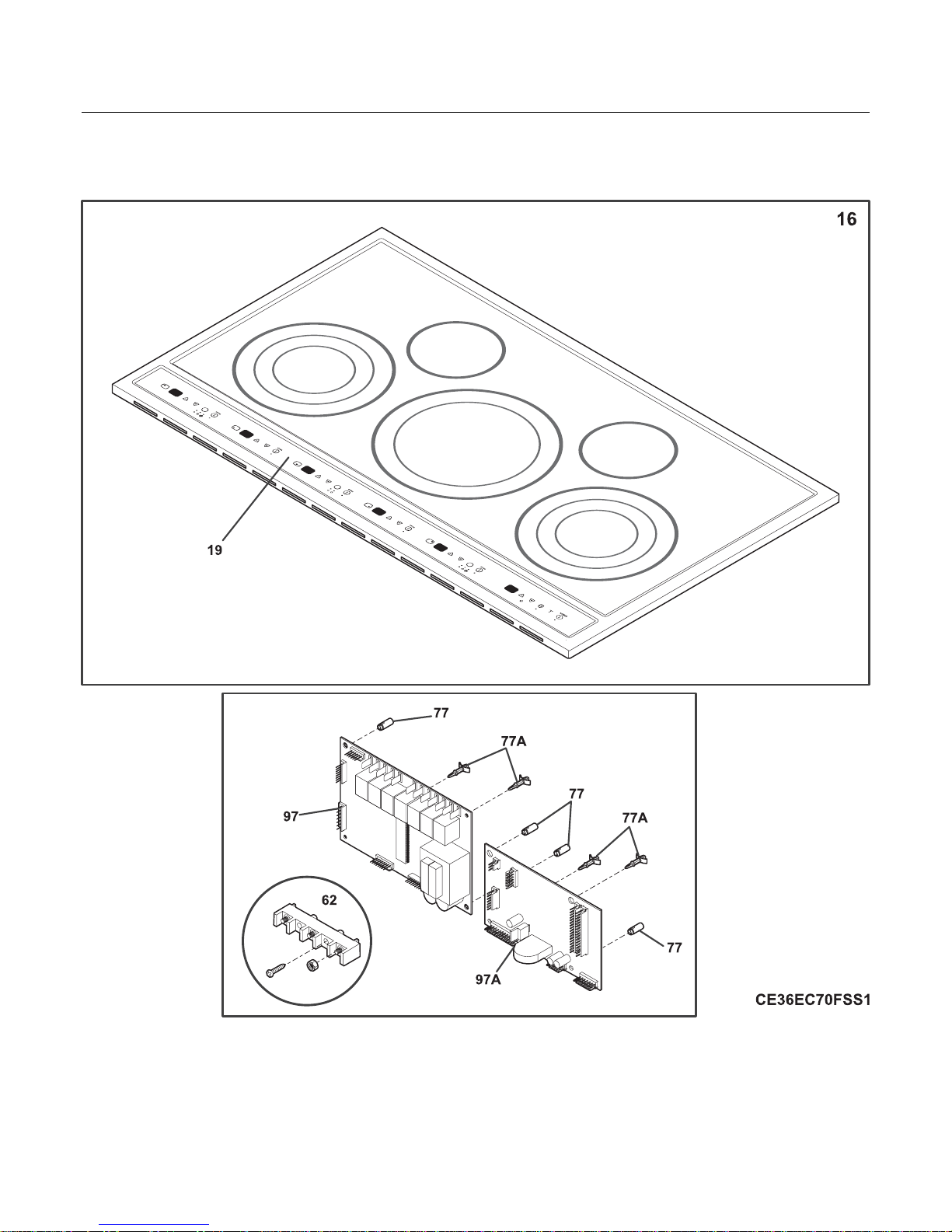

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

16 # 318282526 Main Top Assy, glass/steel, black/stainless, w/touch control

19 # 318353600 Panel Assembly, glass, w/controls

62 # 316056000 Terminal Block

77 316247900 Spacer, power board, (4)

77A 316114100 Spacer, (2)

97 # 316442113 Board, power, relay

97A# 316442042 Board, power, UIB

* # 318078557 Box & wires assy

* # 318083050 Harness, wiring, interface

* 5304400192 retainer wire

Publication No: 5995480406 E36EC70FSS2

12/06 4

MAIN TOP/SURFACE UNITS

E36EC70FSS2 Publication No: 5995480406

# Functional Parts 5 12/06

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

POS. NO PART NO. DESCRIPTION

1 318354100 Shield, heat

2 318344520 Insulation, Elements

3 318371400 Cover, deflector

15# 318198830 Element, surface, 6", 1200 W, (2)

15A# 318198934 Element, surface, 6/9, 1700/2700W, dual radiant

15B# 318297804 Element, surface, triple, 800/900/1000

16 # 318282526 Main Top Assy, glass/steel, black/stainless, w/touch control

17 318371510 Bracket, insulation

20 318121910 Bracket, retainer

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303323130 Screw, 8 x 1/4, (4)

46 318354000 Box, burner

52 318122006 Spring, element mtg, small

52A 318122011 Spring, element mtg, 1200W/1800W

52B 318122010 Spring, element mtg, 3000W

57 318354300 Box, service

* 5303307980 Screw, 8-32 x 0.437, (4)

58 318371310 Insulation

60 318371600 Deflector, air

87 318354400 Bracket, cable

159 318371710 Deflector, heat

* 5303211311 Screw, 8 x 0.500

164 318252901 Support, box, (6)

* 3131048 Screw, 8 x 5/8, (6)

170 318124913 Screen, thermal, (4)

172 318344521 Insulation, screen, (4)

188 318014110 Spacer, (6)

* # 318199467 Harness, wiring, main

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303311306 Screw, 8-18 x 0.375, (8)

* 5303323140 Screw, ground, 10-32 x 0.375

Publication No: 5995480406 E36EC70FSS2

12/06 6

WIRING DIAGRAM
