Electrolux EOD67642 User manual

user manual

Cooker

EKC6046

EKC6047

EOD67642

Oven

All manuals and user guides at all-guides.com

all-guides.com

We were thinking of you

when we made this product

All manuals and user guides at all-guides.com

electrolux

welcome

Welcome to the world of Electrolux

You’ve chosen a first class product

from Electrolux, which hopefully will

provide you with lots of pleasure in the

future. Electrolux ambition is to offer a

wide variety of quality products that

would make your life even more

comfortable. You can look at some

examples on the cover in this manual.

But now it’s time to study this manual

and start using and enjoying the

benefits from your new machine. We

promise that it’ll make your life a little

easier. Good luck!

All manuals and user guides at all-guides.com

electrolux

contents

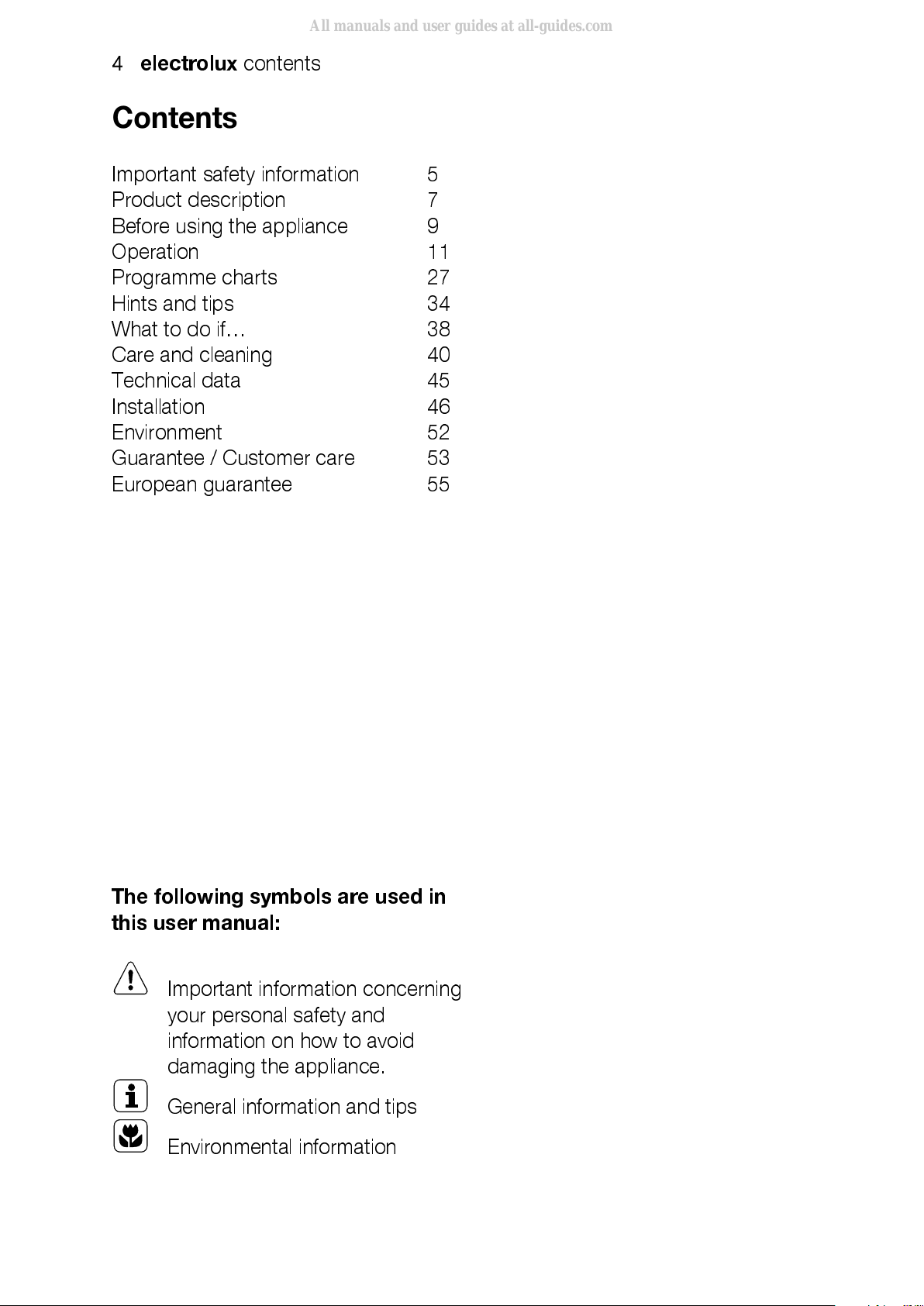

Contents

Important safety information 5

Product description 7

Before using the appliance 9

Operation 11

Programme charts 27

Hints and tips 34

What to do if… 38

Care and cleaning 40

Technical data 45

Installation 46

Environment 52

Guarantee / Customer care 53

European guarantee 55

The following symbols are used in

this user manual:

Important information concerning

your personal safety and

information on how to avoid

damaging the appliance.

General information and tips

Environmental information

All manuals and user guides at all-guides.com

electrolux

important safety information

Important safety information

These warnings are provided in the

interests of your safety. Ensure that

you understand them all before

installing or using the appliance.

Your safety is of paramount

importance. If you are unsure about

any of the meanings of these warnings

please contact customer care.

Installation

The appliance must be installed

according to the instructions supplied.

The installation work must be

undertaken by a qualified electrician or

competent person.

The appliance should be serviced by

an authorised Service Engineer and

only genuine approved spare parts

should be used.

The appliance must be installed in an

adequately ventilated room.

It is imperative that the appliance is

left in the base to protect both the

appliance and the floor.

This appliance is heavy and care

must be taken when moving it.

Do not attempt to lift or move this

appliance by the handles.

All packaging, both inside and

outside the appliance must be

removed before the appliance is used.

It is dangerous to alter the

specifications or modify the appliance

in any way.

Child safety

Do not allow children to play with any

part of the packaging.

Do not allow children to sit or climb

on the drop down doors.

This appliance is not intended for use

by children and other persons whose

physical, sensory or mental capabilities

or lack of experience and knowledge

prevents them from using the

appliance safely without supervision or

instruction by a responsible person to

ensure that they can use the appliance

safely.

Children should be supervised to

ensure that they do not play with the

appliance.

CAUTION: Accessible parts may be

hot. Young children should be kept

away.

During use

This appliance is not intended to be

operated by means of an external timer

or separate remote control system.

This appliance has been designed for

domestic use to cook edible foodstuffs

only and must not be used for any

other purposes.

Take great care when heating fats

and oils as they will ignite if they

become too hot.

All manuals and user guides at all-guides.com

electrolux

important safety information

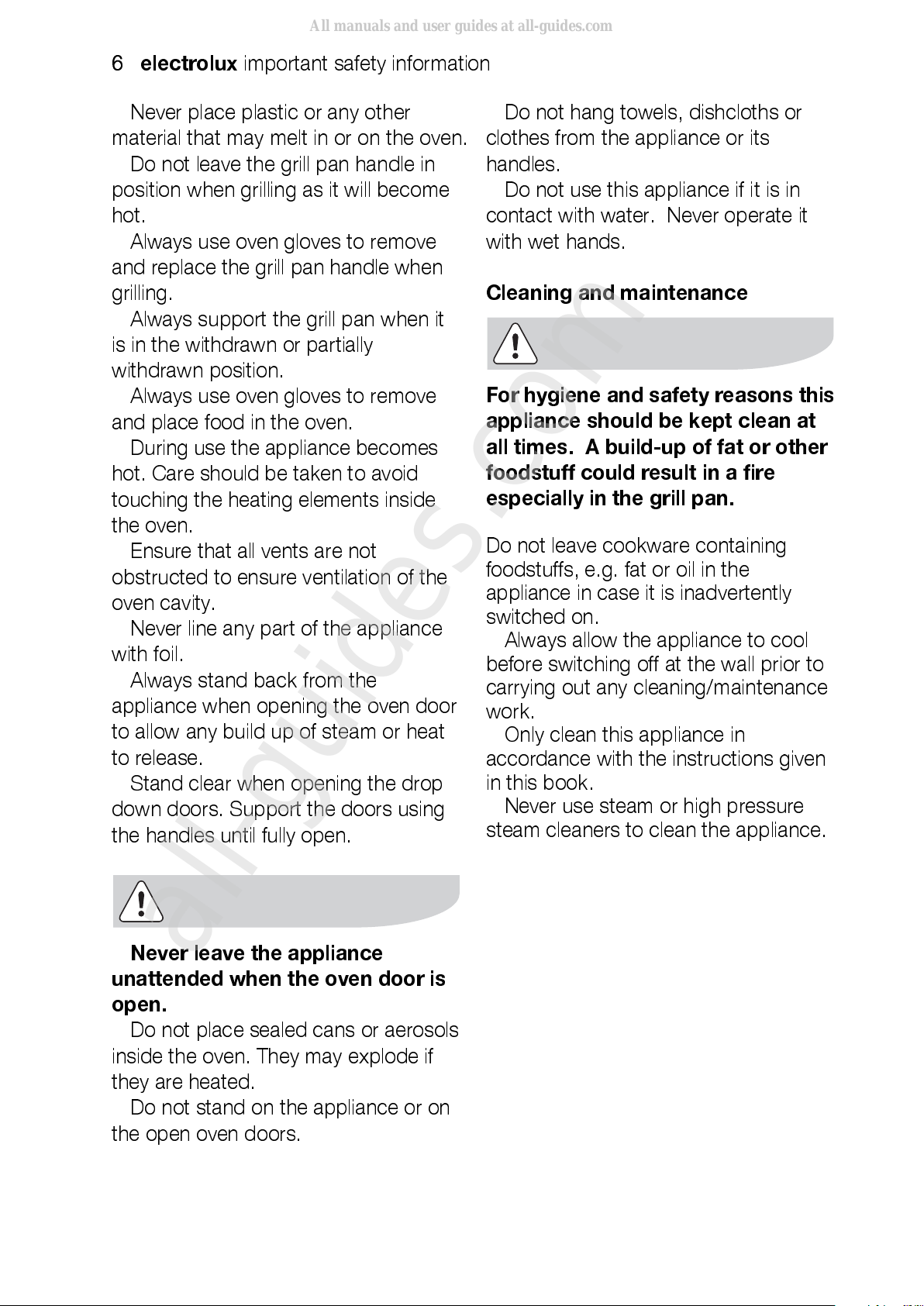

Never place plastic or any other

material that may melt in or on the oven.

Do not leave the grill pan handle in

position when grilling as it will become

hot.

Always use oven gloves to remove

and replace the grill pan handle when

grilling.

Always support the grill pan when it

is in the withdrawn or partially

withdrawn position.

Always use oven gloves to remove

and place food in the oven.

During use the appliance becomes

hot. Care should be taken to avoid

touching the heating elements inside

the oven.

Ensure that all vents are not

obstructed to ensure ventilation of the

oven cavity.

Never line any part of the appliance

with foil.

Always stand back from the

appliance when opening the oven door

to allow any build up of steam or heat

to release.

Stand clear when opening the drop

down doors. Support the doors using

the handles until fully open.

Never leave the appliance

unattended when the oven door is

open.

Do not place sealed cans or aerosols

inside the oven. They may explode if

they are heated.

Do not stand on the appliance or on

the open oven doors.

Do not hang towels, dishcloths or

clothes from the appliance or its

handles.

Do not use this appliance if it is in

contact with water. Never operate it

with wet hands.

Cleaning and maintenance

For hygiene and safety reasons this

appliance should be kept clean at

all times. A build-up of fat or other

foodstuff could result in a fire

especially in the grill pan.

Do not leave cookware containing

foodstuffs, e.g. fat or oil in the

appliance in case it is inadvertently

switched on.

Always allow the appliance to cool

before switching off at the wall prior to

carrying out any cleaning/maintenance

work.

Only clean this appliance in

accordance with the instructions given

in this book.

Never use steam or high pressure

steam cleaners to clean the appliance.

All manuals and user guides at all-guides.com

all-guides.com

electrolux

product description

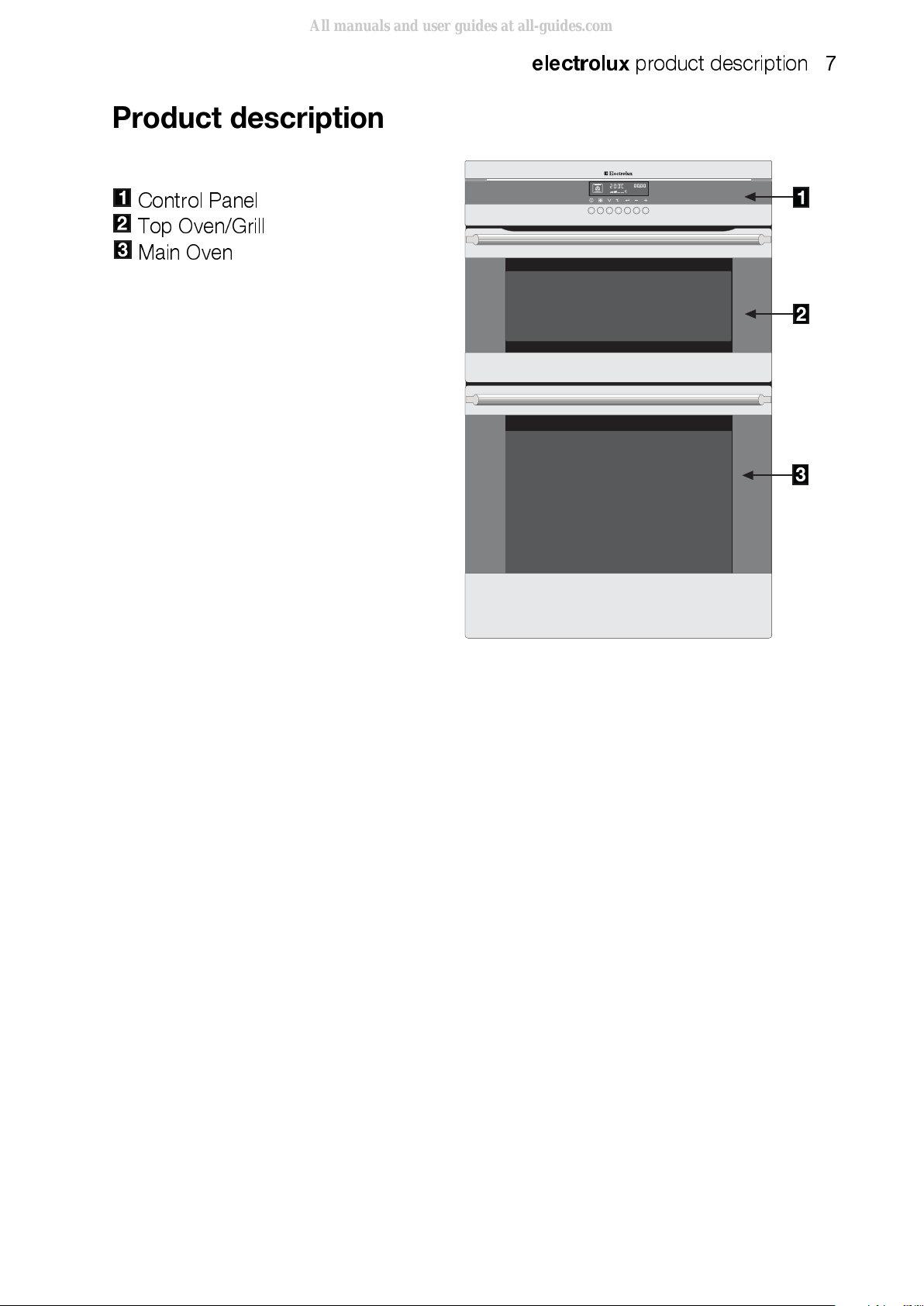

Product description

Control Panel

Top Oven/Grill

Main Oven

All manuals and user guides at all-guides.com

electrolux

product description

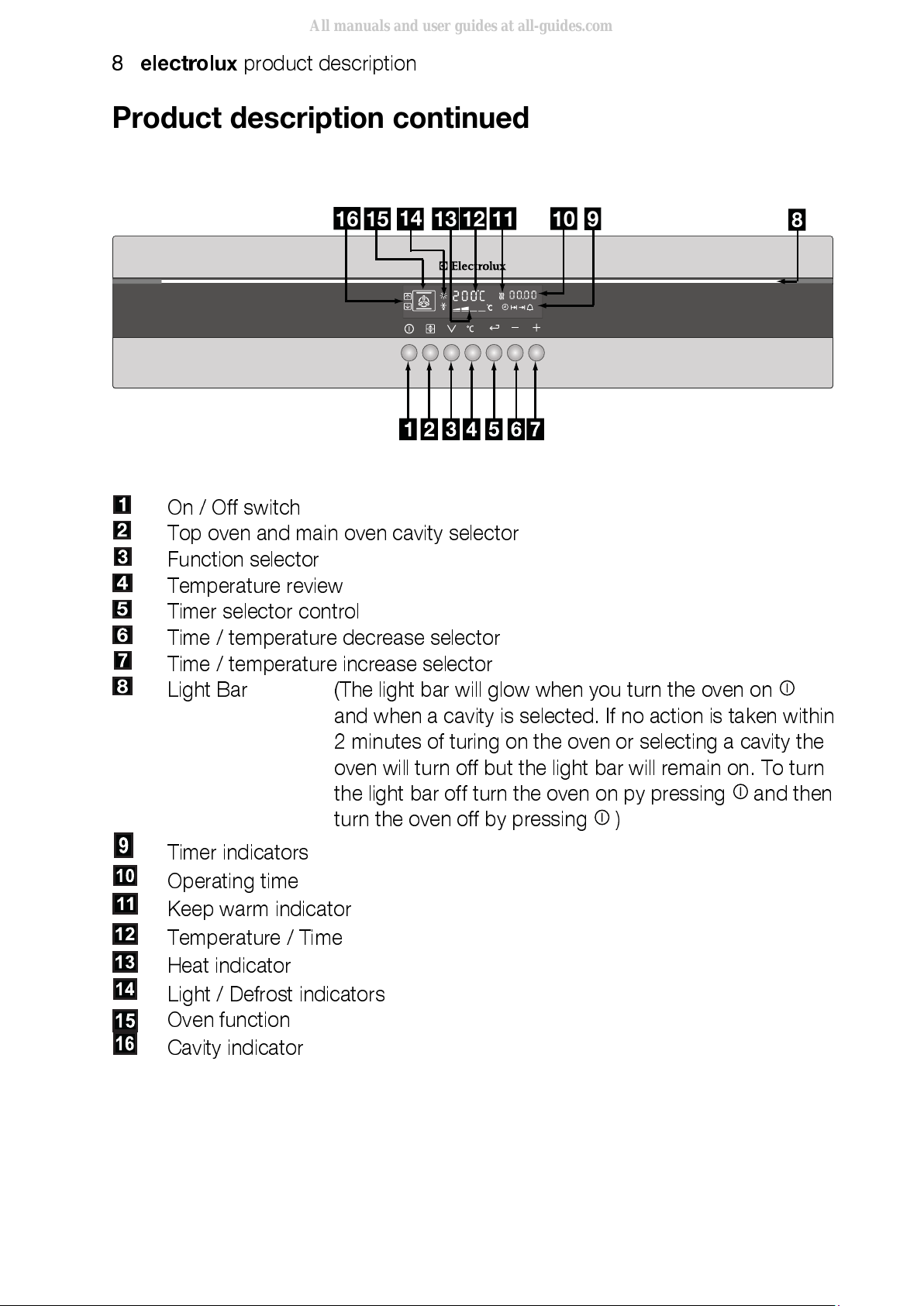

Product description continued

On / Off switch

Top oven and main oven cavity selector

Function selector

Temperature review

Timer selector control

Time / temperature decrease selector

Time / temperature increase selector

Light Bar (The light bar will glow when you turn the oven on

and when a cavity is selected. If no action is taken within

2 minutes of turing on the oven or selecting a cavity the

oven will turn off but the light bar will remain on. To turn

the light bar off turn the oven on py pressing and then

turn the oven off by pressing )

Timer indicators

Operating time

Keep warm indicator

Temperature / Time

Heat indicator

Light / Defrost indicators

Oven function

Cavity indicator

All manuals and user guides at all-guides.com

electrolux

before using the appliance

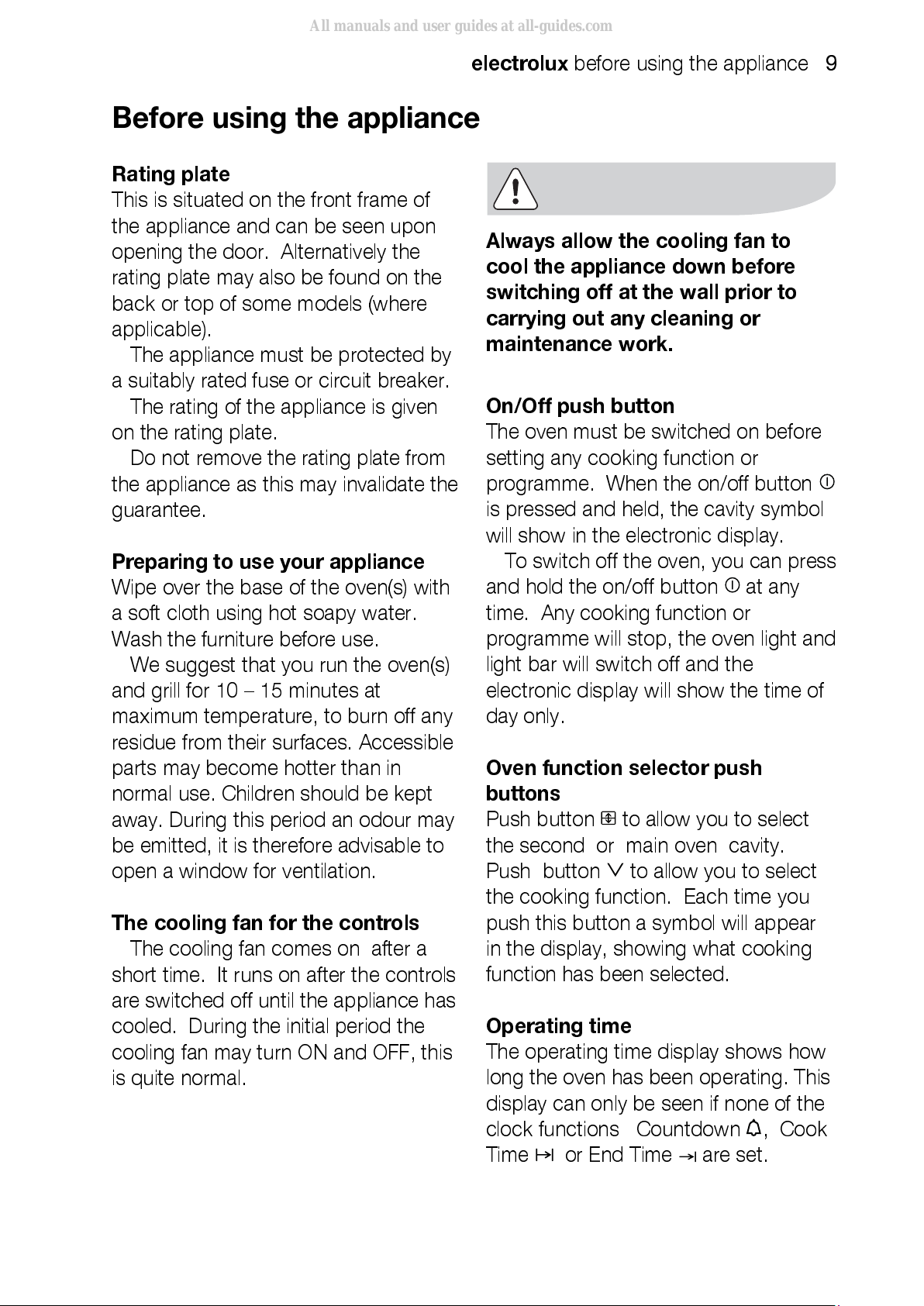

Before using the appliance

Rating plate

This is situated on the front frame of

the appliance and can be seen upon

opening the door. Alternatively the

rating plate may also be found on the

back or top of some models (where

applicable).

The appliance must be protected by

a suitably rated fuse or circuit breaker.

The rating of the appliance is given

on the rating plate.

Do not remove the rating plate from

the appliance as this may invalidate the

guarantee.

Preparing to use your appliance

Wipe over the base of the oven(s) with

a soft cloth using hot soapy water.

Wash the furniture before use.

We suggest that you run the oven(s)

and grill for 10 – 15 minutes at

maximum temperature, to burn off any

residue from their surfaces. Accessible

parts may become hotter than in

normal use. Children should be kept

away. During this period an odour may

be emitted, it is therefore advisable to

open a window for ventilation.

The cooling fan for the controls

The cooling fan comes on after a

short time. It runs on after the controls

are switched off until the appliance has

cooled. During the initial period the

cooling fan may turn ON and OFF, this

is quite normal.

Always allow the cooling fan to

cool the appliance down before

switching off at the wall prior to

carrying out any cleaning or

maintenance work.

On/Off push button

The oven must be switched on before

setting any cooking function or

programme. When the on/off button

is pressed and held, the cavity symbol

will show in the electronic display.

To switch off the oven, you can press

and hold the on/off button at any

time. Any cooking function or

programme will stop, the oven light and

light bar will switch off and the

electronic display will show the time of

day only.

Oven function selector push

buttons

Push button to allow you to select

the second or main oven cavity.

Push button to allow you to select

the cooking function. Each time you

push this button a symbol will appear

in the display, showing what cooking

function has been selected.

Operating time

The operating time display shows how

long the oven has been operating. This

display can only be seen if none of the

clock functions Countdown , Cook

Time or End Time are set.

All manuals and user guides at all-guides.com

electrolux

before using the appliance

Condensation and steam

When food is heated it produces steam

similar to a boiling kettle. The vents allow

some of this steam to escape. However,

always stand back from the appliance

when opening the door(s) to allow any

build up of steam or heat to release.

If the steam comes into contact with a

cool surface on the outside of the

appliance, e.g. a trim, it will condense

and produce water droplets. This is quite

normal and is not caused by a fault on

the appliance.

To prevent discolouration, regularly

wipe away condensation and foodstuff

from surfaces.

For your safety wall coverings at the

rear of the appliance should be securely

fixed to the wall.

Cookware

Baking trays, dishes etc., should not be

placed directly against the grid covering

the fan at the back of the oven.

Do not use baking trays larger than

30cm x 35cm (12” x 14”) as they will

restrict the circulation of heat and may

affect performance.

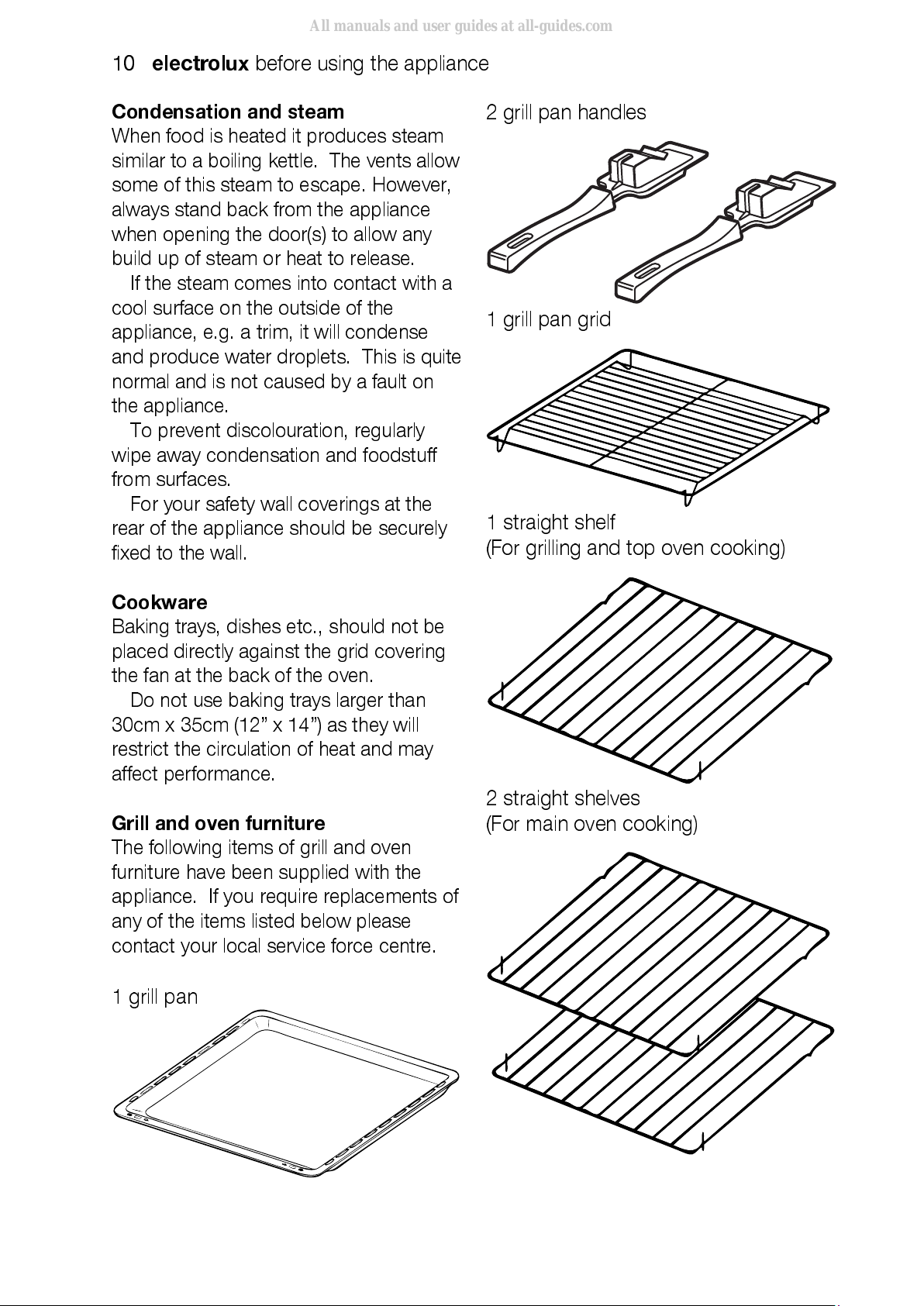

Grill and oven furniture

The following items of grill and oven

furniture have been supplied with the

appliance. If you require replacements of

any of the items listed below please

contact your local service force centre.

1 grill pan

2 grill pan handles

1 grill pan grid

1 straight shelf

(For grilling and top oven cooking)

2 straight shelves

(For main oven cooking)

All manuals and user guides at all-guides.com

Other manuals for EOD67642

Table of contents

Other Electrolux Oven manuals

Electrolux

Electrolux EOB63000 User manual

Electrolux

Electrolux OKD5C71X User manual

Electrolux

Electrolux EOC 68342 User manual

Electrolux

Electrolux EOB6541BFS User manual

Electrolux

Electrolux EHGL30X User manual

Electrolux

Electrolux EHK10 User manual

Electrolux

Electrolux air-o-steam Touchline Electric Combi Oven... How to use

Electrolux

Electrolux ES530 User manual

Electrolux

Electrolux EOF6P46VX0 User manual

Electrolux

Electrolux EOCP5803A User manual

Electrolux

Electrolux ESOGBR User manual

Electrolux

Electrolux E30EW75ESS User manual

Electrolux

Electrolux COMPETENCE E3051-4 User manual

Electrolux

Electrolux EDB710B User manual

Electrolux

Electrolux EW27MC65JS Quick start guide

Electrolux

Electrolux OOP740NZ User manual

Electrolux

Electrolux CombiSteam Deluxe EOB8857AA User manual

Electrolux

Electrolux Icon E30WD75GSS Quick start guide

Electrolux

Electrolux EPSOM User manual

Electrolux

Electrolux E30EW7CGPS User manual

Electrolux

Electrolux COP801X User manual

Electrolux

Electrolux EBKGL6X User manual

Electrolux

Electrolux KODGC70TX User manual

Electrolux

Electrolux OEF5C50X User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual

DeLonghi

DeLonghi XA660 Directions for use

AEG

AEG BEB331010M user manual
