Electrolux PLMBZ209GC User manual

GLMB209D.tif PLMBZ209GCA Cabinet.eps GLMB209DSC Door.eps

GLMB209DSC wiring.eps

Product No. PLMBZ209GCA

Market North America

Color stainless steel

Volts 120

Watts 1200

Wiring Diagram 5995500872

Owner's Guide TINSEB477MRR0

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995500872

07/09/27

(EN/SERVICE/KC)

099

COUNTER-TOP

MICROWAVE

Model No.

PLMBZ209G

Publication No: 5995500872 PLMBZ209GCA

09/07 2

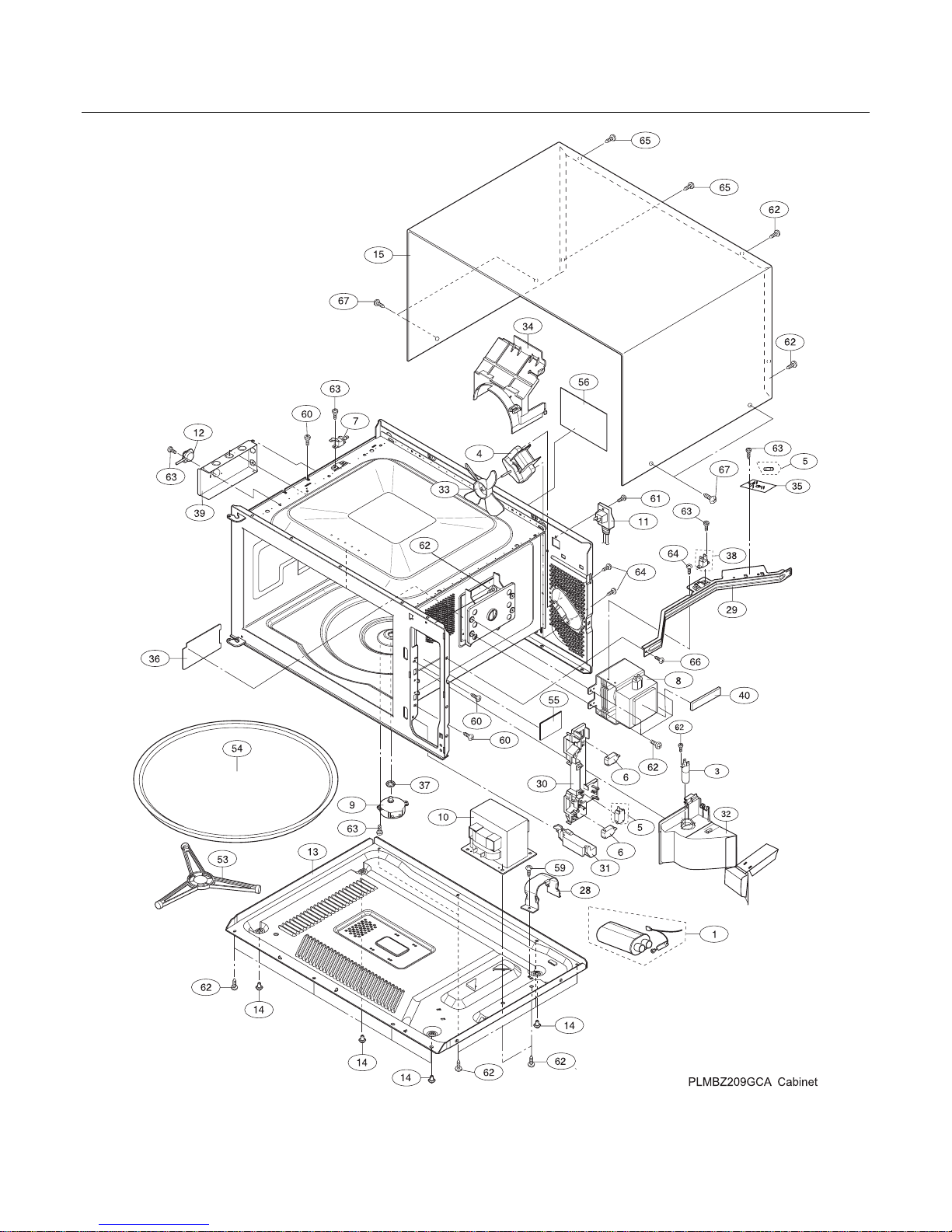

OVEN,CABINET

PLMBZ209GCA Publication No: 5995500872

# Functional Parts 3 09/07

* Non-Illustrated Parts

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

1 # 5304462258 Capacitor Assy, HV, w/rectifier

3 # 5304440779 Lamp Assy, with socket

4 # 5304448490 Motor, cooling fan

5 # 5303319559 Switch, monitor, w/ceramic fuse

6 # 5304440026 Switch, interlock, door sensor

7 # 5304440780 Fuse, cavity temp, 20 Amp, 250 V

8 # 5304440781 Magnetron

9 # 5304448832 Motor, turntable

10 # 5304457167 Transformer, power

11 # 5304440784 Power Cord, electric

12 # 5304440785 Sensor, humidity, cook control

13 5304440814 Base, unit chassis

14 5304440815 Foot, cabinet support

15 5304440816 Cabinet, outer casing, black

28 5304440838 Retainer, capacitor strap

29 5304462313 Bracket, chassis support

30 5304440840 Latch Hook

31 5304440841 Lever, door release

32 5304440842 Duct, magnetron

33 # 5304440843 Fan Blade, cooling fan

34 5304440844 Duct, cooling fan

35 # 5304451818 Filter, noise, electronic

36 5304462314 Cover, waveguide

37 5304440288 Bushing, motor shaft, turntable

38 # 5303319550 Fuse, magnetron

39 5304440847 Duct, AH sensor

40 5304441910 Cushion, magnetron pad

53 5304440284 Support Assy, turntable

54 5304440868 Tray, turntable, glass

55 5304440334 Label, Caution-monitor

56 5304440333 Label, Caution-DHHS

59 5303319636 Screw

60 5303319641 Screw

61 5304462315 Screw, 4 mm x 12 mm, ground

62 5304451553 Screw, outer casing

63 5304453725 Screw, 3mm x 8mm

64 5304450253 Screw, 4 mm x 8 mm

65 5304440873 Screw, torx head, tamper proof

66 5304462316 Screw

67 5304452261 Screw, black, outer casing

Publication No: 5995500872 PLMBZ209GCA

09/07 4

CONTROL PANEL,DOOR,MISC.

PLMBZ209GCA Publication No: 5995500872

# Functional Parts 5 09/07

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

POS. NO PART NO. DESCRIPTION

16 # 5304440820 Control Board, printed circuit

17 5304462914 Frame, control panel, stainless, w/nameplate

18 # 5304440824 Touch Control Assy, black

19 5304462915 Push Button, door, stainless

20 5304440831 Spring, door button

21 5304456930 Screw, 6mm x 8mm

22 5304440832 Connector, rubber, control board

23 5304440833 Panel, touch control

24 # 5304440834 LED Sheet, backlight

25 # 5304440835 LCD, display

26 5304440836 Bracket, PCB support

41 5304464298 Door Assy, complete, stainless

42 5304464299 Panel, outer door, steel, w/latch

43 5304440856 Latch, door

44 5304440316 Spring, door latch

45 5304440857 Panel, inner door, black

46 5304440860 Seal, door, film

47 5304440861 Frame, choke cover, inner door

48 5304442145 Door Stop

49 5304440863 Panel, glass, black, door front

50 5304440862 Door Stop

51 5304452259 Screw

52 # 5304452260 Wiring Harness, main

58 # 5304440870 Wire, high voltage-A

Publication No: 5995500872 PLMBZ209GCA

09/07 6

WIRING SCHEMATIC

Figure O-2 Oven Schematic - Cooking Condition

Figure O-1 Oven Schematic - Off Condition

SCHEMATIC

NOTE: CONDITION OF OVEN

1. Door Closed

2. CLOCK APPEARS ON DISPLAY

SCHEMATIC

3. VARIABLE COOKING CONTROL "HIGH"

2. COOKING TIME PROGRAMMED

1. DOOR CLOSED

NOTE: CONDITION OF OVEN

4. "START" PAD TOUCHED

Note:* Indicates component

NOTES:

1.CIRCUITS SUBJECT TO CHANGE WITHOUT NOTICE.

2.TERMINAL WITH PROJECTION OR OPPOSITE BLUE MARK ON LAMP SOCKET

MUST BE CONNECTED TO NEUTRAL WIRE.

3. ONLY CERTAIN MODELS USE THE ABSOLUTE HUMIDITY SENSOR.

4. POWER TRANSFORMER TOP (FINISH LEAD) TERMINAL MUST BE CONNECTED TO THE NEUTRAL ( WHT ) WIRE.

CAVITY

TEMPERATURE

FUSE

120VAC

60Hz

COM.

RED

WHT

GRY

BRN

WHT

ORG

RED

WHT

GRN

N.O.

CONTROL UNIT

MAGNETRON

TEMPERATURE

FUSE

N.O.

(RY2)

COM.

DOOR

SENSING

SWITCH

TTM FM

TURN

TABLE

MOTOR

FAN

MOTOR

OVEN

LAMP

MONITOR

SWITCH

PRIMARY

INTERLOCK

SWITCH

POWER

TRANSFORMER

MAGNETRON

HIGH

VOLTAGE

CAPACITOR

xx PF

ORG

WHT

SECONDARY

INTERLOCK

RELAY

ORG

BRN

ORG

RED

GRY

GND

WHT

SENSOR

(RY1)

OVEN

LAMP

RELAY

COM. N.O.

HUMIDITY

COM.

N.C.

HIGH

VOLTAGE

RECTIFIER

ORG

RED

PNK

GRN

BLK

WHT

NOISE

FILTER

MONITOR

FUSE (20A)

"TO LOAD"

"TO SOURCE" "TO SOURCE"

NOTES:

1.CIRCUITS SUBJECT TO CHANGE WITHOUT NOTICE.

2.TERMINAL WITH PROJECTION OR OPPOSITE BLUE MARK ON LAMP SOCKET

MUST BE CONNECTED TO NEUTRAL WIRE.

3. ONLY CERTAIN MODELS USE THE ABSOLUTE HUMIDITY SENSOR.

4. POWER TRANSFORMER TOP (FINISH LEAD) TERMINAL MUST BE CONNECTED TO THE NEUTRAL ( WHT ) WIRE.

CAVITY

TEMPERATURE

FUSE

120VAC

60Hz

COM.

RED

WHT

GRY

BRN

WHT

ORG

RED

WHT

GRN

N.O.

CONTROL UNIT

MAGNETRON

TEMPERATURE

FUSE

N.O.

(RY2)

COM.

DOOR

SENSING

SWITCH

TTM FM

TURN

TABLE

MOTOR

FAN

MOTOR

OVEN

LAMP

MONITOR

SWITCH

PRIMARY

INTERLOCK

SWITCH

POWER

TRANSFORMER

MAGNETRON

HIGH

VOLTAGE

CAPACITOR

xx PF

ORG

WHT

SECONDARY

INTERLOCK

RELAY

ORG

BRN

ORG

RED

GRY

GND

WHT

SENSOR

(RY1)

OVEN

LAMP

RELAY

COM. N.O.

HUMIDITY

COM.

N.C.

HIGH

VOLTAGE

RECTIFIER

ORG

RED

PNK

GRN

BLK

WHT

NOISE

FILTER

MONITOR

FUSE (20A)

"TO LOAD"

"TO SOURCE" "TO SOURCE"
