Gas Drop-In, Deep Sump Cooktop
E30GC70FSS
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
E30GC70FSS 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Gas Drop-In, Deep Sump Cooktop Specifications
•
Product Weight – 43 Lbs.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.001kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.)
•
Amps @120 Volts = 0.008 Amps
•
Always consult local and/or national electric and gas codes.
•

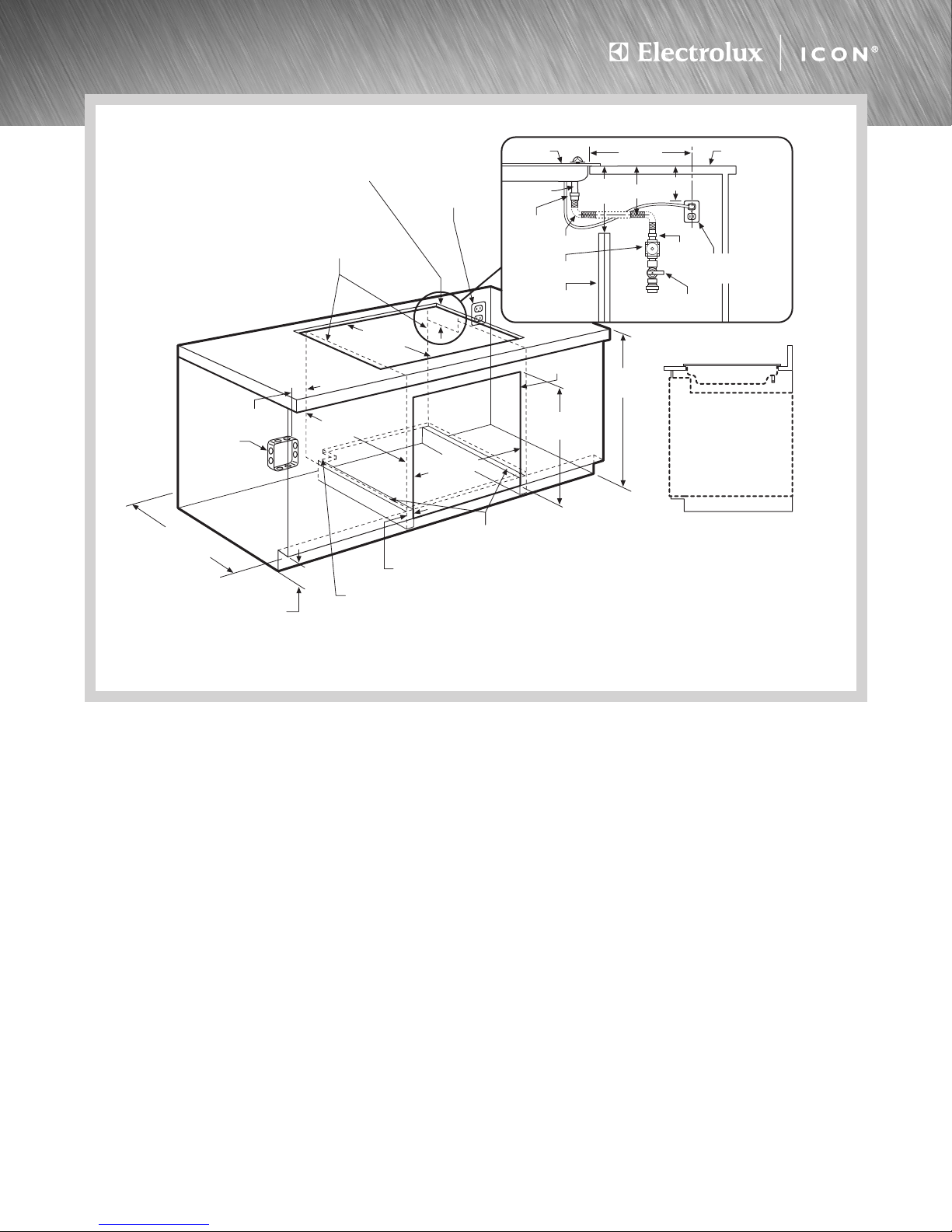

Recommended location for grounded 120V outlet is on rear wall in an
8" wide by 10" high area, positioned 22" above floor surface and
12" to right side of cooktop centerline. Access to underside of cooktop
and junction box must be provided for inspection and service.
•
Cooktop ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•

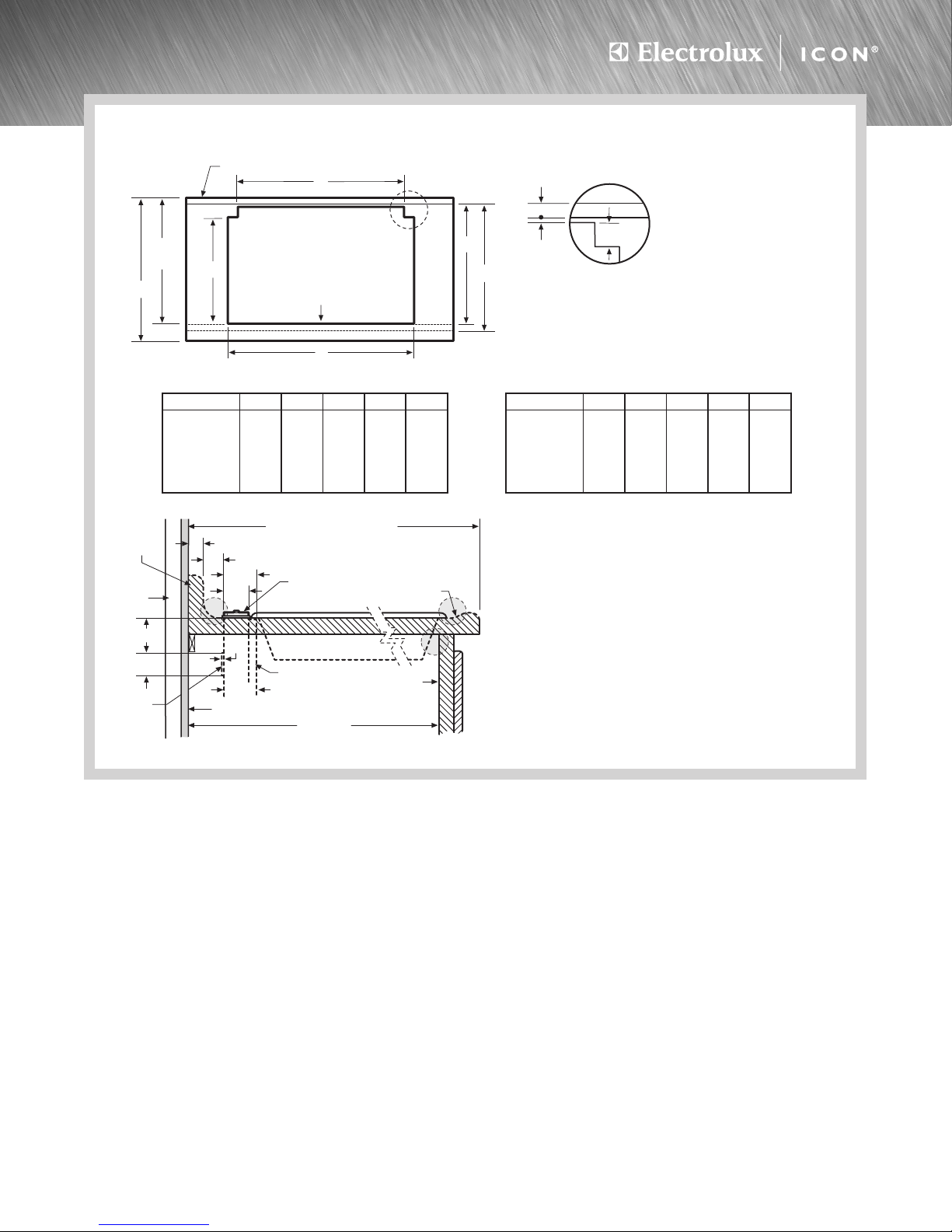

Allow 2-1/2" minimum distance between rear edge of cutout to nearest
combustible surface above countertop.
•
Allow 7" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
Drawers cannot be installed beneath this cooktop.
•

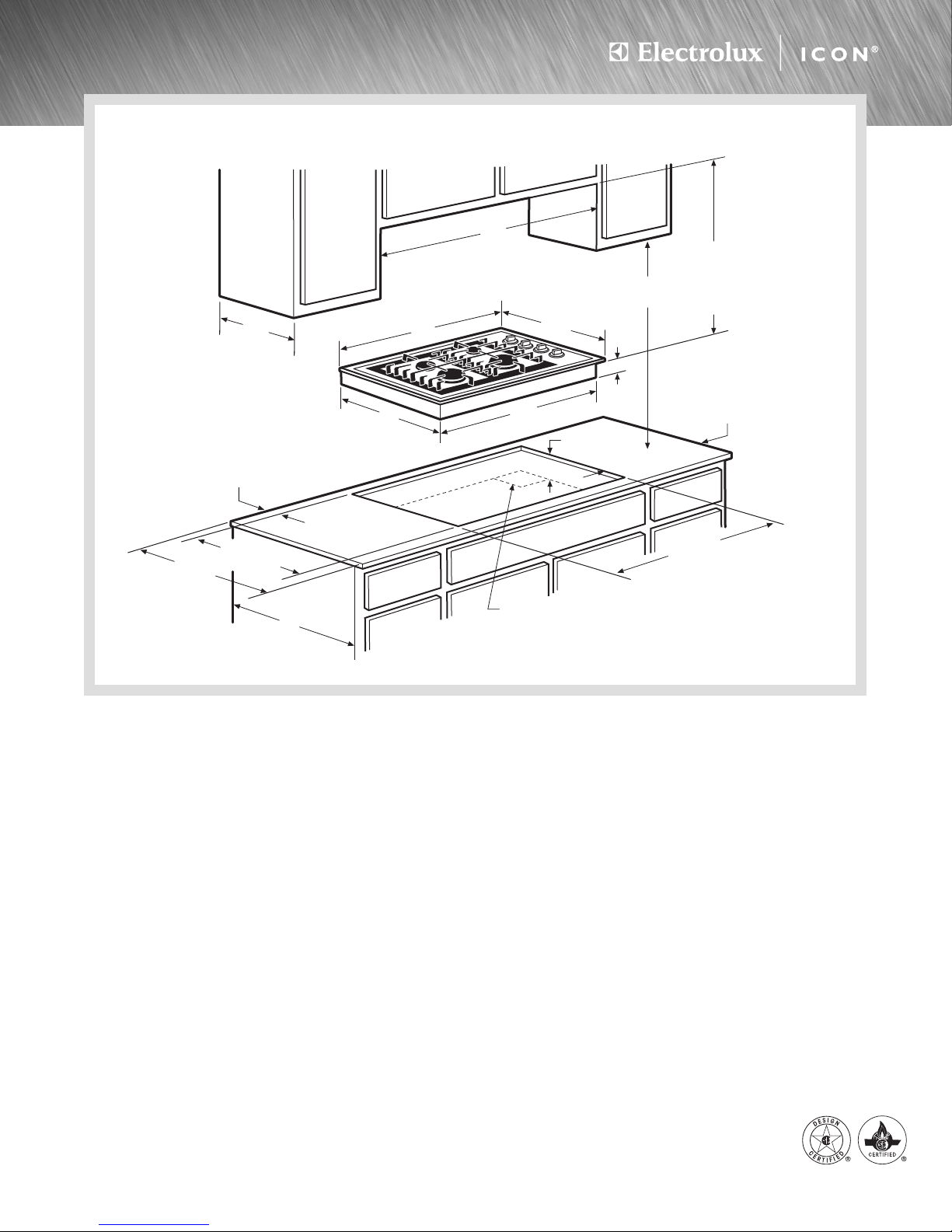

To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Gas Drop-In, Deep Sump Cooktop model E30GC70FSS is approved to
be used over any Electrolux ICON®Single Wall Oven. (Refer to Gas
Cooktop Installation Over 30" Electric Single Wall Oven Specifications
page on web.)
•
Gas Drop-In, Deep Sump Cooktop model E30GC70FSS is approved
to be used in combination with an Electrolux ICON®30” Downdraft
Vent. (Refer to Drop-In Cooktop / Downdraft Vent Countertop
Preparation page on web for detailed installation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903103-9010).
•
Grill/Griddle – (PN # 318251603).
•
Simmer Plate – (PN # 318254200).
•
Wok Ring – (PN # 318254301).
•
Black Burner Knob Kit – (PN # 318242222).
