Electrohome 27E604HD User manual
27E604HD
27 Inch LCD Television
• High Resolution 1366 x 768
• Picture In Picture; PIP, POP and PBP
• "U-VM" Detection & Recovery
• Di²-E Technology
• HDMI (High-Definition Multimedia Interface)
USER MANUAL

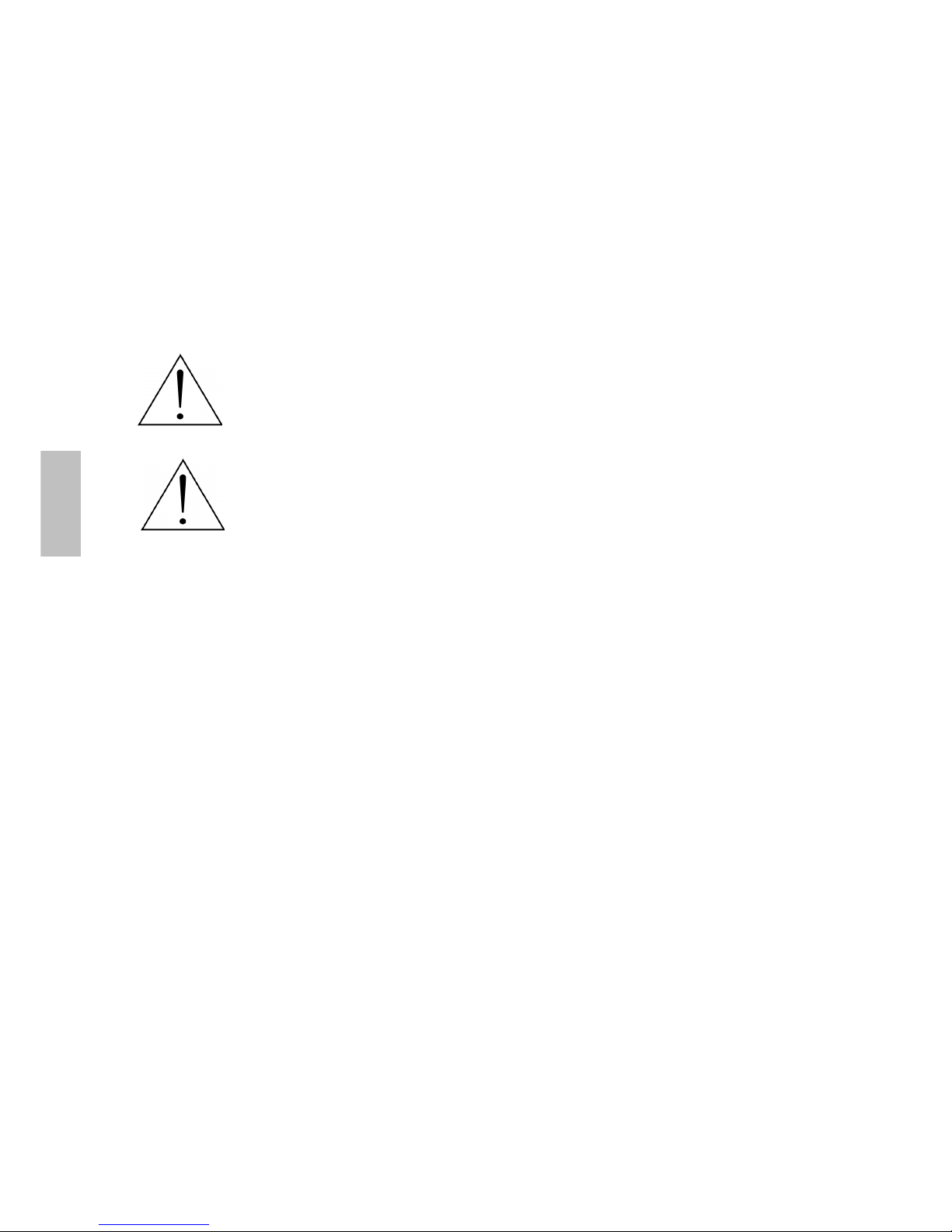

Explanation of WARNING Symbols
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence dangerous voltage within the
inside of the product that may be sufficient level to constitute a risk of electric
shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and servicing instructions.
Safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this LCD TV near water.
6) Clean only with dry cloth. Do not use liquid, alcohol, or aerosol cleaners.
7) Do not block any ventilation openings. Install your LCD TV in a well ventilated
area.
8) Keep your LCD TV away from moisture, excessive dust and any heat sources,
such as radiators, heat registers, stoves, or any other apparatus (including
amplifiers) that produce heat.
9) Do not remove the back cover. There are no user-serviceable parts inside.
10) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
11) Protect the power cord from being walked on or pinched particularly at plugs,
receptacles, and the point where they exit from the LCD TV.
12) Never rest objects on the power cord or place it in high traffic areas.
13) Only use attachments/accessories specified by the
manufacturer.
14) Use only with stand, tripod, bracket, or table specified by
the manufacturer, or sold with the LCD TV. When a cart is
used, use caution to avoid injury from tip-over.
15) Unplug this LCD TV during lightening storms or when
unused for long periods of time.
16) Refer all servicing to qualified service personnel--
Servicing may be required if the LCD TV has been damaged in any way, such as
power-supply cord or plug damage, liquid has been spilled or objects have fallen
into the LCD TV, the LCD TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.
English
17) Do not expose your LCD TV to dripping or splashing, and do not place objects
filled with liquids on it.
18) The Shock Hazard Marking and Associated Graphical Symbol are provided on the
back panel of unit.
19) This product is only to perform the useful function of entertainment and visual
display tasks are excluded.
20) Wall or ceiling mounting: When mounting the product on a wall or ceiling, be sure
to install the product according to the method recommended by the manufacturer.
Use only the mounting hardware recommended by the manufacturer. This is a
safety feature.
CAUTION: Any damage caused by incorrectly attempting to mount this
LCD TV is not covered under the terms of the manufacturers warranty.
WARNING: To reduce the risk of fire or electric shock, do not expose this
LCD TV to rain or moisture.
English
Content
ACCESSORIES................................................................................................................. 1
FRONT PANEL BUTTONS ................................................................................................ 2
BACK PANEL BUTTONS................................................................................................... 3
REMOTE CONTROL......................................................................................................... 4
INSTALLATION.................................................................................................................. 6
Connecting RF antenna, Cable TV Wire..................................................................... 6
Connecting to DVD / Set Top Box............................................................................... 6
Connecting to External Stereo System to Listen to LCD TV Sound............................ 7
Connecting to the Headphone .................................................................................... 8
Connecting to a Computer.......................................................................................... 8
PC Audio In................................................................................................................. 8
Connecting with the power cord ................................................................................. 9
BASIC OPERATION ........................................................................................................ 10
Turning on the LCD TV............................................................................................. 10
Power On/Off............................................................................................................ 10
Select input source ................................................................................................... 10
Volume Adjusting ...................................................................................................... 10
INFO......................................................................................................................... 10
TV............................................................................................................................. 10
Picture .......................................................................................................................11
Sound ........................................................................................................................11
Channel Select ..........................................................................................................11
Sleep Time Setting.....................................................................................................11
Zoom .........................................................................................................................11
Favorite Channel .......................................................................................................11
Freeze Picture ...........................................................................................................11
Using the OSD function .............................................................................................11
ADVANCED OPERATION—OSD MENU ........................................................................ 12
Video Menu............................................................................................................... 12
Audio Menu .............................................................................................................. 12
TV Menu................................................................................................................... 13
Setup Menu .............................................................................................................. 13
VGA Menu ................................................................................................................ 15
ADVANCED OPERATION ............................................................................................... 15
PIP/PBP.................................................................................................................... 15
TECHNICAL SPECIFICATION ........................................................................................ 17
SAFETY PRECAUTIONS ................................................................................................ 18
CARE AND MAINTENANCE ........................................................................................... 19
TROUBLESHOOTING..................................................................................................... 19
ELECTROHOME WARRANTY........................................................................................ 20
English
1
ACCESSORIES
Thank you for purchasing this LCD-TV.
This LCD-TV package comes with:
LCD TV
User’s Guide book
Remote control
Battery AAA x 2
Power Cord
VGA Cable
RCA A/V Cable
English

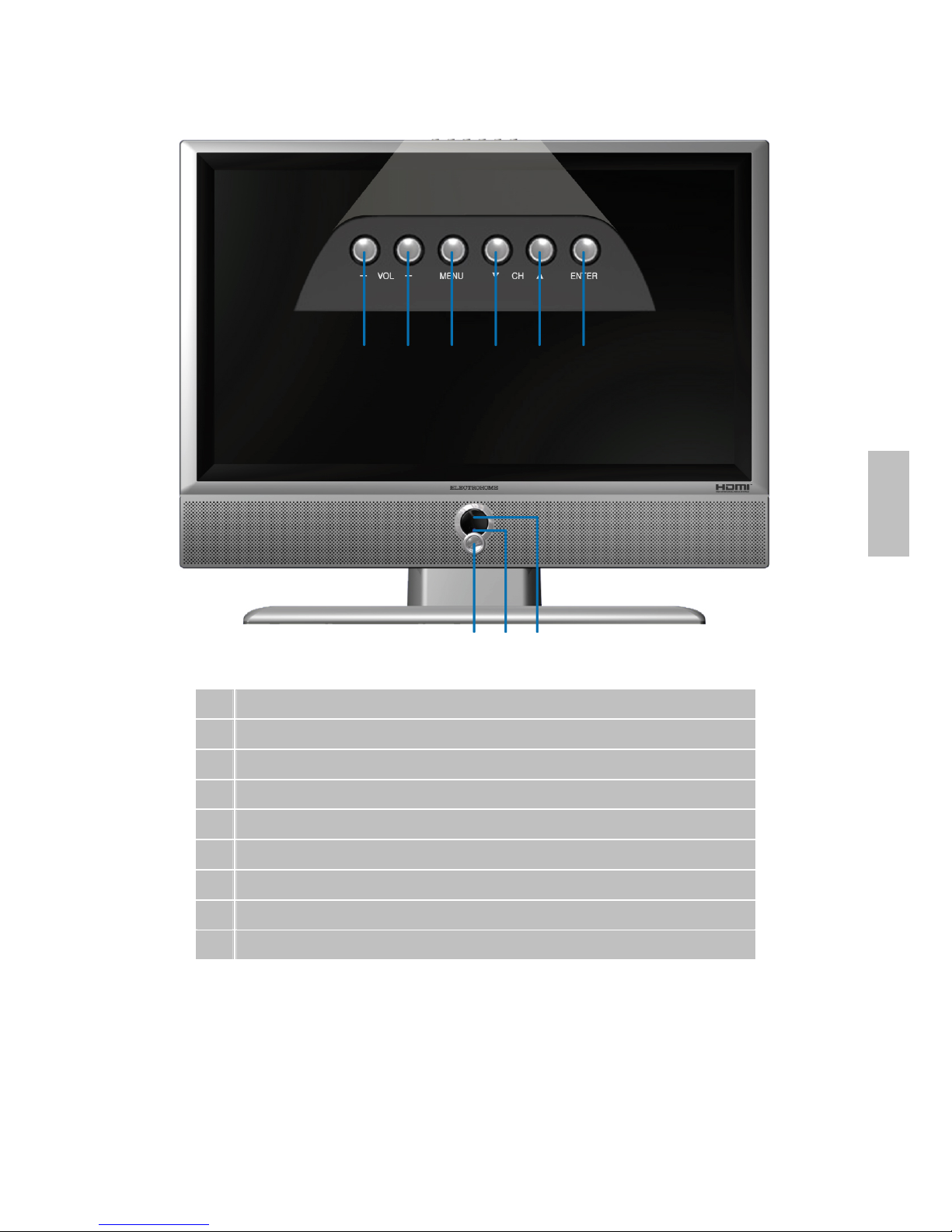

FRONT PANEL BUTTONS
Volume Down
Volume Up
On Screen Display Menu On/Off
CH Down
CH Up
Enter
Power ON/OFF button
Power LED Indicator
❾Remote Control Receiver
Note:
1. Press
VOL+ and MENU buttons at the same time to lock power button,
and press VOL+ and MENU buttons again to unlock it.
2. Press
VOL- and VOL+ buttons at the same time to lock OSD menu,
and press VOL- and VOL+ buttons again to unlock it.
2
English

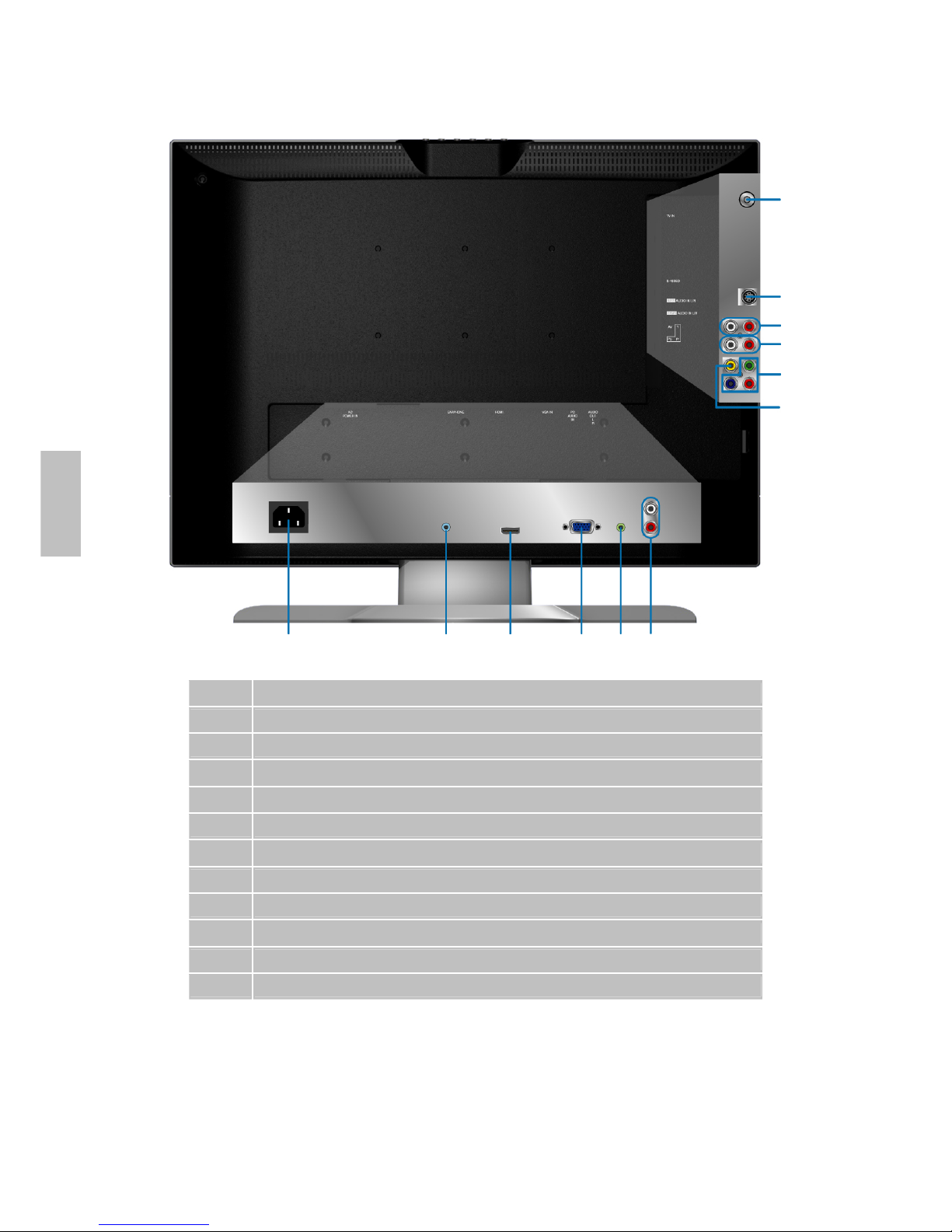

BACK PANEL BUTTONS
A Analog TV input
B S-Video input
C A/V and S-Video signal Audio input (left/right)
D YPbPr signal Audio input (left/right)
E YPbPr signal input
F Composite Video input
G Audio output
H PC Audio input
I VGA signal input
J HDMI Input Terminal
K Headphone Jack
L Power (AC input)
3
A
B
C
D
E
F
LKJIH G
English
REMOTE CONTROL
4
English
5
Remote control button function as follows:
1 POWER Power ON/OFF
2 MTS Select Mono, Stereo or SAP in TV
3 INFO Display current information
4 SLEEP Set TV Sleep timer
5 SOUND Select sound modes
6 0~9, 100/- number
button
Direct channel select
7 VOL+ and VOL- Adjust volume UP/DOWN
8 FAV.A/D To skip or restore Favorite Channels
9 UP/ DOWN/ LEFT/
RIGHT/ ENTER
UP/ DOWN/ LEFT/ RIGHT: Navigate and adjust OSD function
ENTER: Enter the function setting
10 INPUT Input source select
11 ZOOM Adjust window size
12 FREEZE “Freeze-Frame” the current screen
13 P. POS Adjust sub-screen window position
14 C.C Displaying captions during closed caption source and closed
caption mode select
15 P.S I ZE Adjust sub-screen window size
16 MUTE Volume mute ON/OFF
17 TV Swap to TV when in other source
18 PICTURE Select picture modes
19 RETURN Return to previous channel
20 CH▲and CH▼Adjust Channel UP/DOWN
21 FAV. CH Select from preset Favorite Channels
22 MENU On Screen Display (OSD) menu ON/OFF
23 WIDE Change the image size
24 PIP/POP Toggle to enable/disable Picture in Picture/Picture by Picture
function
25 P.INPUT POP/PIP input source select
26 LOCK Set program lock
27 SWAP Switch between main screen and sub-screen
English

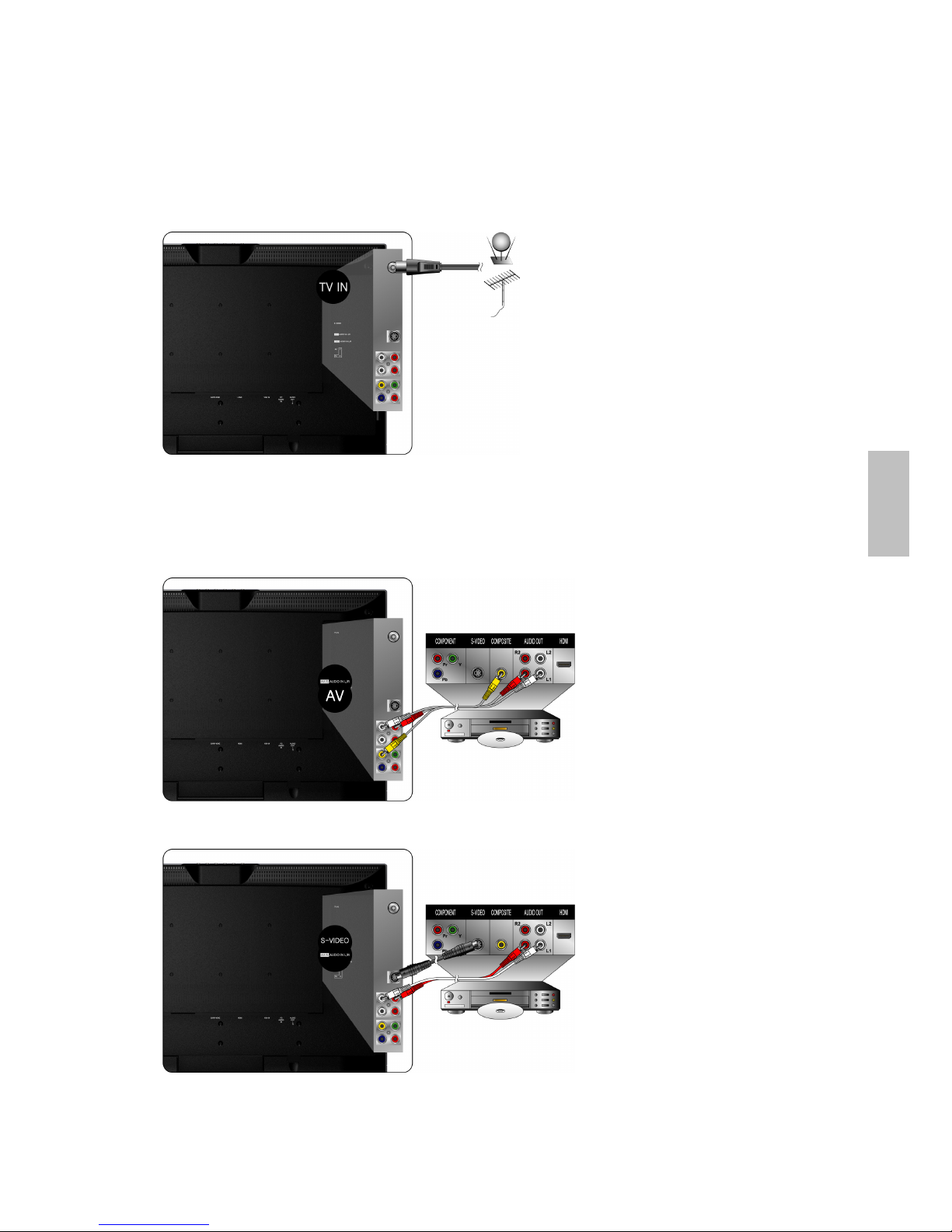

INSTALLATION
Connecting RF antenna, Cable TV Wire
Make sure the power is OFF before installing your LCD TV.
Connect the LCD TV to TV antenna or set-top-box with 75-ohm coaxial cable. Preset the TV
channels into memory with AUTO SCAN function when using an antenna or cable TV system
without a cable connecter box (See page 13).
RF Cable or Adapter
(not supplied)
Connecting to DVD / Set Top Box
Connect Video/Audio cables from compatible devices into the back panel of LCD TV.
1) With AV cable:
2) With S-Video cable:
6
RCA A/V Cable
VCR or DVD Player
S-Video Cable (not supplied)
Audio in Cable
(not supplied)
VCR or DVD Player
English
