Electro-Voice FRi-152/85 User manual
Technical Specifications
The Fri series of Professional Fixed Install Speakers deliver
a broad range of performance options including multiple horn
patterns, easily switchable passive or bi-amp operation, and
EV’s World renown transducer technology for response that
is smooth and linear. The Fri-152/85 is an economical and
flexible solution for the most demanding installations.
Offering superior performance, the Fri-152/85 is equipped
with twelve 3/8-16 threaded suspension points for easy
flying and each cabinet includes 3, 3/8" forged eye-bolts for
convenience. All Fri series speakers have a vertical box
height of 28" allowing neat, concise and visually appealing
arrays. The structural integrity of the Fri cabinets allow for
vertical arrays up to 3 boxes in height. Fri speakers are
specifically recommended for demanding, cost conscious
installations such as Houses of Worship, Nightclubs, Live
Music Venues, and mutli-use spaces such as Gymnasiums
and Auditoriums. All Fri speakers employ EV’s exclusive
Ring Mode Decoupling (RMDTM) and high performance,
World Class EV transducer design and technology to
ensure maximum speech intelligibility and musical clarity.
Additionally, all Fri systems are available in Black, White
and Unfinished options.
esnopseR.qerF
1
:)Bd3-(zHk51-zH24
egnaR.qerF
1
:)Bd01-(zHk61-zH03
:LPSdetaluclaCxaMBd921
:egarevoClatnoziroH°08
:egarevoClacitreV°55
:gnildnaHrewoPFLkaePW0041,suounitnoCW053
:gnildnaHrewoPFHkaePW061,suounitnoCW04
:ytivitisneS)m1/W1(Bd89
:recudsnarTFLsmho8,revirD)mm003("51HFB51LD
:recudsnarTFHnoisserpmoCtixe)mm15("2t2HD
smho8,revirD
:srotcennoCspirtsreirrabowT
:lairetaMerusolcnEdoowylpdetanimal-niarg-ssorcylp-7
:ellirGleetsAG61detarofrepdetaoCredwoP
:cepSlatnemnorivnE42PI925CEI
:)DxWxH(miD"42.32x"71.91x"29.72
)mm095xmm784xmm117(
:)hcae(thgieWteN)gk3.72(sbl06
:thgieWgnippihS)gk7.23(sbl27
General Description
FRi-152/85
15-Inch Two-Way Full-Range
Passive or Active
Speaker System
Key Features
• Compact, Easily Arrayable Cabinets
• RMDTM –Ring Mode Decoupled
• 2" Pure Titanium HF Compression Driver
• Switchable Passive or Active Operation
• Available in Black, White or Unfinished
• Cloth Coverable Grills
• Paintable Enclosure
• 12 Threaded Suspension Points
1 Half Space Measurement.

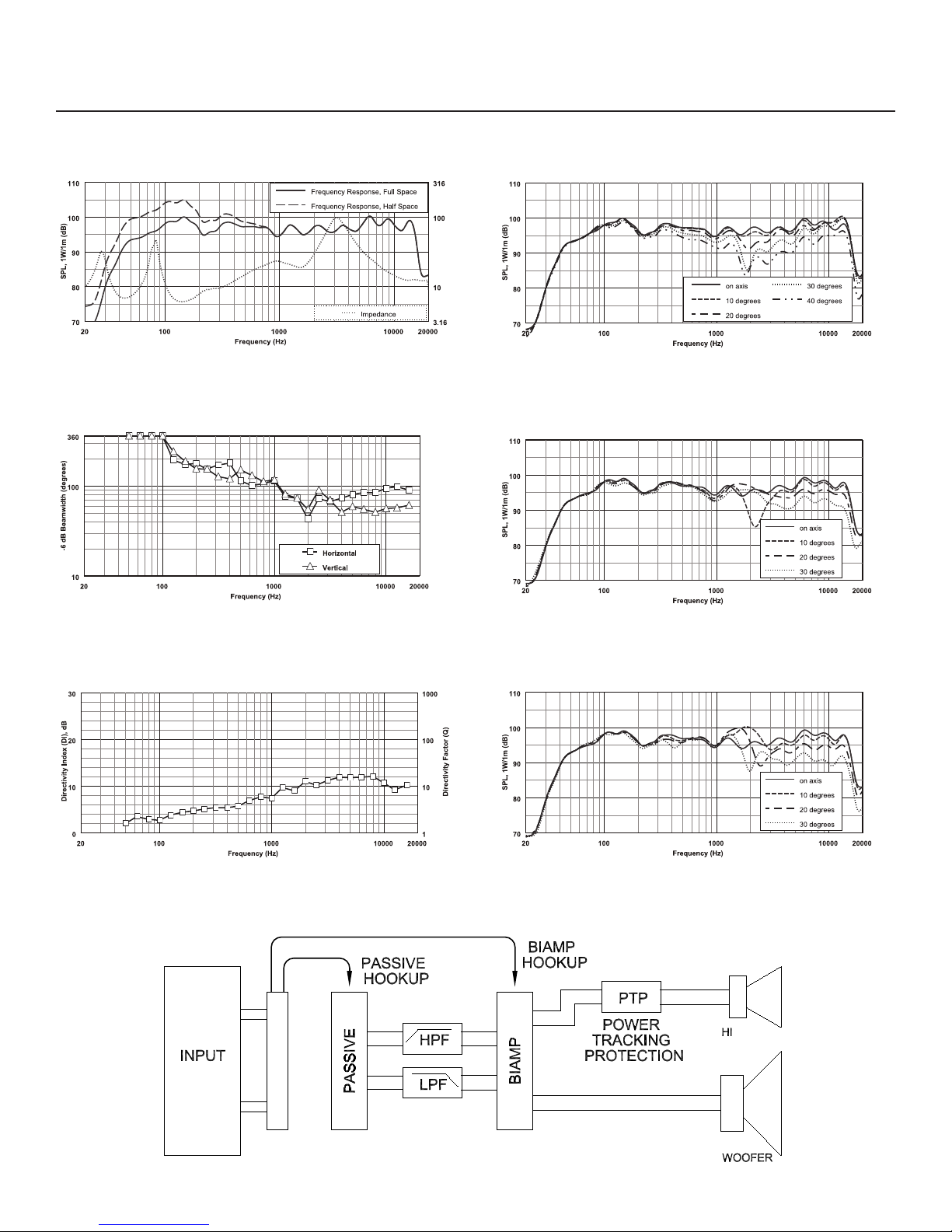

Horizontal Off Axis Frequency Response:Frequency Response:
Vertical Off Axis Frequency Response (up):Beamwidth:
Vertical Off Axis Frequency Response (down):Directivity:
Block Diagram:
FRi-152/85 Full Range Loudspeaker
Horizontal 1/3 Octave Polars: Vertical 1/3 Octave Polars:
Engineering Data Sheet
Dimension Drawings:
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 736-4212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 2/2003
Part Number 38110-136 Rev. A
Architectural & Engineering Specs:
The two-way full range loudspeaker system shall incorporate a 15” LF transducer and a 2” (51mm) voice coil HF compression
driver. The LF driver shall be mounted in a vented enclosure tuned for optimum low-frequency response. The HF driver shall be
loaded on a constant-directivity horn with a nominal coverage pattern of 80° (h) x 55° (v). An internal passive filter network shall
provide acoustical crossover and system equalization. Input panel shall easily change from passive to biamp operation via
internal connector. System frequency response shall vary no more than +/-3 dB from 42 Hz to 15 kHz measured on axis. The
loudspeaker shall produce a sound pressure level (SPL) of 98 dB on axis at 1 meter. It shall handle 350 watts of amplifier power
long term (EIA Standard), and shall have a nominal impedance of 8 ohms. The loudspeaker enclosure shall be trapezoidal in
shape. It shall be constructed of 7-ply cross-grain-laminated plywood and shall employ extensive internal bracing. It shall be
finished in aliphatic polyurethane. Input connectors shall be two at 2 terminal barrier strips. A total of twelve 3/8-16 threaded
mounting/suspension points shall be provided, (three each on top and bottom, two per side, two on rear). The front of the
loudspeaker shall be cloth coverable with a powder-coated perforated 16 GA steel grille.
The two-way loudspeaker shall be the Electro-Voice model FRi-152/85.
Front View Side View
Top View
FRi-152/85 Part Numbers
• 1152-3393 - Unfinished
• 1152-3386 - Black
• 1152-3387 - White
