Elation Design LED 36 Brick User manual

Rev. 1/4/2010 – visage

Design LED 36 Brick

Elation Professional™

6122 S. Eastern Ave.

Los Angeles, Ca 90040

www.elationlighting.com

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 1 www.ElationLighting.com

TABLE OF CONTENS

1. General Information……………………………………………………………………… 2

a. Introduction………………………………………………………………………. 2

b. Unpacking………………………………………………………..…...………..…2

c. Customer Support…………………………………………….………………… 2

d. Warranty Registration……………………………………………….……..…… 3

2. Safety Instructions………………………………………………………........…………. 4

3. Features……………………………………………………………………………………6

4. General Guidelines………………………………………………………………………. 7

5. Fixture Overview…………………………………………………………………………. 8

6. Mounting and Installation…………………………………………………….…….…….10

a. Yoke Assembly…………………………………………………….……………..10

b. Mounting Positions……………………………………………….………………12

c. Mounting Points…………………………………………………………………. 13

d. Clamp Mounting…………………………………………………………………. 14

e. Securing………………………………………………………………………….. 14

7. Understanding DMX……………………………………………………………………... 15

a. DMX Connections………………………………………………………………. 16

b. DMX Terminator………………………………………………………………….17

c. 3-Pin to 5-Pin Conversion……………………………………………………….17

d. Fixture DMX Addressing.……………………………..…………………………17

8. Fixture Menu..…………………………………………………………………………… 19

9. DMX Traits…………………………………………………………………………………21

a. 3-Channel Mode………………………………………………………………… 21

b. 4-Channel Mode…..…………………………………………………………..… 22

c. 6-Channel Mode………………………………………………………………….23

d. 12-Channel Mode…..…………………………………………………………… 24

e. 15-Channel Mode…..…………………………………………………………… 27

10. Lens Replacement……… ……………………………………………………………… 30

11. Cleaning and Maintenance………………………………………………………………31

12. Warranty…………………………………………………………………………………...32

13. Photometric Data………………………………………………………………………… 34

14. Dimensional Drawings………………………………………………….……………….. 36

15. Circuit Schematic………...……………………………………………………………….37

16. Technical Specifications…………………………………………...………….………… 38

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable LED fixtures on the market today! The Design LED 36 Brick,™ has been designed to

perform reliably for years when the guidelines in this booklet are followed. Please read and

understand the instructions in this manual carefully and thoroughly before attempting to

operate this unit. These instructions contain important information regarding safety during

use and maintenance.

UNPACKING: Thank you for purchasing the Design LED 36 Brick™ by Elation

Professional®. Every Design LED 36 Brick™ has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping carton for damage that

may have occurred during shipping. If the carton appears to be damaged, carefully inspect

your fixture for damage and be sure all accessories necessary to operate the fixture have

arrived intact. In the event damage has been found or parts are missing, please contact our

customer support team for further instructions. Inside the box you should find: the fixture, a

DMX XLR cable, a safety cable, and this manual. Please do not return this unit to your

dealer without first contacting customer support at the number listed below.

CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up

or initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to

rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com

yourself. Doing so will void your manufactures warranty.

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The Design LED 36 Brick™ carries a two year (730 days)

limited warranty. Please fill out the enclosed warranty card to validate your purchase. All

returned service items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number must be clearly written

on the outside of the return package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and included in the shipping

container. If the unit is under warranty, you must provide a copy of your proof of purchase

invoice. Items returned without a R.A. number clearly marked on the outside of the package

will be refused and returned at customer’s expense. You may obtain a R.A. number by

contacting customer support at (323) 582-3322.

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com

2. SAFETY INSTRUCTIONS

To guarantee proper and consistent operation, it is important to

follow the guidelines in this manual. Elation Professional will not

accept responsibility for damages resulting from the misuse of

this fixture due to the disregard of the information printed in this

manual.

1. Always be sure that the fan and the air inlets remain clean and are never

blocked. Allow about 6” (15cm) between this fixture and other devices or a wall

to allow for proper cooling.

2. Never touch the fixture during normal operation.

3. Never look directly into the light source. You risk injury to your retina, which may

induce blindness.

4. For safe operation, follow the Installation guide described in chapter two of this

manual. Operating the Design LED 36 Brick™ without suited safety aids such

as safety cables or clamps can increase the risk of damage and/or personal

injury.

5. Qualified and certified personnel should only perform installation.

6. When mounting this fixture, use only the original rigging points included with this

fixture. Any structural modification will void the original manufactures warranty

and may increase the risk of damage and/or personal injury.

7. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.

8. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

9. Never open this fixture while in use.

10.This device falls under protection-class I. Therefore it is essential that the device

be grounded properly.

11.Qualified personnel should perform all electrical connections.

12.Be sure the available voltage matches the voltage requirements of the unit. Be

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com

sure the power cord is never crimped or damaged. If the power cord is damaged,

replace it immediately with a new one of similar power rating.

13.Always disconnect from main power before performing any type of service or

any cleaning procedure.

14.Only handle the power cord by the plug. Never pull out the plug by tugging the

wire portion of the cord.

15.Please be aware that damages caused by modifications to the device are

not subject to warranty.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com

3. FEATURES

• 25˚ Lens Kit Standard (14˚ Beam Angle)

• 45˚ Optional Lens Kit (15˚ Beam Angle)

• Minimal heat emission

• Maintenance free operation

• Equipped with 12 3-Watt LEDs (4 x Red, 4 x Green, 4 x Blue)

• 100,000 hours rated LED life

• Seamless RGB color changing

• USITT DMX-512 Complaint

• Preprogrammed colored macros

• Strobe-effect with a maximum flash rate of 18fps

• DMX-controlled operation or stand-alone operation with Master/Slave-function

• 8 built-in programs can be called up via DMX-controller

~ 48 preprogrammed scenes per a program

• Sound-controlled via built-in microphone

• Five DMX Control Modes:

15 DMX channels

12 DMX channels

6 DMX channels

4 DMX channels

3 DMX channels

• DMX-control via standard DMX-controller

• 3-pin and 5-pin DMX connectors

• Flicker-free operation for television and film

• Compact design: fits in 12” box truss

• Brilliant light output

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, and other types of architectural installations. Do not attempt operation or

installation without a proper knowledge on how to do so.

This fixture was designed for indoor use only; use of this fixture outside will void the

manufacture’s warranty.

Consistent operational breaks will ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around. Avoid brute force when installing or operating the fixture.

While choosing an installation location, please be sure that the fixture will not be exposed to

extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or flat

surface should be at least 0.5 meter (about 1.5ft).

Always install the fixture with an appropriately rated safety cable. When installing the fixture

in a suspended environment always be sure to use mounting hardware no less than M10 x

25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.

Do not attempt to operate this fixture until you have familiarized yourself with all of its

functions.

Do not permit operation by persons not qualified for operating this type of theatrical fixture.

Most damages are the result of improper operation.

Please use the original packaging to transport the fixture in for service.

For your own safety, please read this user manual carefully before installing the device.

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com

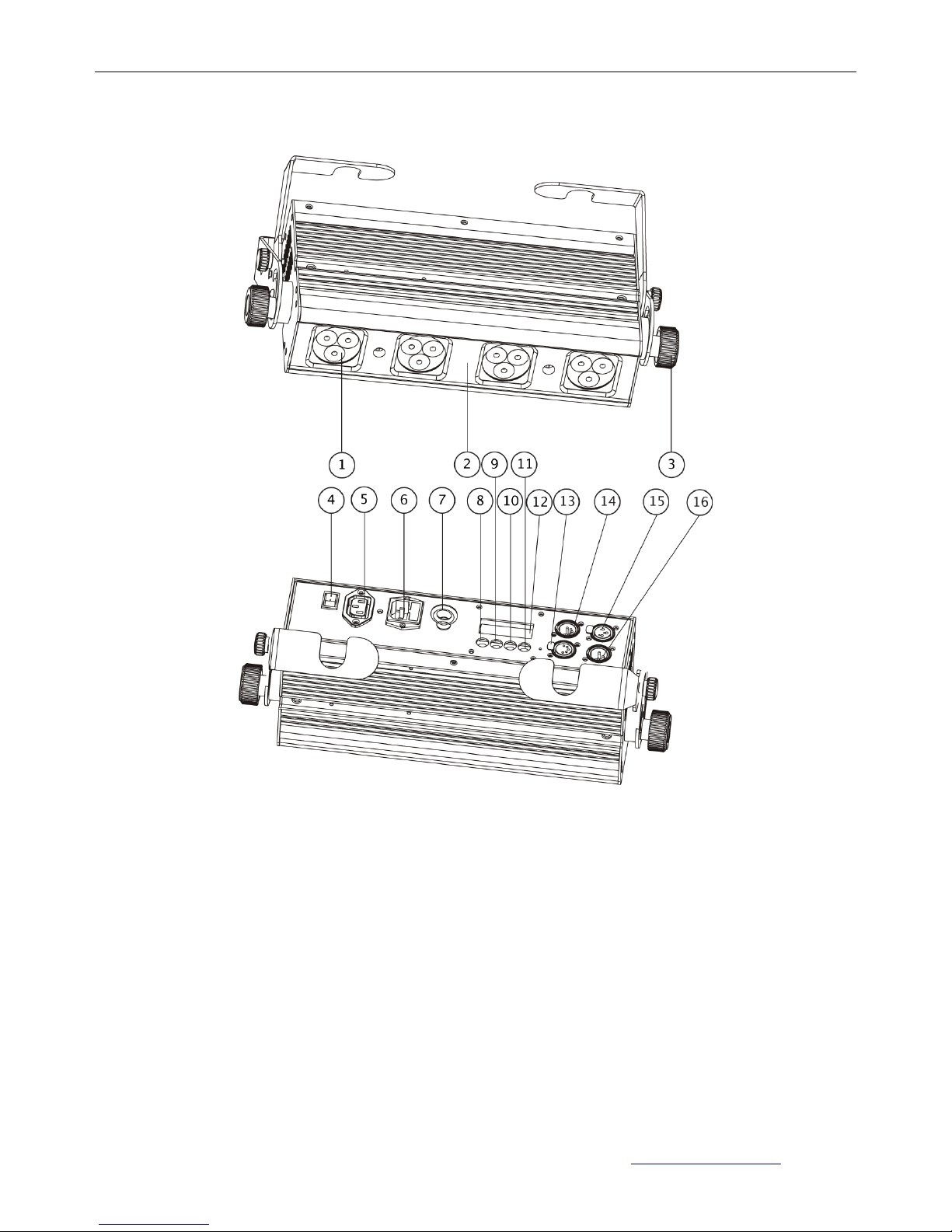

5.FIXTUREOVERVIEW

1. LED Lens Assembly – The lens assembly may be user replaced in the event repair

is needed or a different beam angle is required.

2. Lens Cover –This cover holds the lens assemblies in place and is easily removed.

3. Hanging Bracket Locking Knob – This knob is used to secure the hanging bracket

in to place.

4. On/Off Power Switch – Controls main power to the unit.

5. Power Output Jack – Use this jack to jump power to another Design LED 36 Brick™

DESIGN LED 36 BRICK™

©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com

in an array system.

6. Power Input/Fuse Holder Assembly – This assembly holds the safety fuse and

provides a female IEC connector for power. If needed, always replace fuse with an

exact match unless otherwise specified by an Elation Service Technician. Using a

fuse other than that specified could damage the unit and will void your warranty.

7. Eyebolt – Use this bold as a safety-cable rigging point. Always secure any

installation with a properly rated safety-cable.

8. Menu Button – This button is used to access the fixtures menu functions.

9. Up Button – The up button is used to toggle forward through the menu functions and

settings.

10. Down Button – The down button is used to toggle backwards through the menu

functions and settings.

11. Enter Button – The enter button is used to enter in to a certain menu function or to

lock a menu setting in to memory.

12. LED Display – 4-segment menu display. Used to display the DMX address as well

as all other menu functions.

13. 5-pin DMX In Jack – This jack accepts an incoming DMX signal via a male, 5-pin

XLR jack.

14. 5-pin DMX Out Jack –This jack is used to send an incoming DMX signal to the next

fixture in the DMX chain via a female, 5-pin XLR jack.

15. 3-pin DMX Out Jack –This jack is used to send an incoming DMX signal to the next

fixture in the DMX chain via a female, 3-pin XLR jack.

16. 3-Pin DMX In Jack – This jack accepts an incoming DMX signal via a male, 3-pin

XLR jack.

Other manuals for Design LED 36 Brick

Table of contents

Other Elation Lighting Equipment manuals

Elation

Elation Opti Tri 30 User manual

Elation

Elation Outdoor LED Par Fixture ELAR EXPAR User manual

Elation

Elation Opti Quad Par User manual

Elation

Elation KL PANEL XL IP User manual

Elation

Elation ELED PAR RGB ZOOM User manual

Elation

Elation Color Spot 575 User manual

Elation

Elation Power Spot 700 CMY II User manual

Elation

Elation PLATINUM BX User manual

Elation

Elation Opti Tri White Par User manual

Elation

Elation ELAR EXFLOOD User manual

Elation

Elation Active Wave 250 User manual

Elation

Elation Design LED Panel 72IP MKII User manual

Elation

Elation Design LED 36MH User manual

Elation

Elation Design Spot 300E User manual

Elation

Elation Joy 150 User manual

Elation

Elation CUEPIX STRIP TRI User manual

Elation

Elation FUZE PAR Z175 User manual

Elation

Elation EVENT PANEL SYSTEM User manual

Elation

Elation EVENT PANEL SYSTEM User manual

Elation

Elation EPAR QA User manual

Elation

Elation SHOW DESIGNER 2CF User manual

Elation

Elation Level Q7 IP User manual

Elation

Elation RGB Lamp User manual

Elation

Elation Uni-Pack II User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
