Ekotape 212 User manual

PHoToFACT* FolJ"t EKOTAPE

MODET 2t2

JACK VOTUME

CONTROL

CONTROT -tINE

CORD

RECEPTACAL

CONTROL

KNOB

REMOTE

CONTROT

Figure 1

GENERAL INFORMATION

The Webster Electric Ekotape Recorder Model?LZ is for custom installation and has no

cabinet, orcarryingcase. TheModel2l2isdesignedto record and ptay back two tracks of mate-

rialonstandardwidthrecordingtape, which doubles the playing time of a standard 5'* or ?t'reel

of tapewithnolossoffrequency response or quality. Recording can be made from a radio, tele-

vision receiver or phonograph, in addition to those made directly from the microphone.

The Model 2t2 has two tape speeds, 3 3/4" and 7 112" per second. Using both tracks of

the taperrecording time is as follows:

MIKE

INPUT RECORD

tISTEN

CONTROT ON.OFF

swlTcr-l

SPEAKER

ON.OFF

SWITCH

lll p

ce{

)o!

I lll

t\'

Size Reel

5tt

3 3/4"Speed

t hour

2 hours

? 1/2"Speed

1/2 hour

t hour

Thisunitisdesignedto operate on 60 cycle, 115 volts, AC supply only. Before connecting

to your line supply, be absolutely certain that it agrees with the above specifications.

Manufactured by:

Webster Electric Company

Racine, Wisconsin

Fhis moteriol compiled ond published by

sAils & co., lNc., INDIANAPOLIS, INDIANA

DATE 12 - 55 $rT 301 TOTDER 1

HOWAR.D lf.

1e1;;;1r1e:1yi1+1.1;y1=;* ffi

. . :, : i:l;:i,::, .:::.I:::i:::a::i.i:::#

r1 *{i?

$il

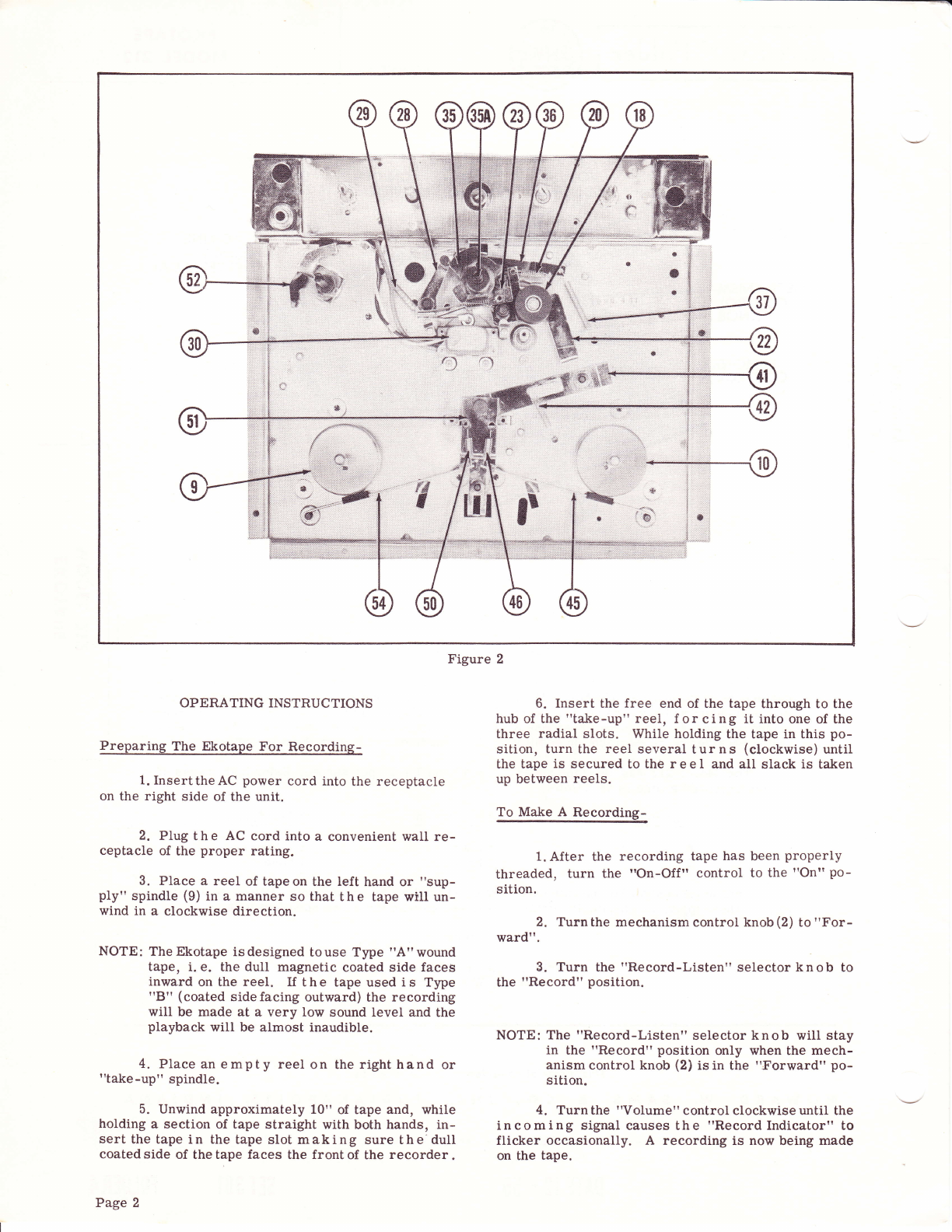

Figure 2

OPERATING INSTRUCTIONS

Preparing The Ekotape For Recording-

1. InserttheAC power cord into the receptacle

on the right side of the unit.

2. Plug t h e AC cord into a convenient wall re-

ceptacle of the proper rating.

3. Place a reel of tape on the left hand or "sup-

ply" spindle (9) in a manner so that the tape will un-

wind in a clockwise direction.

NOTE: The Ekotape isdesigned touse Type "A"wound

tape, i. e. the dull magnetic coated side faces

inward on the reel. If t h e tape used i s Type

"8" (coated side facing outward) the recording

will be made at a very low sound level and the

playback will be almost inaudible.

4. Place an empty reel on the right hand or

"take-up" spindle.

5. Unwind approximately 10" of tape and, while

holding a section of tape straight with both hands, in-

sert the tape in the tape slot making sure the dull

coated side of the tape faces the front of the recorder.

Page 2

6. Insert the free end of the tape through to the

hub of the "take-up" reel, f orcing it into one of the

three radial slots. While holding the tape in this po-

sition, turn the reel several turns (clockwise) until

the tape is secured to the r e e I and all slack is taken

up between reels.

To Make A Recording-

1. After the recording tape has been properiy

threaded, turn the "On-Off" control to the "On" po-

sition.

2. Turn the mechanism control knob (2) to "For-

ward".

3. Turn the "Record-Listen" selector knob to

the "Record" position.

NOTE: The "Record-Listen" selector knob will stay

in the "Record" position only when the mech-

anism control knob (2) is in the "Forward" po-

sition.

4. Turn the "Volume" control clockwise until the

incoming signal causes the "Record Indicator" to

flicker occasionally. A recording is now being made

on the tape.

To Record From Microphone-

1. Insert the microphone plug into the "Mic. "

jack, located on the left side of the top panel.

2. Followthe instructions under the heading of ,

"To Make A Recording",

3. Best results will be obtained if the micro-

phone is kept closer to the source of sound than to any

walls in the recording area to prevent echos of the

sounds as they rebound off the walls.

NOTE: The microphone should be kept at least three

feet away from the loudspeakerduringrecord-

ing unless the "Speaker " control knob is in "Off "

position.

To Record From Radio Or

Television Receiver-

Recordings can be made from a radio or tele-

vision receiver by placing the microphone near the lou&

speakerl however, this type of recording may not be

satisfactory as other sounds may be picked up by the

microphone which as a result may be recorded on the

tape. A superior quality recording can be made by use

of Radio Cord Attachment. Connect attachment cord

as follows:

1. Connect the cord clips across the voice coil

terminals on the radio or television speaker,

2. A terminal strip marked Rad-Pho- Input is

provided on the bottom of the chassis, and the other

end of cord should be connected here.

3. Set the radio or television receiver for soft

playing, then operate the Ekotapecontrols as

described under "To Make A Recording".

To Record From Phonograph-

1" Connect the alligator clips of the Radio Cord

Attachmenttotheendsof thepickup leads of the phono-

graph and then connect the other end to the terminal

marked Radio-Pho-Input. Proceed with the recording

as described under "To Make A Recording.'.

NOTE: Shoulda hum develope from the above connec-

tions, reverse the cord clips on the pickup

leads.

To Rewind-

Turn the mechanism control knob (2) counter-

clockwise into the "Rewind" position. When the re-

winding is completed move the mechanism control

knob (2)into"Stop" positionand allow the tapeto come

to a complete stop before moving the mechanism control

knob to any other function.

Twin Track Operation-

Model212 is a twin-track unit, whichrecordson

approximately half the width of tie tape at one time .

1. To record a secondprogram onthe same tape ,

lift the full reel from the right hand spindle,

turn it over, and place itonthelefthandspindle.

2. Place the empty reel on the right hand spindle ;

properly thread the tape, and continue your re-

cording as describedunder "To MakeARecord -

ing".

NOTE: Since it is impossible to edit and splice one

"track" without affecting the other, recordings

which are to be edited should be limited to one

track only.

To Play A Recording-

1. With the tape properly threaded, turn the

mechanism control knob (2) to the "Forward" position .

2. Actjust the "Volume" and "Tone" controls to

suit.

3. Besure thespeaker "On-Off" switch, located

on the right side of the top panel, is in the "On" po-

sition.

Fast Forward-

If it is desired to reach a recording near the

endof atape ina few seconds, turn rrreehanismcontrol

knob (2) to the "Fast Forward" position. In the "Fast

Forward" position the tape moves ahead approximately

15 times normallistening speedof 3 3/4 or 7 L/2inches

per second. The most rapid fast f orward speed is

therefore obtained with the speed control set at 7 L/2 .

REMOVING UNIT FROM MOUNTING BOARD

All service work with the exception of cleaning

the head assembly, adjustment or replacement of brake

lever assemblies (45 and 54), remote lever assembly

(51), pinch roller and lever assemblies (22), (23) and

(18), pressure padassembly (28), will require removal

of unit from the mounting board.

1. To remove the back cover (5) for cleaning of

the head remove all control knobs, and remove two

screws located under mechanism control knob (2). Move

back cover (5) about 1/16 inch toward the front of the

unit and lift straight up and off.

2. Toremove recordhead cover (?), remove one

attaching screw and li-ft off.

3. For removal of the top panel assembly (13),

followtheabove instructionsand remove seven screws

on panel and two under back cover (5). Lift panel

straight up and off.

4. To remove recorder from mounting board,

omitparagraph 1, 2and 3, detachtheAC line cord, re-

movetwoscrewslocatedon each side of the top panel.

Carefully lift unit straight up and out, detaching all

leads, and other connections to the amplifier . Make

sure unit is completely free of the amplifier,

5. When reassemblingthe unit, reverse the above

procedurel plug the amplifier leads into the unit as

marked on the bottom of the unit. Be sure that all leads

clear all moving parts before lowering into place.

Nr!

Page 3

Fig.ure 3

TRoUBLES AND REMEDIES 3. Arr,plifier troubte.

Motor Or Amplifier Inoperafive When On-Off Control

Switch Is Turned On- 4. Worn or dirty pressure pad, See "Pressure

Pad And Lever Adjustments".

1' check to see if power is reaching recorder' b. pressure pad spring (2g) roose or missing.

2.Damaged power cord. (a) The pressure pad lever assembly (28)

@Repair or replace. should apply pressure against the tape, thus

holding the tape f i r m against the recording

3. Damaged "On-Off" control switch. head. If this is not true, check the pressure

@Replace "On-Off" control switch assembly. padspring (29); if looseor missing, replace.

4.Defectivepowertransformer, orrectifiertubg Erasing Incomplete Or No Erase-

will cause the amplifier to be inoperative.

@Replac"po*e"transformer. or rectifier tube. 1. Dirt on face of play-record head.

(a) Clean with soft cloth and carbon tetrachlo-

Sound Is Fuzzy, Faint, Distorted, ride.

or No sound- z. oscillatorcoilassemblyortubenotoperating.

1. Dirty head. (a) Check erase voltage with an AC vacuum

(a) Check the record head (30) to see if it is tube voltmeter. There should be a reading

dirty. The recording head is subject to an of approximately 45 volts.

accumulation of tape coating residue, which

is worn off the tape as it passes the head. 3. Defective erase coil in head.

This should be periodically removed since it (a) Check erase head continuity.

may cause faint recordings and poor playback .

Wipe off the record and erase head contact 4. Pressurepadsworn ornot properlyadjusted.

surfaces carefully with a clean cloth. If dirt See "Pressure Pad And Lever Adjustments".

is caked or hard and will not come off with a

dry cloth, dampen the cloth slightly with Failure To Record-

carbon tetrachloride. 1. Record coil open.

NOTE: Do not use a brush or excessive amount of (a) Replace play-record head (30).

solvent on the head surfaces. 2. Insufficient bias voltage.

2. Over recorded or under recorded tape. (a) Check bias voltage across play-record

(a) Correctrecording volume is very impor- head w ith an AC vacuum tube voltmeter.

tant. Too weaka signal, whichdoesnotcause There should be a reading of approximately

the recordlevel indicator to flicker, will re- 100 volts.

sult in weak playback and high background

noise. Too strong a signal, causing the in- 3. Dirt on face of play-record head.

dicator to g I o w continuously, will result in (a) Clean with soft cloth and carbon tetrachlo-

distortion during playback. ride.

Page 4

adjusted.

WiIl Not

Figure

Pressurepad worn, defective ornot properly

(a) Adjust pressure pador replace. See

"Pressure Pad And Lever Adjustments".

PIay Back-

4(a) Replace or readjust. See "Adjusting

Brake Lever Assembly".

Take-Up Or Fast Forward Inoperative,

1. Iake-up clutch worn or out of adjustment.

(a) Adjust or replace. See "CorrectingTake-

Up And Fast-Forward Troubles".

2. Drive pin (67) missing.

(a) Replace.

3. Brakes dragging on supply reel.

(a)Adjust brakes. See "Adjusting Brake

Lever Assembly".

4. Take-upreel supportplate (62) dirtyor dam-

aged, (a) Clean, Iubricate or replace. S e e "Cor-

recting Take-Up And Fast-Forward Trou-

bles",

5. Noisy, take-up or fast forward.

(a) Clean, Iubricate or replace.

6. Defective idler wtreels (?6 or 86).

(a) Replace. See "Correcting Take-Up And

Fast-Forward Troubles". (Paragraph 4).

?.. Reel take-up support plate spring (61) broken.

(a) Replace.

Tape Overruns From Fast Forward

To Forward Position-

1. Supply reel brakes not functioning properly,

worn or out of adjustment.

(a) Replace or readjust. See "Adjusting

Brake Lever Assembly".

2. Pinch roller (18) damaged or out of adjust-

ment.

1\'

1. Open coil in play-record head.

(a) Replace head.

2. Open input circuit.

(a) Check circuit.

Howl Or Ringing Sound-

1. Microphonic tube.

(a) Replace defective tube.

Trouble Common To Radio Receivers-

1. Defective cornponents.

(a) Check and replace in accordance with

standard practice.

Rewind Inoperative, Noisy Or lrregular-

1. Defective motor pulley assembly (94).

(a) Replace.

2. Supplyreel shaft supportassembly (55), dirty

or defective.

(a) Clean, Iubricate or replace.

3. Supply reel support spring (60) is broken.

(a) Replace.

4. Brake (45) dragging on take-up reel.

(a) Adjust brakes. See "Adjusting Brake

Lever Assembly".

Tape Overruns From Rewind To Stop-

1. Take-up reel brakes (45) not functioning pro-

perly, worn or improperly adjusted.

Page 5

dl I

A PHOTOFACT 'EXPLODED" VIEW

@ Howard W. Sams & Co., lnc. 1955

Page 6

Figure 5A. Exploded View Of Parts Above Baseplate.

-l

A PHOTOFACT "EXPLODED" VIE\(/

@ Howard W. Sams & Co., lnc. 1955

Figure 58 , E>rploded View Of Parts Below Baseplate.

hr!

Page 7

Adjustment".

Noisy Running In Stop And

Forward Positions-

1. Defective idlers, dry bearings or flat spots

on idlers.(a) Clean, Iubricate or replace. See "Cor-

bles".

Tape Spills Out Of Supply Reel n-

1. Dirty or defective pinch roller (18).

(a) Clean, Iubricate or replace. See "Cor-

recting Take-Up And Fast-Forward Trou-

bles".

2. Pinchroller lever assemblies(22 and 23) out

of adjustment or damaged.

Page 8

Figure 6

(a) Repair or replace" See "Pinch Roller (a) Adjust or replace. See "Pinch Roller

Adjustment".

Mechanism Control Knob (2) Inoperative-

1. Loose set screw in knob.

(a) Tighten.

2. Loose set screws in pinch roller cam assem-

(a) Adjust and tighten.

Speed Selector Not Functioning-

1. Broken springs (74 and 75) on drive idler

assemblies.

(a) Replace.

Speed Equalization Switch Not Functioning-

1. Switch carn assembly (52) Ioose or broken.

(a) Tighten or replace.

recting Take-Up And Fast-Forward Trou- bty (35).

ii !,';d

S .i lPo

E BTE

4 t66 .

9 -Loo

. c du

q 9 Hoo.5

g E d o!

J d E:? i;

EJPS'E"

3iislrH

( b E (,;g

- oo A!- D

:o!-9Fo

.acYa->a

5!". te_k

xt 3 EI Es

iEslaE.i

--i O Oi c U

:n6: E bs

PsEPEl9

6Eo".5oc

ABEIEgs

oc:iots

E-iou;+l

oo;-'"oo

&'SeE;i a

:;! J > c:

5t.Y9ri.9

,.., o ;: e ! L

E;885; g

.i ciai3d

EUJ

5:H

o.<U}

<r: {l

()

t:(!l

td>

cr. U)

@tRE E

-E@

rq=

-l [*]t'

6tr

JHI''

g.-a\

@tE

<) F

€

<(J

k€

a-N

s|o

e-\

"-(5)

'-- I

}\'!

Page 9

2. Switch contacts worn, dirty or broken.

(a) Clean contacts or replace. See "Speed

Equalization Switch Adjustment".

Machine Inoperative When Mechanism

1. Damaged or worn cam and shaJt assembly

(35A). (a) Replace.

ADJUSTMENTS

Pressure Pad And Lever Adjustments-

Cleaning, adjusting or replacing pressure pad

assembly and lever assemblies should be done in the

following manner;

1. Toadjustpressurepadassembly(28), remove

back cover (5) and top panel (13). To remove

assembly f or cleaning, repair or adjustment,

remove spring (29) and retaining ring (27). Ro-

tate the pressurepad assemblyslightly counter-

clockwise and lift off. Reassemble in reverse

orderand lubricate (see "Lubrication"). Adjust

byturning cam and shaft assembly (35A) to "For-

ward" position and check to be sure pressure

pads engage groove of head properly.

NOTE: Be sure flat of pad presses against the erase

and record p o I e pieces. To adjust properly ,

bend levers accordingly.

Improper Rewind Operation-

Ifthe unit doesnot perform therewind operation

properly, check as follows:

1. Adefective motorpulley(94) maybe the cause

of improper rewind. To replace a defective

motor pulleyassembly, remove the three mount-

ingscrews (103) from motor and plateassembly

(104). Carefully remove theassembly so as not

to damage the drive idler assemblies (?6 and 86).

Before removing the motor pulley measure and

note distance from hub to motor. Loosen the

twoAllen head set screws andremove themotor

pulley assembly, Reassemble with a new pulley

inreverse order, Be surepulley hub is correct

distance from motor as previously noted.

2. Adirty or defective supply reelshaft support

assembly (55) may be responsible for improper

rewind. To correctfaulty operation, clean, re-

pair or replace any damaged or worn parts.

Adjusting Brake Lever Assembly (45 and 54)-

If tape overruns from "Rewind" to "Stop" posi-

tion, adjust, clean or replace brake lever assembly

(45).

1. To ad just brake lever assembly (45), turn

camand shaft assembly (35A) to"Rewind" posi-

tion. Adjust either by bending the brake lever

assembly (45) or by slightly bending the stop on

mechanism panel just enough to clear the cup

disc on reel shaft (10). Clearance should not

exceed 1/64 inch. Adjust brake lever (45) so

that remote Iever (51) returns to "Stop" posi-

tion. Check to be sure brake lever (54) on the

supply reel (9) is being held in its stop position

Page 10

by the remote lever assembly (51). If not, turn

camand shaftassembly (35A) to "FastForward"

andadjust brake lever assembly(54) as outlined

above. Before reassembly of top panel, thread

recorder with tape and checkunit for any further

trouble.

2. If tape overruns from "Fast Forward" to

"Forward", check operation of brake lever (54)

as explained in above paragraph with this ex-

ception; turn cam and shaft assembly (35A) to

"Fast Forward" position and adjust brake lever

(54) on the supply reel (9). Check brake lever

(45) on the take-up reel to be sure it is held in

its stop position by the remote lever assembly

(51). f not, turn carn and sha"ft assembly (35A)

to "Rewind" and adjust brake lever as covered

in above paragraph.

Adjusting Brake Arm Assembly (113)-

If af ter completing adjustments as covered in

"Adjusting Brake Lever Assembly", the overrun on

"Rewind" and "Fast Forward" is not corrected, re-

move the unit from the case and check as follows:

1, Check "Rewind" position first and adjust or

replace brake arm assembly (113). First be

sure brake pad is still attached to arm. Turn

cam and shaft assembly (35A) to the "Rewind"

position and adjust the brake arm (113) so pad

just clears the reel pulley assembly (70) but by

no more than 1/64 inch.

2. Check "Fast Forward" position and adjust or

replace brake arm assembly (113). First be

sure brake pad is still attached to arm. Turn

cam and shaft assembly (35A) to "Fast For-

ward" position and ad just bral<e arm (113) so

thatthe pad clears reel pulley assembly (Ba) by

no more than 1/64 inch.

Correcting Take-Up And Fast

Forward Troubles-

If take-up and fast forward drive does not func-

tion properly, r e m o v e unit from case and check as

follows:

1. If the take-up or fast-forward drive is weak ,

screw the self-Iocking wing nut (?3) on the reel

shaft (10) s o spring (?2) will produce a greater

friction drive.

2. Ifafter adjustingthe self-locking wingnut

(?3) a weak drive still exists, then remove wing

nut, spring (?2), washer (?1) and reel pulley

assembly (?0) and check felt pad on pulley. If

pad is worn badly, replace assembly (70), but

if pad shows no excegsive wear, remove clutch

disc (68) and check to see i.f drive pin (6?) is in

place. Replace pin if missing and reassemble

in reverse order and adjust wing nut.

3. If unit i s noisy in "Forward" or "Fast-For-

ward" position, check to s e e if idler assembly

(110) isdirty or damaged, Or it may be the re-

sult of dirty bearings on the take-up shaft or

pulley assembly. To check, inspect idler

assembly (110) and determine if dirty or defec-

tive. Remove retainingring (112), fibre washer

(111), idler assembly (110), and fibr e washer

(111). Clean any dirt or oil from idler tire and

Table of contents

Popular Voice Recorder manuals by other brands

Sony

Sony ICD-UX533F quick start guide

RCA

RCA VR5230 quick start guide

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Assembly and instruction manual

Sony

Sony TCM-400DV Specification sheet

LogTag

LogTag TREL30-16 user guide

SVAT

SVAT CVP800 user manual

Marantz

Marantz PMD620 Service manual

Zoom

Zoom H4next Operation manual

Roland

Roland BR-900CD manual

JVC

JVC ProHD GY-HMZ1U Basic user's guide

Panasonic

Panasonic PQT8531-P operating instructions

Sanyo

Sanyo TRC-6400 Brochure & specs

Tascam

Tascam DR-07 quick start guide

Olympus

Olympus DW-90 instructions

Sanyo

Sanyo ICR-B150 instruction manual

Korg

Korg D4 owner's manual

Sony

Sony ICD-SX46 - Ic Recorder Specifications

Olympus

Olympus DIGITAL VOICE RECORDER WS-200S Mode d'emploi
