EINHELL BG-CB 2041 T User manual

BG-CB 2041 T

Petrol Multi Tool Artikel-Nr.: 4501650

Ident-Nr.: 11011

Komponenten / Ersatzteile

Position Artikel-Nr. Beschreibung

1 450165001001 Engine 0,8kW / 1,1 PS / 25,4ccm

7 450165001007 Hex screw M5x30

8 450165001008 Front handle

9 450165001009 Safety pole

10 450165001010 Screw St4.2x13

11 450165001011 Buttom cover of front handle für Zusatzhandgriff

12 450165001012 Chain saw cpl.

22 450165001022 Pipe connector assy.

23 450165001023 Hex screw set M5x12 mit Unterlegscheibe

24 450165001024 Hex screw set M5x25 mit Unterlegscheibe

25 450165001025 Spring

26 450165001026 Position pin

27 450165001027 Handle (right)

31 450165001031 Handle (left)

32 450165001032 Switch C-1type

33 450165001033 Spring

34 450165001034 Accelerator trigger

35 450165001035 Safety lever

38 450165001038 Screw with flat washer M5x12 mit Unterlegscheibe

39 450165001039 Hex screw M5x25

40 450165001040 Blade guard seat für Messerschutzhaube

41 450165001041 Blade guard

42 450165001042 Nut M5

43 450165001043 Screw ST4.2x9.5

44 450165001044 Hex screw set M5x16 mit Unterlegscheibe

47 450165001047 Blade guard regula

48 450165001048 Nylon cut

51 450165001051 Gear case assy

52 450165001052 Spool body

53 450165001053 Spring

54 450165001054 Spring washer

57 450165001057 Spool cover

800 450165001800 Mixing canister 0.6L(1:40)

801 450165001801 Hex wrench S4

802 450165001802 Hex wrench S5

803 450165001803 Spanner S8-S10

804 450165001804 T wrench S19-S17

805 450165001805 Single belt

Engine Artikel-Nr.: 450165001001

Ident-Nr.:

Komponenten / Ersatzteile

Position Artikel-Nr. Beschreibung

201 450165001201 Screw set M4x15 mit Unterlegscheibe

202 450165001202 Screw ST4x9.5

203 450165001203 Screw St4.2x13

205 450165001205 Starter housing assy

208 450165001208 Chock lever

209 450165001209 Start pulley assy.

210 450165001210 Outlet gasket

213 450165001213 Oil seal 12x22x7

216 450165001216 Crank case gasket

218 450165001218 Ignition Coil mit Zündkerzenstecker

219 450165001219 Fly wheel

220 450165001220 Clutch shoe

221 450165001221 Spring

222 450165001222 Spring washer ?8

223 450165001223 Clutch screw M6

235 450165001235 Front housing

239 450165001239 Clutch drum

240 450165001240 Tank cap assy.

241 450165001241 Fuel tank

242 450165001242 Pipe jacket für Treibstoffleitungen

243 450165001243 Outlet pipe

244 450165001244 Inlet pipe

245 450165001245 Washer ?4.4

246 450165001246 Air filter

247 450165001247 Fuel filter

248 450165001248 Air filter cover

250 450165001250 Muffler cover

251 450165001251 Muffler

252 450165001252 Muffler gasket

256 450165001256 Piston pin clip ?8

257 450165001257 Piston pin ?8x28

260 450165001260 Piston

261 450165001261 Piston ring

262 450165001262 Cylinder gasket

263 450165001263 Cylinder

264 450165001264 Spark plug Champion RCJ6Y

270 450165001270 Carburetor gasket

273 450165001273 Screw für Luftfilterdeckel

275 450165001275 Carburetor

Chain saw cpl. Artikel-Nr.: 450165001012

Ident-Nr.:

Komponenten / Ersatzteile

Position Artikel-Nr. Beschreibung

102 450165001102 Bearing 609-2Z

103 450165001103 Bearing 627-2Z

105 450165001105 Hex screww M6X20

106 450165001106 Hex screww M6X25

109 450165001109 screww M5X12

110 450165001110 Spring washer 5

111 450165001111 Stop washer 24

112 450165001112 Stop washer 9

115 450165001115 Spring washer 6

116 450165001116 Flat washer 6

118 450165001118 Flat washer 5

119 450165001119 Flat washer 6

120 450165001120 Oil nipple M6

121 450165001121 Gear case

122 450165001122 Gear

124 450165001124 Screw

128 450165001128 Gear

129 450165001129 Cover

135 450165001135 Oil pump assy.

136 450165001136 Oil pipe

137 450165001137 Chain wheel

138 450165001138 Washer

139 450165001139 Bar cover

901 450165001901 Oil tank assy.

902 450165001902 Tank cap assy.

Art.-Nr.: 45.016.50 I.-Nr.: 11011

BG-CB 2041 T

DOriginalbetriebsanleitung

Benzin-Multifunktionswerkzeug

Hochentaster

GB Original operating instructions

Petrol Multi-Function Tool

Pole-Operated Pruner

SOriginal-bruksanvisning

Bensindrivet multifunktionsverktyg

Stamkvistare

Anleitung_BG_CB_2041_T_SPK1.indb 1Anleitung_BG_CB_2041_T_SPK1.indb 1 24.01.12 08:2224.01.12 08:22

- 2 -

1 2

29 15

9 10 13

12 17

Anleitung_BG_CB_2041_T_SPK1.indb 2Anleitung_BG_CB_2041_T_SPK1.indb 2 24.01.12 08:2224.01.12 08:22

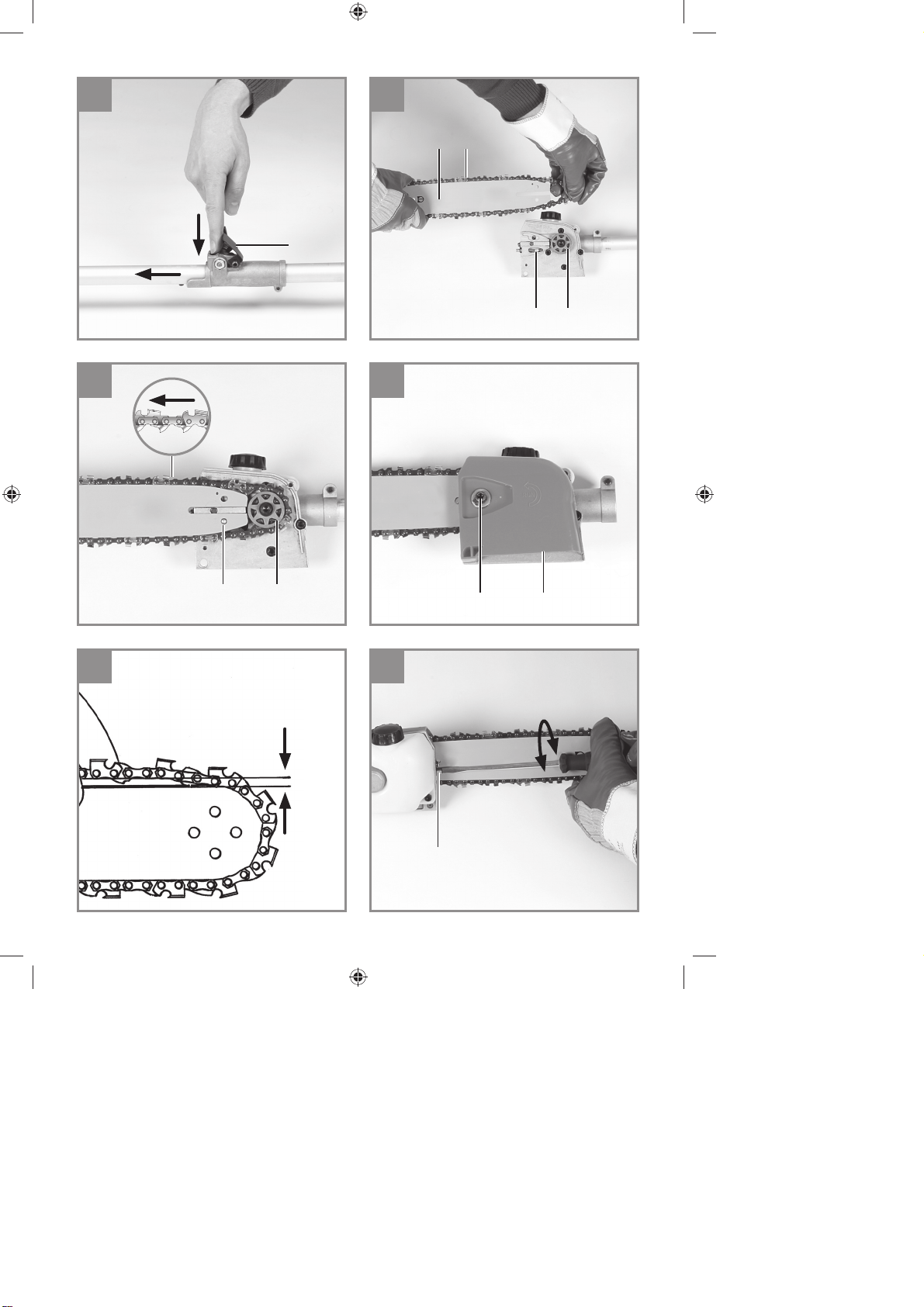

- 3 -

4 5

6 7

8 9

G N

3bF

4 28 3a K

Anleitung_BG_CB_2041_T_SPK1.indb 3Anleitung_BG_CB_2041_T_SPK1.indb 3 24.01.12 08:2224.01.12 08:22

- 4 -

10 11

L S

12 13

LP O

14 15

2 mm

Anleitung_BG_CB_2041_T_SPK1.indb 4Anleitung_BG_CB_2041_T_SPK1.indb 4 24.01.12 08:2324.01.12 08:23
