Ego Power+ HPW3200 User manual
OPERATOR'S MANUAL
56-VOLT LITHIUM-ION
PRESSURE WASHER
MODEL NUMBER HPW3200/HPW3200-FC
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
PRESSURE WASHER
Español p. 89
Français p. 43
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC2
READ ALL INSTRUCTIONS!
READ & UNDERSTAND
OPERATOR'S MANUAL
TABLE OF CONTENTS
Safety Symbols ..........................................3
Symbols ...............................................4
Safety Instructions for Pressure Washer ....................5-6
Introduction ............................................7
Specifications ...........................................8
Accessories ............................................9
Description .........................................10-14
Assembly ..........................................15-24
Operation ..........................................25-30
Maintenance ........................................31-36
Troubleshooting .....................................37-39
EGO Limited Warranty .................................40-41
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 3
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING: Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER”, “WARNING”,
and “CAUTION” before using this machine. Failure to follow all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
The definitions below describe the level of severity for each signal word. Please read
the manual and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
DANGER DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, will result in minor or moderate injury.
DAMAGE PREVENTION AND INFORMATION MESSAGES
These inform the user of important information and/or instructions that could lead
to equipment or other property damage if they are not followed. Each message is
preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not
followed.
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC4
SYMBOLS
This page depicts and describes symbols that may appear on this product. Read,
understand, and follow all instructions on the product before attempting to assemble
and operate.
Safety Alert Precautions that involve your safety.
Read &
Understand
Operator's
Manual
To reduce the risk of injury, user must read
and understand the operator’s manual before
using this product.
Do not connect
to the potable
water mains.
Product is not intended to be connected to
the potable water mains.
IP...
Ingress
Protection (IP)
Rating
Classifies the degree of protection provided
by an enclosure, for electrical equipment.
°F Degrees
Fahrenheit Temperature
°C Degrees Celsius Temperature
lbs Pounds Weight
kg Kilogram Weight
PSI Pounds per
Square Inch Pressure
MPa Megapascal Pressure
GPM Gallons per
Minute Flow rate
L/min Liters per Minute Flow rate
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 5
SAFETY INSTRUCTIONS FOR PRESSURE WASHER
WARNING: Risk of injury. Do not direct discharge stream at persons.
WARNING: When using this product basic precautions should always be
followed, including the following:
◾Read all the instructions before using the product.
◾To reduce the risk of injury, close supervision is necessary when a product is used
near children.
◾Know how to stop the product and bleed pressure quickly. Be thoroughly familiar
with the controls.
◾Stay alert – watch what you are doing.
◾Do not operate the product when fatigued or under the influence of alcohol or
drugs.
◾Keep operating area clear of all persons.
◾Do not use the pressure washer in bad weather conditions, especially when there
is a risk of lightning. This decreases the risk of being struck by lightning.
◾Do not connect to the potable water mains. Product is not intended to be
connected to the potable water mains.
◾Do not overreach or stand on unstable support. Keep good footing and balance at
all times.
◾Follow the maintenance instructions specified in the manual.
◾Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to battery pack, picking up or carrying the appliance. Carrying the
appliance with your finger on the switch or energizing appliance that has the
switch on invites accidents.
◾Disconnect the battery pack from the appliance before making any adjustments,
changing accessories, or storing appliance. Such preventive safety measures
reduce the risk of starting the appliance accidentally.
◾Recharge only with the charger specified by the manufacturer. A charger that is
suitable for one type of battery pack may create a risk of fire when used with
another battery pack.
◾Use the appliance only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC6
◾When battery pack is not in use, keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery terminals together
may cause burns or a fire.
◾Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the battery may cause irritation or burns.
◾Do not use a battery pack or appliance that is damaged or modified. Damaged or
modified batteries may exhibit unpredictable behavior resulting in fire, explosion
or risk of injury.
◾Do not expose a battery pack or appliance to fire or excessive temperature.
Exposure to fire or temperature above 265°F (130°C) may cause explosion.
◾Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specified in the instructions. Charging
improperly or at temperatures outside of the specified range may damage the
battery and increase the risk of fire.
◾Have servicing performed by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
◾Do not modify or attempt to repair the appliance or the battery pack (as
applicable) except as indicated in the instructions for use and care.
◾Use only with the battery packs and chargers listed below:
BATTERY PACK CHARGER
BA1400, BA1400-FC, BA2800, BA2800-FC,
BA4200, BA4200-FC, BA1400T, BA1400T-FC,
BA2242T, BA2242T-FC, BA2800T, BA2800T-FC,
BA3360T, BA3360T-FC, BA4200T, BA4200T-FC,
BA4480T, BA4480T-FC, BA5600T, BA5600T-FC,
BA6720T, BA6720T-FC
CH2100, CH2100-FC,
CH3200, CH3200-FC,
CH5500, CH5500-FC,
CH2800D, CH2800D-FC,
CH7000, CH7000-FC
SAVE THESE INSTRUCTIONS! Refer to them frequently and use them to instruct others
who may use this appliance. If you loan this appliance to someone else, also loan these
instructions to them to prevent misuse of the product and possible injury.
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 7
INTRODUCTION
Congratulations on your selection of the 56V Lithium-ion Pressure Washer. It has been
designed, engineered and manufactured to give you the best possible dependability
and performance.
Should you experience any problem you cannot easily remedy, please contact EGO
customer service center 1-855-EGO-5656.
This manual contains important information on to the safe assembly, operation and
maintenance of your product. Read it carefully before using the product. Keep this
manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE.
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC8
SPECIFICATIONS
Voltage 56 V
Maximum Rated Pressure 3200 PSI (22 MPa)
Maximum Rated Flow
(with quick connect lance and stainless steel
wand connected)
1.2 GPM (4.5 L/min)
Maximum Rated Flow
(with only short pressure gun connected) 2.0 GPM (7.5 L/min)
Ingress Protection Rating IPX5* (Protection from water jets)
Recommended Operating Temperature 41°F – 104°F (5°C – 40°C)
Recommended Storage Temperature -4°F – 158°F (-20°C – 70°C)
Weight (without battery pack) 36.2 lbs. (16.4 kg)
* NOTE: IPX5 rating is valid when the battery compartment is properly closed.
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC 9
ACCESSORIES
WARNING: Use only identical accessories listed below. Use of accessories that
do not meet the original equipment specifications may lead to improper performance
and compromised safety.
PART NAME MODEL NUMBER
0° Nozzle ANZ3200
Nozzle Kit
(Includes one of each: Turbo nozzle, 15° nozzle, 25° nozzle,
40° nozzle, Rinse nozzle)
ANK3200
For more information about the latest accessories, please visit:
www.egopowerplus.com.
56-VOLT LITHIUM-ION PRESSURE WASHER — HPW3200/HPW3200-FC10
DESCRIPTION

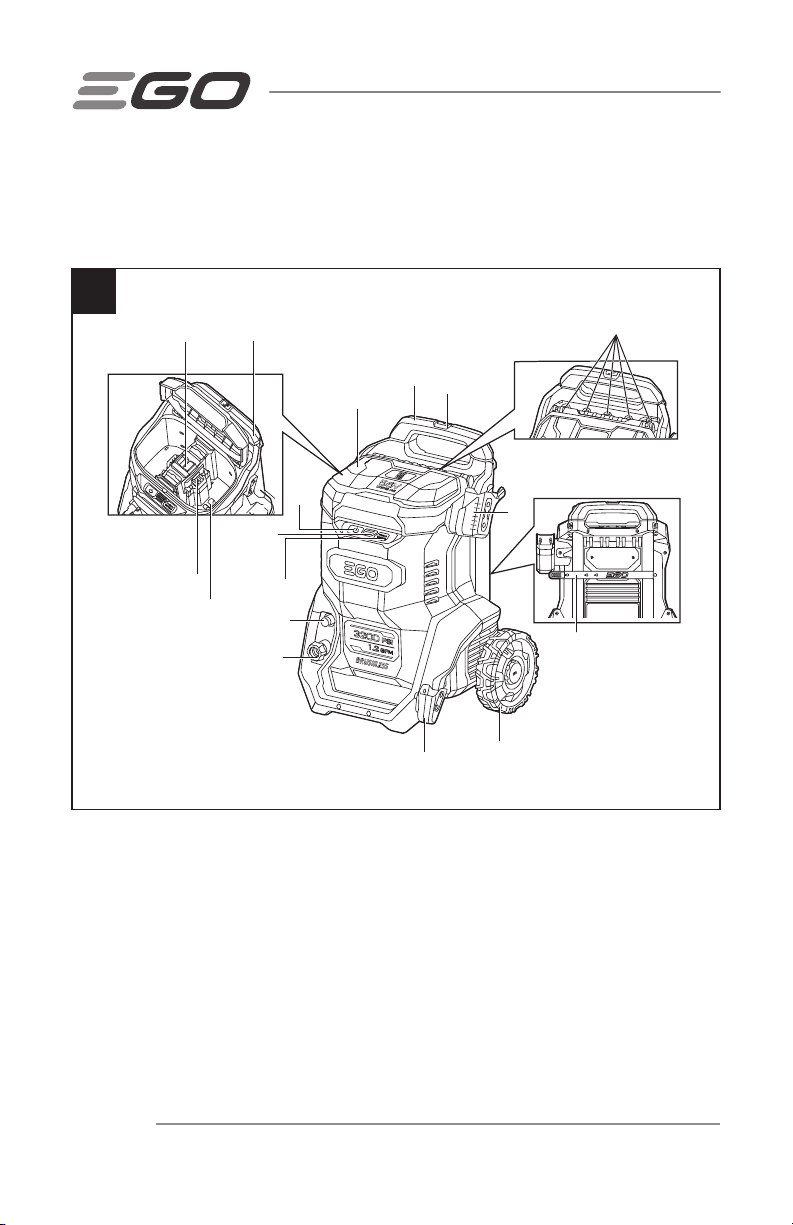

KNOW YOUR PRESSURE WASHER (Fig. 1)
1
1316
14
15
4
17
5
3
8
7
6
9
10
11
12
12
1. Telescopic Handle
2. Handle Lock Button
3. Upper Holder Bracket
4. Wheel (x2)
5. Lower Holder Bracket
6. Water Inlet Port
7. Water Outlet Port
8. Speed Button
9. Speed Indicator
10. Power Button
11. Battery Pack Compartment
12. Nozzles Storage
13. Battery Pack Compartment Cover
14. Electric Contacts
15. Ejection Mechanism
16. Battery-Release Button
17. Hose Holder Strap
